Key Features
- 4 Pole Chassis Connector
- 3/16" Flat Tabs
- Standard D-Shape Housing
- Long-Lasting and Reliable
- Airtight Design
- Black Finish
- Full Box of 100 Connectors
Description

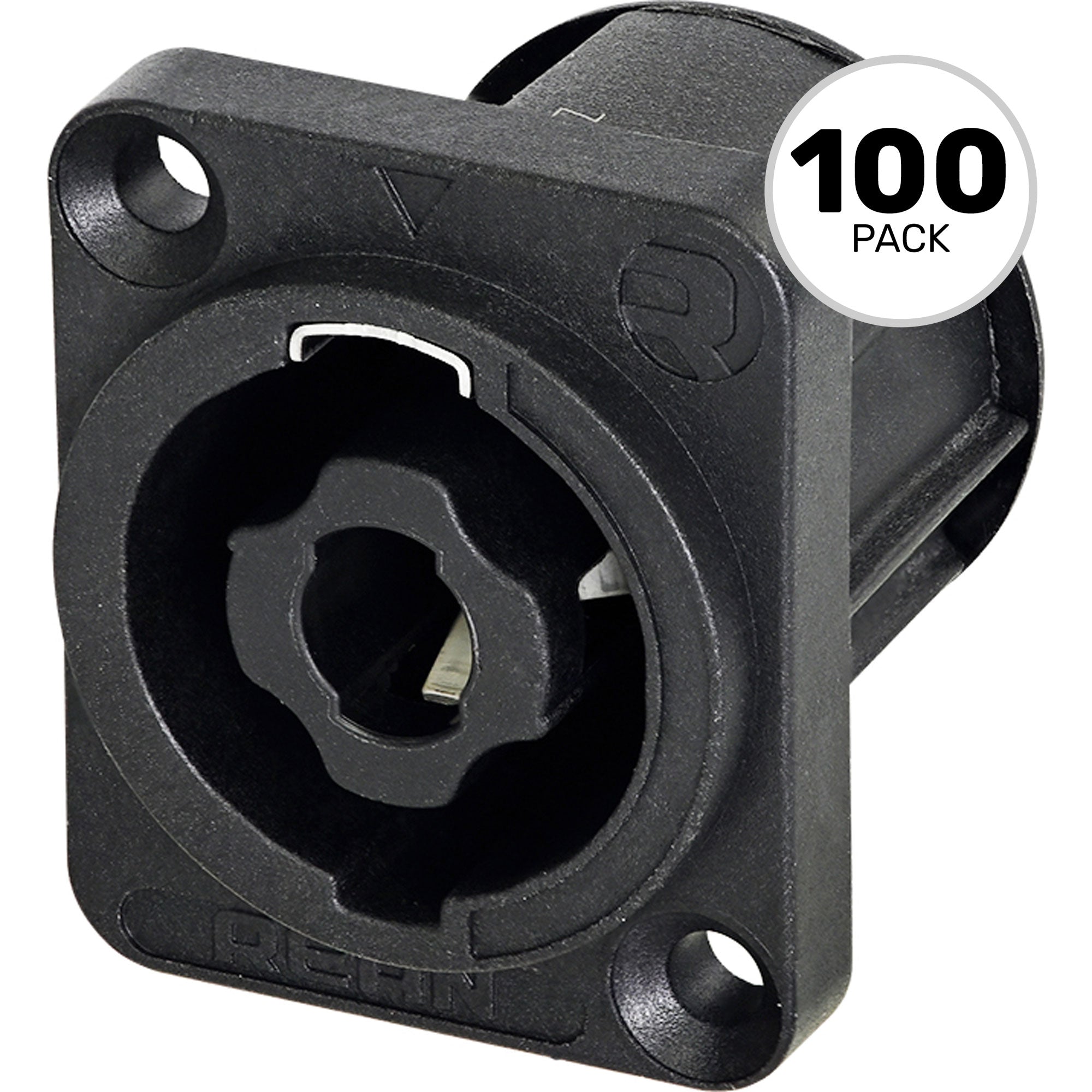

4-Pole speakON Chassis Receptacle with Solder Tabs - Full Box of 100 Connectors

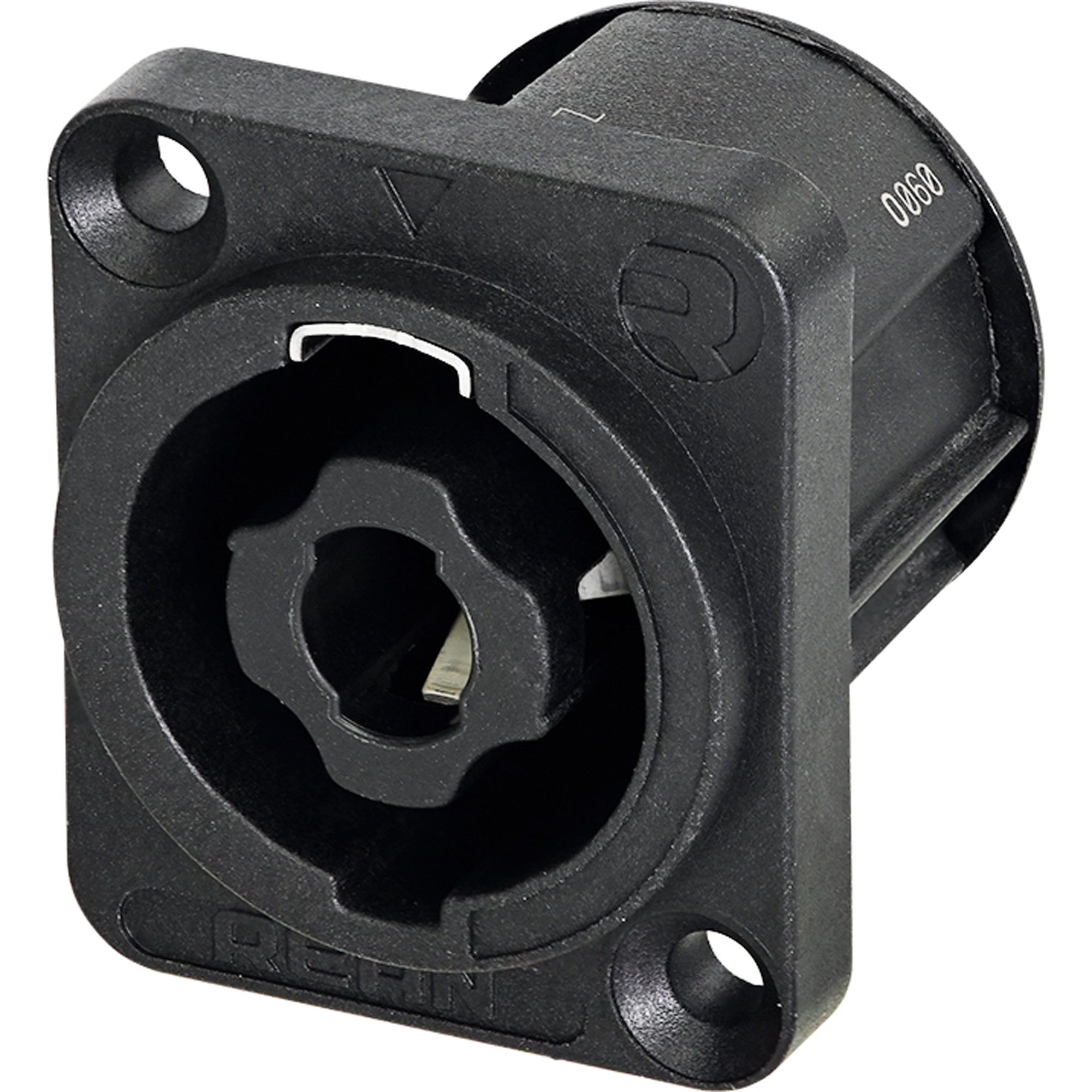

4 pole loudspeaker receptacle, D-Size front mounted, 3/16" flat tabs contacts
Features & Benefits
- Using fiberglass material, rugged insert and shell
- Solid keyway, reliable and suitable
- Robust lock system, safe locking
- Chuck type strain relief, maximum cable capacity, quick and convenient installation
- Sealed design, technology model in the speaker connector application field
Technical Information
- Product:
- Title: RLS4MPZ
- Connection Type: Loudspeaker Connectors
- Electrical:
- Rated current: continuous 30 A rms
- Contact resistance: ≤ 5 mΩ
- Insulation resistance: > 1 GΩ
- Dielectric strength: 4 kV dc
- Rated Voltage: 250 V
- Mechanical:
- Lifetime: > 1000 mating cycles
- Chassis shape: D

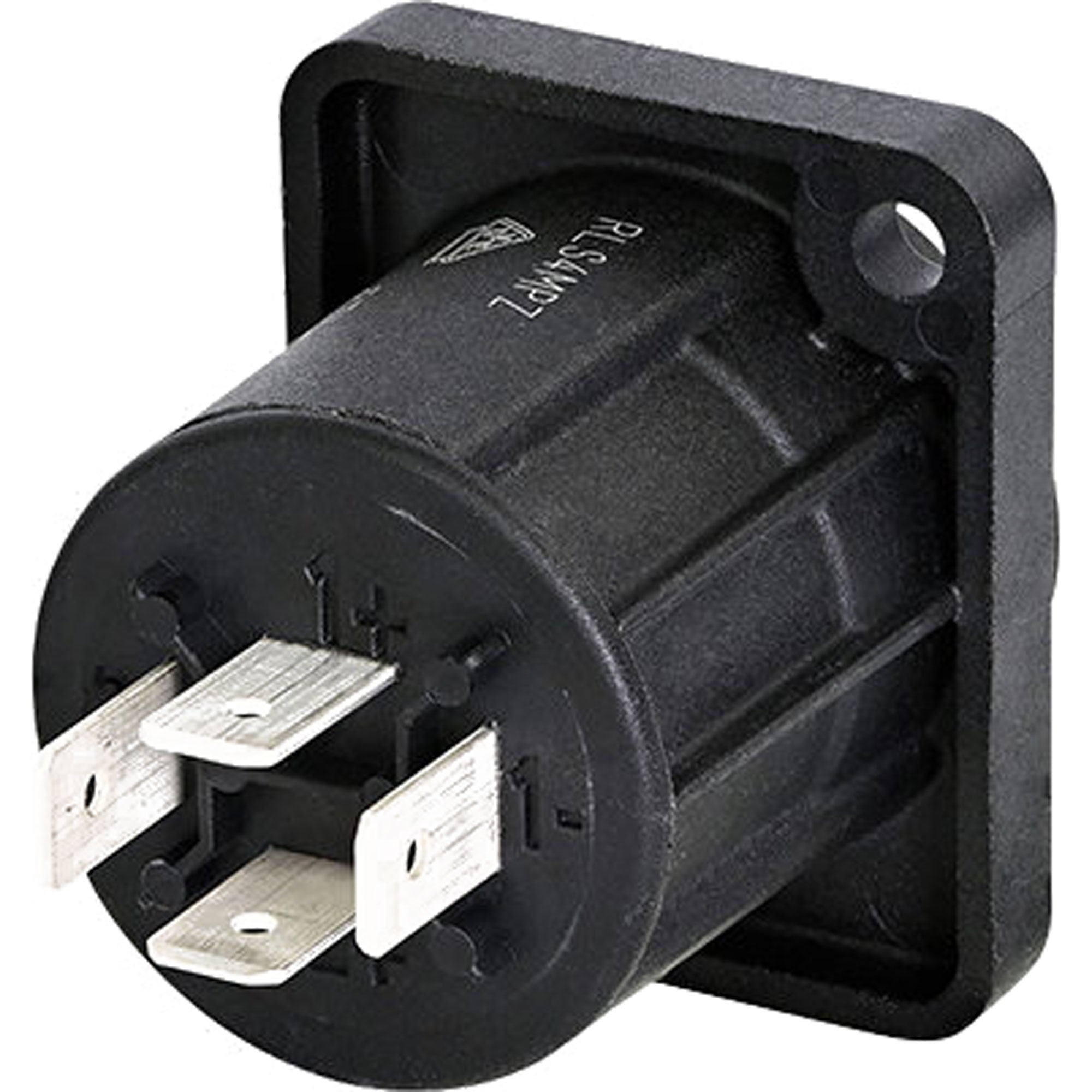

- Wiring: flat tab ( 4.8 x 0.5 mm ) or soldering
- Mounting direction: Front mounting or rear mounting
- Material:
- Contact: Bronze
- Contact plating: Ag
- Shell: PA6+30%GF
- Environmental:
- Temperature range: -30 °C to +80 °C
- Flammability: UL94 V-0
- Solderability: complies with IEC68-2-20
Details
- Manufacturer: Neutrik
- MPN: RLS4MPZ
- Model Number: RLS4MPZ
