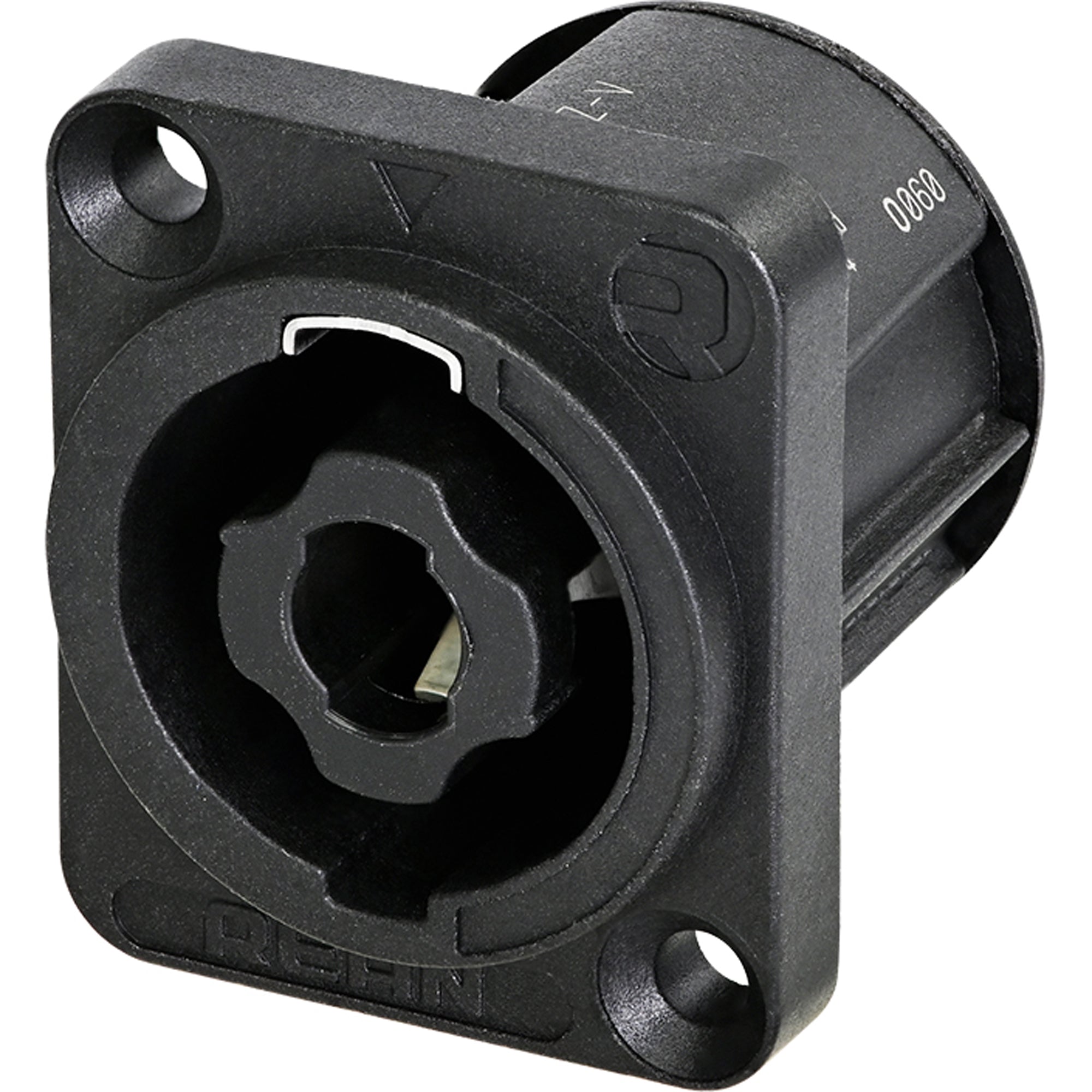

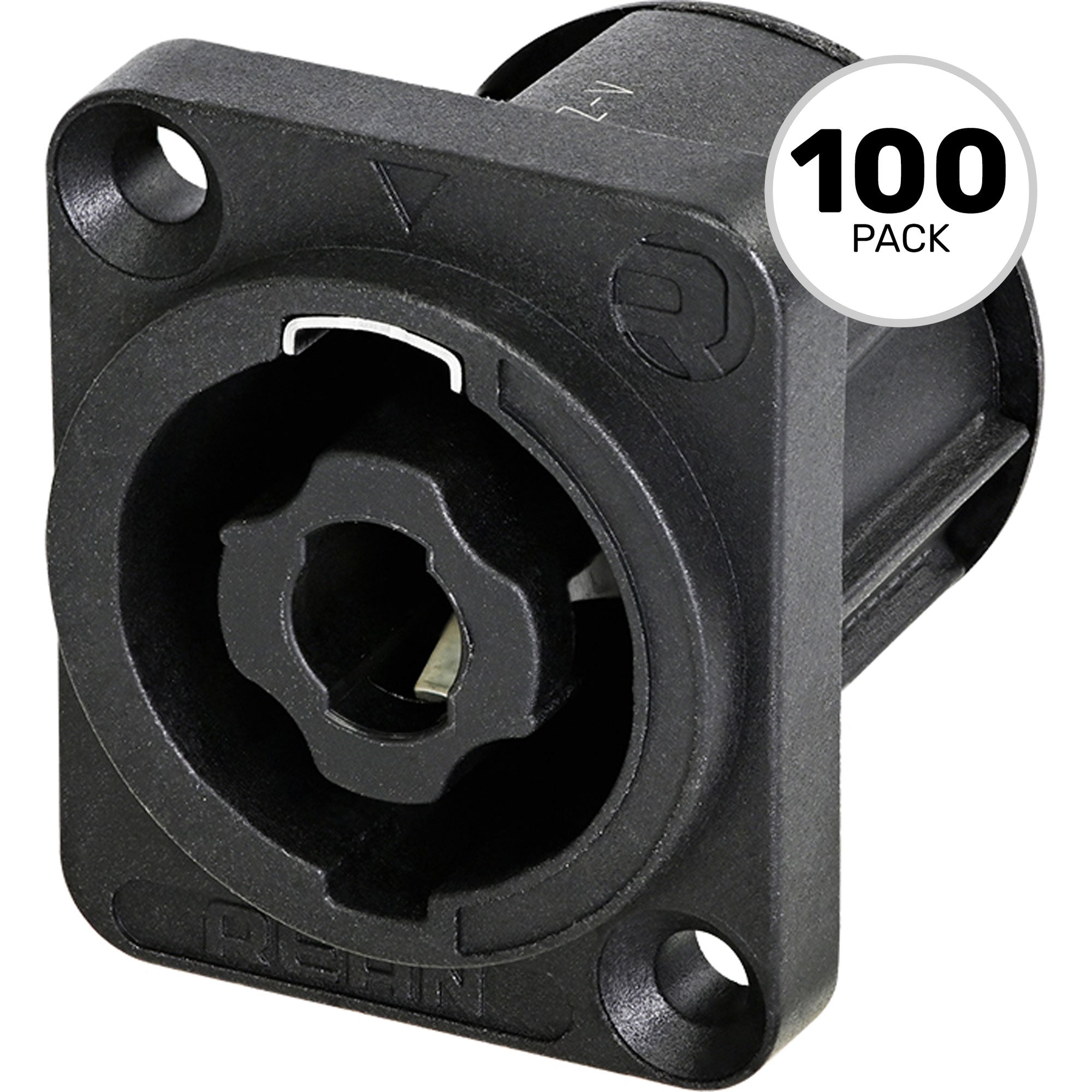

Neutrik Rean RLS4MDZ-V 4-Pole speakON Panel Mount Connector, PCB Contacts, Vertical (Box of 100)

4-Pole speakON Chassis Receptacle with PCB Contacts, Vertical - Full Box of 100 Connectors

4 pole loudspeaker receptacle, D-Size front mounted, PCB Contacts, vertical

Features & Benefits

• Using fiberglass material, rugged insert and shell
• Solid keyway, reliable and suitable
• Robust lock system, safe locking
• Chuck type strain relief, maximum cable capacity, quick and convenient installation
• Sealed design, technology model in the speaker connector application field

Technical Information

• Product
• Title: RLS4MDZ-V
• Connection Type: Loudspeaker
• Gender: Male
• Electrical
• Dielectric strength: 4 kV dc
• Insulation resistance: > 1 GΩ
• Rated current per contact: continuous 30 A rms
• Transmission performance: 250 V
• Attention: Shall NOT be used as an AC mains connector!
• Mechanical
• Lifetime: > 1000 mating cycles
• Wiring: Soldering
• Mounting direction: Front mounting
• Chassis shape: D
• Material
• Contacts: Bronze
• Shell: PA6+30% GF
• Environmental
• Flammability: UL94 V-0
• Solderability: IEC68-2-20
• Temperature range: -30 °C to +80 °C
