Key Features
- 4 Pole Cable Connector
- Easy to Assemble
- For Cables 6 to 10mm Diameter
- Quick Locking System
- Long-Lasting & Reliable
- Integrated Chuck Type Strain Relief
Description

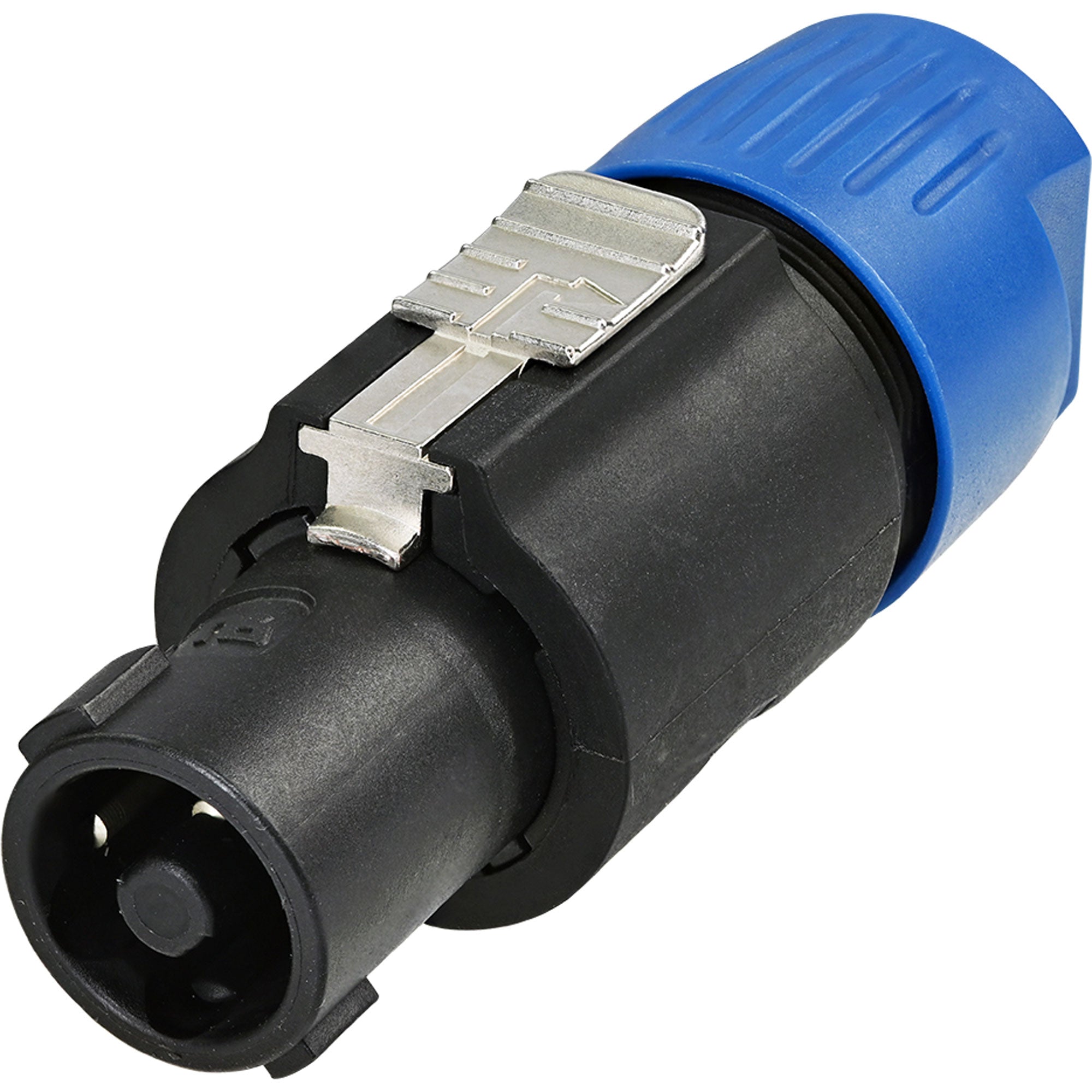

4-Pole speakON Cable End Connector
4 pole speakON loudspeaker cable connector with latch lock, chuck and bushing.
The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. RLS4FC features solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.
Features & Benefits
- Using fiberglass material, rugged insert and shell
- Solid keyway, reliable and suitable
- Robust lock system, safe locking
- Chuck type strain relief, maximum cable capacity, quick and convenient installation
- Sealed design, technology model in the speaker connector application field
Technical Information
- Product
- Title: RLS4FC
- Connection Type: Loudspeaker Connectors
- Electrical
- Contact resistance: ≤ 5 mΩ (after lifetime)
- Dielectric strength: 4 kVdc (peak)
- Insulation resistance: > 1 GΩ (after dampheat test)
- Rated current per contact: 30 A
- Rated voltage: 250 V (insulation)
- Attention: Shall NOT be used as an AC mains connector!
- Mechanical
- Cable O.D.: 6 - 10 mm
- Lifetime: > 1000 mating cycles
- Wiresize: 4 mm²
- Wiresize: 12 AWG
- Environmental
- Temperature range: -30 °C to +80 °C
Details
- Manufacturer: Neutrik
- MPN: RLS4FC
- Model Number: RLS4FC
