Key Features
- Female 3-Pin XLR Connector
- Industry Standard
- Solder Cups
- Nickel Metal Housing
- Silver Contacts
- Full Box of 100 Connectors
Description

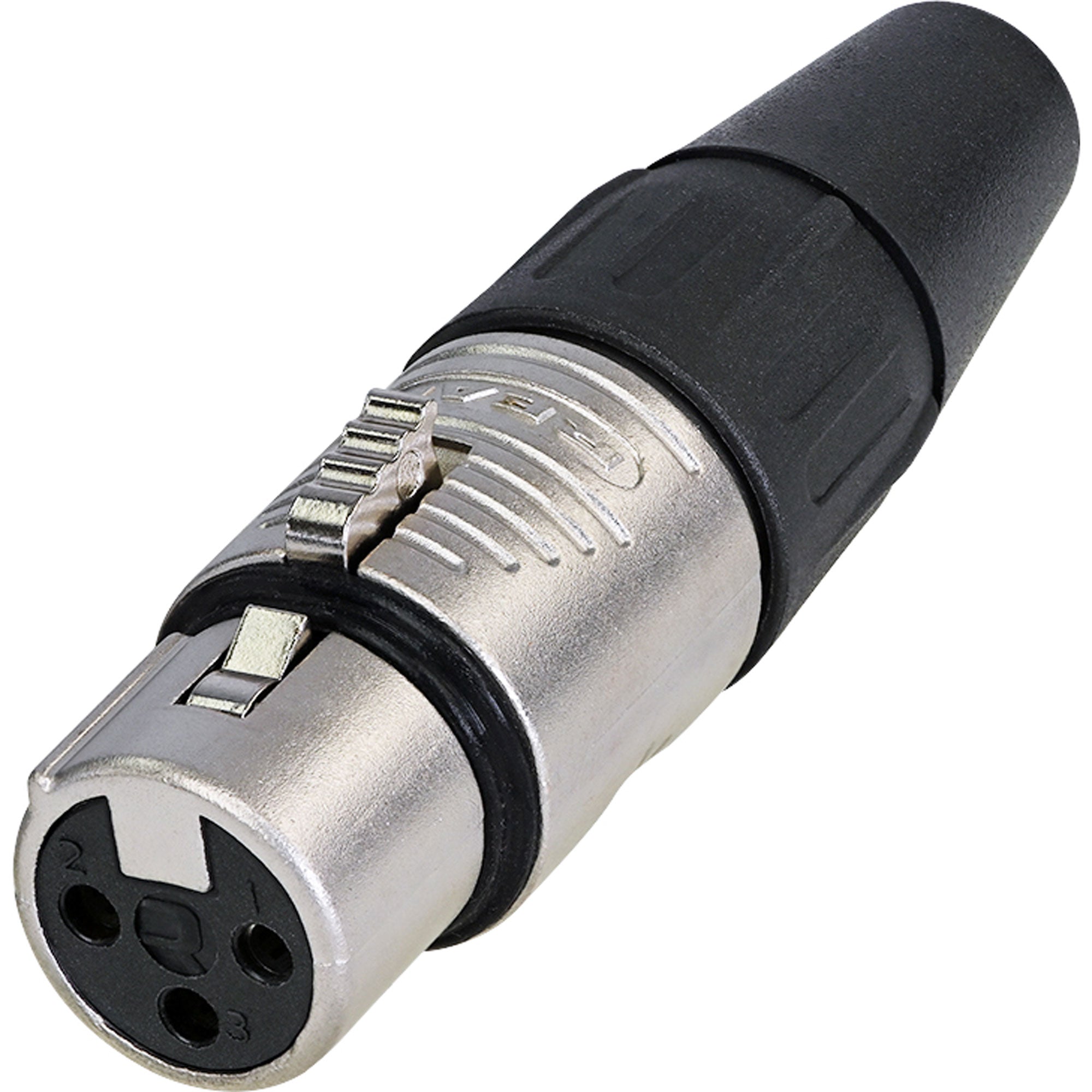

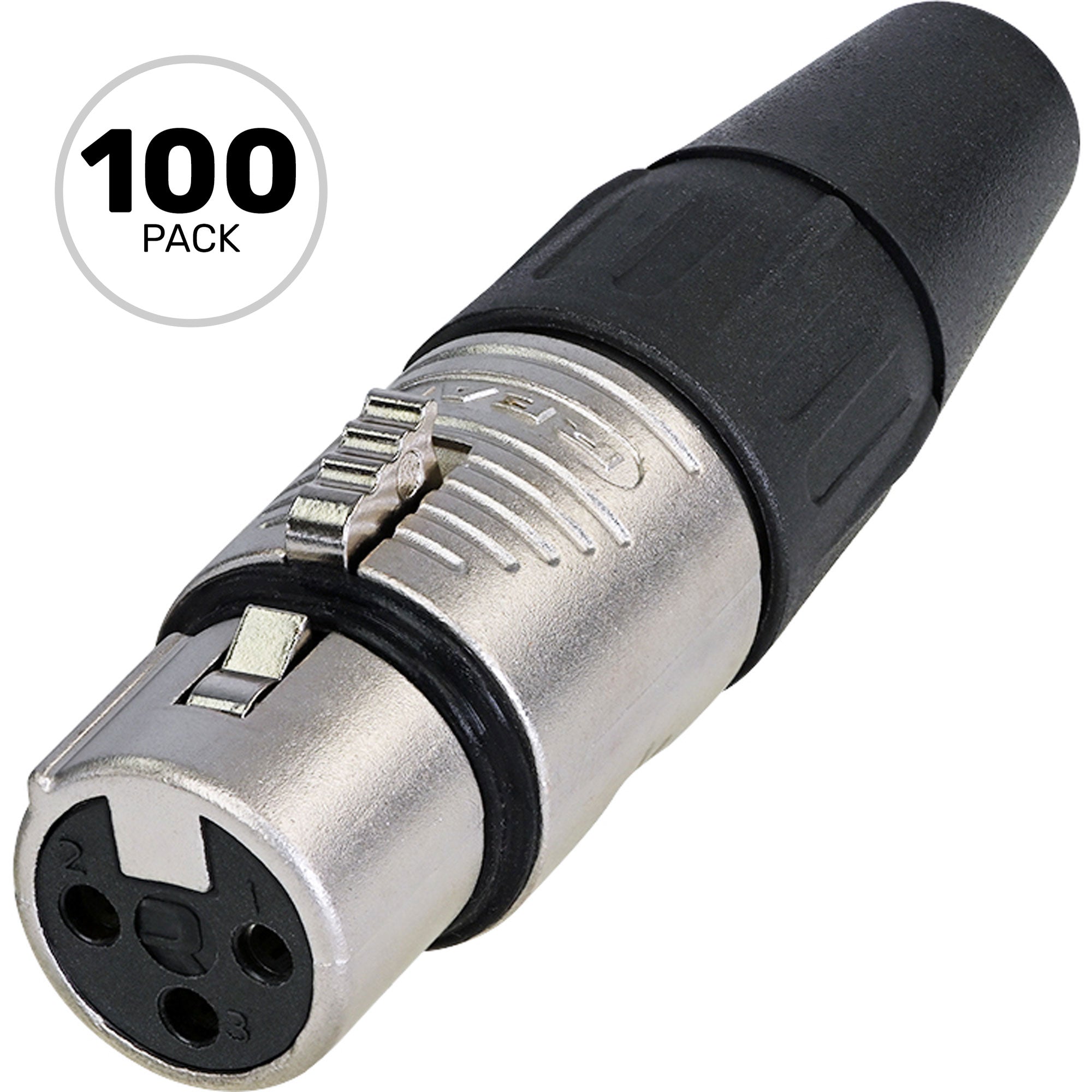

Female 3-Pin XLR Cable End Connector, Nickel Housing, Silver Contacts - Full Box of 100 Connectors
3 pole female XLR cable connector, nickel plated housing, silver plated contacts
Features & Benefits
- Ergonomic design, easy to use
- Rugged Zinc diecast housing, long lifetime
- Chuck type strain relief provides the best cable retention, easy to assembly
- Provide rotatable angle of right-angle products
- Rubber boot ensure the best protection of the cable
- Rugged latch locking system, provides secure connection
Technical Information
- Product:
- Title: RC3F
- Connection Type: XLR
- Gender: female
- Electrical:
- Insulation Resistance: > 1.5 GΩ
- Contact Resistance: ≤ 5 mΩ
- Rated Current: 10 A
- Mechanical:
- Lifetime: >1000 Mating Cycles
- Insertion Force: ≤ 30 N
- Withdrawal Force: ≤ 20 N
- Cable O.D.: 4 - 7 mm
- Wiresize: 1.5 mm²
- Wiresize: 16 AWG
- Material:
- Plastic Body: PA6+30%GF UL94-HB
- Jack: Bronze
- Ground Contact: Steel
- Rubber Ring: Rubber
- Button: Zinc
- Housing: Zinc
- Chuck: POM
- Push Ring: POM
- Bushing: PA6+30%GF
- Boot: PVC
- Jack: Sliver Plating
- Ground Contact: Tin and Cer
- Button: Nickel Plating
- Housing: Nickel Plating
Details
- Manufacturer: Neutrik
- MPN: RC3F
- Model Number: RC3F
