Key Features
- Female 3-Pin XLR Connector
- Industry Standard
- Solder Cups
- Black Metal Housing
- Silver Contacts
- Full Box of 100 Connectors
Description

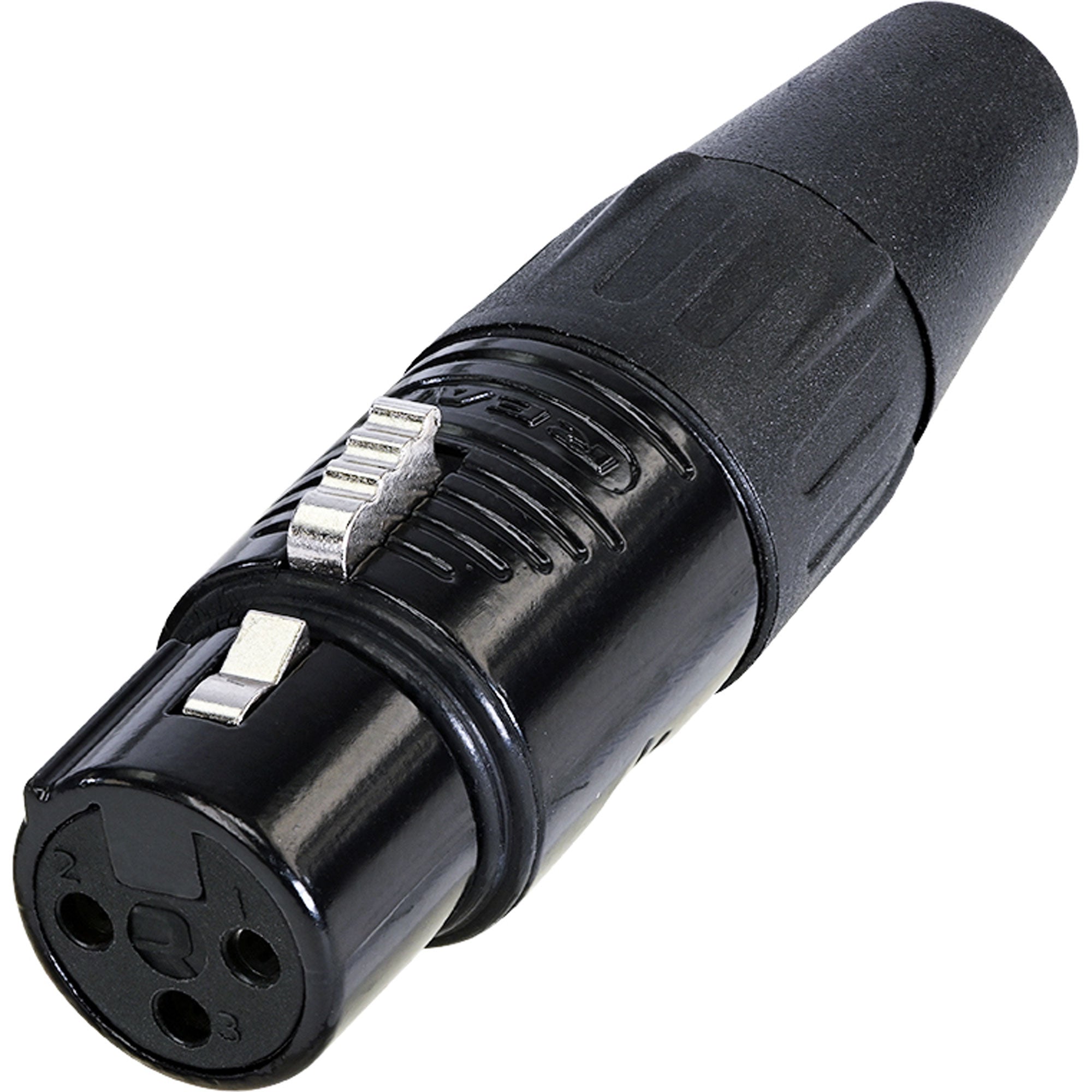

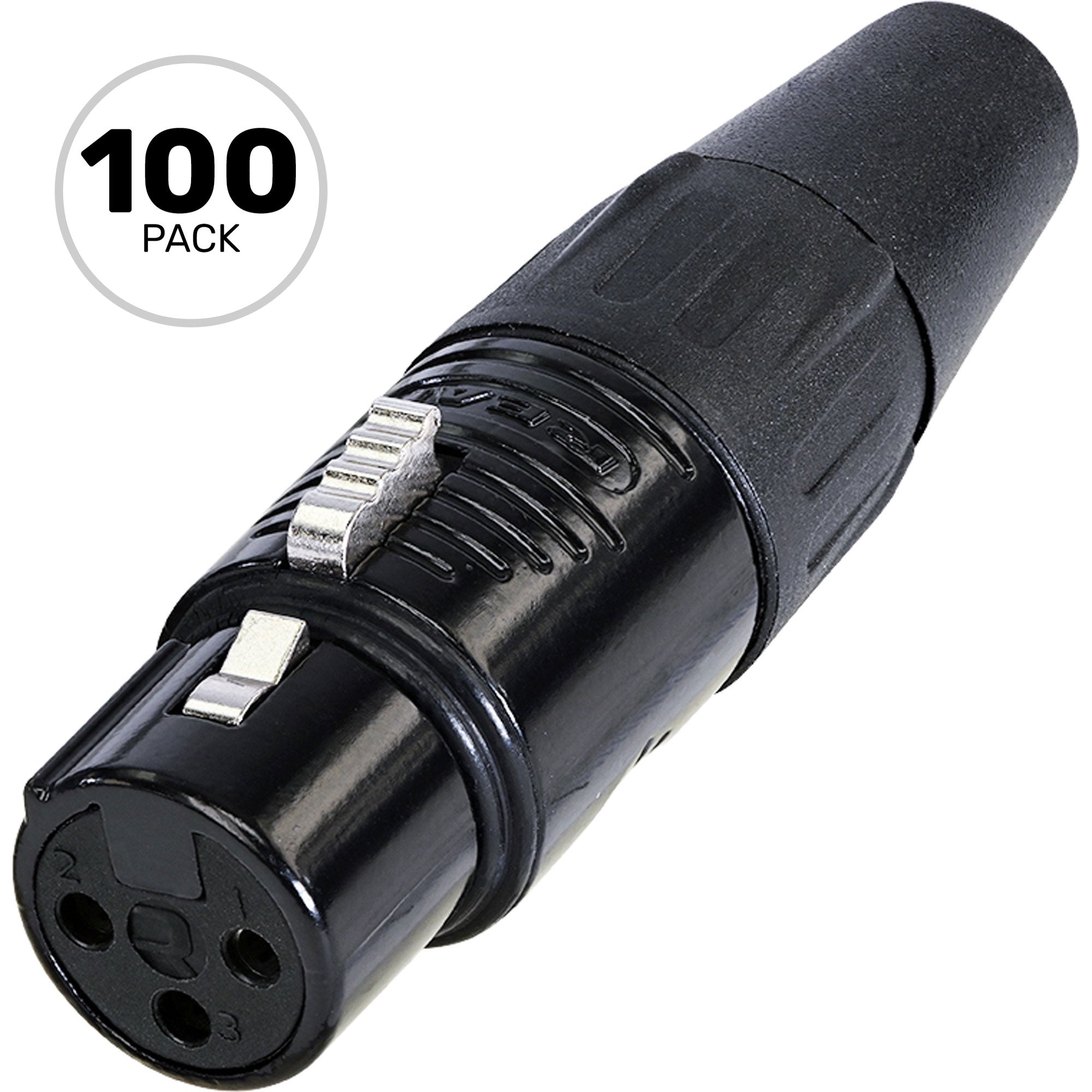

Female 3-Pin XLR Cable End Connector, Black Housing, Silver Contacts - Full Box of 100 Connectors
3 pole female XLR cable connector, black plated housing, silver plated contacts
Features & Benefits
- Ergonomic design, easy to use
- Rugged Zinc diecast housing, long lifetime
- Chuck type strain relief provides the best cable retention, easy to assembly
- Provide rotatable angle of right-angle products
- Rubber boot ensure the best protection of the cable
- Rugged latch locking system, provides secure connection
Technical Information
- Product
- Title: RC3F-BAG
- Connection Type: XLR
- Gender: Female
- Electrical
- Dielectric strength: >1 kV dc
- Insulation resistance: >1.5 GΩ
- Rated current per contact: 10 A
- Mechanical
- Lifetime: > 1000 mating cycles
- Cable O.D.: 4.0 - 7.0 mm
- Insertion force: ≤ 30 N
- Withdrawal force: ≤ 20 N
- Wiresize: 1.5 mm² / 16 AWG
- Wiring: Solder contacts
- Material
- Contact plating: Silver
- Contacts: Bronze
- Insert: PA6+30% GF
- Shell: Zinc alloy
- Shell plating: Black
- Strain relief: POM
- Bushing: PA6+30% GF
- Button: Zinc alloy
- Button plating: Nickel
- Environmental
- Solderability: IEC68-2-20
- Temperature range: -20°C to +70°C
Details
- Manufacturer: Neutrik
- MPN: RC3F-BAG
- Model Number: RC3F-BAG
