Key Features
- Female 1/4" Mono Phone Jack
- Tip, Ring, Sleeve (TRS) Connections
- Open Panel Mount Jack
- Includes Washer and Nut
- Solder Cups
- Plastic Housing
- Silver Contacts
Description

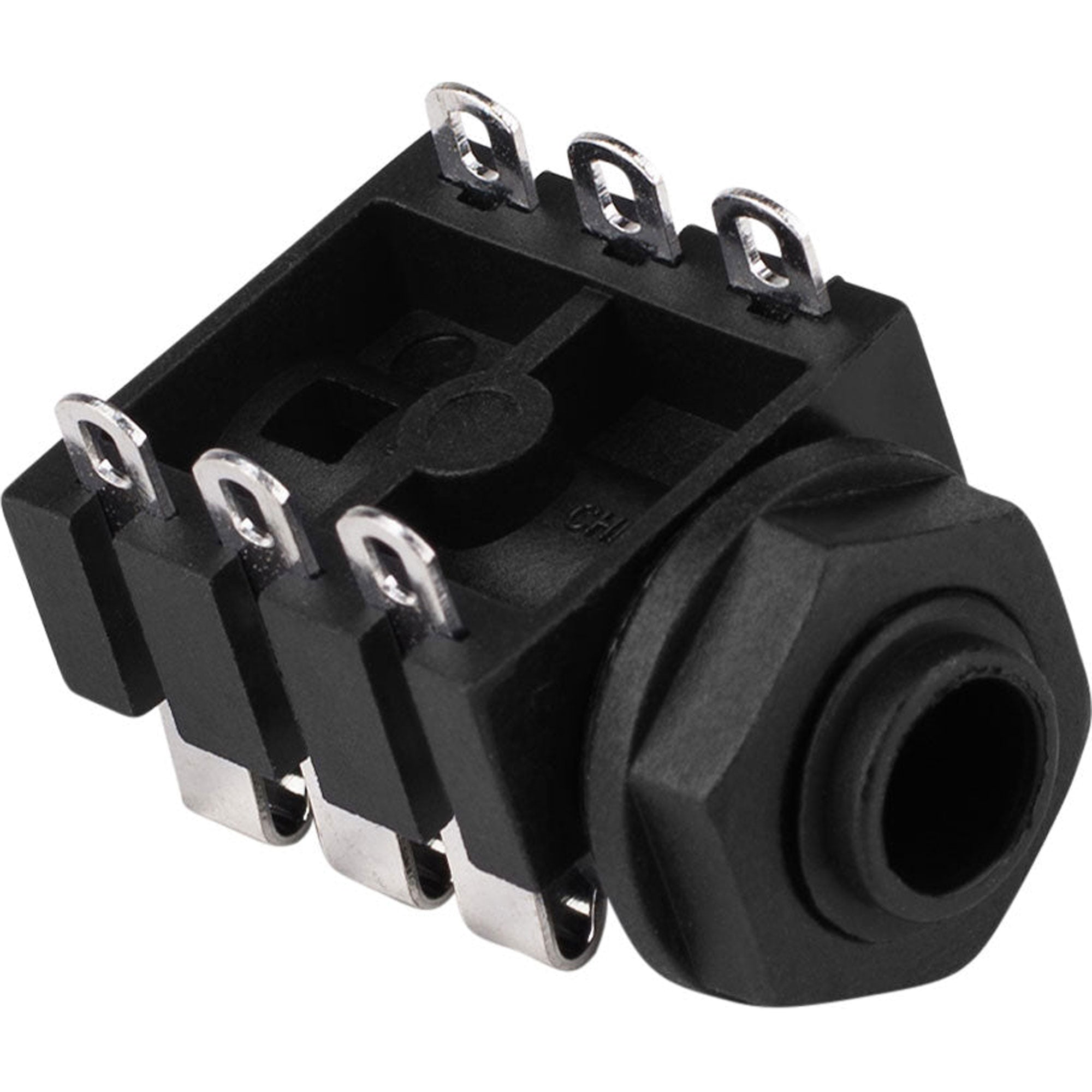

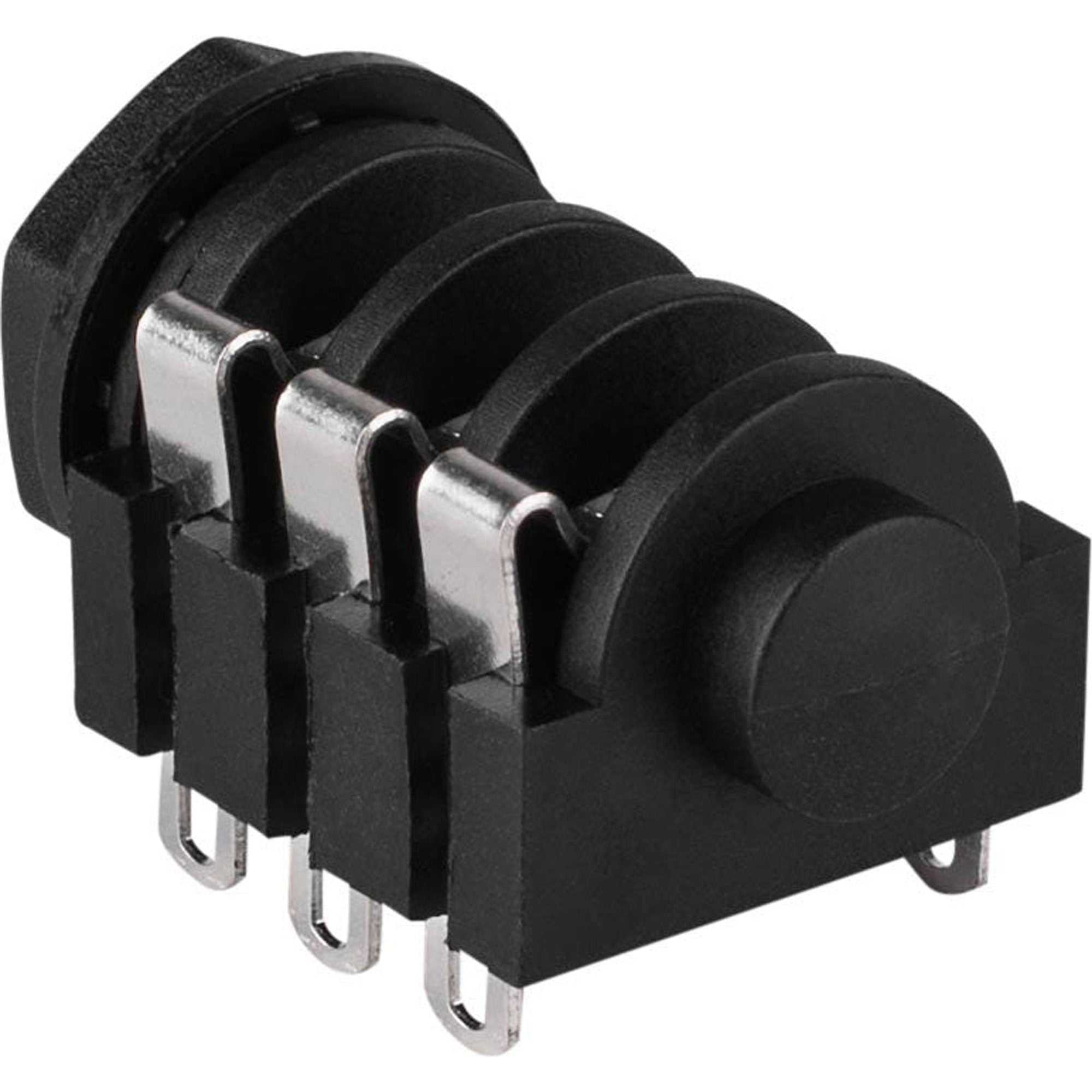

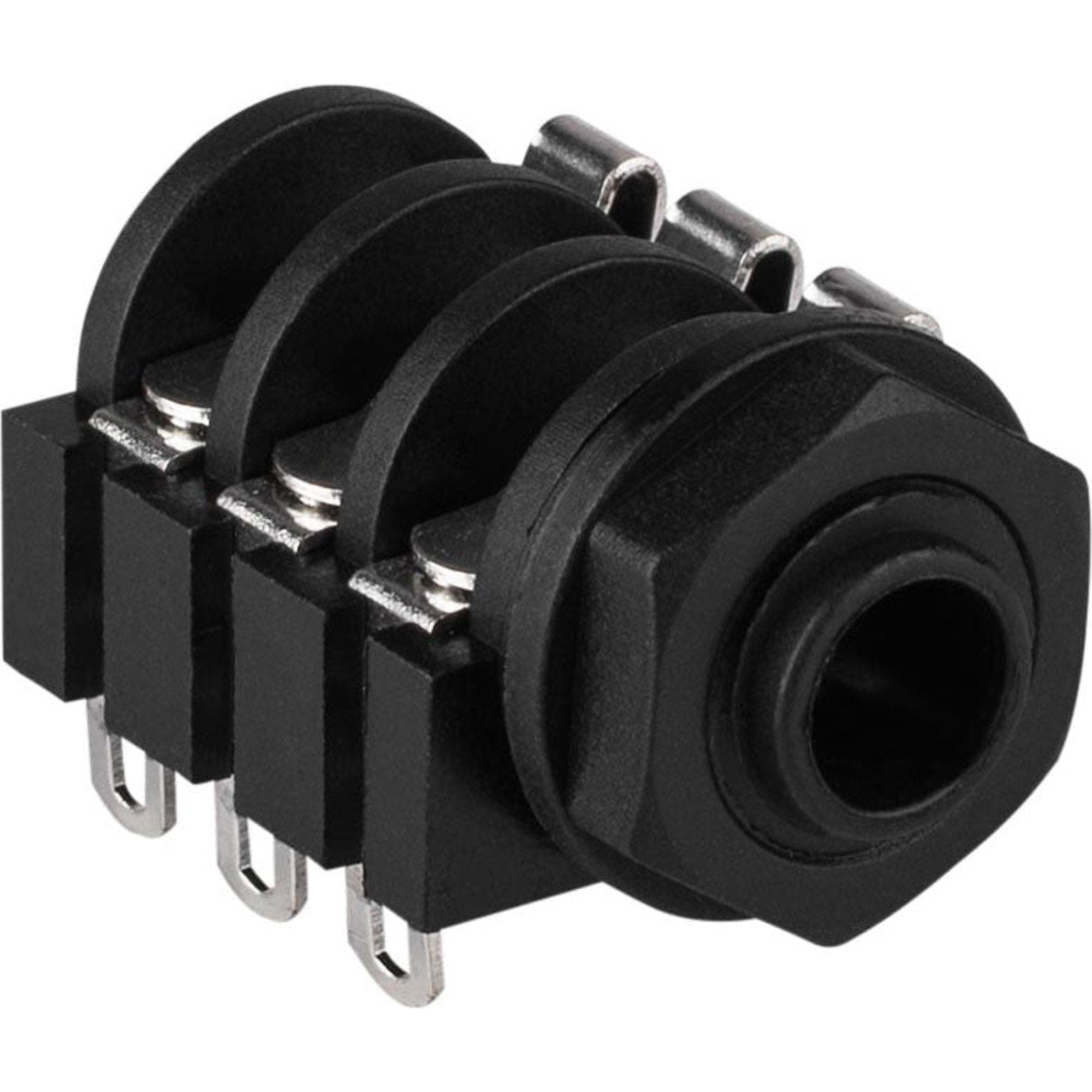

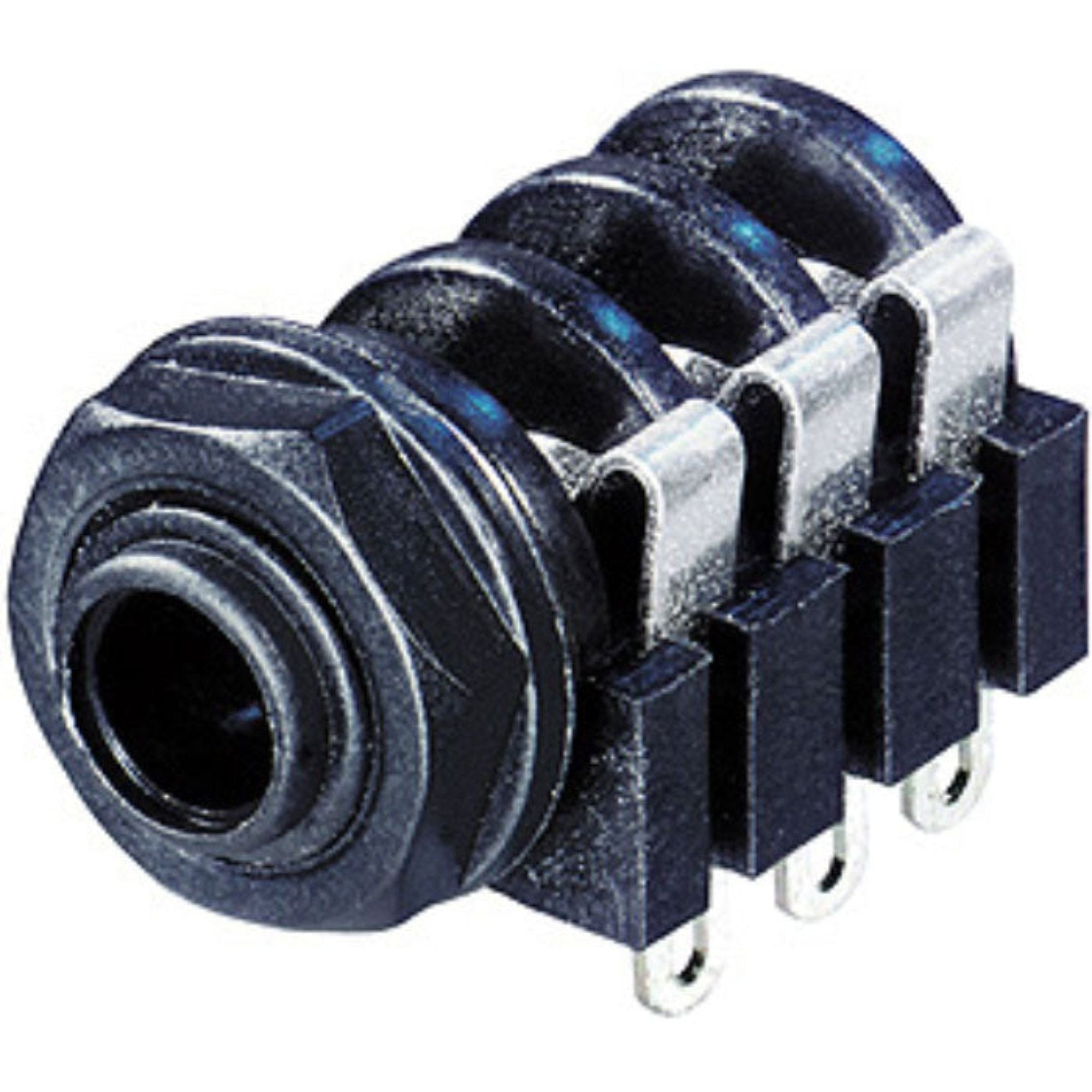

Female 1/4" TRS Mono Open Frame Jack with Washer and Nut, Plastic Housing, Silver Contacts
3 pole horizontal 1/4" jack, all contacts switched, plastic housing with nut and washer, solder tap version
Specifications:
- Product
- Title: NYS212
- Connection Type: Jack
- Gender: female
- Electrical
- Dielectric strength: 0,5 kVdc
- Insulation resistance:>200 MΩ (Initial)
- Rated current: depends on mated connector
- Contact resistance: depends on mated connector
- Mechanical
- Insertion force: ≤ 20 N
- Withdrawal force: ≥ 10 N
- Lifetime: 1000 mating cycles
- Material
- Contact plating: SnCe
- Contacts: Brass (CuZn39Pb3)
- Shell / Insulation: Thermoplastic
- Environmental
- Solderability: Complies with IEC 68-2-20
- Temperature range: -20 °C to +70 °C
