Key Features
- Male 1/4" Mono Phone Plug
- Tip, Sleeve (TS) Connections
- Black Plastic Barrel
- Solder Cups
- Silver Contacts
- Full Box of 100 Connectors
Description

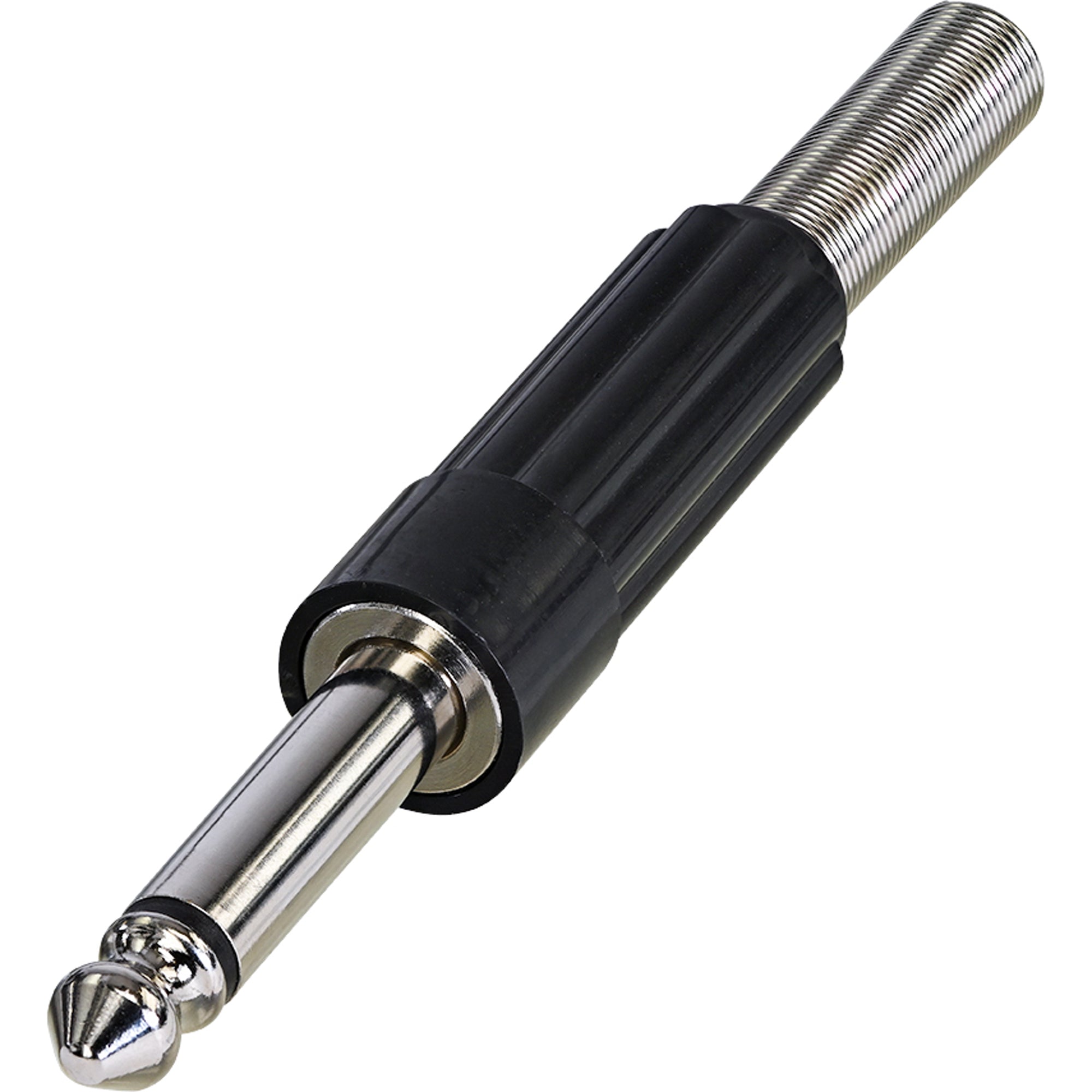

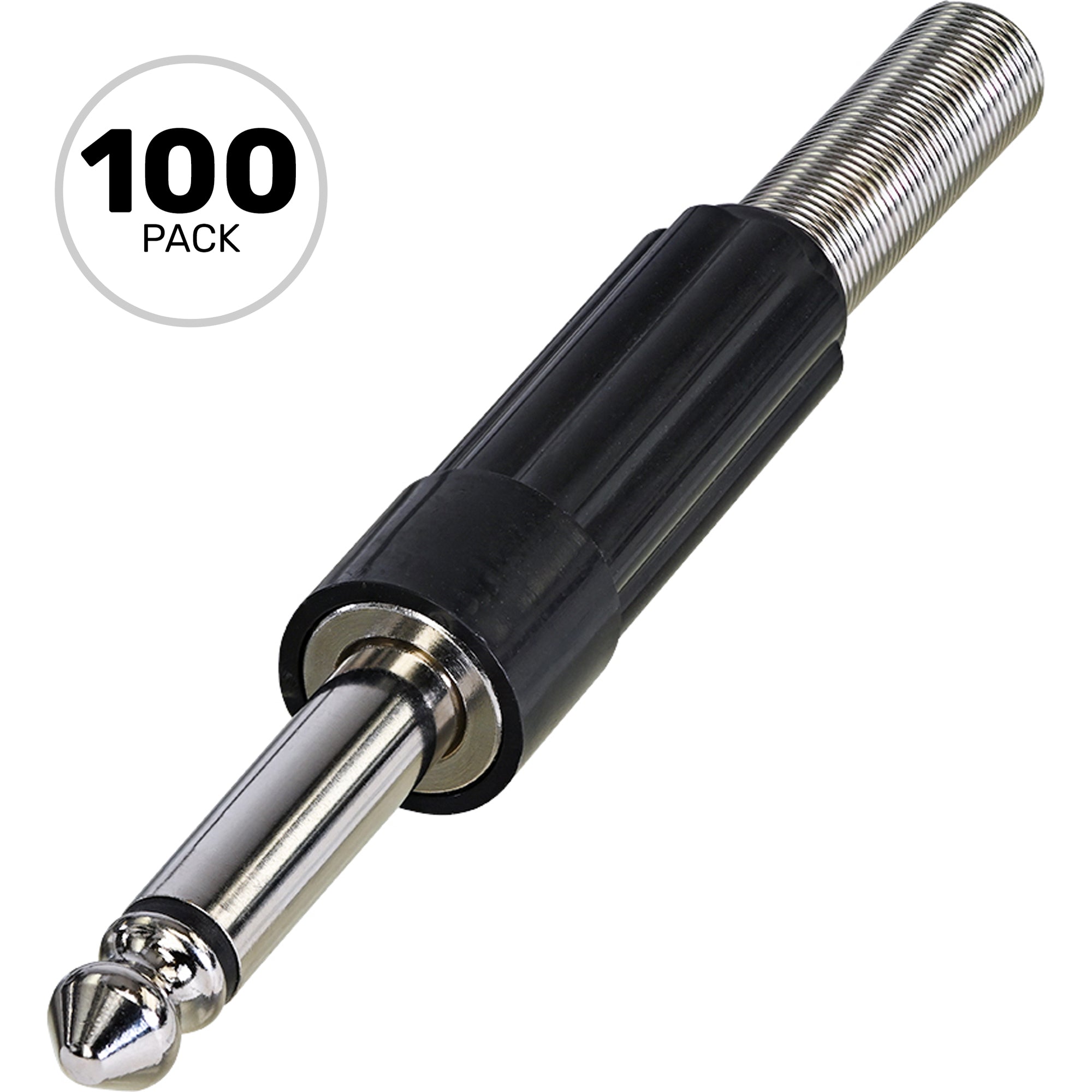

Male 1/4" TS Mono Plug, Cable End, Black Plastic Shell, Silver Contacts - Full Box of 100 Connectors
Mono 1/4" plug, black plastic handle with flexible anti-kink protection
Features & Benefits
- Mono 1/4" plug for multi-series engineering applications
- High quality materials, insuring best signal transmission
- Unique design of spring bushing, provide excellent cable protection
- Black plastic housing for convinence handling
Technical Information
- Product
- Title: NYS203
- Connection Type: Mono 1/4" plug
- Electrical
- Dielectric strength: 0.5kV dc
- Insulation resistance: ＞1 GΩ
- Mechanical
- Lifetime: > 1000 mating cycles
- Cable O.D.: ≤6.5 mm
- Insertion force: ≤60 N
- Withdrawal force: ≤60 N
- Material
- Shell: ABS
- Bushing: POM
- Tube: Polyamides
- Sleeve Plating: Nickel
- Inner Plating: Nickel
- Spring: High quality spring steel
- Cable Clamp: Steel
- Environmental
- Flammability: UL 94 HB
- Solderability: IEC68-2-20
- Temperature range: -20°C to ﹢70°C
Details
- Manufacturer: Neutrik
- MPN: NYS203
- Model Number: NYS203
