Key Features
- Male 1/8" (3.5mm) Stereo Phone Plug
- Tip, Ring, Sleeve (TRS) Connections
- Solder Cups
- Right-Angle Nickel Metal Housing
- Silver Contacts
- Full Box of 100 Connectors
Description

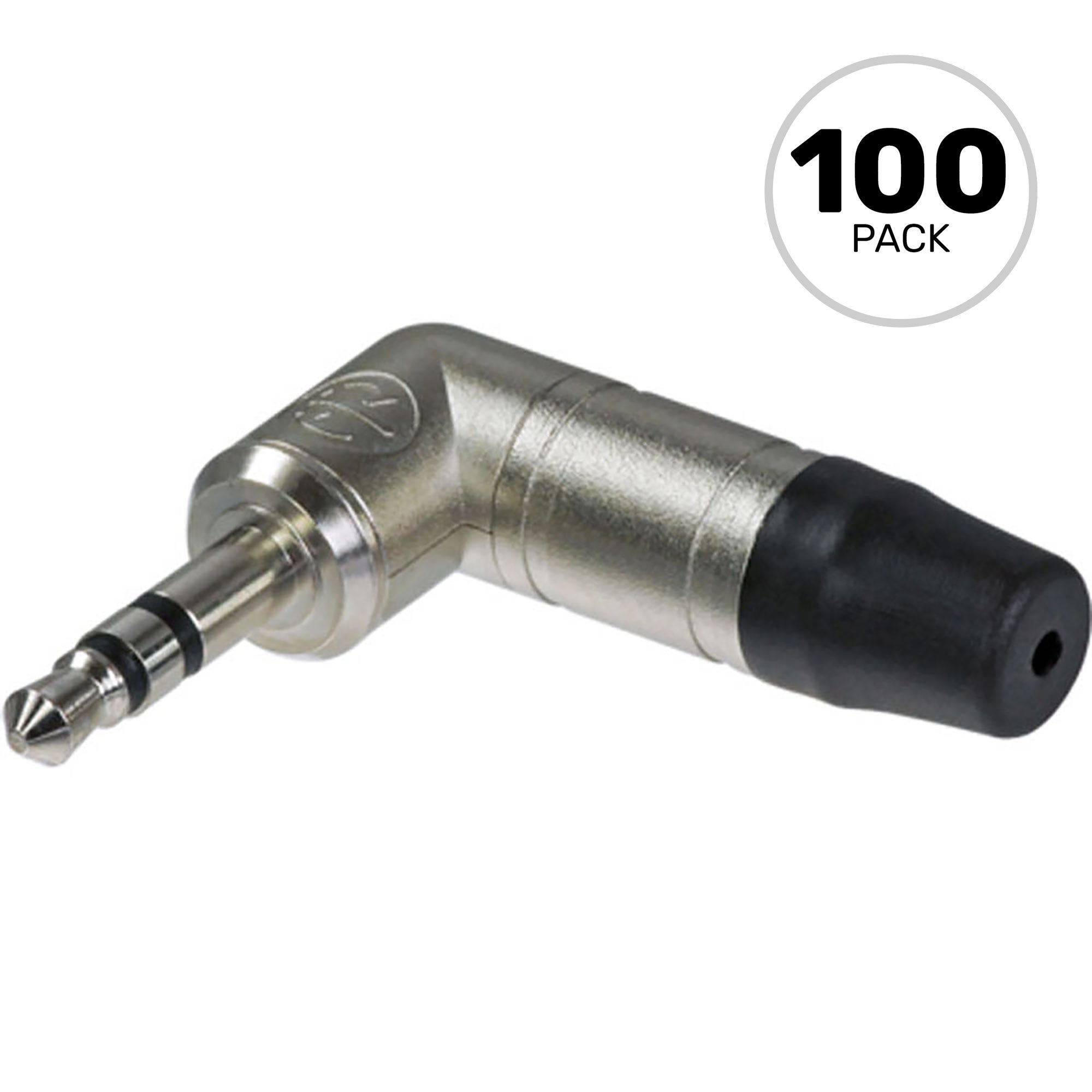

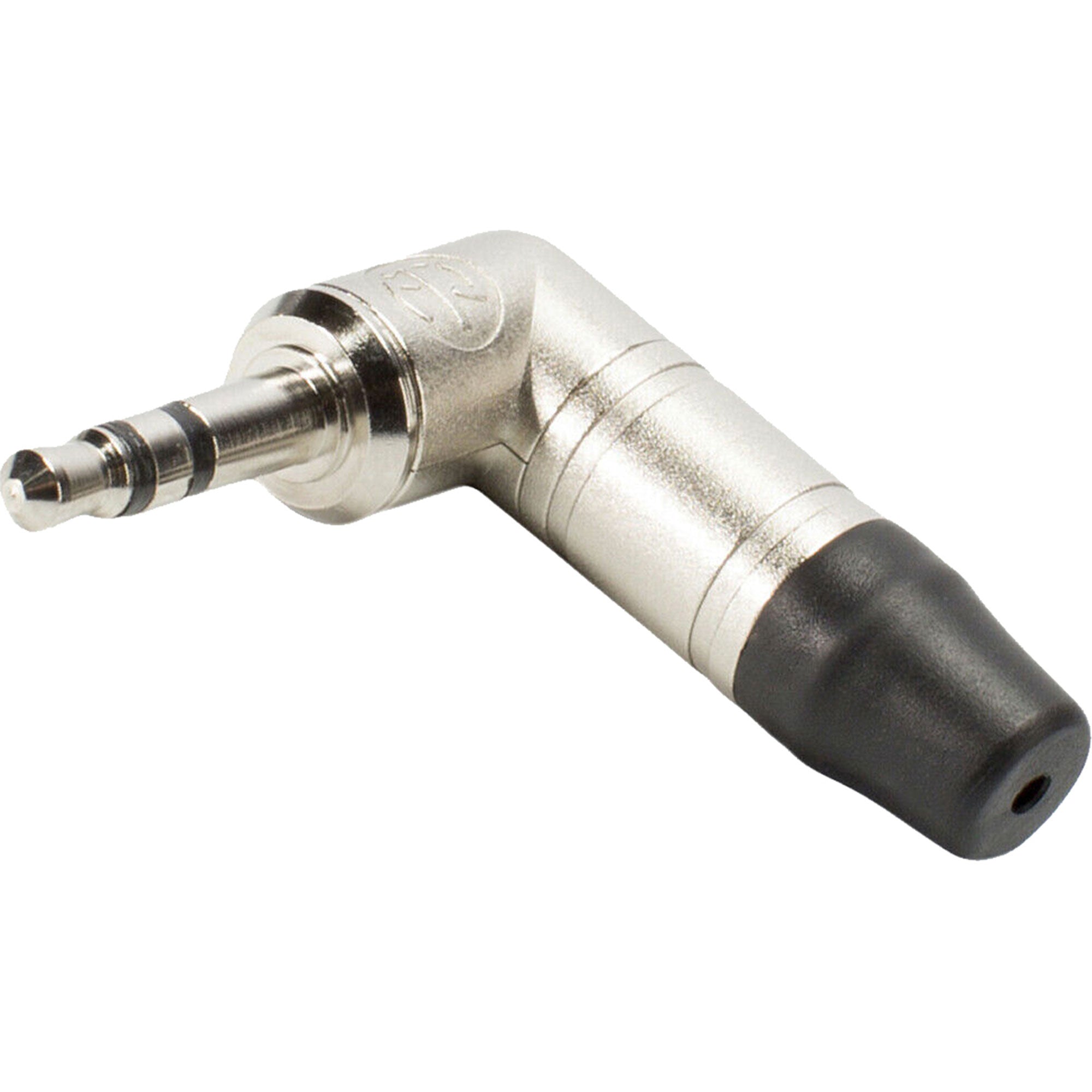

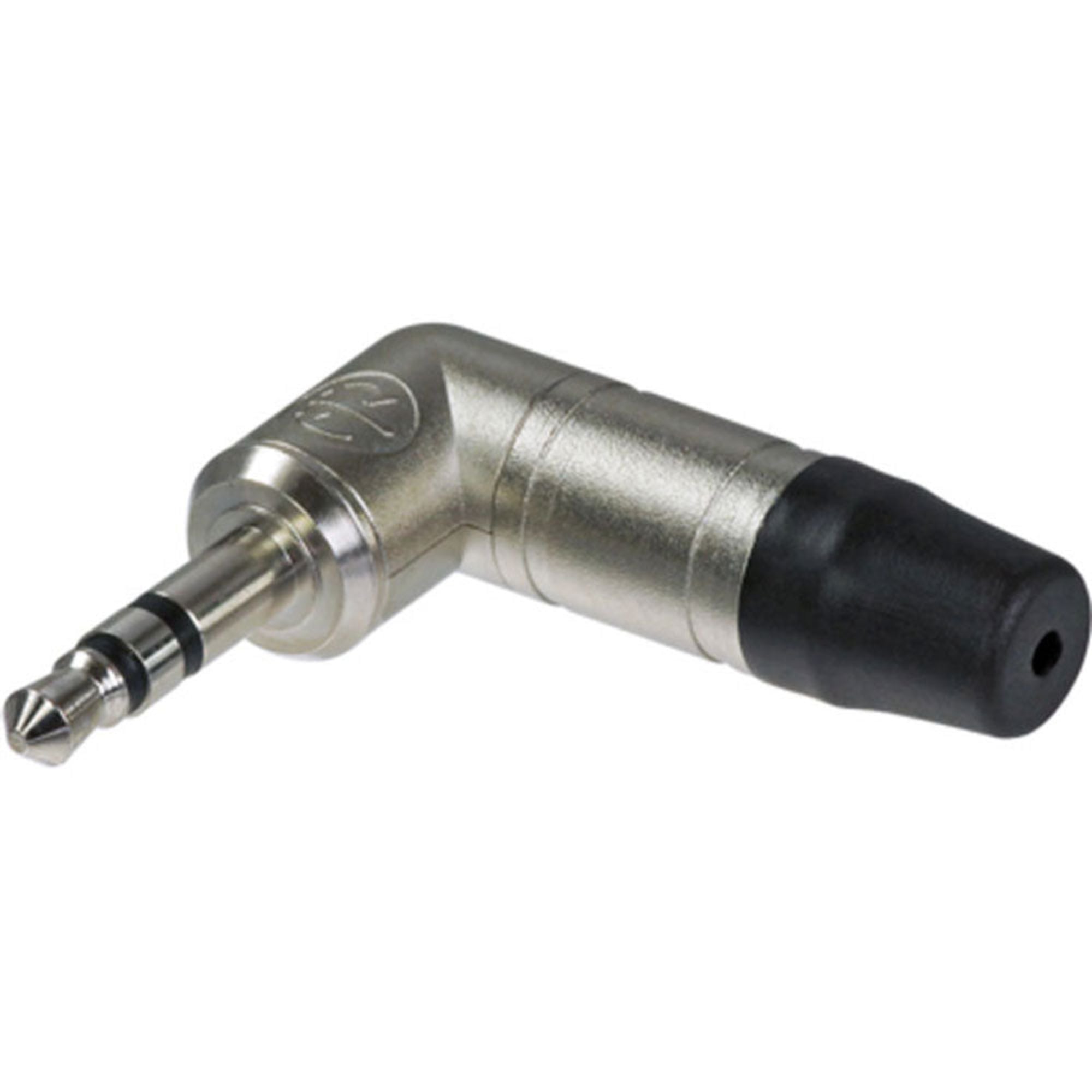

Right-Angle Male 1/8" (3.5mm) TRS Stereo Plug, Cable End, Nickel Housing, Silver Contacts - Full Box of 100 Connectors

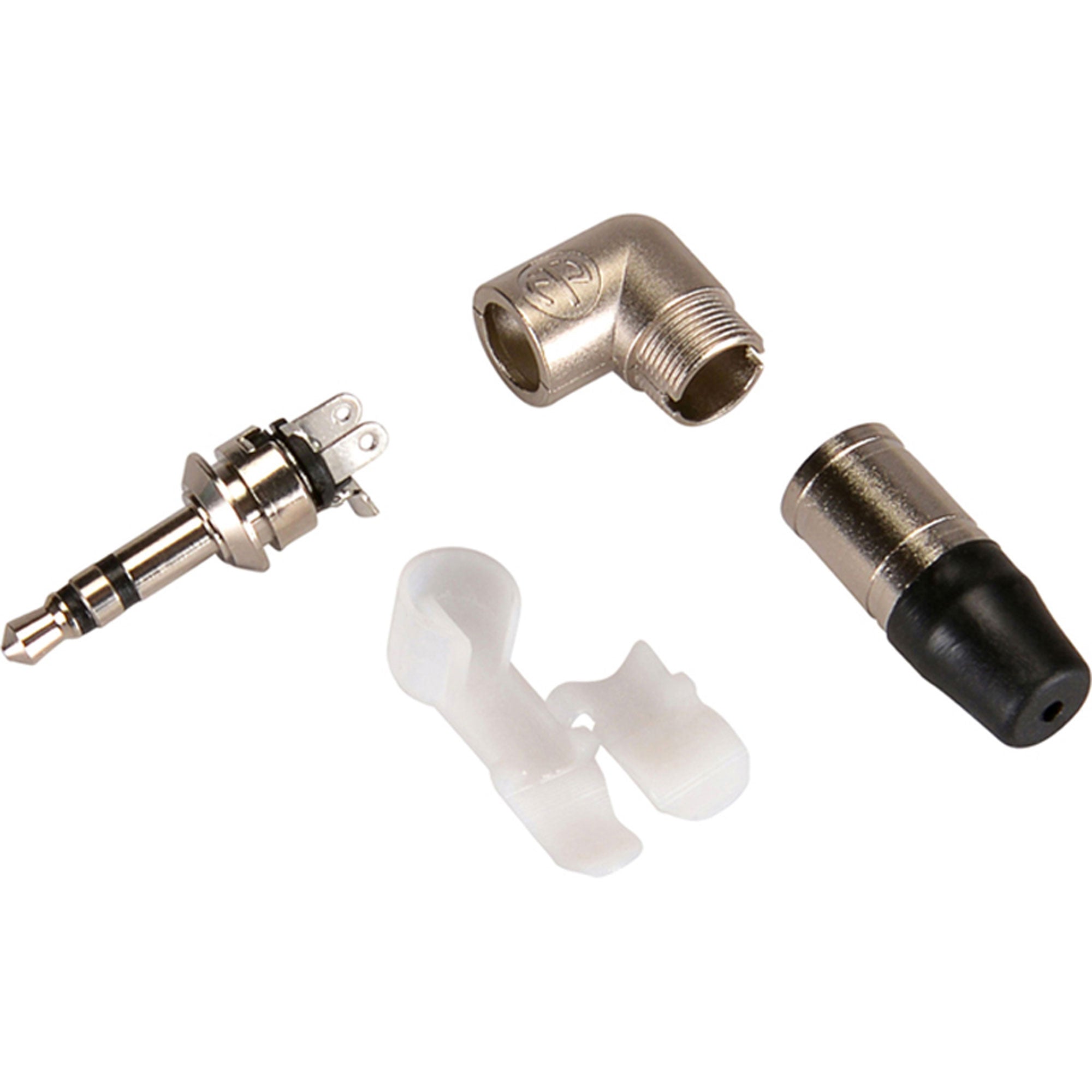

3 pole 3.5 mm audio plug, solder termination, chuck type strain relief, bushing, nickel housing, nickel contacts
The only right-angled metal bodied 3.5 mm jack plug with chuck type strain relief for secure cable retention. It accepts cables from 2.0 to 4.5 mm.
Features:
- All metal housing - robust and reliable
- Chuck type cable clamp and rubber gland - excellent cable protection
- Slim design - space saving
Specifications:
- Product:
- Title: NTP3RC
- Connection Type: Plug
- Gender: male
- Electrical:
- Contact resistance: depends on mating connector m
- Dielectric strength: 1 kVdc
- Insulation resistance: > 2 G (initial)
- Rated voltage: <50 V
- Mechanical:
- Cable O.D.: 2 - 4.5 mm
- Wiresize: 0,22 mm-
- Wiresize: 24 AWG
- Wiring: Solder contacts
- Material:
- Bushing: Brass (CuZn39Pb3) + PU, Ni
- Contact plating: 2 -m Ni (Su)
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA 6.6 15 % GR)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Nickel
- Strain relief: Polyacetal (POM)
- Environmental:
- Solderability: Complies with IEC 68-2-20
- Temperature range: -20-C to +65-C
