Neutrik NP3X-B Professional 1/4" TRS Stereo Phone Plug (Black/Gold)

Neutrik SKU: NTK NP3XB
MPN: NP3X-B UPC: 7613187000690
Price:
$12.00
Stock:
580 In Stock & Ready to Ship

Make it a bundle

Neutrik NP3X-B Professional 1/4" TRS Stereo Phone Plug (Black/Gold, Box of 100) Image 1
Neutrik NP3X-B Professional 1/4" TRS Stereo Phone Plug (Black/Gold, Box of 100)
$1,015.00
Custom Cable 8x NP3X-B Black/Gold 1/4" TRS Image 1
Custom Cable 8x NP3X-B Black/Gold 1/4" TRS
$91.00
Custom Cable 2x NP3X-B Black/Gold 1/4" TRS Image 1
Custom Cable 2x NP3X-B Black/Gold 1/4" TRS
$23.00
Custom Cable 48x NP3X-B Black/Gold 1/4" TRS Image 1
Custom Cable 48x NP3X-B Black/Gold 1/4" TRS
$541.00
Custom Cable 6x NP3X-B Black/Gold 1/4" TRS Image 1
Custom Cable 6x NP3X-B Black/Gold 1/4" TRS
$68.00
Custom Cable 12x NP3X-B Black/Gold 1/4" TRS Image 1
Custom Cable 12x NP3X-B Black/Gold 1/4" TRS
$136.00
Custom Cable 4x NP3X-B Black/Gold 1/4" TRS Image 1
Custom Cable 4x NP3X-B Black/Gold 1/4" TRS
$46.00
Custom Cable 16x NP3X-B Black/Gold 1/4" TRS Image 1
Custom Cable 16x NP3X-B Black/Gold 1/4" TRS
$181.00
Custom Cable 24x NP3X-B Black/Gold 1/4" TRS Image 1
Custom Cable 24x NP3X-B Black/Gold 1/4" TRS
$271.00
Custom Cable 32x NP3X-B Black/Gold 1/4" TRS Image 1
Custom Cable 32x NP3X-B Black/Gold 1/4" TRS
$361.00

Key Features

  • Male 1/4" Stereo Phone Plug
  • Tip, Ring, Sleeve (TRS) Connections
  • Industry Standard
  • Solder Cups
  • Black Metal Housing
  • Gold Contacts

Description

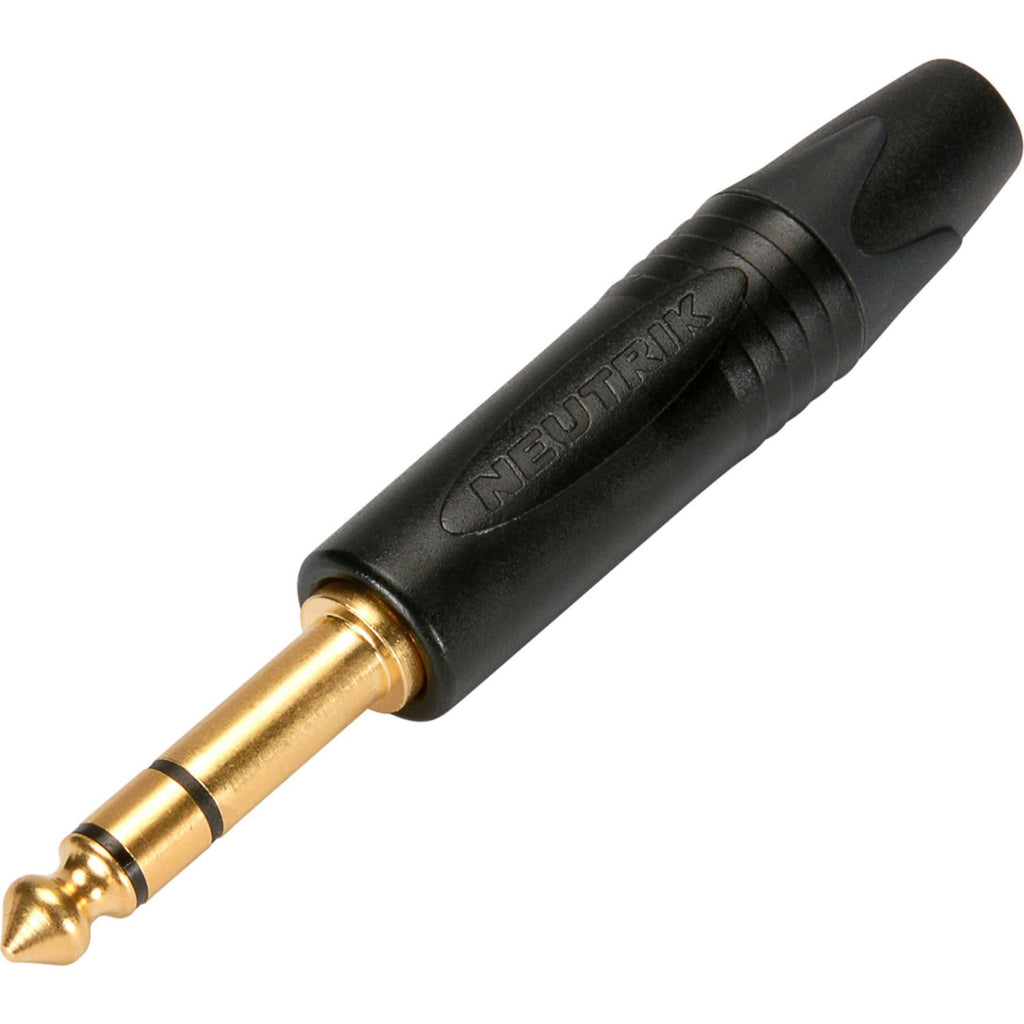

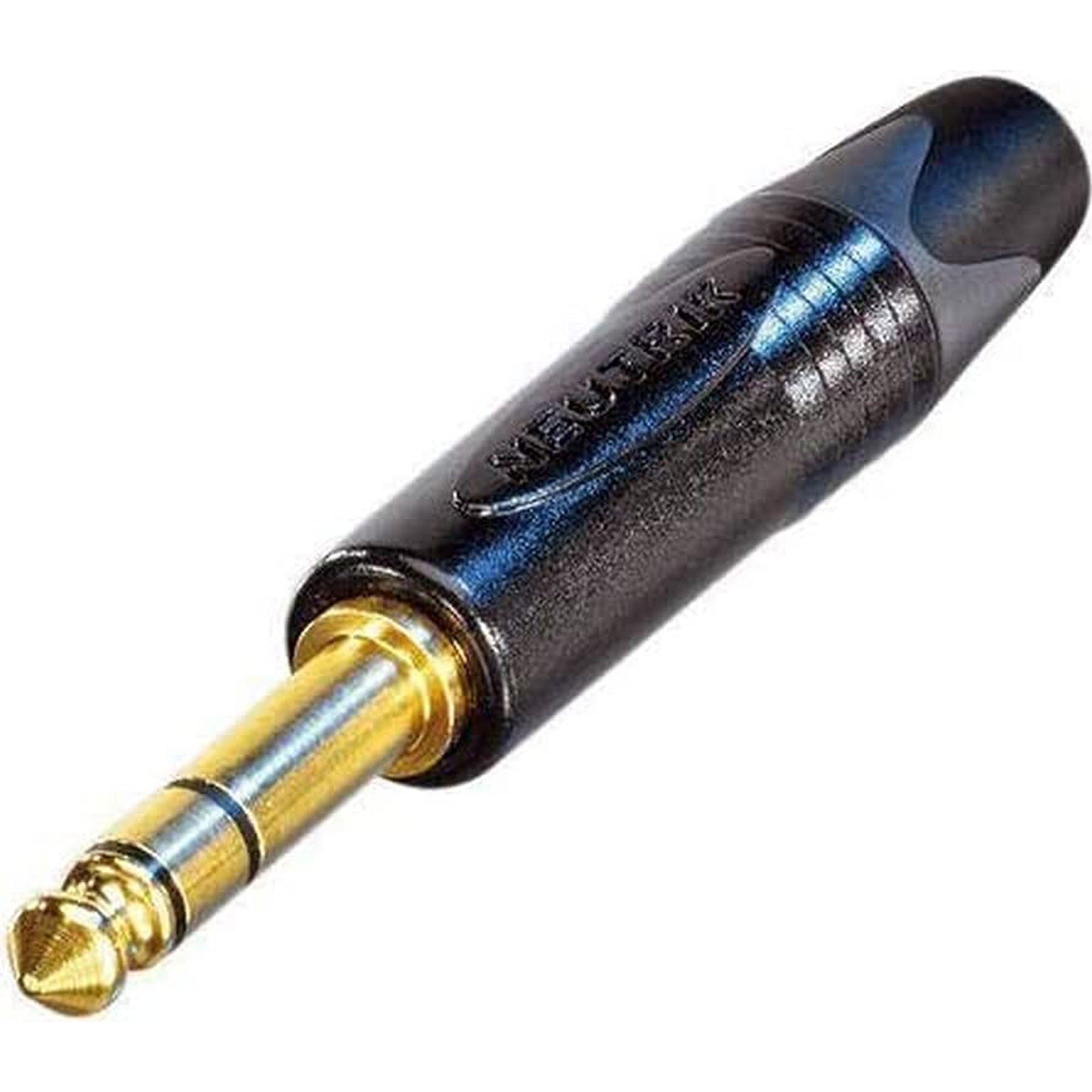

Neutrik NP3X-B 1/4-inch TRS male cable connector, Black/Gold

The Neutrik NP3X-B is a straight, three-pole 1/4-inch TRS male cable-end plug with a black chromium-finished metal shell and gold-plated contacts. It accepts 4–7 mm outside-diameter cable and uses solder contacts with chuck-type strain relief. This listing is for one connector, not a finished cable.

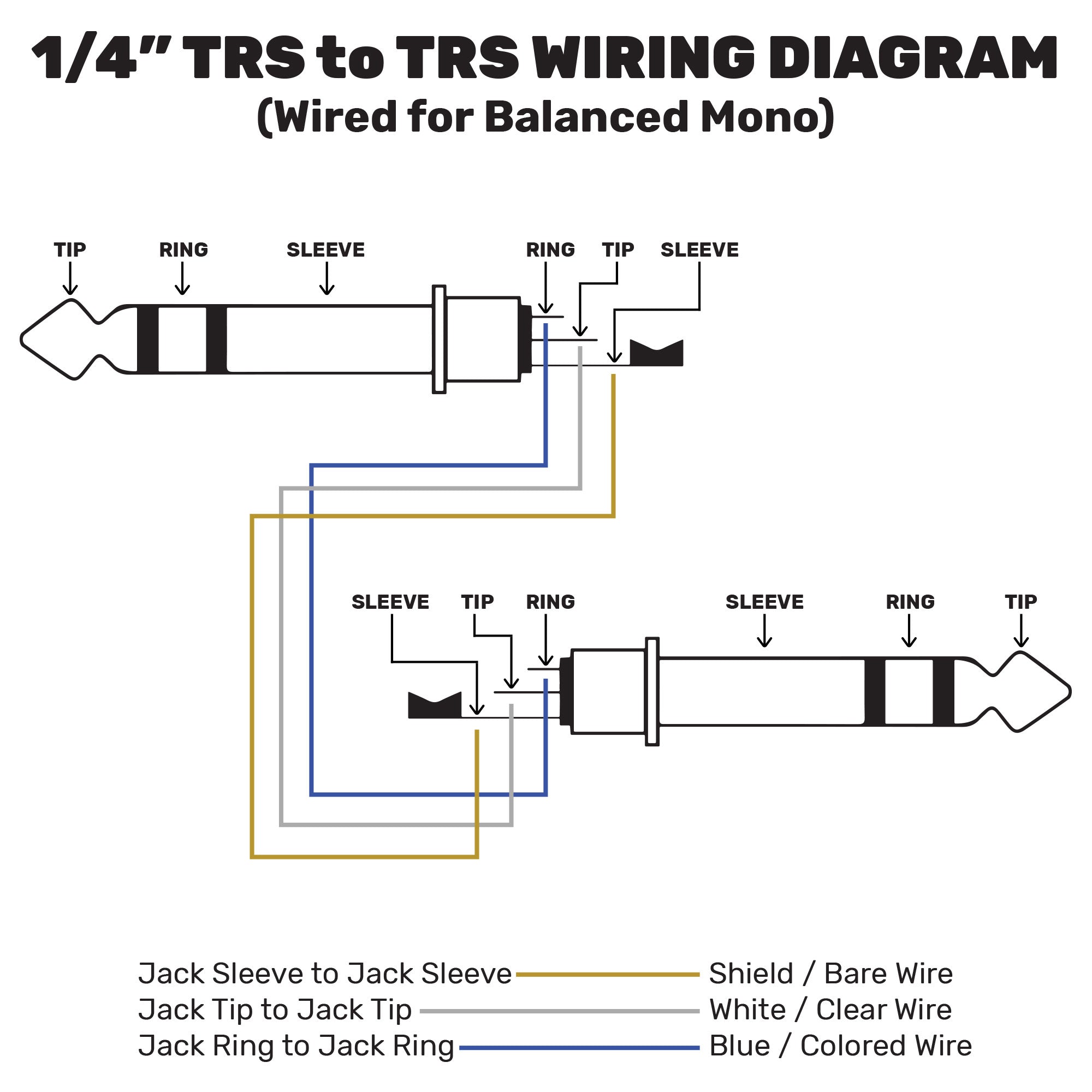

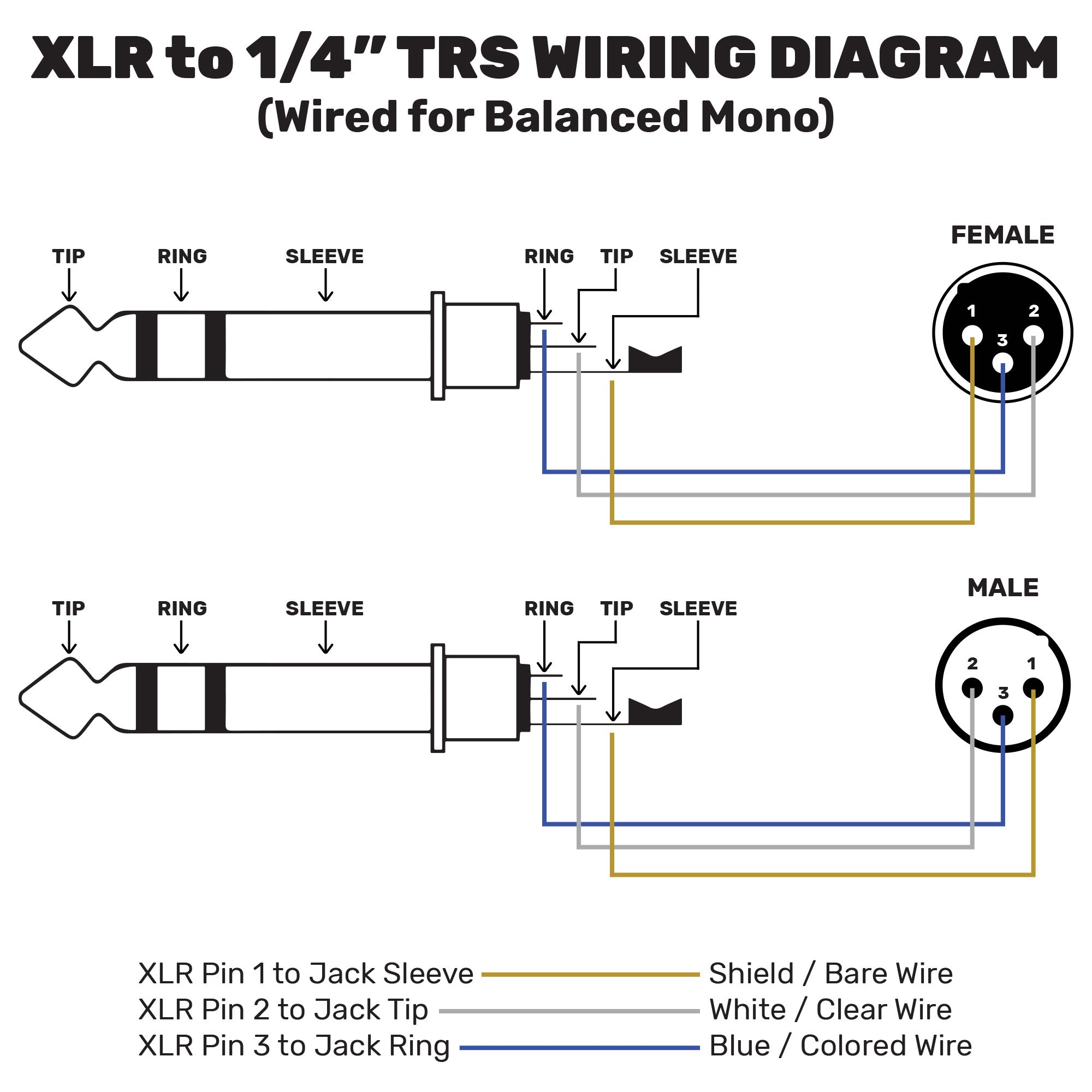

Match the wiring to your equipment

TRS connections can carry balanced mono audio or unbalanced stereo audio, depending on the equipment and wiring. The connector alone does not determine the signal format. Check both devices’ connection requirements and pinouts before assembly.

This is a three-pole TRS connector, not a two-pole TS plug. Choose the connector and cable construction appropriate to your application.

Check cable fit before ordering

The NP3X-B accepts cable with an outside diameter of 4–7 mm and wire up to 18 AWG (1 mm²). Soldering and cable assembly are required; this listing is for the connector, not a finished cable. Follow Neutrik’s cable preparation and assembly instructions.

Choose your finish

This is the Black/Gold NP3X-B. Other single-connector finishes are NP3X Nickel/Silver and NP3X-BAG Black/Silver.

Features

  • Three-pole 1/4-inch TRS male cable-end plug.
  • Slim 14.5 mm shell for closely spaced jackfields, including 15.88 mm jack pitch.
  • Robust zinc diecast shell with black chromium finish.
  • Gold-plated contacts.

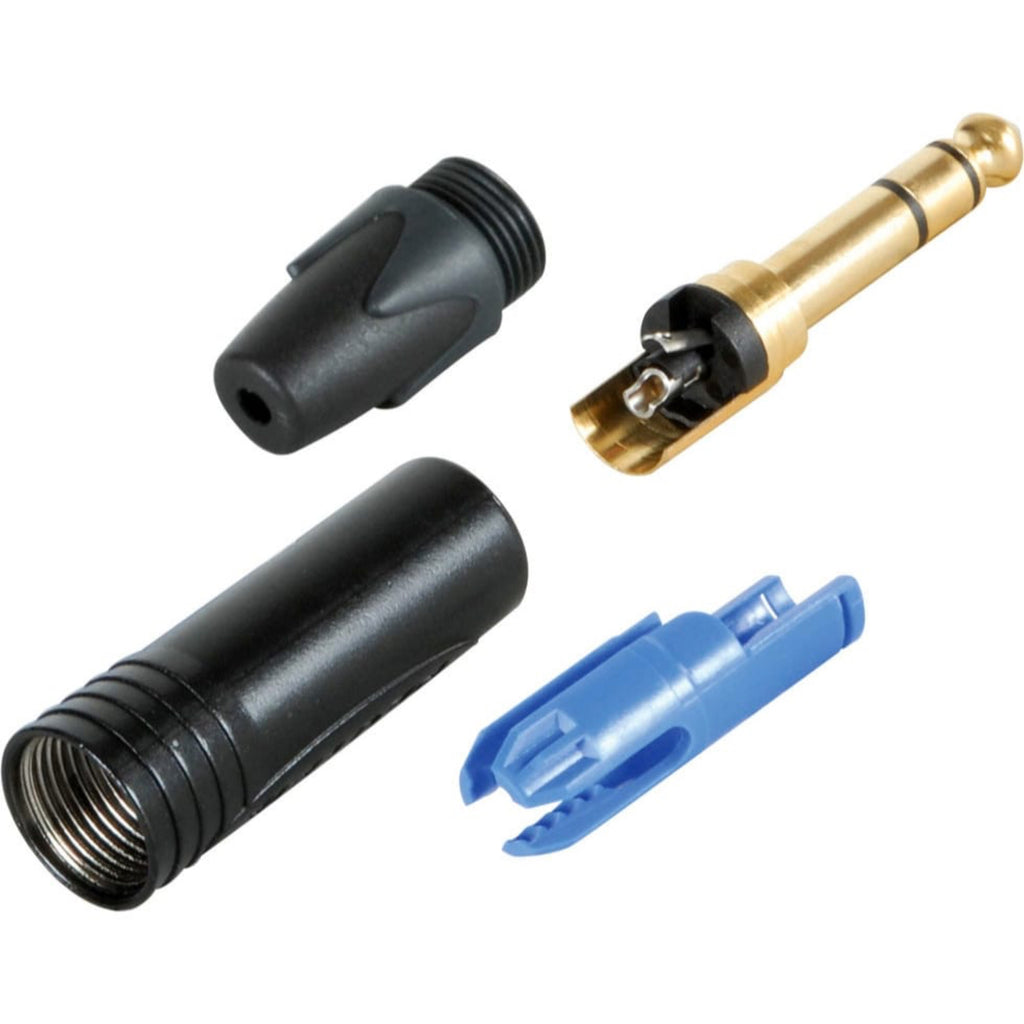

  • Chuck-type strain relief for cable retention.
  • Precision-machined one-piece tip contact without rivets.
  • Solder contacts for custom cable assembly and repair.

Specifications

  • Model: NP3X-B
  • Connection: Male 1/4-inch TRS phone plug, three pole
  • Termination: Solder contacts
  • Cable outside diameter: 4–7 mm
  • Maximum wire size: 18 AWG, 1 mm²
  • Shell width: 14.5 mm
  • Lifetime: More than 1,000 mating cycles
  • Rated voltage: Less than 50 V
  • Rated current per contact: Depends on mating connector
  • Contact resistance: Depends on mating connector
  • Dielectric strength: 1 kV DC
  • Initial insulation resistance: Greater than 2 GΩ
  • Contacts: Brass, CuZn39Pb3
  • Contact plating: 0.2 µm gold
  • Shell: Zinc diecast, ZnAl4Cu1
  • Shell plating: Black chromium
  • Insert: Polyamide, PA 6.6, 30% glass reinforced
  • Bushing: Polyacetal (POM) and PU
  • Strain relief: Polyacetal (POM)
  • Standard compliance: IEC 60603-11 / EIA RS-453
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: −20°C to +65°C
Details
  • Manufacturer:  Neutrik
  • MPN: NP3X-B
  • Model Number: NP3X-B
  • UPC: 7613187000690
