Key Features
- Male 1/4" Mono Phone Plug
- Tip, Sleeve (TS) Connections
- Industry Standard
- Solder Cups
- Black Composite Housing
- Gold Contacts

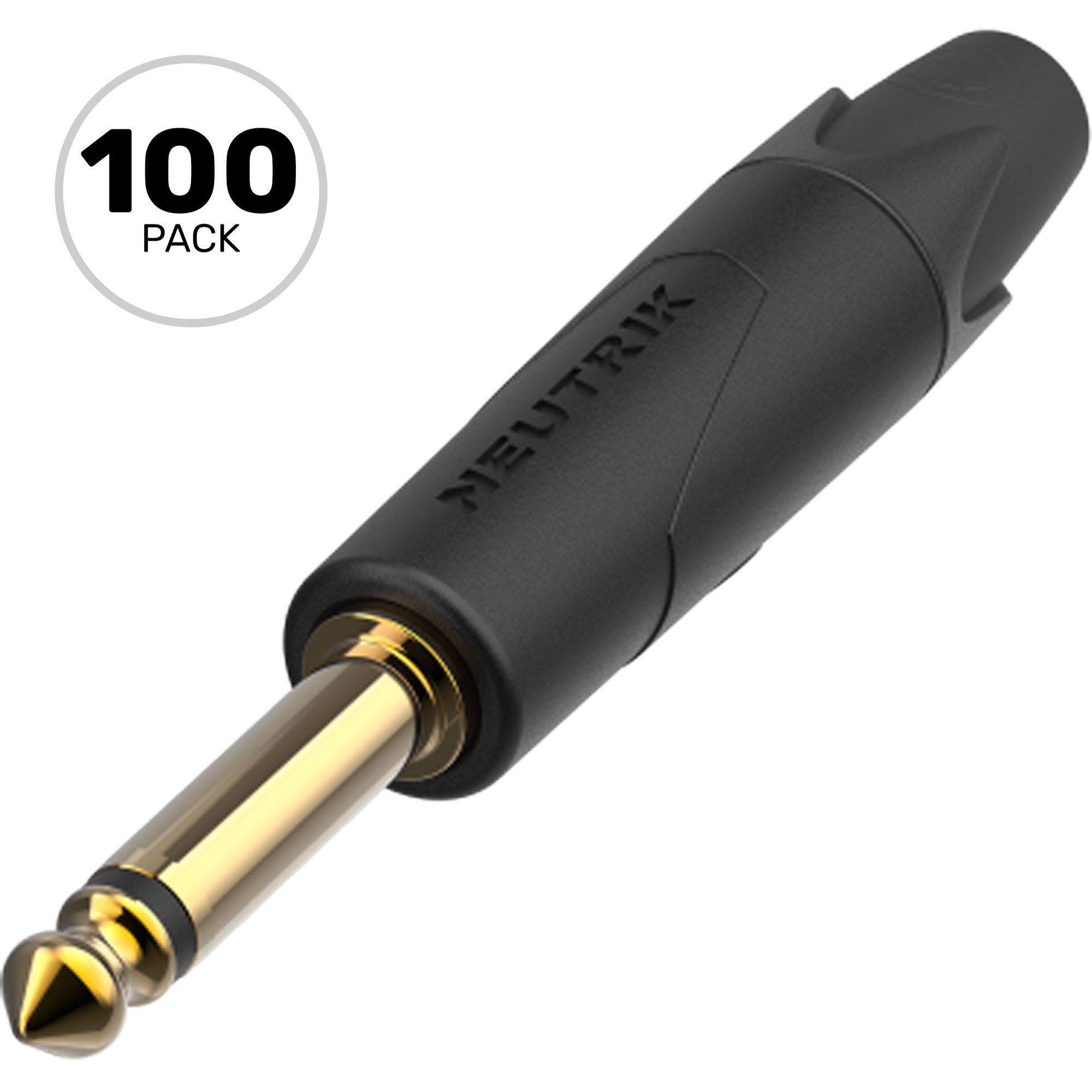

- Full Box of 100 Connectors
Description

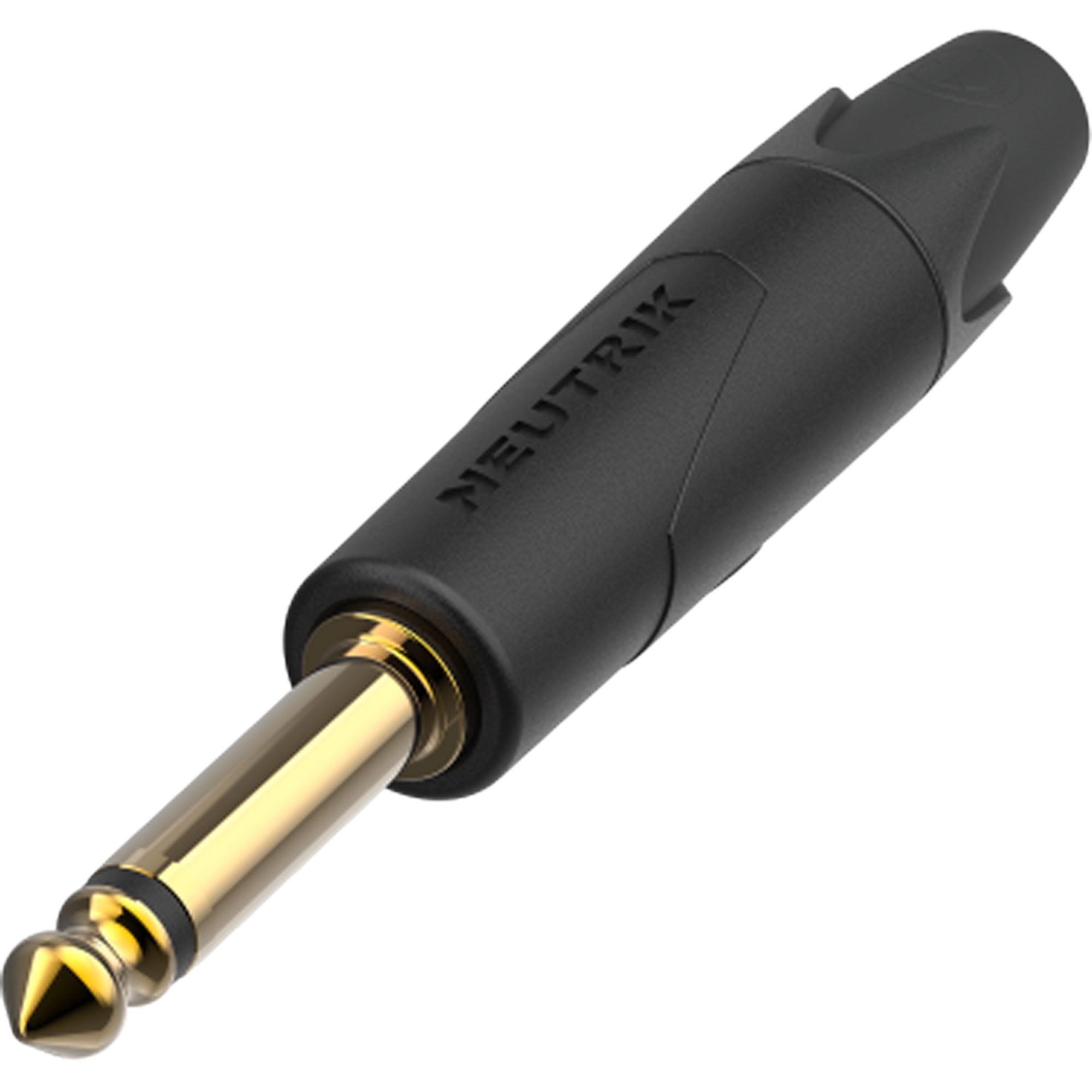

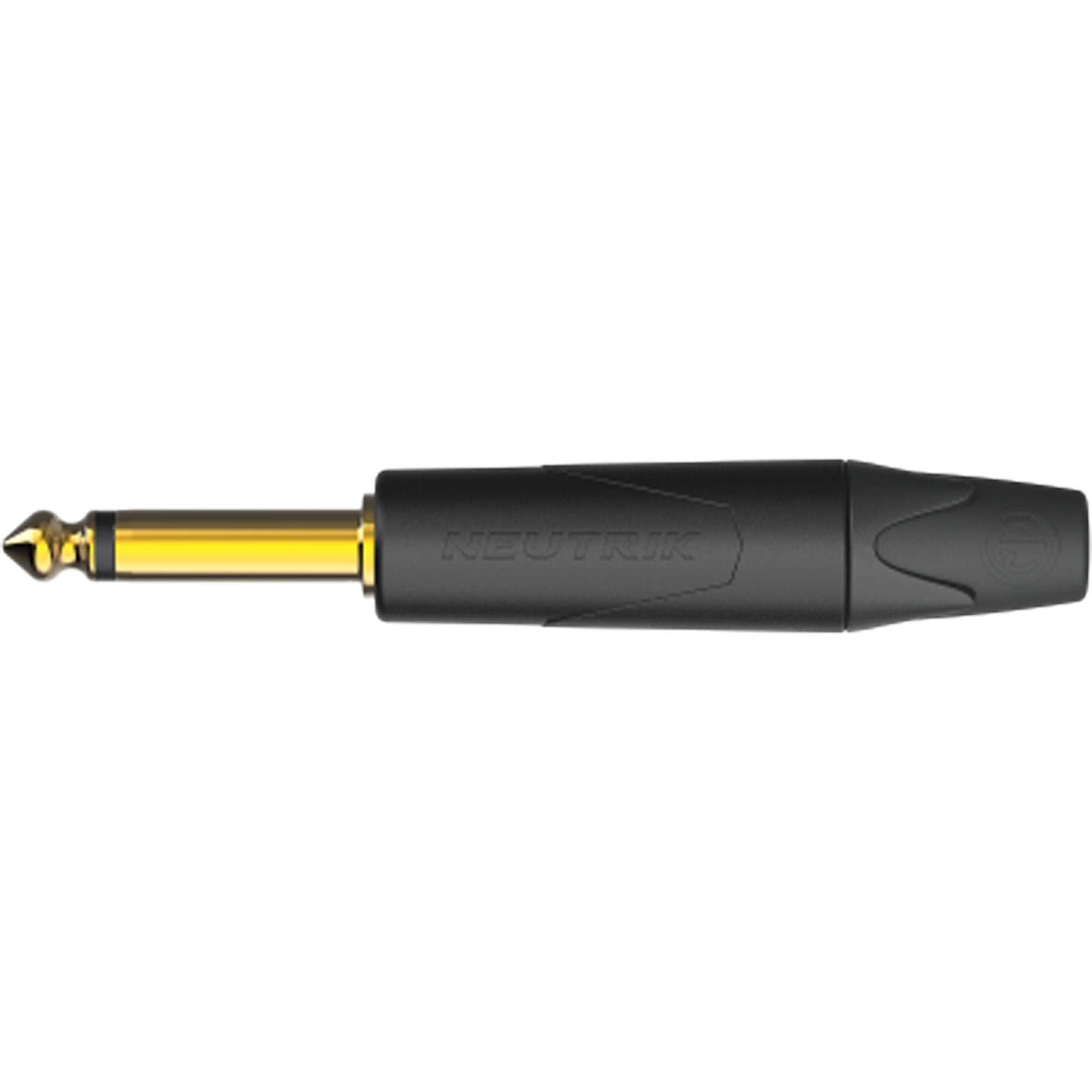

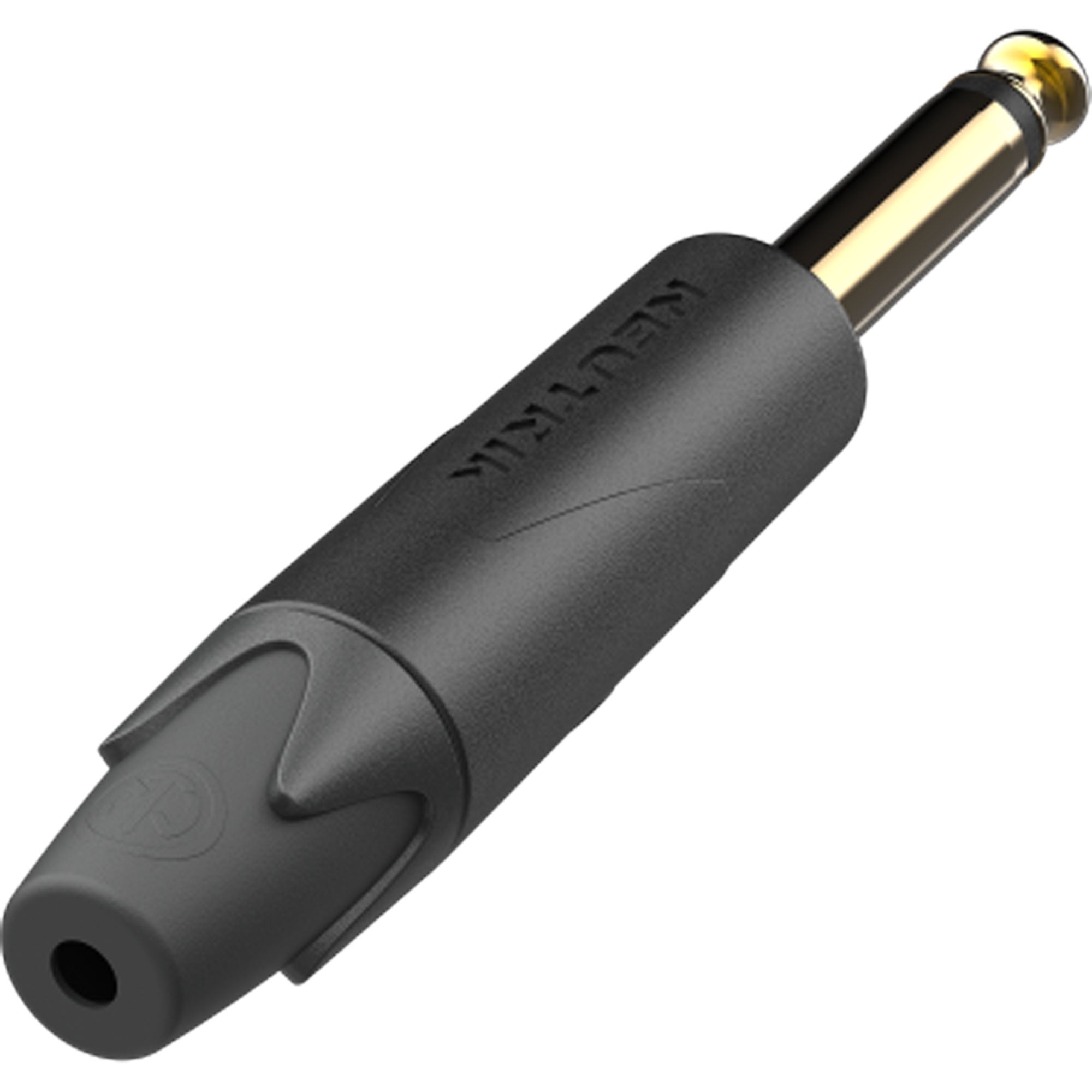

Male 1/4" TS Mono Phone Plug, Cable End, Black Housing, Gold Contacts - Full Box of 100 Connectors
Crafted from durable high-tech composite material, our cutting-edge housing design offers a premium tactile experience while significantly reducing the CO2 footprint compared to traditional metal housings.
The NEUTRIK chuck-type strain relief system and precisely engineered one-piece contact tip ensure exceptional performance and unmatched reliability.
Features & Benefits
- Extra slim 1/4" plug for highest packing Density
- Reduced C02 footprint compared to traditional metal housing
- Proven chuck type strain relief for reliable cable retention
- Precision machined one-piece contacts - avoid hook up of tip contact
Technical Information
- Product
- Title: NP2XX-AU-0
- Connection Type: Plug
- Gender: male
- Electrical
- Contact resistance: depends on mating connector mΩ
- Dielectric strength: 1 kVdc
- Insulation resistance: > 2 (initial) GΩ ≥ 1 GΩ (after damp heat test)
- Rated current per contact: depends on mating connector A
- Rated voltage: < 50 V
- Mechanical
- Cable O.D.: 4 - 7 mm
- Lifetime: > 1000 mating cycles
- Wiresize: 1 mm²
- Wiresize: 18 AWG
- Wiring: Solder contacts
- Material
- Bushing: Polyacetal (POM) + PU
- Contact plating: 2 µm Au
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA 6.6)
- Shell: Polyamide (PA 66)
- Strain relief: Polyacetal (POM)
- Environmental
- Standard compliance: IEC 60603-11 / EIA RS-453
- Solderability: Complies with IEC 68-2-20
- Temperature range: -20 °C to +65 °C
Details
- Manufacturer: Neutrik
- MPN: NP2XX-AU-0
- Model Number: NP2XX-AU-0
