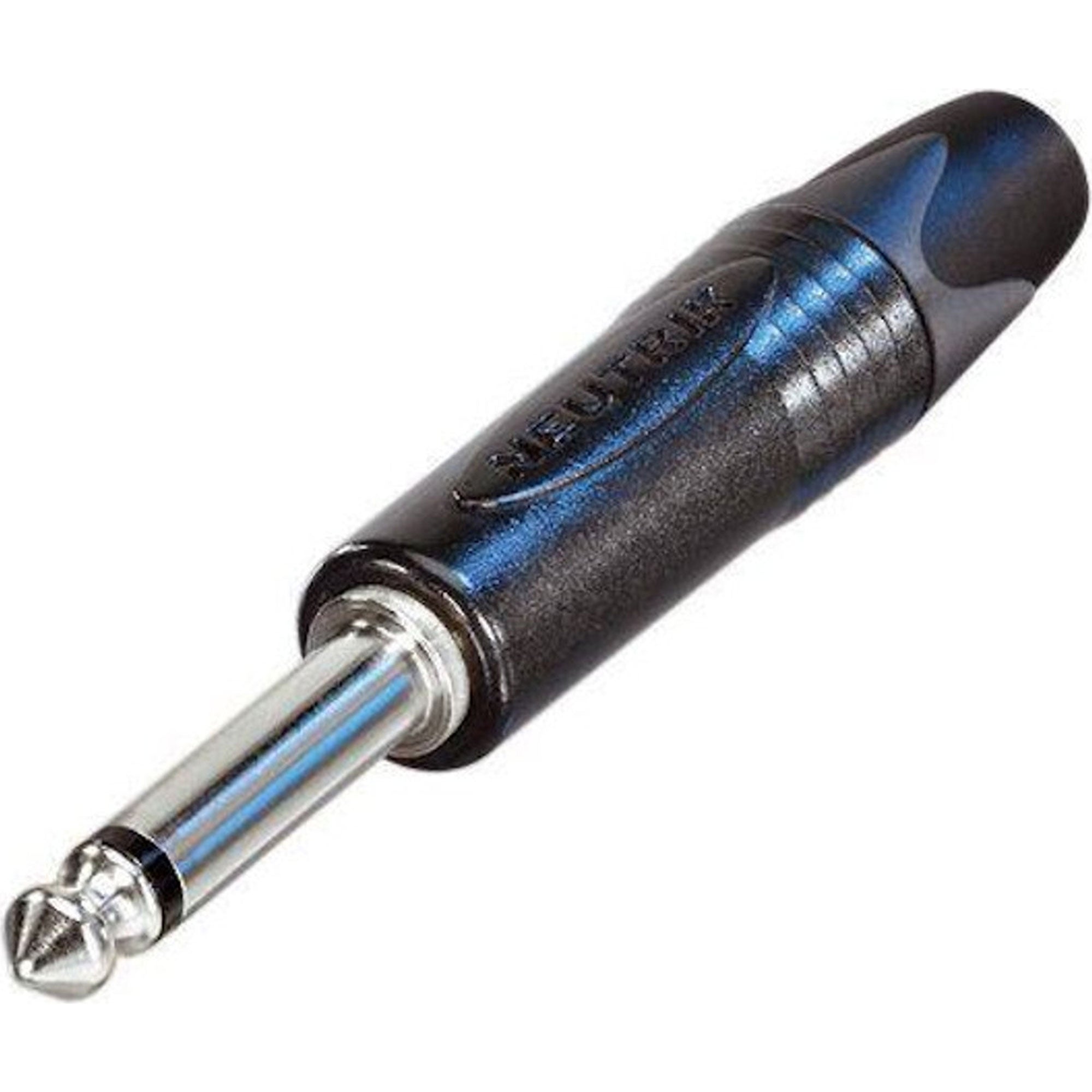

Neutrik NP2X-BAG Professional 1/4" TS Mono Phone Plug (Black/Silver)

Neutrik SKU: NTK NP2XBAG
MPN: NP2X-BAG UPC: 7613187000713

Price:
Sale price$8.00
Stock:
198 In Stock & Ready to Ship

Key Features

  • Male 1/4" Mono Phone Plug
  • Tip, Sleeve (TS) Connections
  • Industry Standard
  • Solder Cups
  • Black Metal Housing
  • Silver Contacts

Description

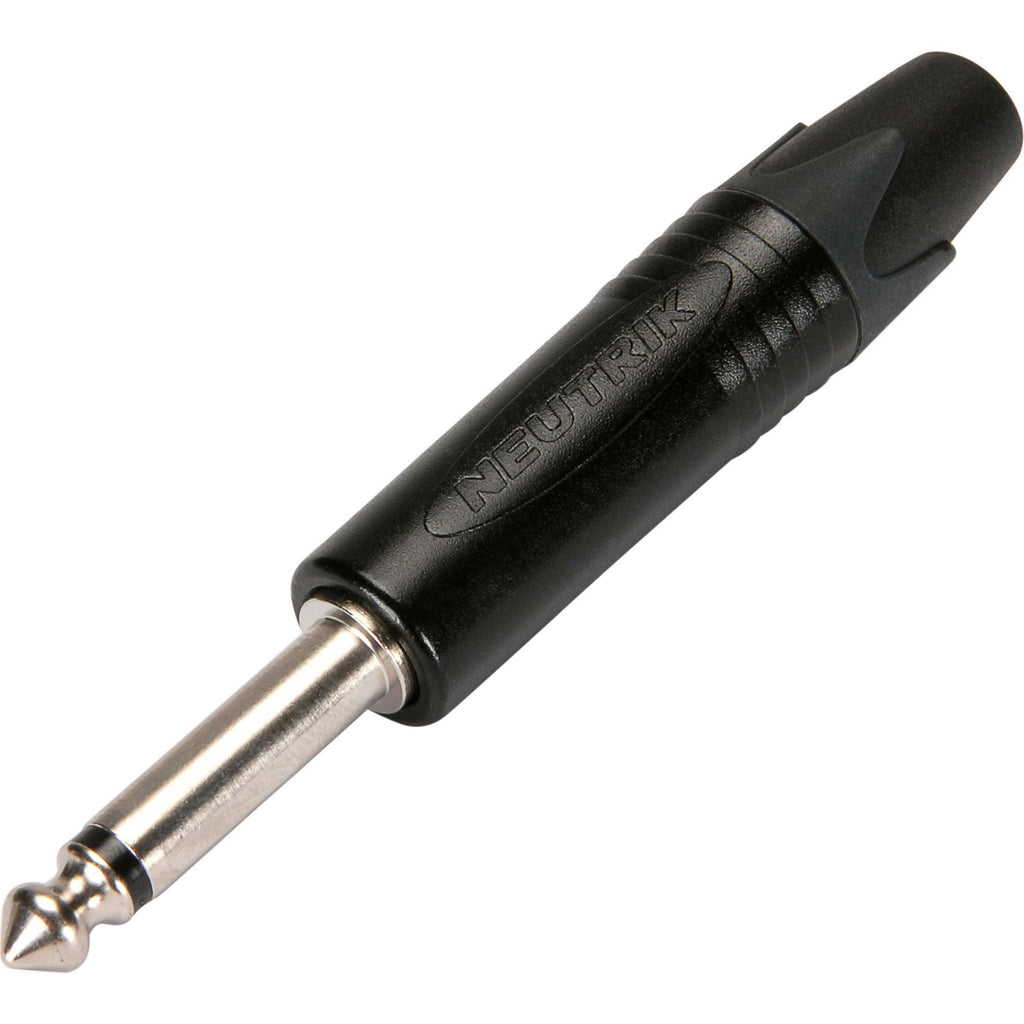

Black/Silver straight 1/4-inch TS cable plug

The Neutrik NP2X-BAG is a male, two-contact 1/4-inch TS mono cable-end plug with a Black chromium-plated diecast shell and Silver-colored contacts. Use it for custom guitar, instrument, and other unbalanced mono audio cable builds where your equipment requires a TS connection. This is a solder-on connector, not a finished cable.

Choose your finish

This listing is the Black/Silver NP2X-BAG. The other finish options in this comparison are Nickel/Silver NP2X and Black/Gold NP2X-B.

Check compatibility before ordering

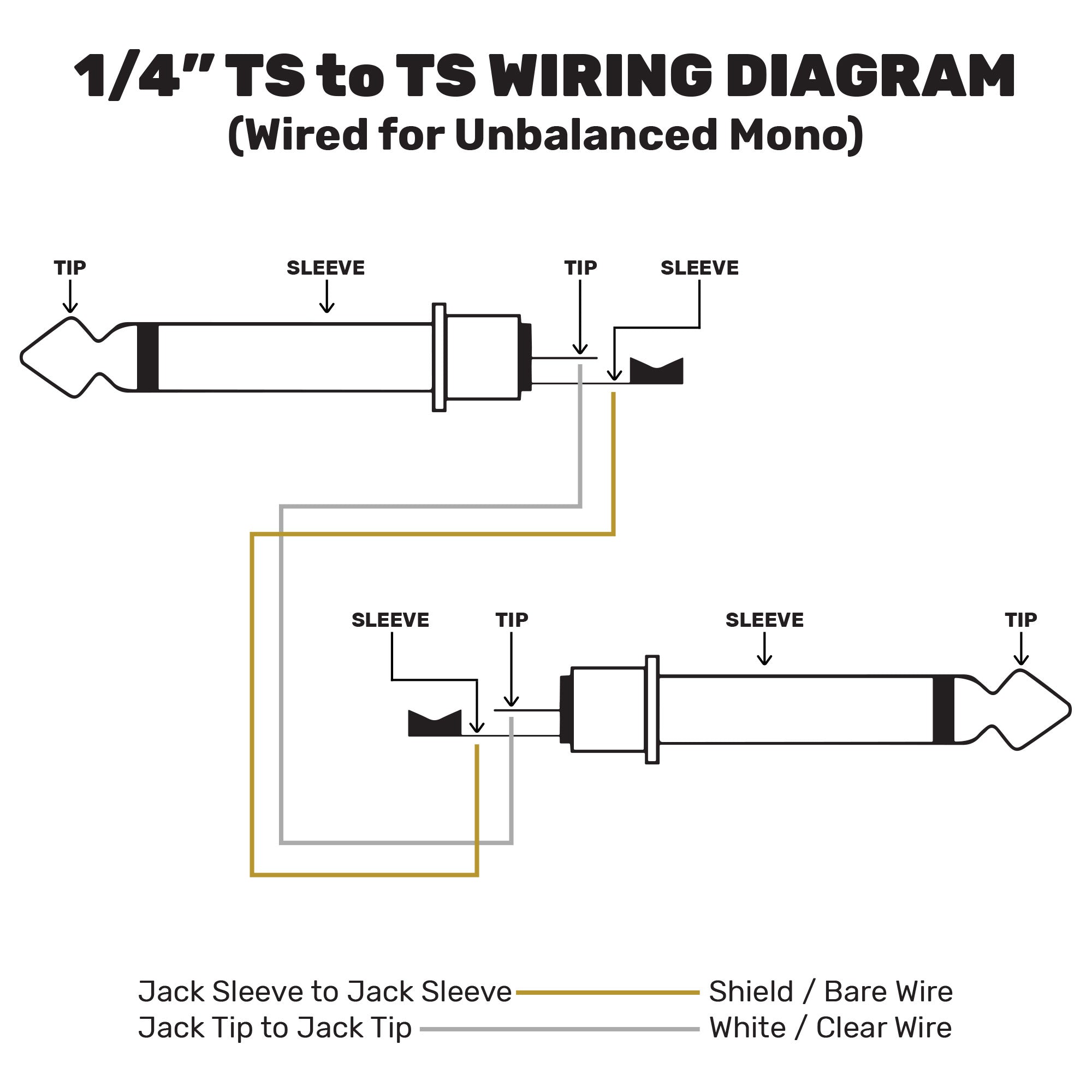

This is a two-pole TS, tip/sleeve, connector, not a three-pole TRS connector for balanced mono or stereo connections. Match the connector type and wiring to your equipment.

Fits cable outside diameters of 4–7 mm. The listed wire size is 18 AWG. Check the jacket diameter and conductor fit, including any shield or drain-wire bundle at the sleeve termination.

The slim shell is 14.5 mm wide. Check clearance around recessed sockets and adjacent plugs; shell width alone does not guarantee fit in every closely spaced jack layout.

Assembly

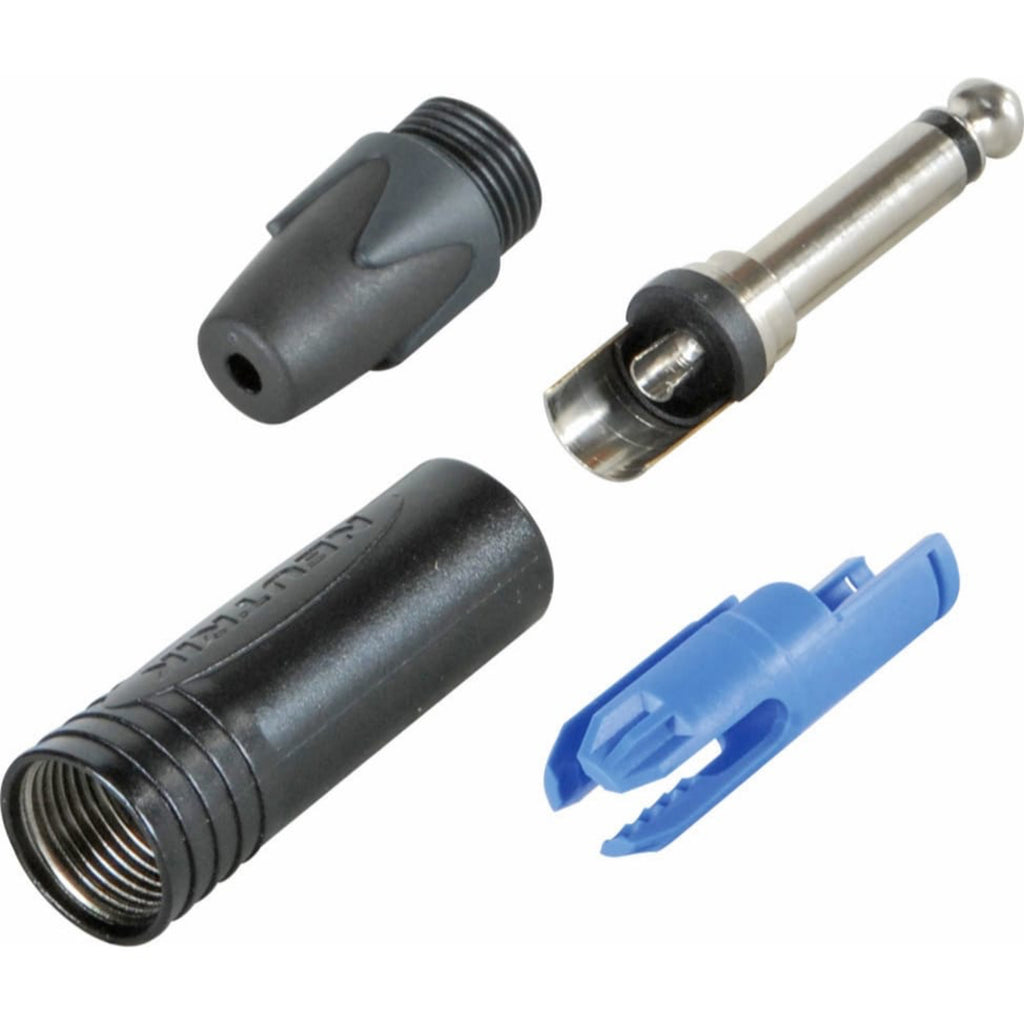

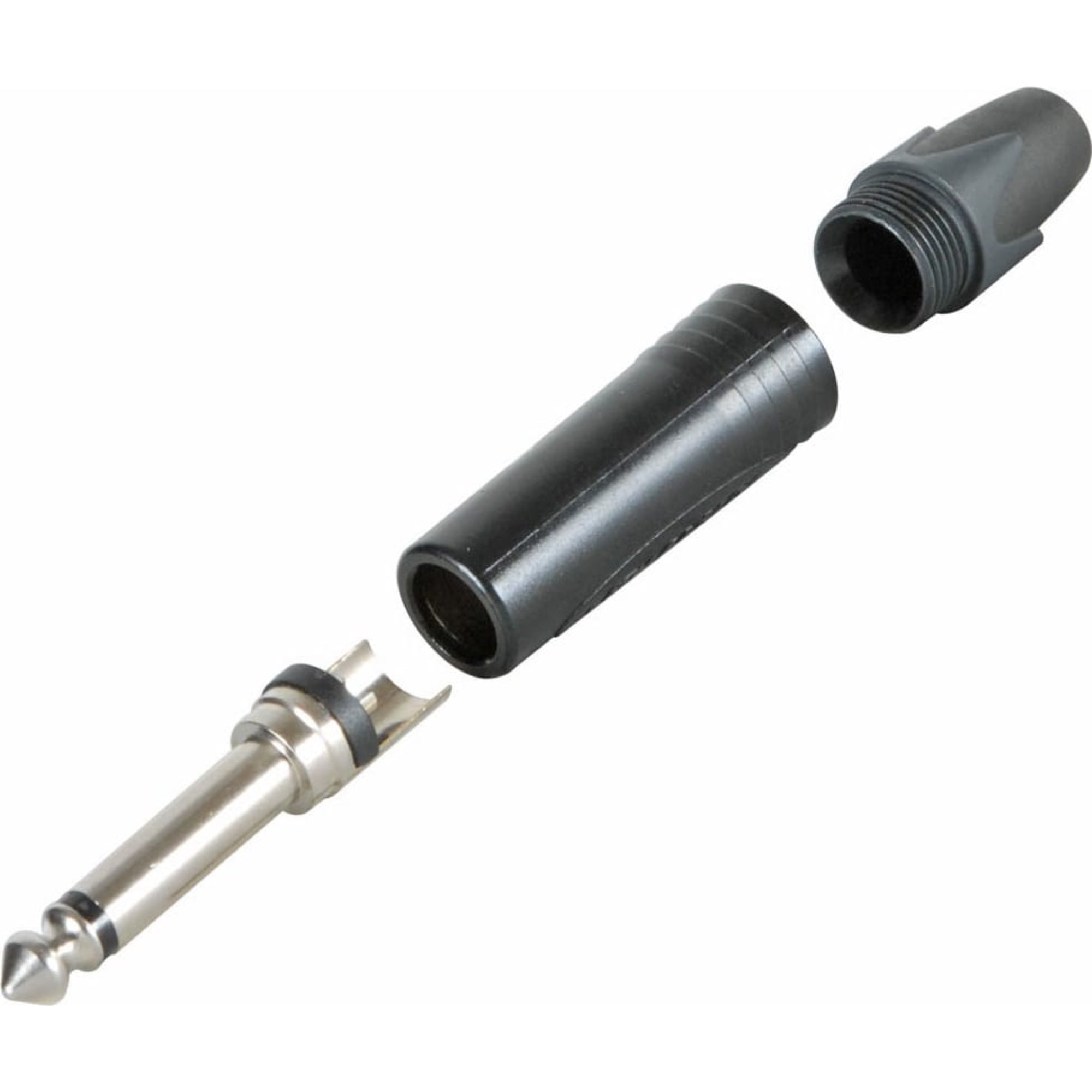

Soldering and cable assembly are required. Follow Neutrik’s cable-preparation and assembly instructions, fit the housing and bushing onto the cable before soldering, and secure the jacket with the chuck-type strain relief. Verify tip/sleeve continuity and check for shorts before use.

Features

  • Straight male 1/4-inch TS mono cable plug.
  • Robust zinc diecast shell with Black chromium finish.
  • Silver-colored contacts.
  • Chuck-type strain relief for cable retention.
  • Precision-machined one-piece tip contact without rivets.
  • Solder contacts for custom cable assembly and repair.

Specifications

  • Model: NP2X-BAG
  • Connection: Male 1/4-inch TS phone plug, two pole
  • Termination: Solder contacts
  • Cable outside diameter: 4–7 mm
  • Listed wire size: 18 AWG
  • Shell width: 14.5 mm
  • Lifetime: More than 1,000 mating cycles
  • Rated voltage: 50 V
  • Rated current per contact: Depends on mating connector
  • Contact resistance: Depends on mating connector
  • Dielectric strength: 1 kV DC
  • Insulation resistance: Greater than 2 GΩ initially; at least 1 GΩ after damp heat test
  • Contacts: Brass, CuZn39Pb3
  • Contact plating: Listed as nickel in the existing specifications; Silver denotes the contact finish color in this listing.
  • Shell: Zinc diecast, ZnAl4Cu1
  • Shell plating: Black chromium
  • Insert: Polyamide, PA 6.6, 30% glass reinforced
  • Bushing: Polyacetal, POM, and PU
  • Strain relief: Polyacetal, POM
  • Standard compliance: IEC 60603-11 / EIA RS-453
  • Solderability: IEC 68-2-20
  • Temperature range: −20°C to +65°C
Details
  • Manufacturer:  Neutrik
  • MPN: NP2X-BAG
  • Model Number: NP2X-BAG
  • UPC: 7613187000713
