Key Features
- Chuck-Type Strain Relief
- Zinc Diecast, Ni-Plated Housing
- Soldered Contacts
- Rated Current per Contact: 30A RMS
- IP54 Certified
- Reinforced-Metal Quick-Lock System
- Compatible with Wires up to 10 AWG
- Designed for Live Touring
Description

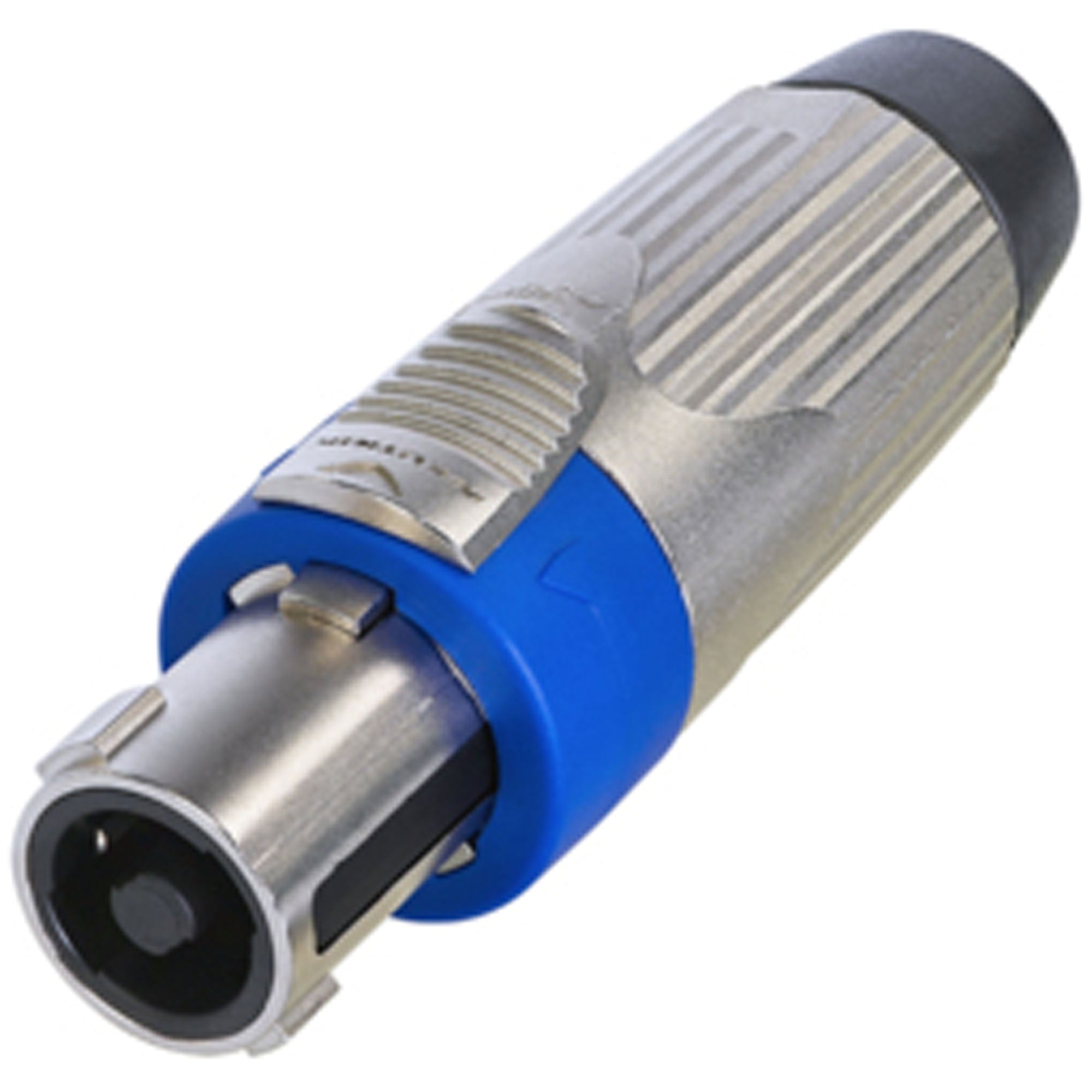

4 Pole Female STXX Series speakON Cable Connector, Nickel Metal Housing, Chuck Type Strain Relief
This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.
The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing.
Features
- IEC 61984 certified, IEC 62368-1 compliant
- Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
- Uses precise "Quick Lock" system
- Extra large solder contacts for up to 6 mm² (AWG 10) wires
- Weatherproof built-in gasket meets IP 54 protection class in mated condition
Specifications
- Product:
- Title: NLT4FXX
- Gender: Female
- Electrical:
- Contact resistance: < 2 mΩ
- Dielectric strength: 2.8 kVac
- Insulation resistance: >0.1 GΩ (after dampheat)
- Rated current per contact: 30 A rms continuous
- Rated voltage: 250 V ac
- Attention: speakON is NOT to be used as an AC mains or power supply connector!
- Mechanical:
- Cable O.D.: 9 - 16 mm
- Lifetime: > 5000 mating cycles
- Wiresize: 6 mm²
- Wiresize: 10 AWG
- Termination: Solder contacts
- Locking device: Quick Lock (latch)
- Material:
- Contact plating: Ag
- Contacts: Copper Alloy
- Shell: Zinc diecast, Ni plated
- Insert: Polyamide (PA 66)
- Locking element: Zinc diecast, Ni plated
- Strain relief: Polyacetal (POM)
- Environmental:
- Temperature range: -30 °C to +80 °C
- Flammability: UL 94 V-0
- Protection class: IP 54 (mated condition)
- Solderability: Complies with IEC68-2-20
