Key Features
- speakON Male to Male Adapter
- Extend Cable Runs without Crimping
- Flame-Retarding V-0 Materials
- Robust PA Shell with Copper Contacts
- Quick Lock for Easy Attachment
- 25A RMS Power Rating
- Full Box of 25 Couplers
Description

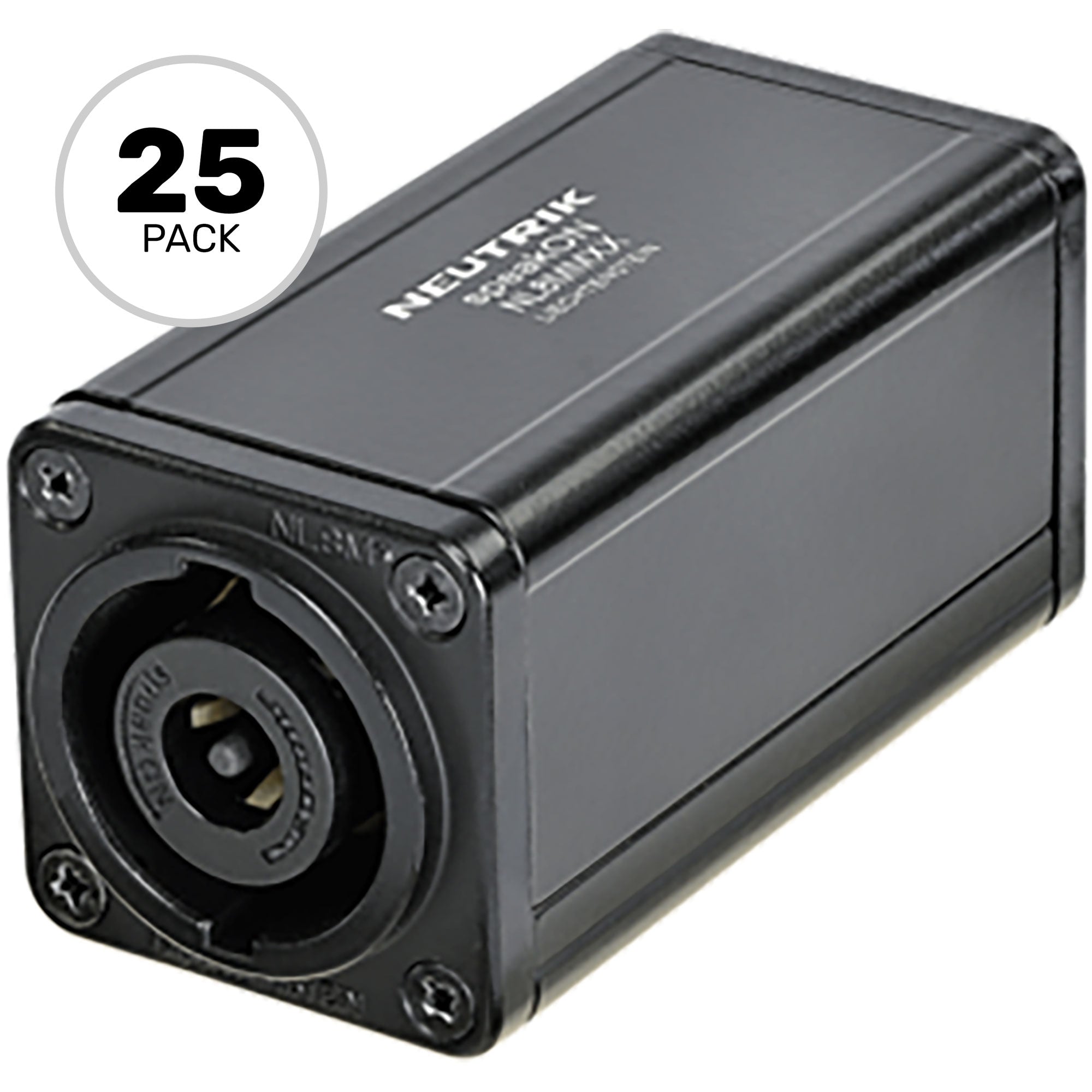

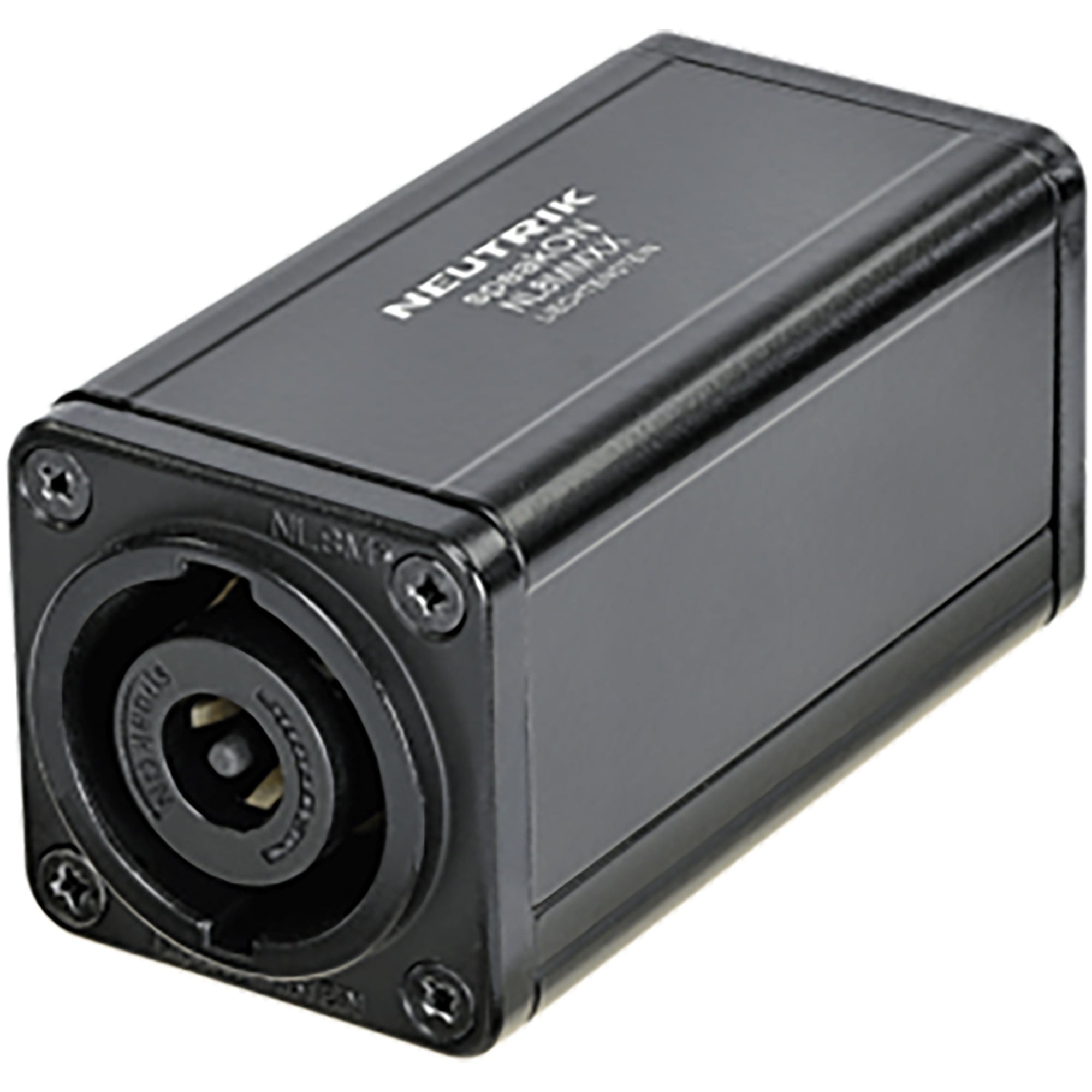

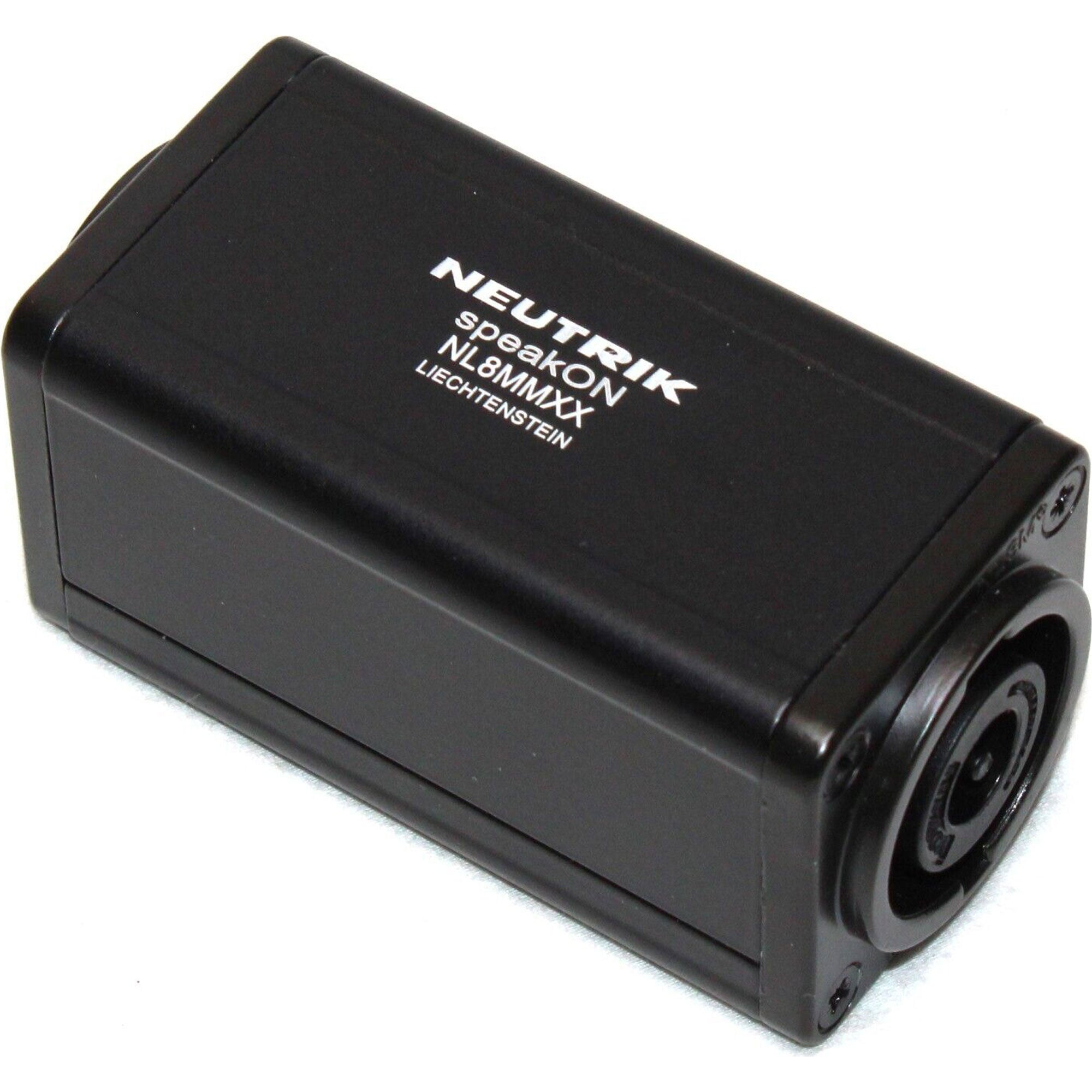

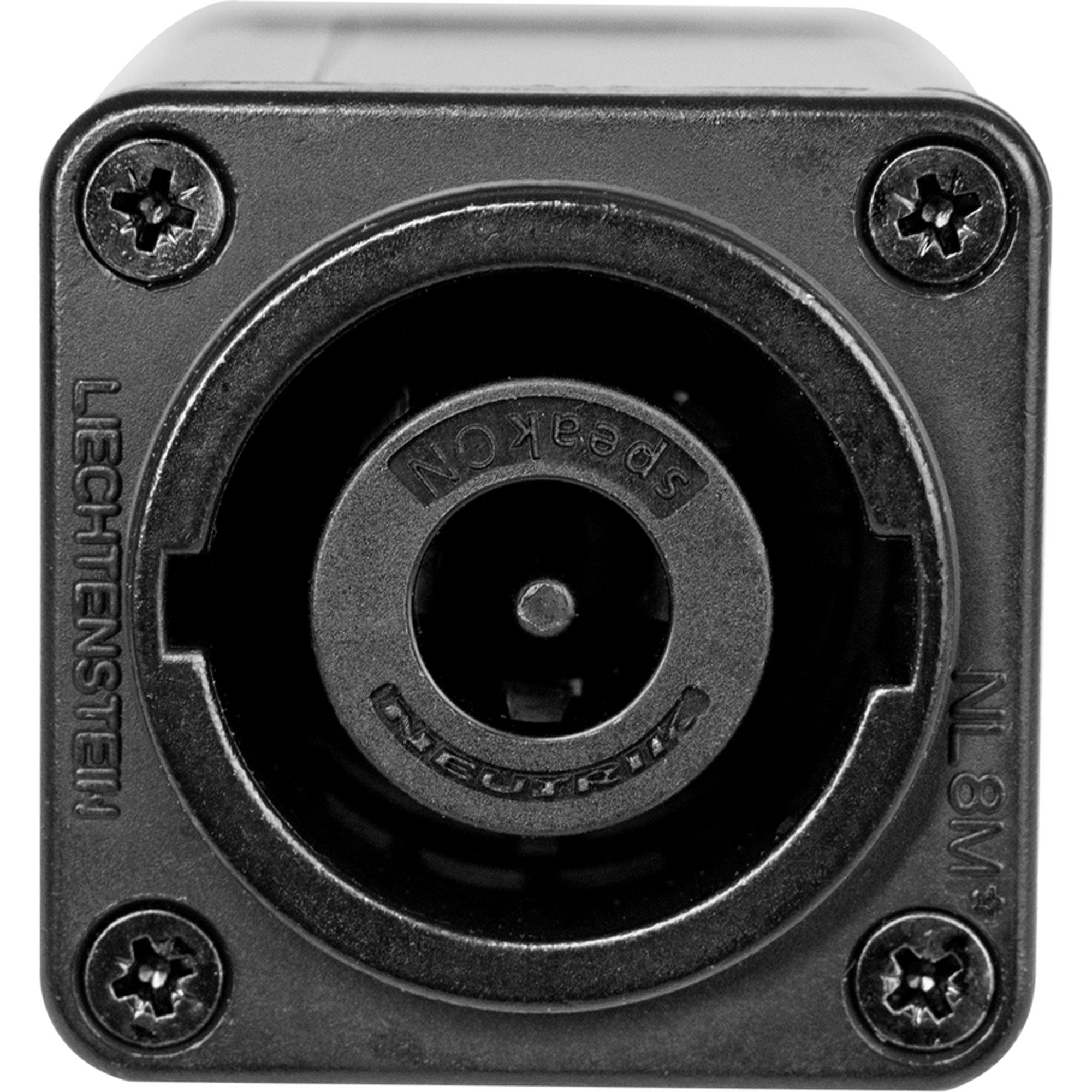

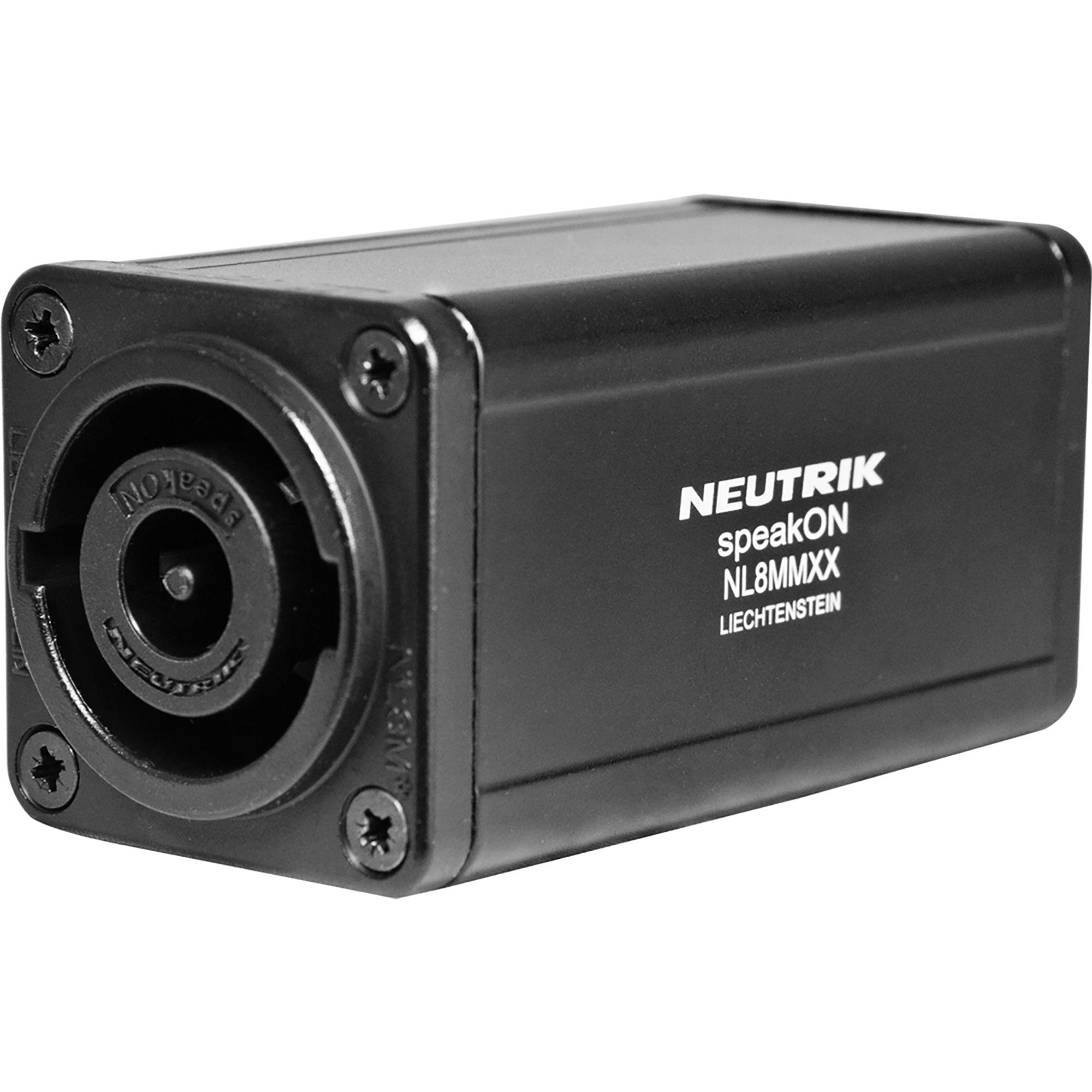

8 Pole speakON Feedthrough Coupler for Cable Extensions - Full Box of 25 Couplers
When you need to extend cable runs between amps and loudspeakers without crimping connectors, the NL8MMXX 8-Pole speakON Feedthrough Coupler from Neutrik is an excellent choice. Latching quick lock connectors make cable attachment safe and easy, and the 25A RMS continuous power rating can handle most signal loads. Sporting a durable polyamide shell with quality copper contacts and flame-resistant V-0 materials, the NL8MMXX is a rugged and reliable solution for your cable extension needs.
Specifications:
- Product:
- Title: NL8MMXX
- Connection Type: Adapter
- Gender: male
- Electrical:
- Contact resistance: < 3 mΩ
- Dielectric strength: 1.5 kVac
- Insulation resistance: > 0.1 GΩ (after dampheat)
- Rated current per contact: 25 A rms continuous
- Rated voltage: 250 V ac
- Attention: speakON is NOT to be used as an mains or power supply connector (AC / DC)!
- Mechanical:
- Lifetime: > 5000 mating cycles
- Locking device: Quick Lock
- Material:
- Contact plating: Ag
- Contacts: Copper Alloy
- Shell: Zinc diecast, black chrome plated
- Insert: Polyamide (PA 6.6)
- Environmental:
- Temperature range: -30 °C to +80 °C
- Flammability: UL 94 V-0
Details
- Manufacturer: Neutrik
- MPN: NL8MMXX
- Model Number: NL8MMXX
