Neutrik NE8MXR-B-TOP etherCON Retractable RJ45 Cable Connector Carrier IP65 and UV Rated (Black)

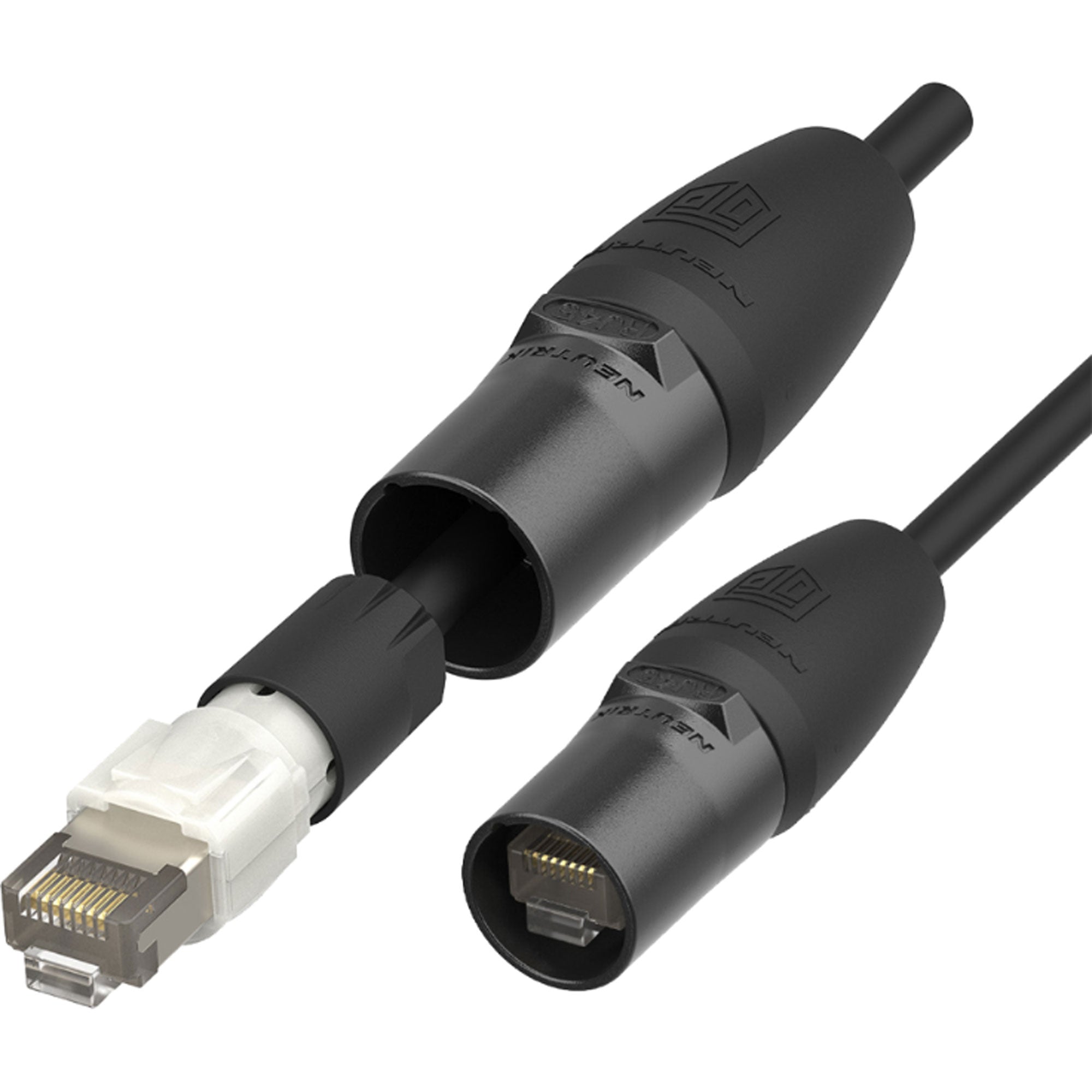

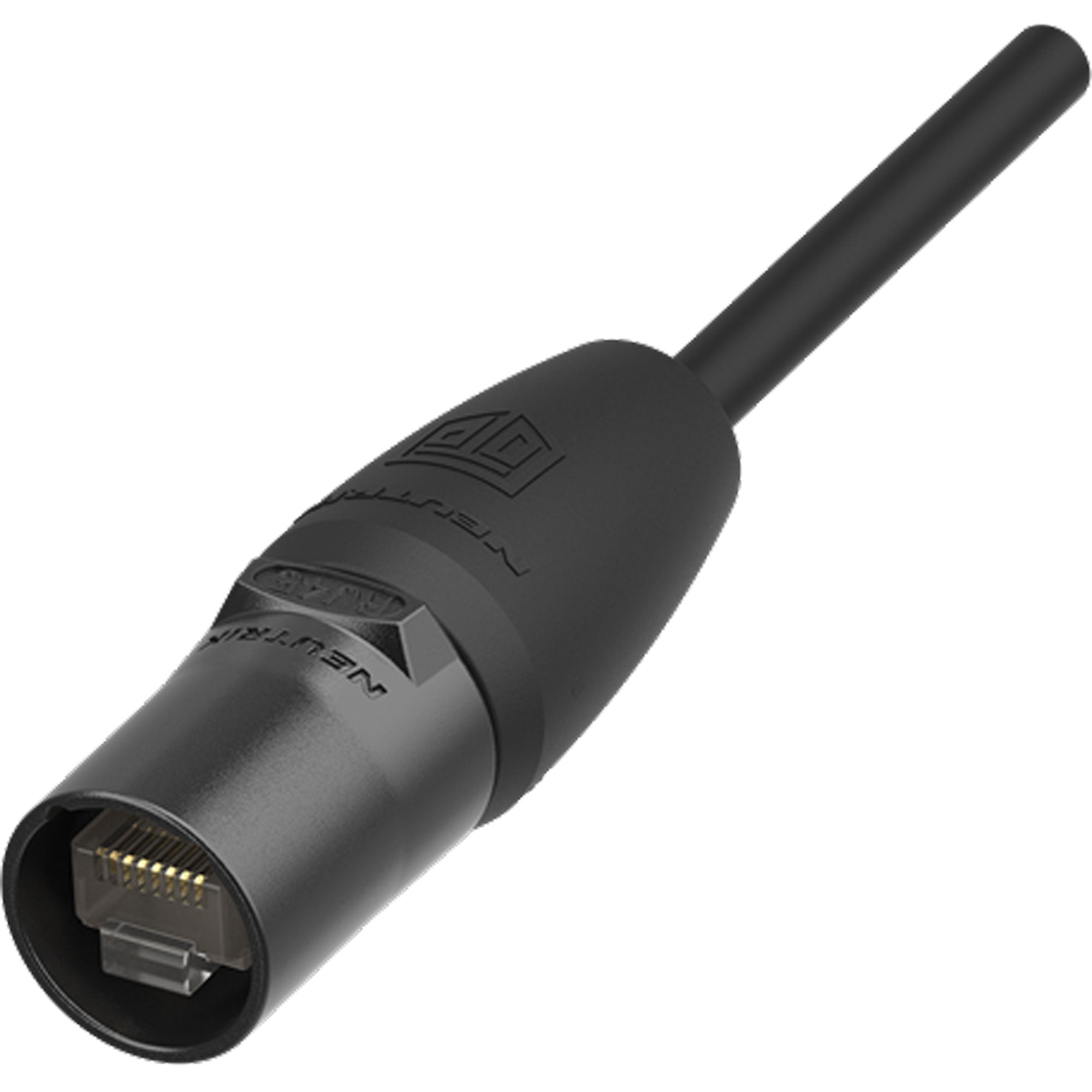

Black Neutrik NE8MXR-B-TOP retractable etherCON RJ45 carrier

The Black Neutrik NE8MXR-B-TOP is an etherCON TOP male cable-connector carrier with a retractable diecast shell and chuck-type strain relief. It is designed for assembling non-preassembled RJ45 cables with a 5.5–8.0 mm outside diameter. This listing is for the carrier, not a complete Ethernet cable.

An RJ45 plug is not included. You must supply a compatible RJ45 plug and cable and assemble them according to Neutrik's instructions. This model is not intended as a retrofit carrier for an already assembled cable.

Check plug and receptacle compatibility

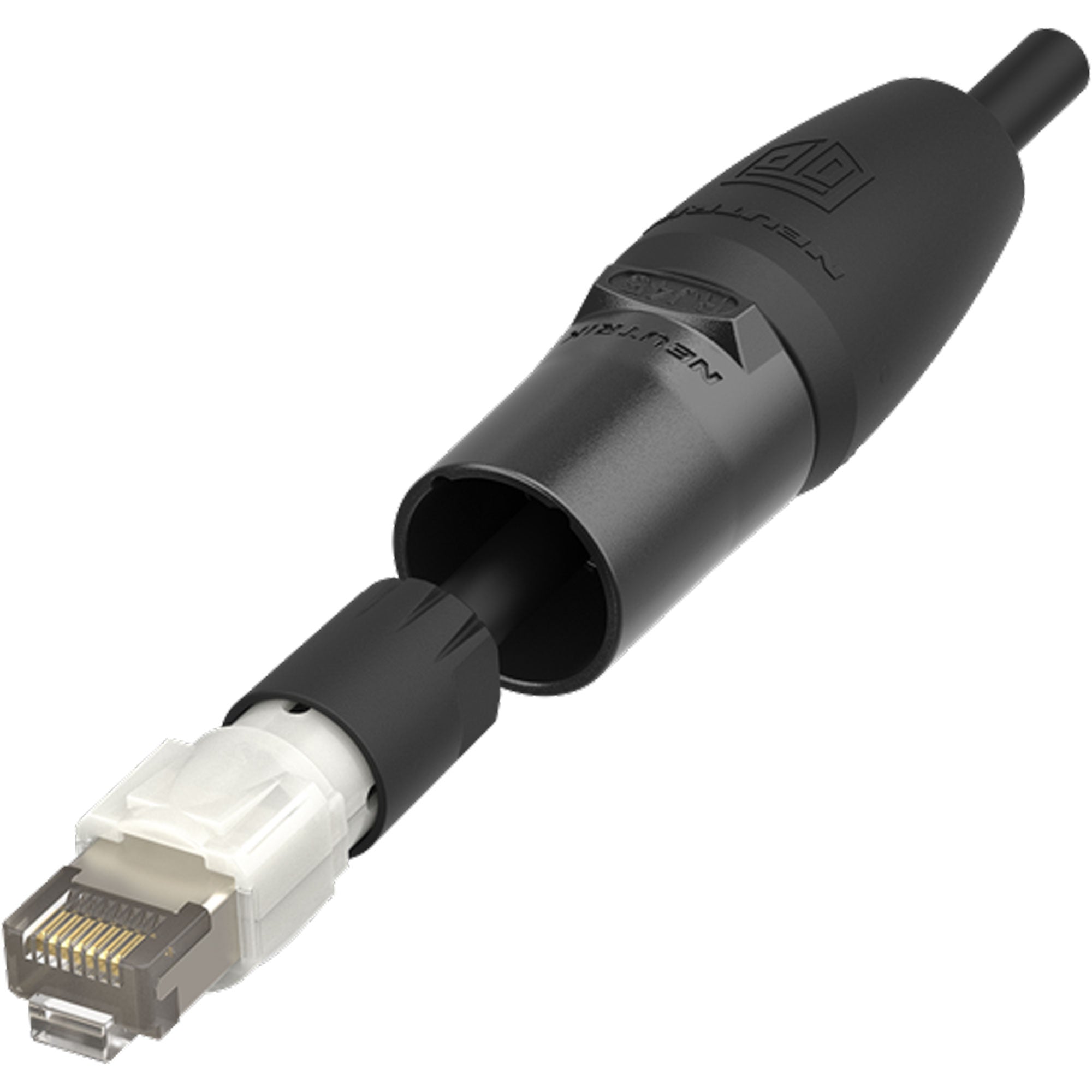

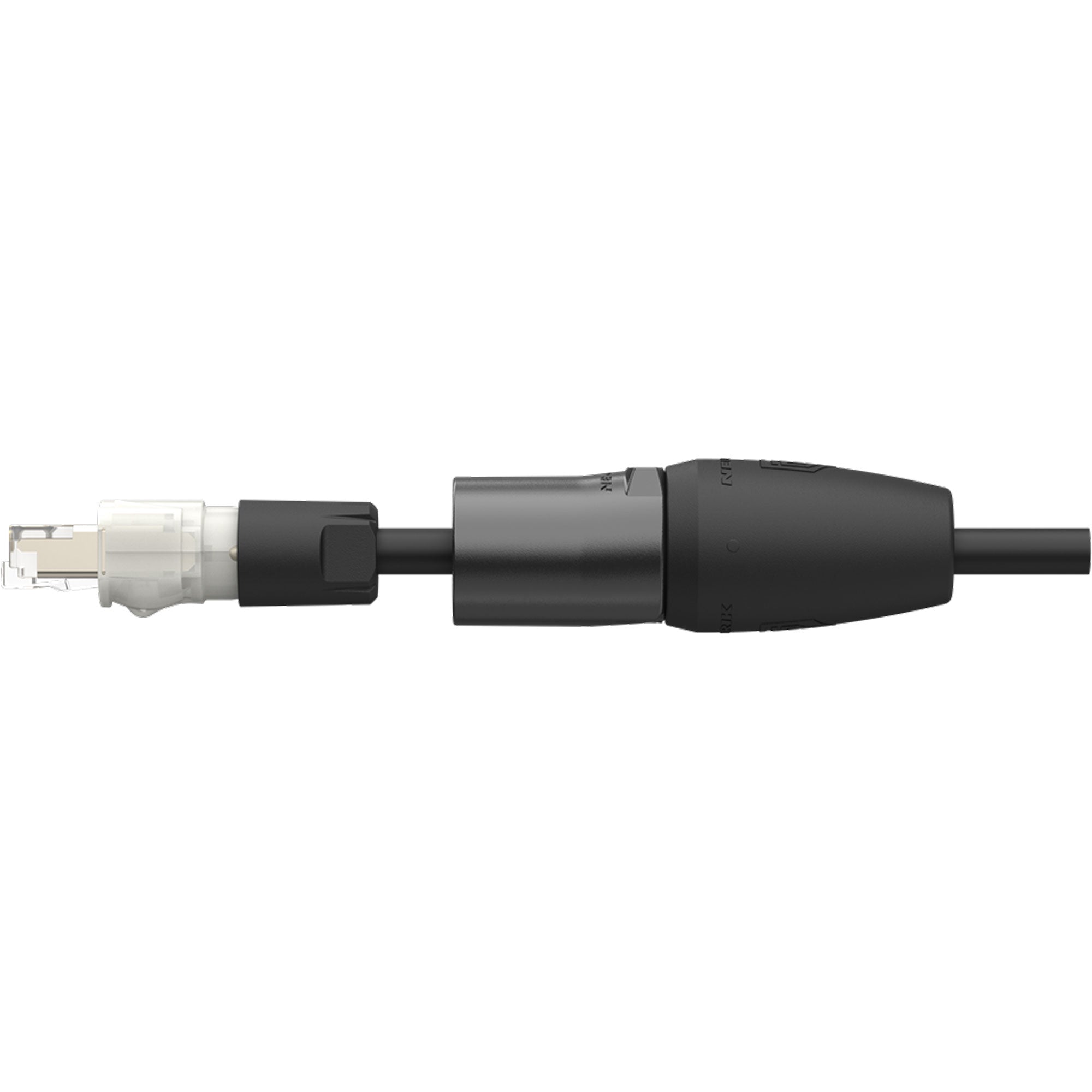

The retractable shell allows the assembled RJ45 plug to connect to common standard RJ45 receptacles without removing and potentially losing the carrier shell. Check the RJ45 plug against Neutrik's compatibility list and confirm clearance around the equipment's socket; do not assume every plug or recessed receptacle will fit.

Does not intermate with Neutrik NE8FDY-C6 or NE8FDY-C6-B CAT6 receptacles. Verify the exact etherCON receptacle model before ordering. The carrier does not by itself establish the finished cable's Ethernet category or performance.

When IP65 protection applies

The listed IP65 protection applies when correctly mated with compatible Neutrik etherCON TOP receptacles, or when the SCMX-TOP sealing cap is properly closed. Do not assume an exposed, unmated connection or a connection to an ordinary RJ45 socket provides the same protection. Follow Neutrik's assembly and sealing instructions.

UV-resistant F2-certified materials and corrosion-resistant plating support outdoor applications within the product's ratings. These features do not make every installation or mating combination weatherproof.

Assembly and cable retention

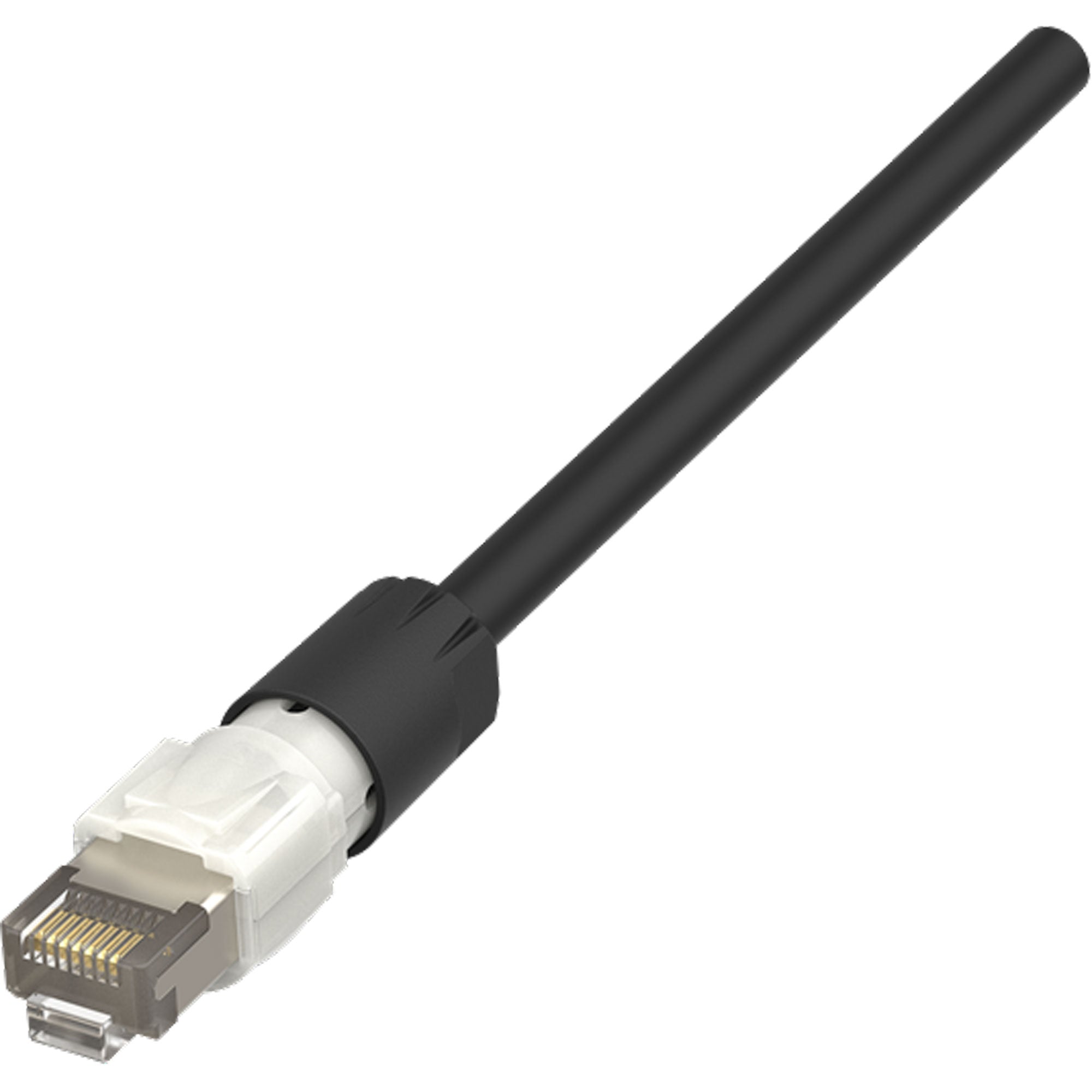

Check the cable's 5.5–8.0 mm jacket diameter and the RJ45 plug's compatibility before assembly. Prepare and terminate the cable and plug using their manufacturers' instructions, assemble the carrier and strain relief, and test the completed cable before use. The diecast shell is designed to help protect fragile RJ45 components, while the chuck-type strain relief supports the cable.

Features

• Retractable carrier shell for use with compatible standard RJ45 receptacles.
• Black finish.
• Rugged zinc diecast shell and chuck-type strain relief.
• Conditional IP65 protection when correctly mated to compatible etherCON TOP receptacles or closed with an SCMX-TOP sealing cap.
• UV-resistant F2-certified materials, listed with a UL yellow card.
• Corrosion-resistant plating and materials.
• Listed V0 flame-resistance rating.
• Halogen-free materials.
• For assembly with compatible RJ45 plugs and non-preassembled cables.

Specifications

• Model: NE8MXR-B-TOP
• Product family: etherCON TOP
• Type: Male RJ45 cable-connector carrier
• RJ45 plug: Not included
• Cable outside diameter: 5.5–8.0 mm
• Insertion force: ≤30 N
• Withdrawal force: ≤30 N
• Listed mating lifetime: Minimum 1,000 cycles
• Listed shell-retraction lifetime: Minimum 100 cycles
• Boot: Thermoplastic elastomer, TPE
• Shell: Zinc diecast, ZnAl4Cu1
• Strain relief: Polyketone, PK
• Sleeve: Polyamide, PA6, 15% glass fiber
• Protection class: IP65 under the stated mating or closed-cap conditions
• Temperature range: −30°C to +80°C
