Key Features
- Fits any Standard RJ45 Plug
- IDC 110 Punch Down Terminals
- Rugged Design
- Standard D-Shape Housing
- Black Metal Housing
- Includes Mounting Screws
Description

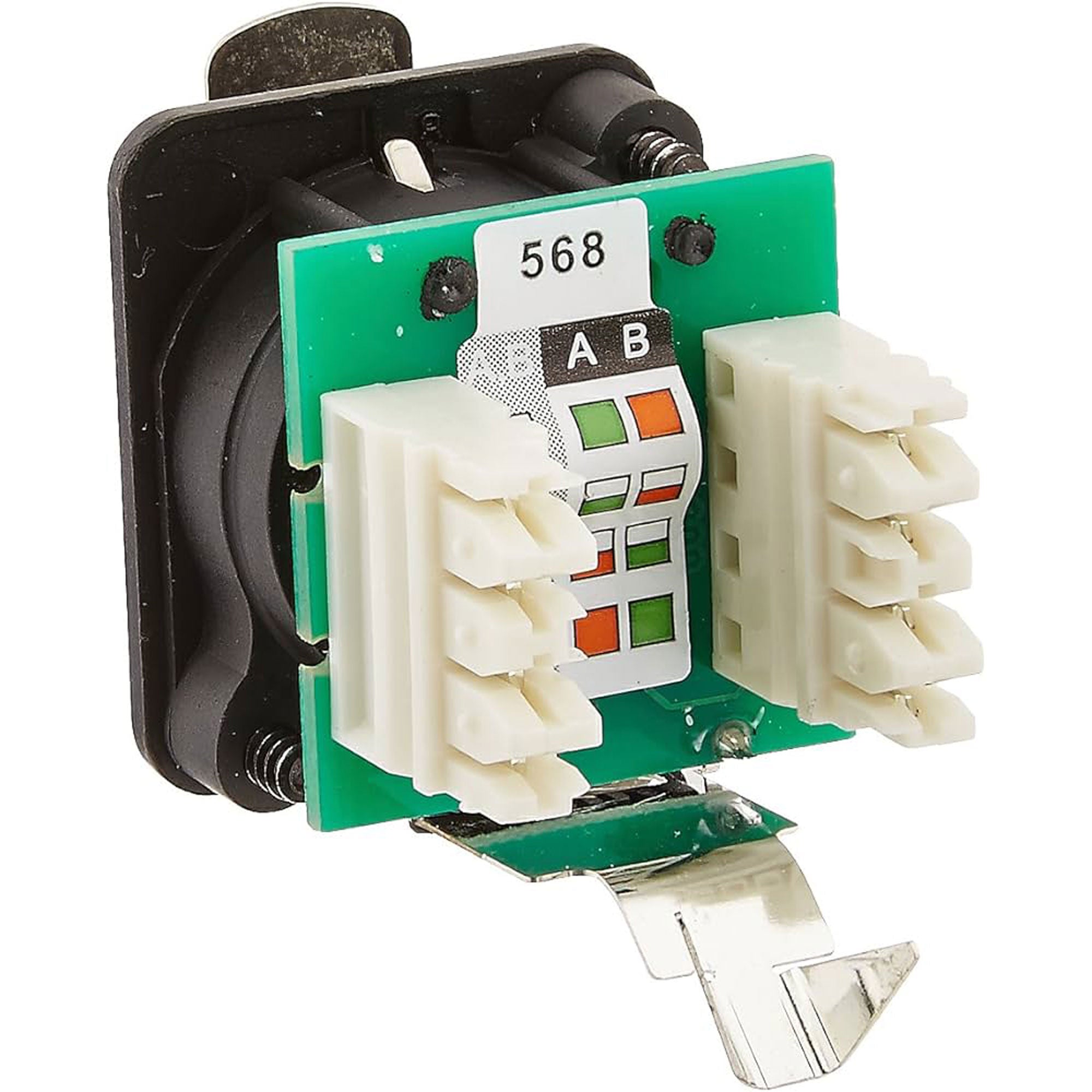

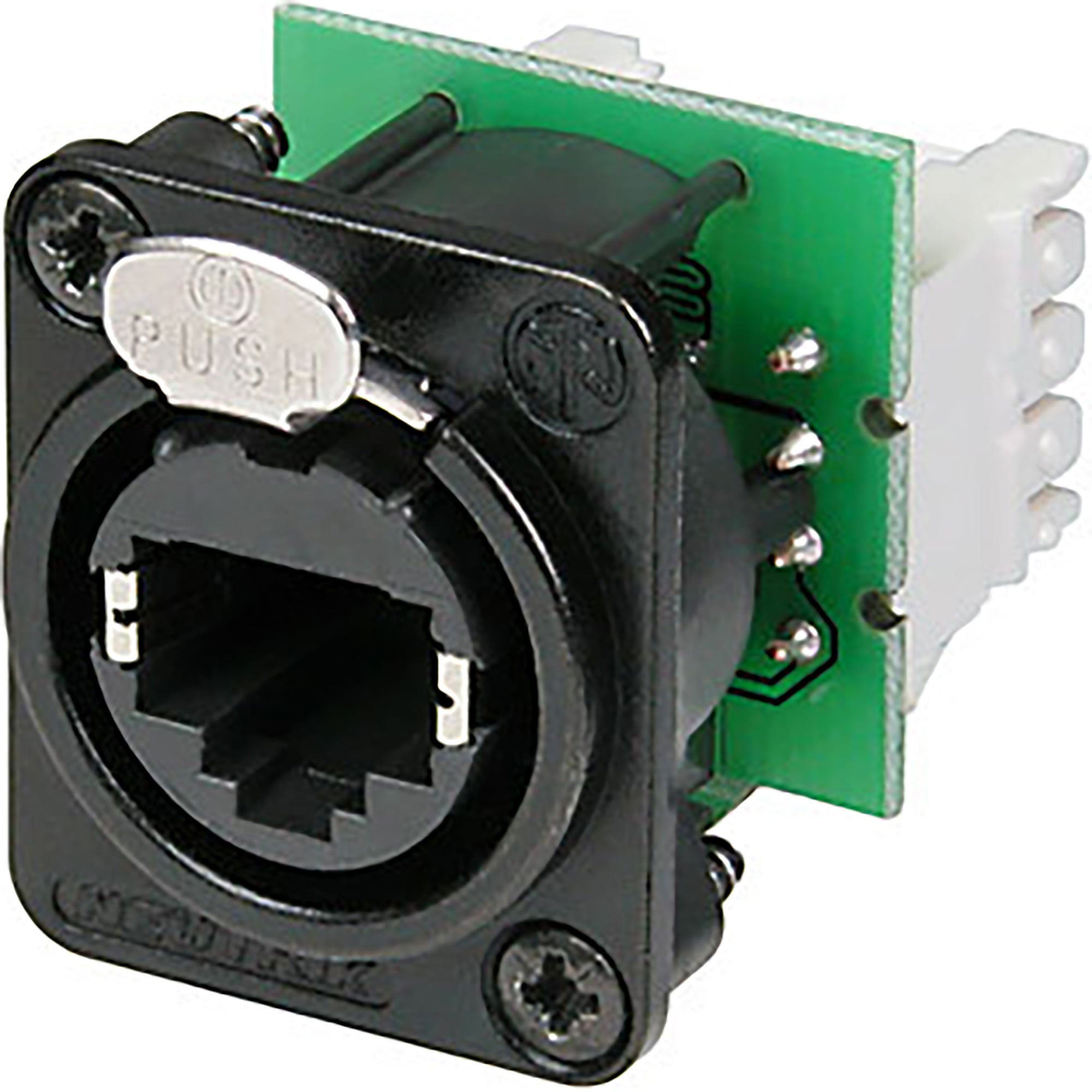

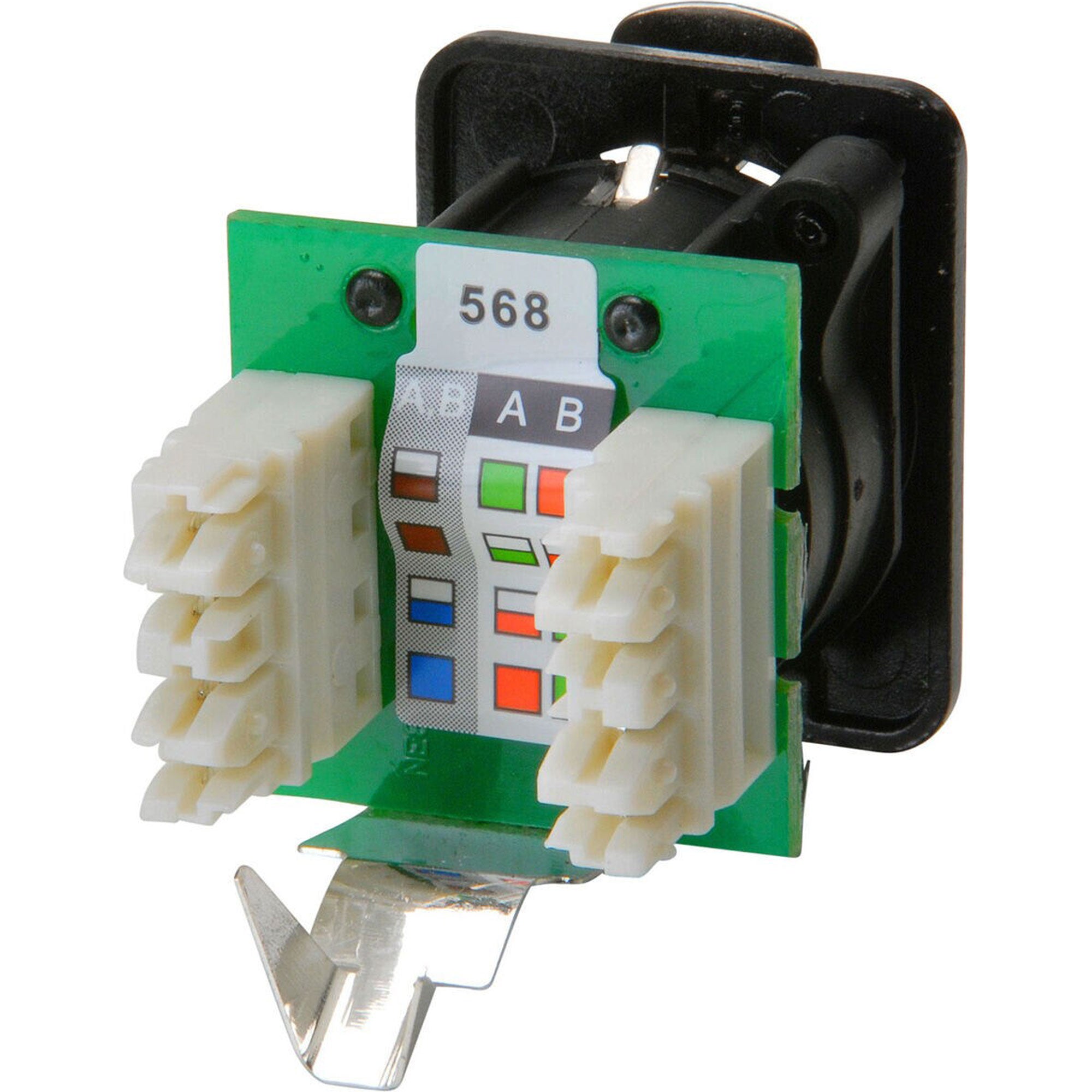

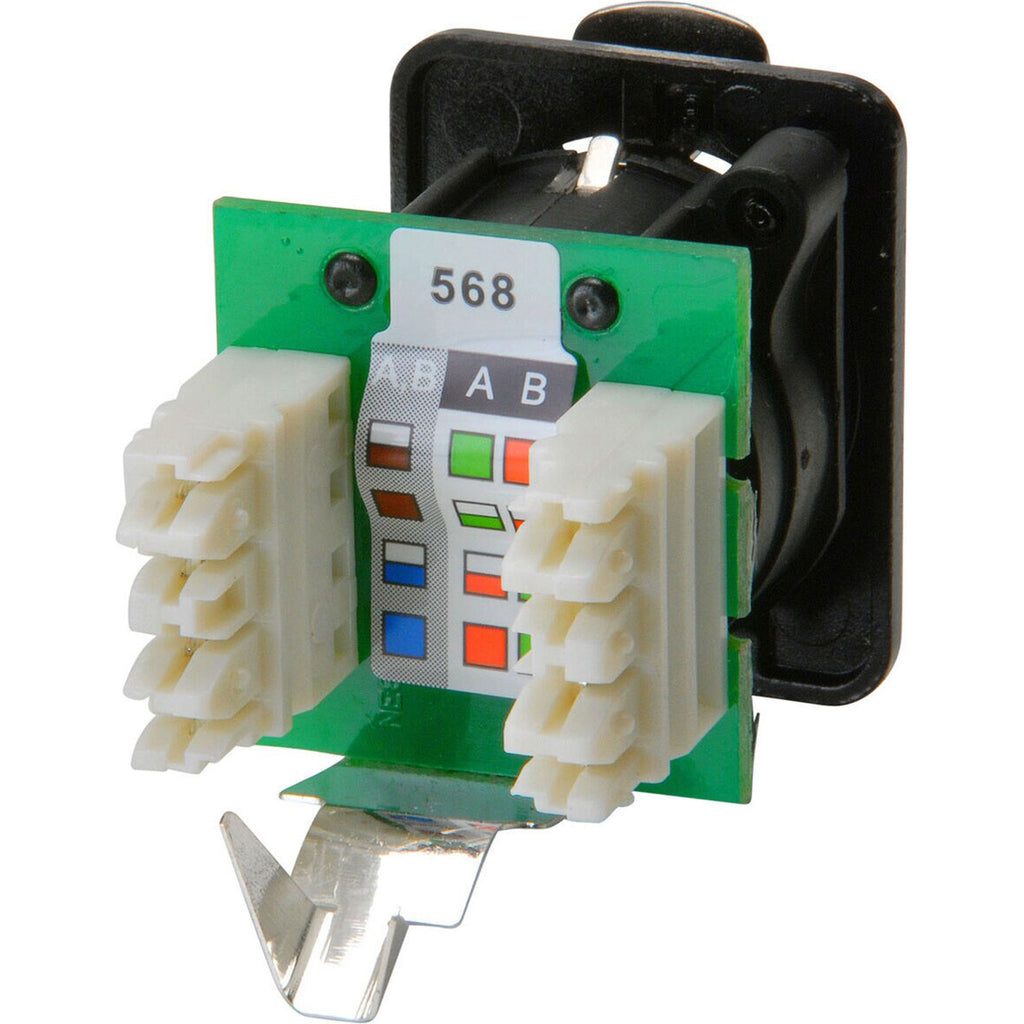

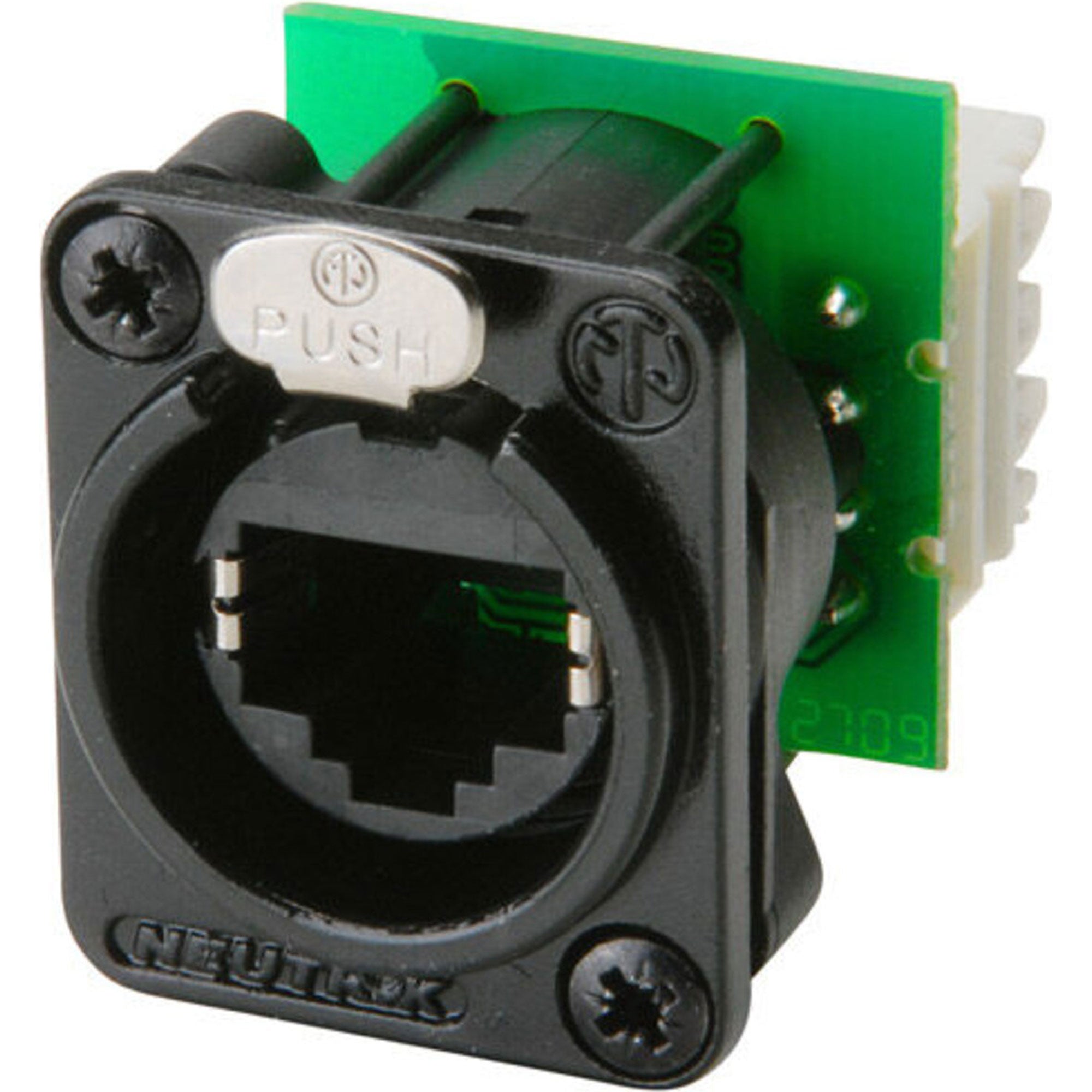

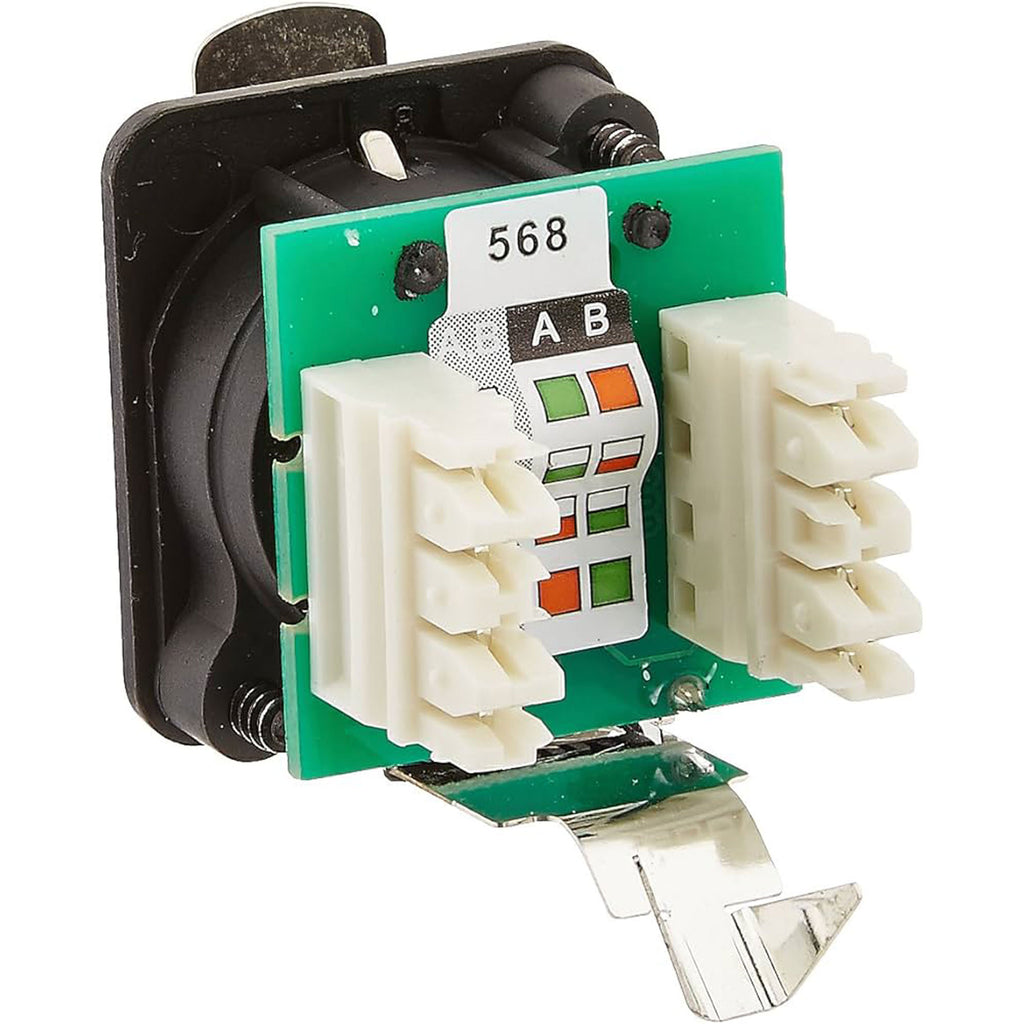

RJ45 Receptacle, D Series, 110 Punch Down Terminals, Black Housing with Mounting Screws
Panel mount receptacle with IDC 110 punch down terminals, D-shape metal flange with latch lock, max. panel thickness 4 mm. Mounting screws included.
The etherCON Series is a ruggadized and lockable RJ45 connector system, optimized for proaudio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.
Features:
- Accommodates NE8MC* or any standard RJ45 plug
- Approved latch lock system
- Mountable from the front or rear of the panel
- Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard
- Selectable ground - panel connection
- Easy and quick mounting using 110 type punch down terminals
Specifications:
- Product
- Title: NE8FDV-Y110
- Gender: female
- Electrical
- Contact resistance: < 10 mΩ (inner)
- Dielectric strength: 1 kVdc
- Frequencyrange: 1 - 100 MHz
- Insulation resistance: > 0.5 GΩ
- Rated current per contact: 1,5 A
- Rated voltage: 50 V
- Transmission performance: CAT 5e
- Standard compliance: TIA/EIA 586B, IEC11801
- Mechanical
- Insertion force: <= 20 N
- Withdrawal force: <= 20 N
- Lifetime: > 1000 mating cycles
- Panel thickness: max. 4 mm 0.16'
- Wiresize: 0.14 - 0.5 mm-
- Wiresize: 26 - 20 AWG
- Wiring: IDC 110 punch down terminals
- Locking device: Latch lock
- Chassis shape: D
- Material
- Contact plating: 0.2 -m Au over Ni plating
- Contacts: Bronze (CuSn8)
- Insert: PBTP 15 % GR
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Nickel
- Strain relief: CuZn35Pb2, Tin plated
- Environmental
- Flammability: UL 94 V-0
- Temperature range: -30 °C to +80 °C
