Key Features
- Gold Plated Cage Type Center Contact
- True 75 Ohm Design
- Isolated Panel Mount
- Feedthrough Design
Description

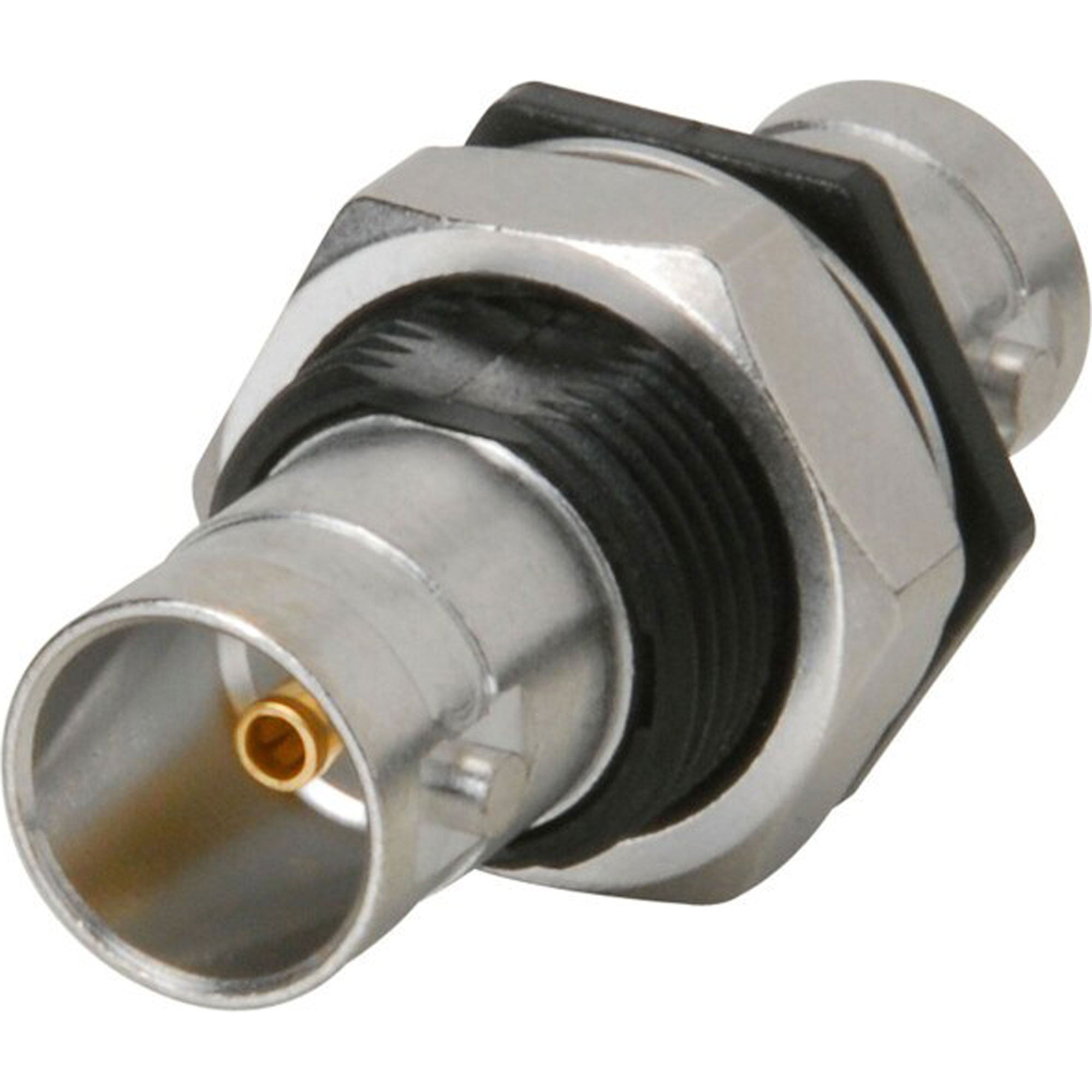

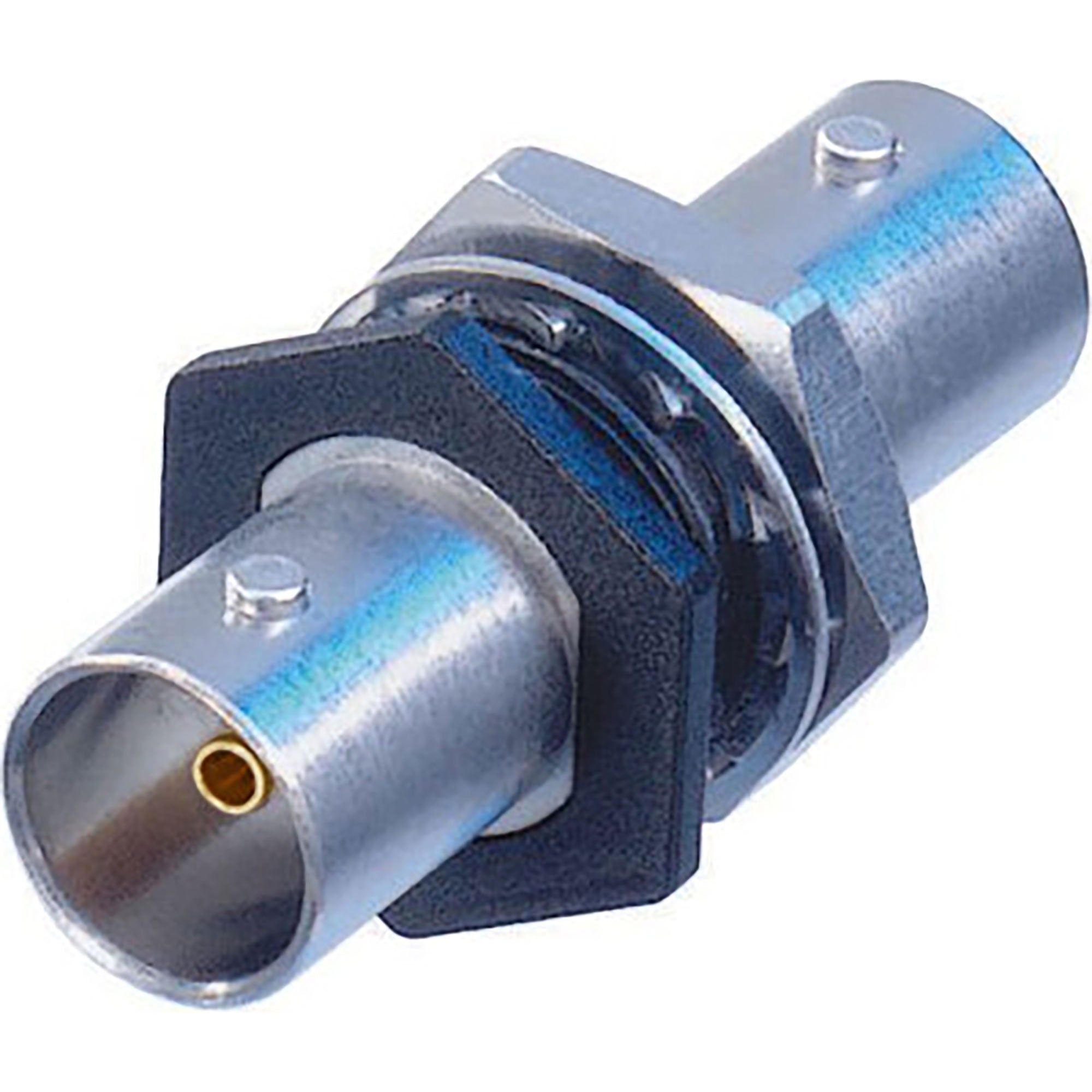

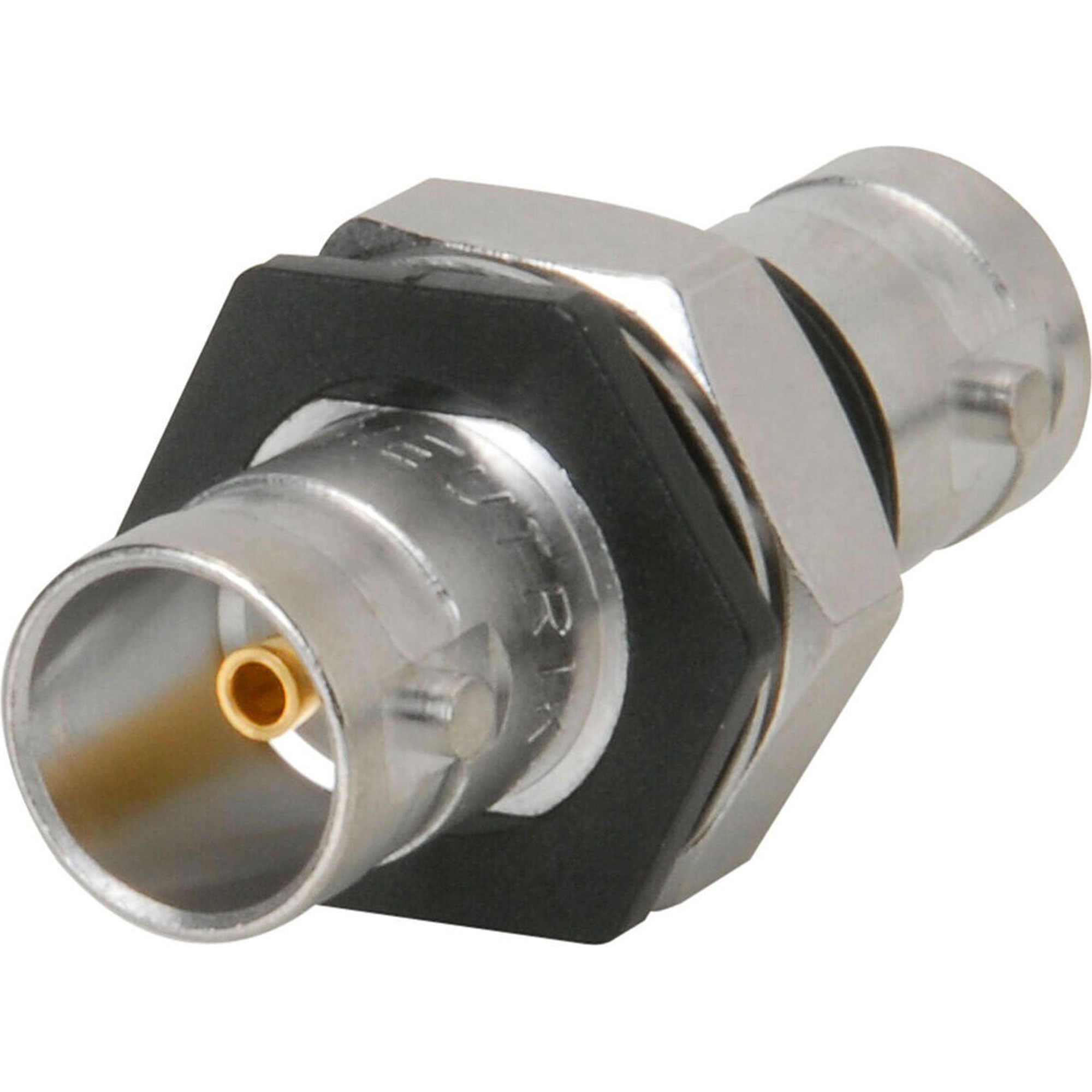

Isolated Feedthrough 75 Ohm BNC Bulkhead Jack
Isolated BNC cable jack for panel mount, feedthrough
Neutrik's BNC cable jacks for panel mount offer a true 75 Ω design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use.
Features:
- Gold plated cage type center contact
- True 75 Ω design meets the stringent HD requirements
- Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)
- Extra wide fastening nut avoids damaging the plastic thread
- New cage type contact
- Closed contact design - extremely robust
- Gold plated cage type clip - best possible shielding and lowest contact resistance
Specifications:
- Product
- Title: NBB75FI
- Connection Type: BNC 75 Ω
- Gender: female
- Electrical
- Signal Type: HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV, HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
- Contact resistance: <= 3 mΩ (inner) (inner)
- Comment: <= 2
- Dielectric strength: 1,5 kVdc
- Impedance: 75 Ω
- Insulation resistance: > 5 GΩ
- Rated voltage: 500 V
- VSWR:
<= 1.03 / > 37 dB up to 1 GHz
<= 1.05 / > 32 dB up to 2 GHz
<= 1.08 / > 28 dB u - Mechanical
- Insertion force: < 25 N
- Lifetime: > 1000 mating cycles
- Locking device: Bayonett
- Mounting direction: front
- Chassis shape: 12.7 mm
- Material
- Contacts: Brass (CuZn39Pb3), 0.2 -m AuCo (Center contact)
- Insert: PTFE
- Shell: Polyacetal (POM) (Insulation Sheell)
- Shell plating: Optalloy
- Environmental
- Standard compliance: IEC 6016908, MIL 348A
- Temperature range: -30 °C to +85 °C
