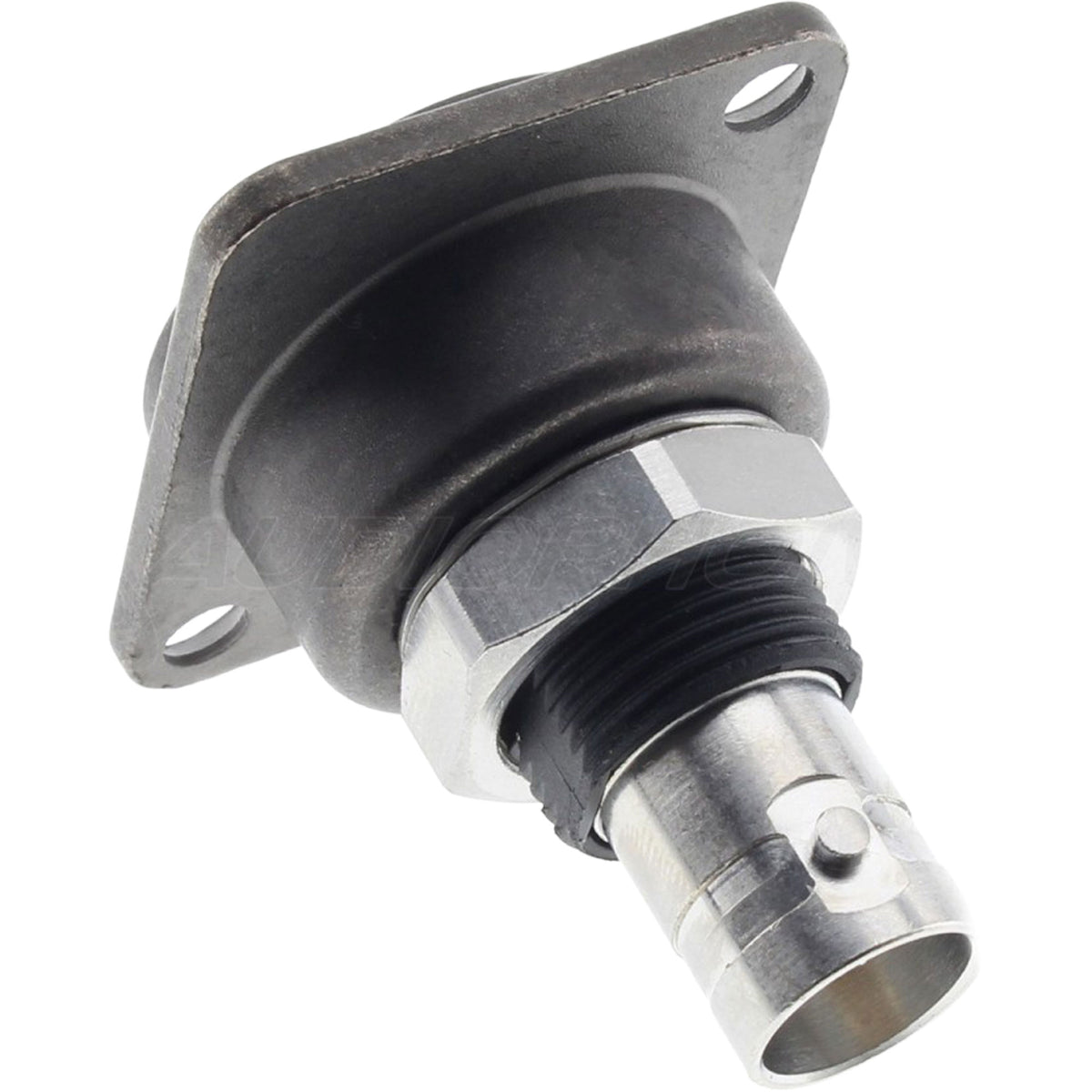

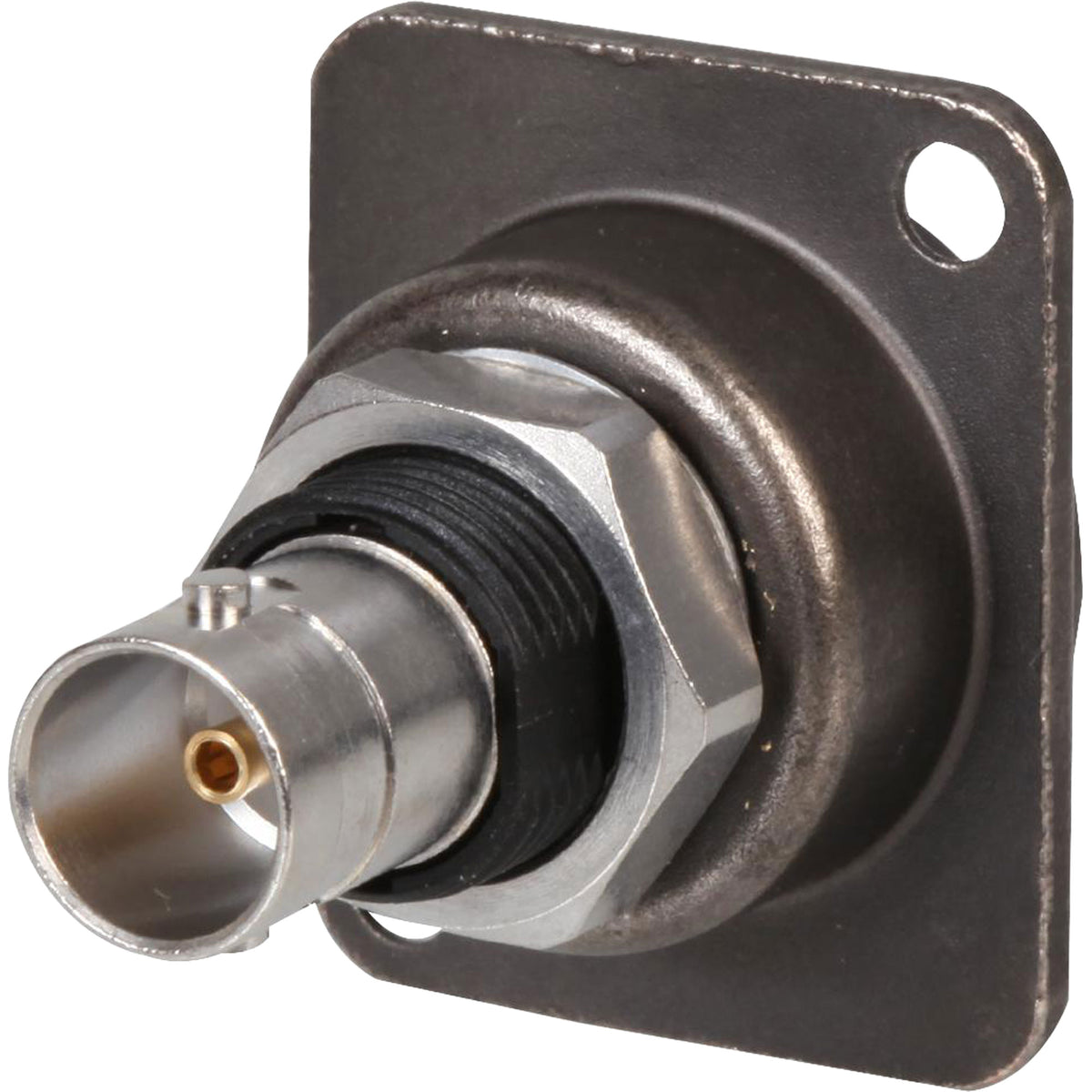

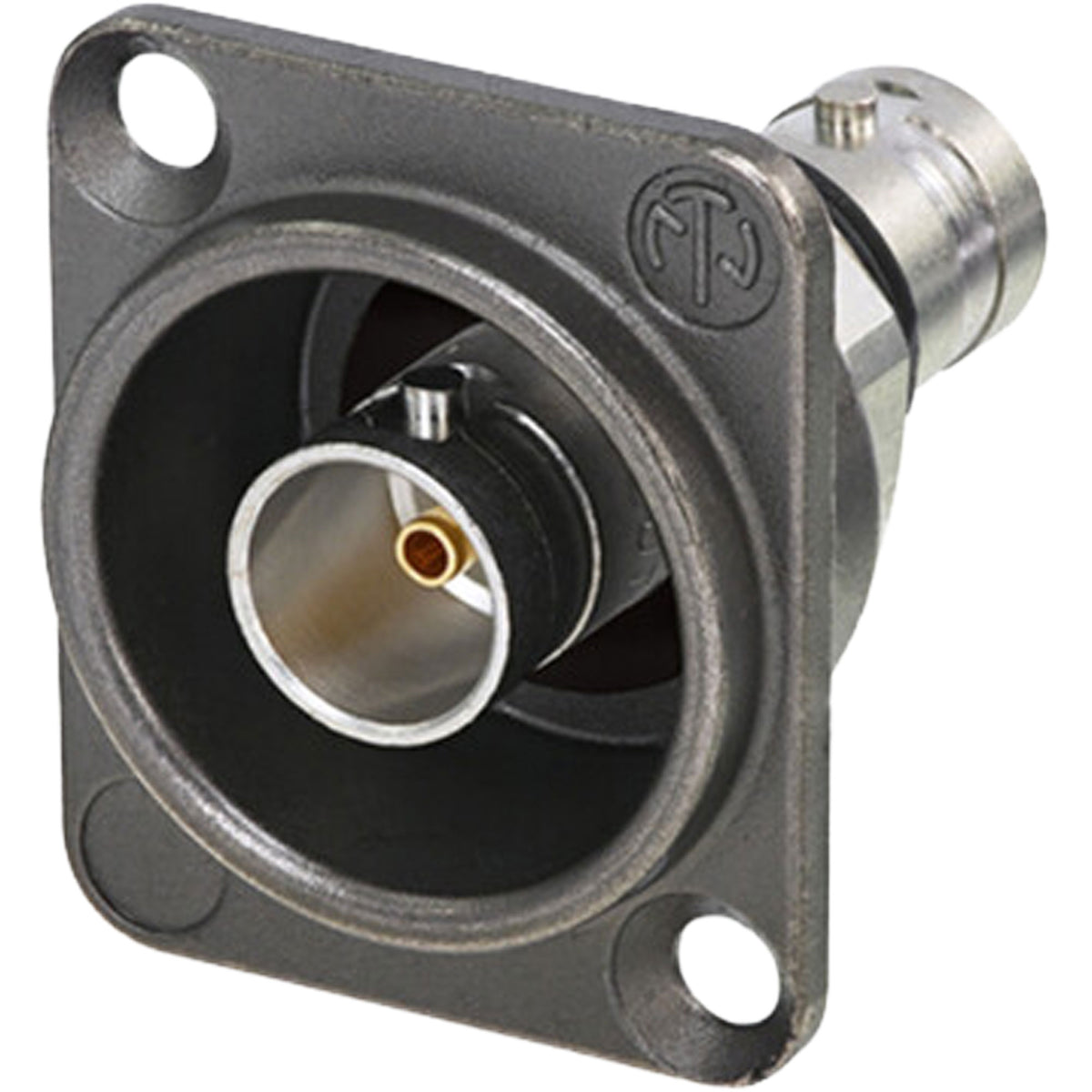

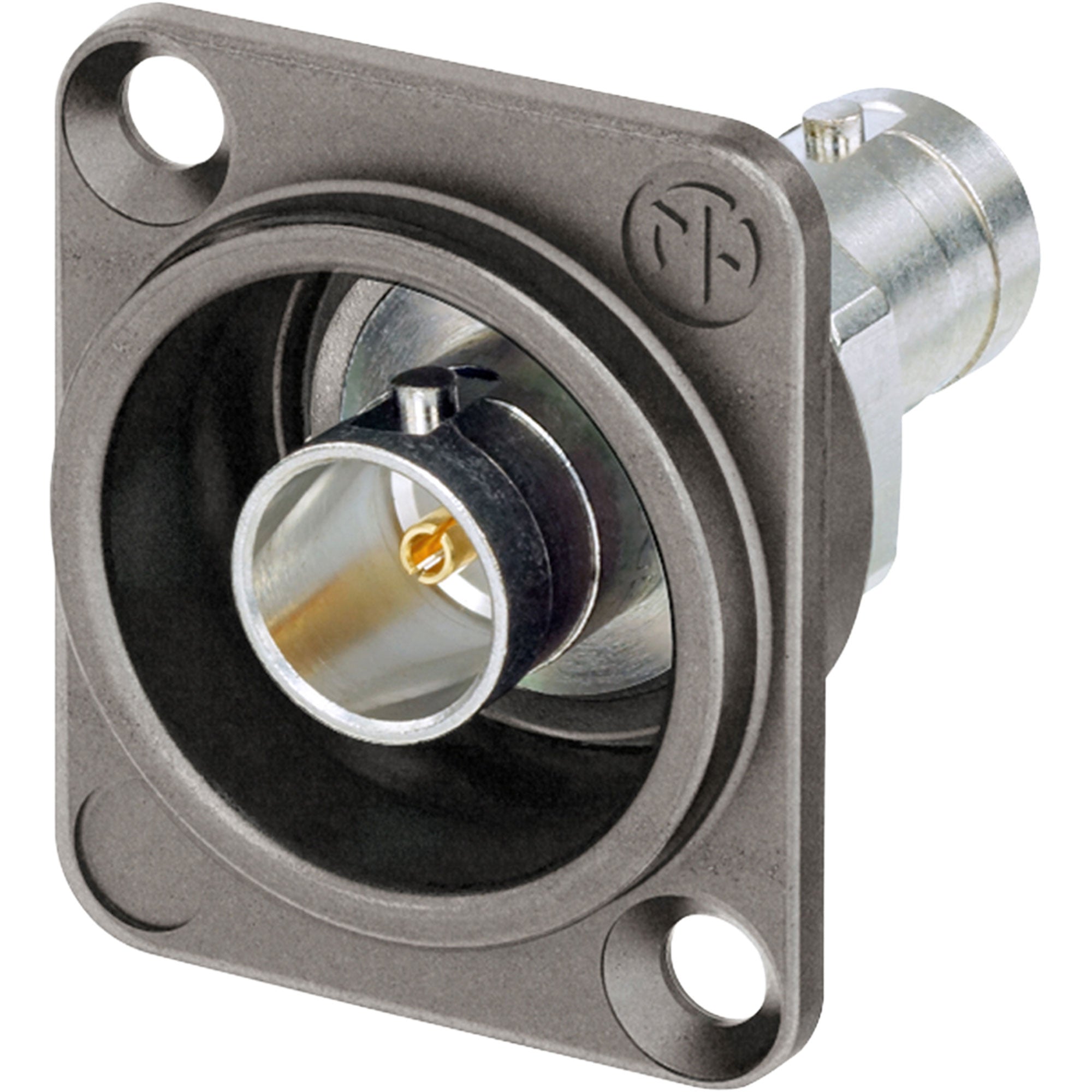

Neutrik NBB75DFIX Isolated BNC Chassis Connector (Antraloy)

Isolated UHD BNC chassis connector, feedthrough in antraloy plated D-shape housing

Neutrik's UHD BNC chassis connectors offer low return loss values at high frequencies specific for high resolution video signal transmission. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing.

Features & Benefits:

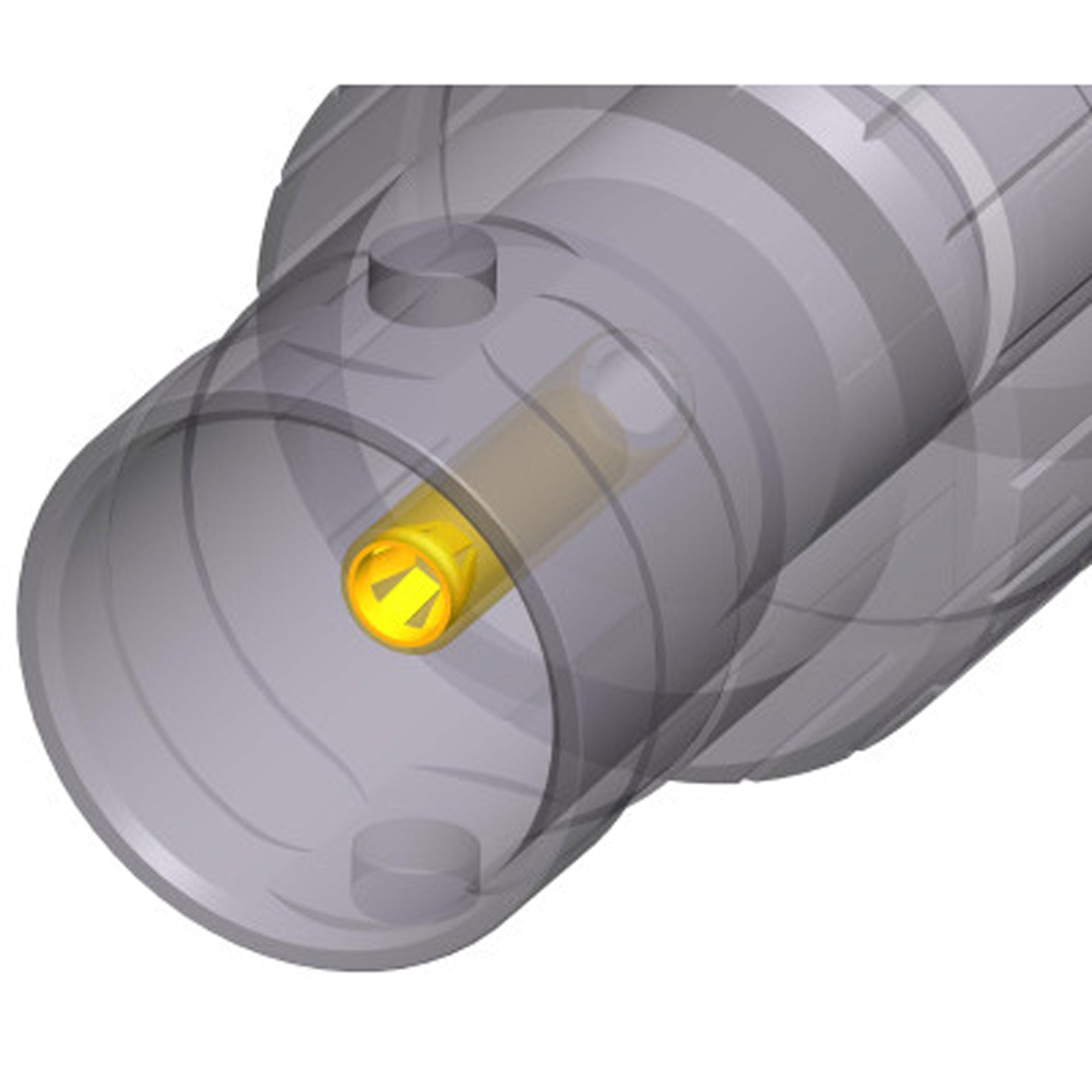

• Optimized gold plated cage type center contact for UHD signals as 4K or 8K
• Swiss antraloy plating
• Isolated panel mount
• Standard D-shape housing provides flush mounting and protection from damage
• Color coding possible
• Fully compatible with conventional BNC cable connectors

Specifications:

• Product
• Title: NBB75DFIX
• Connection Type: BNC 75 Ω
• Gender: female
• Electrical
• Contact resistance: ≤ 3 mΩ (inner)
• Contact resistance: ≤ 2 mΩ (outer)
• Dielectric strength: 1.5 kVdc
• Impedance: 75 Ω
• Insulation resistance: > 5 GΩ
• Rated voltage: < 50 V
• VSWR:
  ≤1.06 / >30 dB up to 6 GHz
  ≤1.13 / >24 dB up to 12 GHz
  ≤1.22 / >20 dB up to 18 Ghz
• Signal type: UHD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
• Mechanical
• Insertion force: < 25 N
• Lifetime: > 1000 mating cycles
• Wiresize:
• Mounting direction: Front mounting
• Chassis shape: D
• Material
• Contacts: Brass (CuZn35Pb2), 0.2 µm AuCo (center contact)
• Insert: PTFE
• Shell: Polyacetal (POM) (insulation shell)
• Shell plating: Antraloy
• D-shape housing: Zinc diecast (ZnAl4Cu1)
• Environmental
• Temperature range: -30 °C to +85 °C
