Key Features
- D-Sub (15-Pole) Female to Female
- Feedthrough Wiring
- Standard D-Shape Housing
- Full Box of 25 Connectors
Description

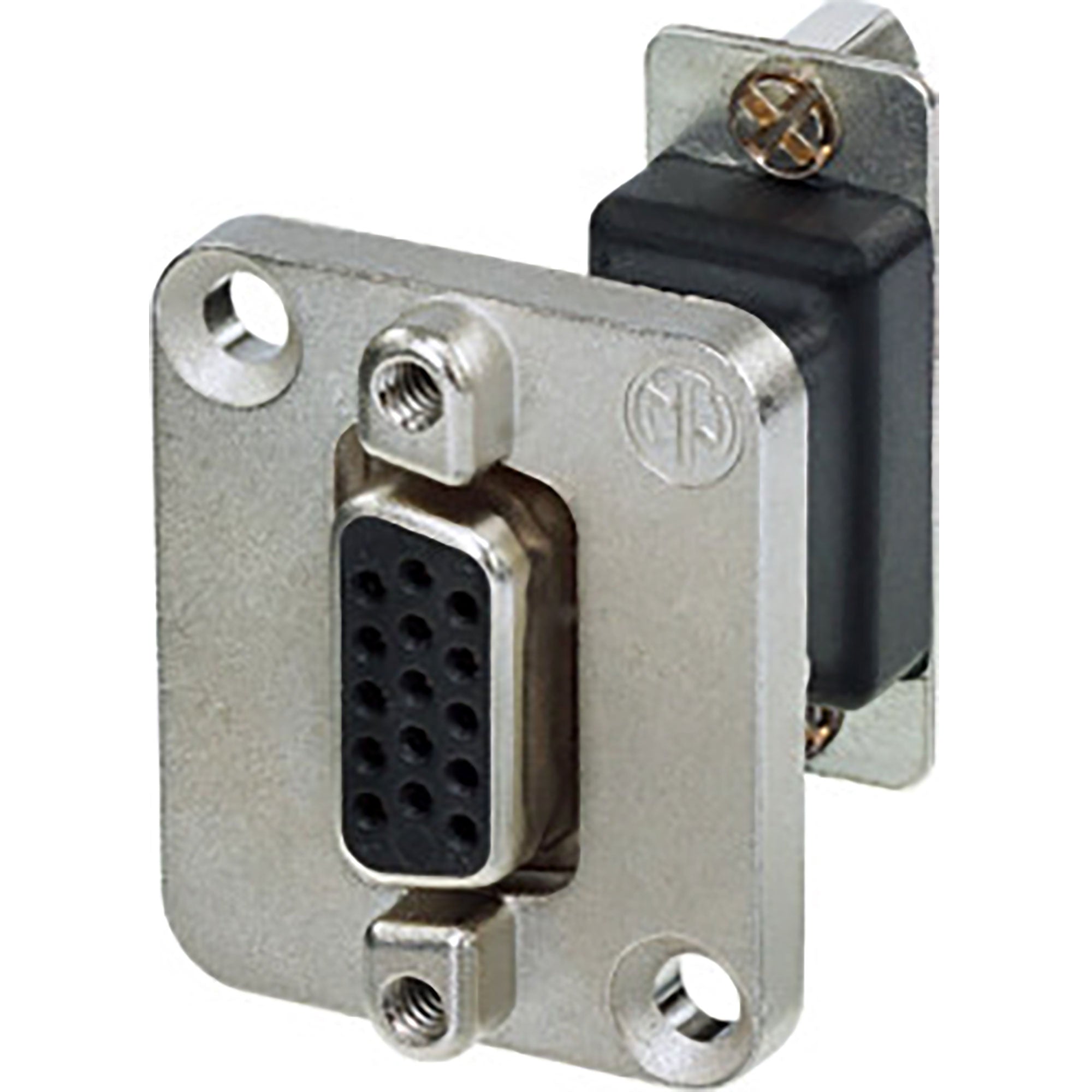

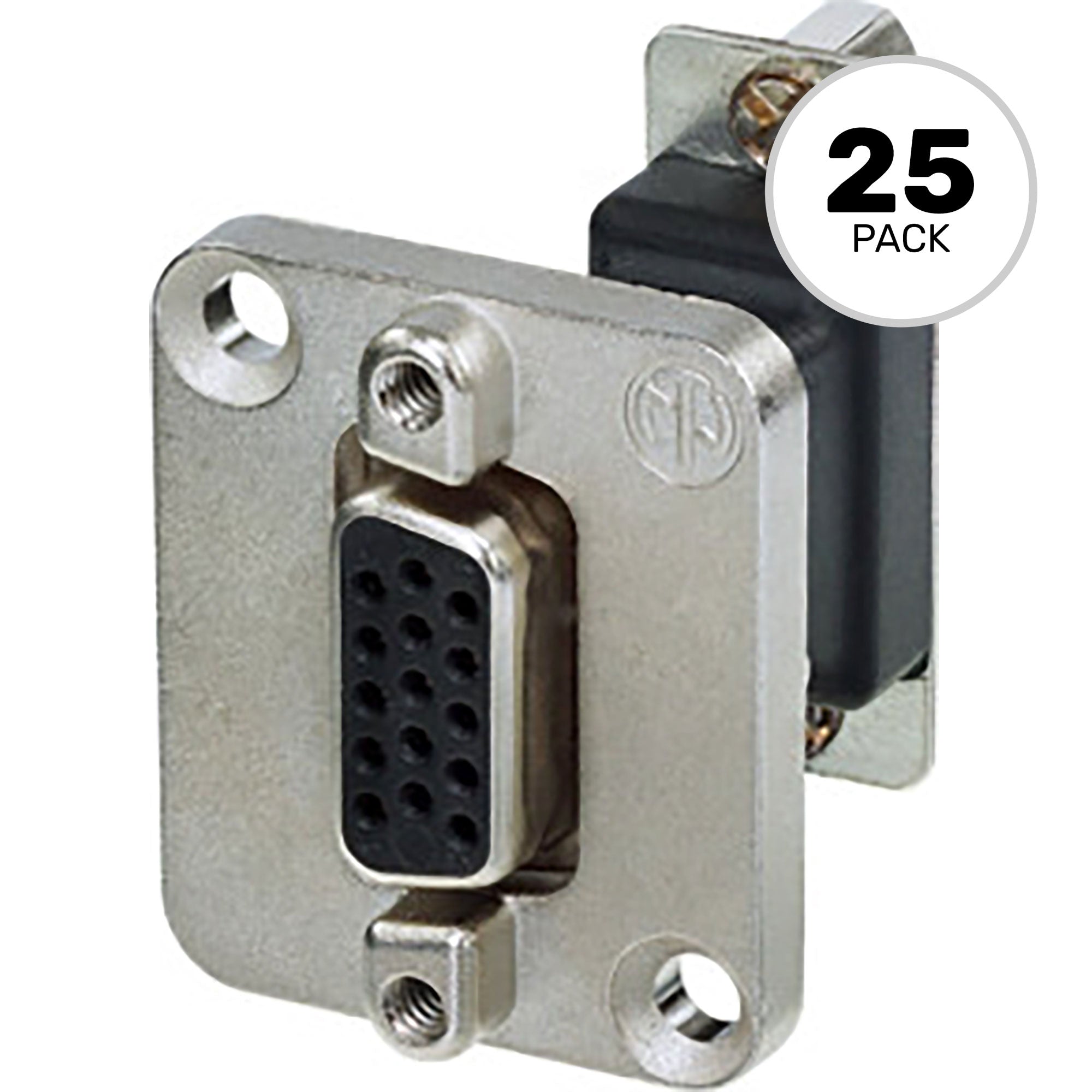

15 pole D-SUB feedthrough, female to female, D-shape nickel housing - Full Box of 25 Connectors
Features:
-
Ideal for audio networking and integration of equipment into video systems
-
Universally accepted standard D-shape housing
Specifications:
-
Product:
-
Title: NADB15FF
-
Gender: female - female
-
Electrical:
-
Contact resistance: 30 mΩ
-
Insulation resistance: > 5 GΩ
-
Number of electronical contacts: 15
-
Rated current per contact: 3 A
-
Rated voltage: 50 V ac
-
Dielectric strength: > 0.5 kVac
-
Mechanical:
-
Panel thickness: 4 mm
-
Wiresize:
-
Wiring: Feedthrough
-
Mounting direction: Front mounting
-
Chassis shape: D
-
Material:
-
Contact plating: Au
-
Contacts: Brass (Pb-free)
-
Insert: Steel, tin plated, PBT
-
Shell: Zinc diecast (ZnAl4Cu1)
-
Shell plating: Nickel
-
Environmental:
-
Flammability: UL 94-V0
-
Temperature range: -25 °C to +85 °C
