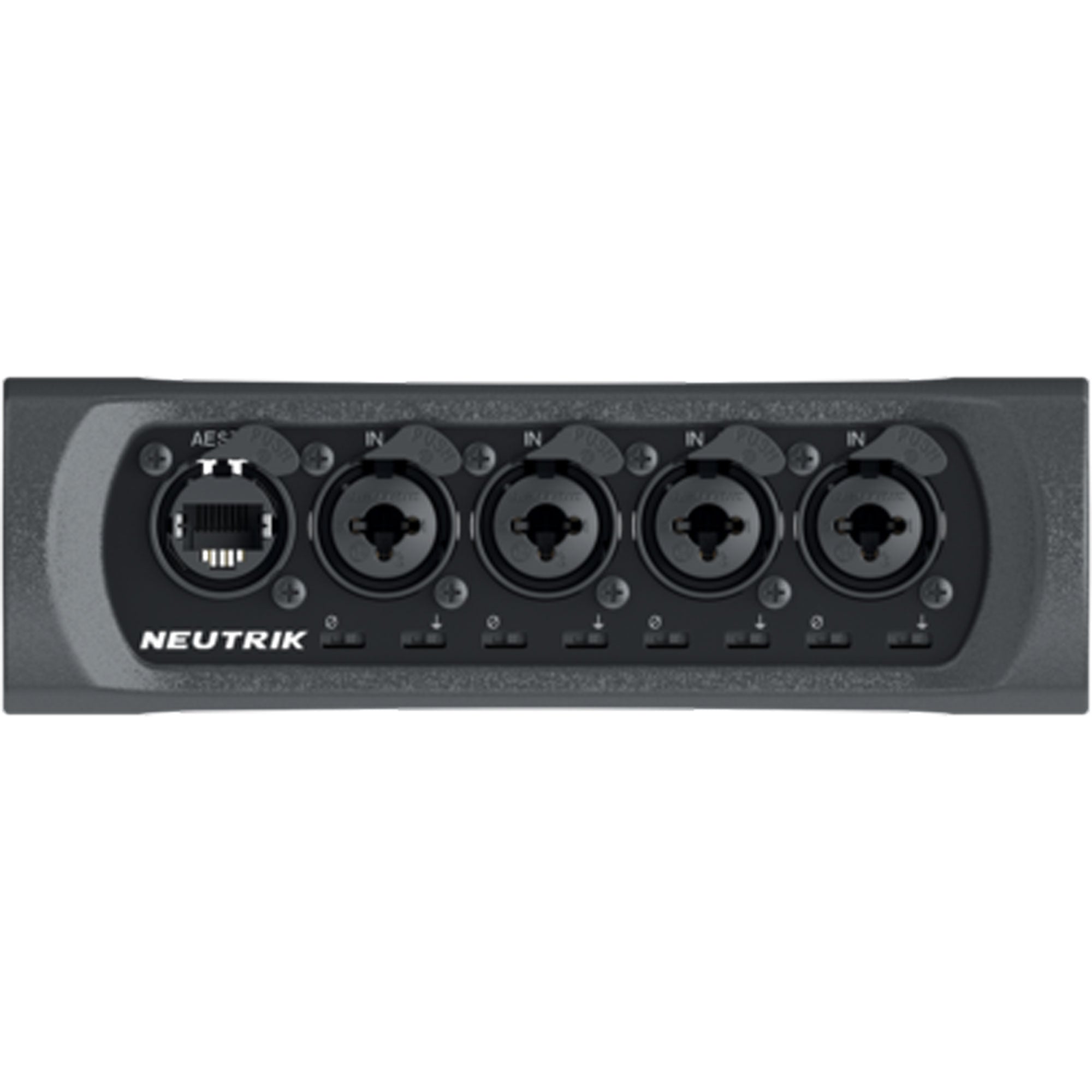

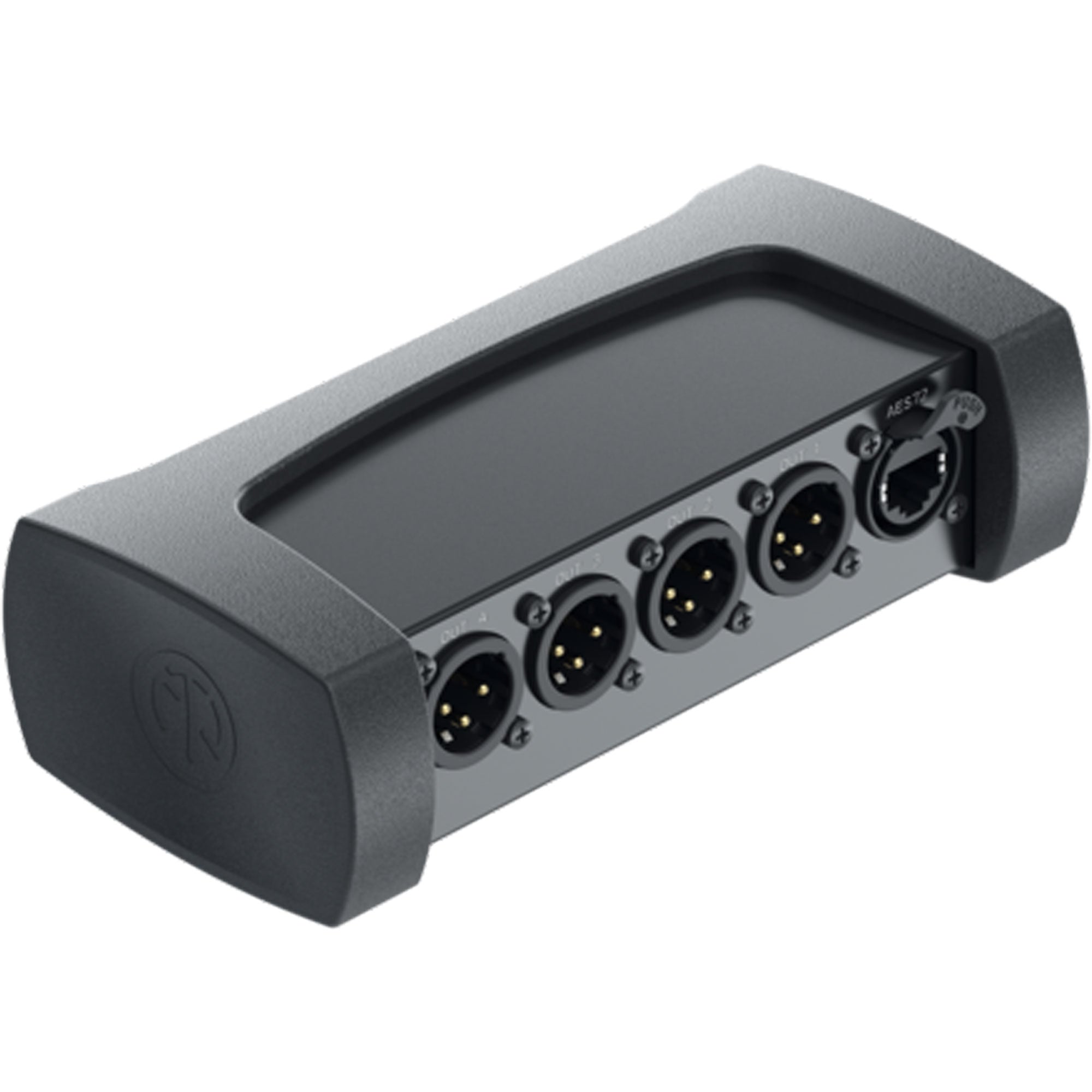

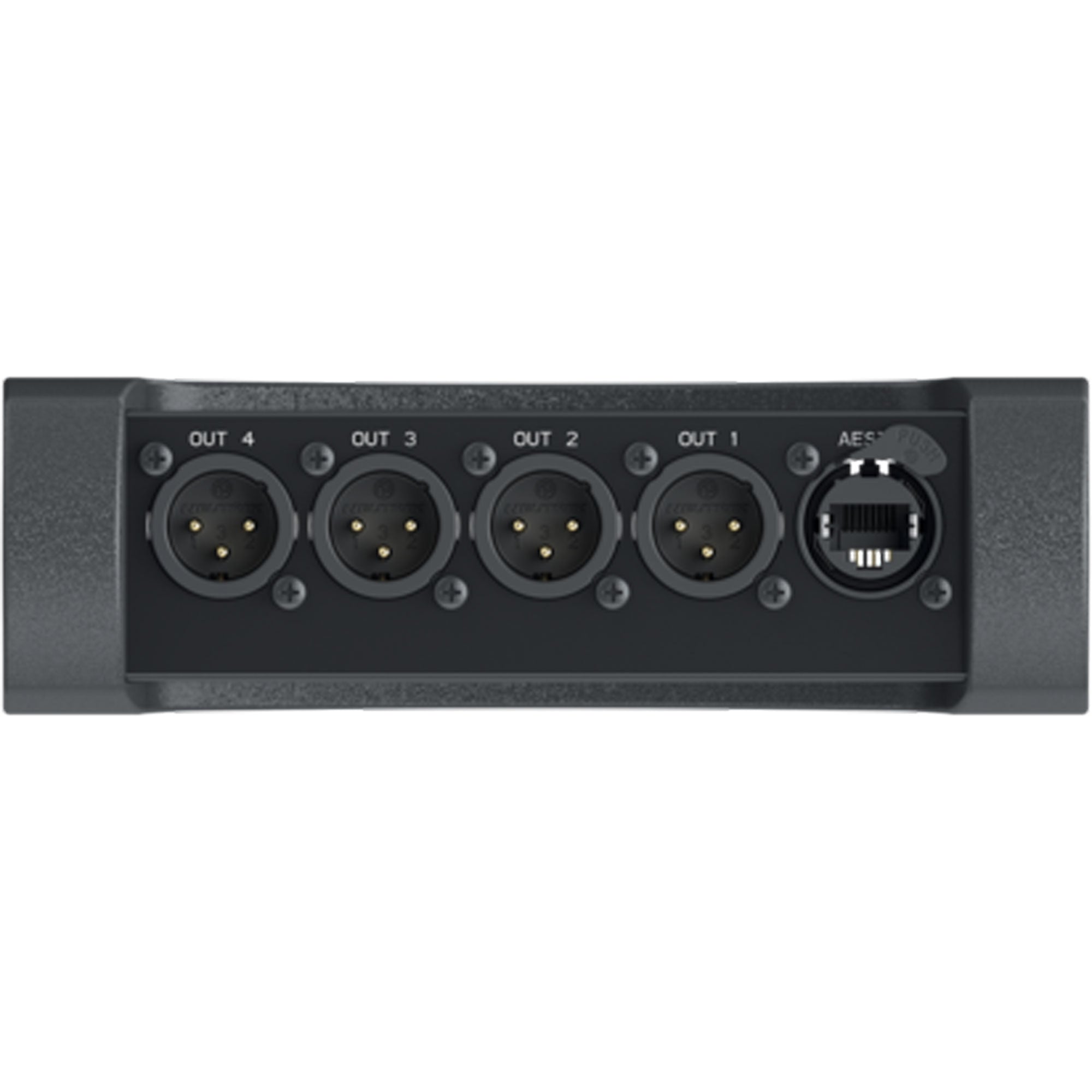

Neutrik NA-4I4O-AES72 4-Channel AES72 Compliant Stagebox

The NA-4I4O-AES72 is a 4-channel stagebox for transmitting microphone levels, analog line levels, AES3, DMX or even intercom via one single CAT cable. The device has male and female XLRs in the same housing and can be used directly as a splitter for monitoring. An additional etherCON serves as feedthrough and allows further looping of the signals to other devices.

A ground lift at each input prevents possible ground loops.

In addition, each input connector offers the possibility to invert the signal.

Features

• Robust & compact design for demanding environments
• Combined Inputs & Outputs for complete flexibility in the application
• Combo XLR/Jack Inputs
• Assignment according to AES72 (Type 4E) to use standardized RJ45 connectors and quad twisted pair cables for analog audio connections
• Ground lifting switch at each input to prevent possible ground loopsPhase inversion switch at each input offers the possibility to invert the signal
• An additional etherCON serves as feedthrough and allows daisy chaining of the signals to other devices
• Completely dark appearance for optimal usage on stage

Specifications

• Product:
• Title: NA-4I4O-AES72
• Product family: Stageboxes
• Device type: Analog
• Electrical:
• Input channels: 4 x Combo XLR/Jack female
• Output channels: 4 x XLR male
• Interconnection channels: 2 x RJ45 / AES72 Type 4E
• Signal compatibility: mic level, line level analog, AES3, DMX, other COM signals
• Cable requirement: min. shielded CAT5 cable
• Rated Voltage: max. 48 VDC
• Rated Current: max. 500 mA
• Mechanical:
• Weight: 0,45 kg / 1,003 lbs
• Dimensions with rubber protection: L: 164 mm / 6.4 inches, W: 82 mm / 3.2 inches, H: 51 mm / 2.0 inches
• Dimensions without rubber protection: L: 151 mm / 5.9 inches, W: 66 mm / 2.6 inches, H: 41 mm / 1.6 inches
• Environmental:
• Standard compliance: AES72; Regulation (EU) 2023/988
• Regulation (UK) 2016 No. 1101
• Ingress protection class: IP20
• Temperature range: -5 °C to +60 °C
