Key Features
- For HX-R-BNC Crimp Tool
- Pin Crimping: 1.6 mm
- HEX Crimp 6.47 mm (A)
- HEX Crimp 5.00 mm (B)
Description

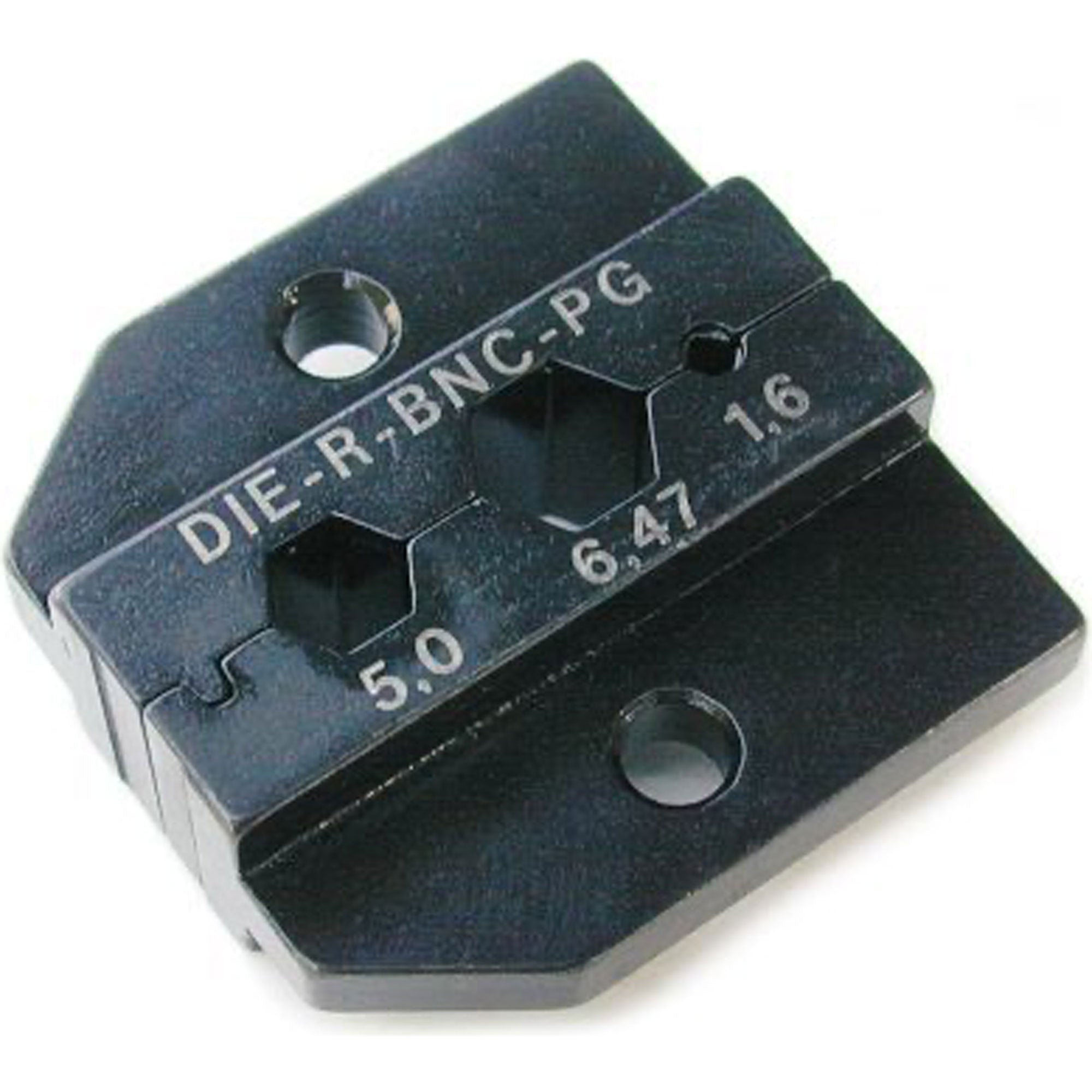

Die Set for HX-R-BNC HEX Crimp 6.47 mm (A), 5.00 mm (B)
Crimp tool die for HX-R-BNC
Pin crimping: 1.60 mm
Shield and jacket: HEX crimp 6.47 mm (A), 5.00 mm (B)
Specifications:
- Product:
- Title: DIE-R-BNC-PG
- Mechanical:
- Crimp size: 5.00, 6.47 Hex crimp (shield) acc. MIL22520/5-43(B), IEC 60803 (die designation E)
- Crimp size (pin): 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Details
- Manufacturer: Neutrik
- MPN: DIE-R-BNC-PG
- Model Number: DIE-R-BNC-PG
- UPC: 7613187001765
