Key Features
- For HX-BNC Crimp Tool
- Pin Crimping: 1.6 mm
- HEX Crimp 4.06 mm (A)
- HEX Crimp 7.01 mm (B)
Description

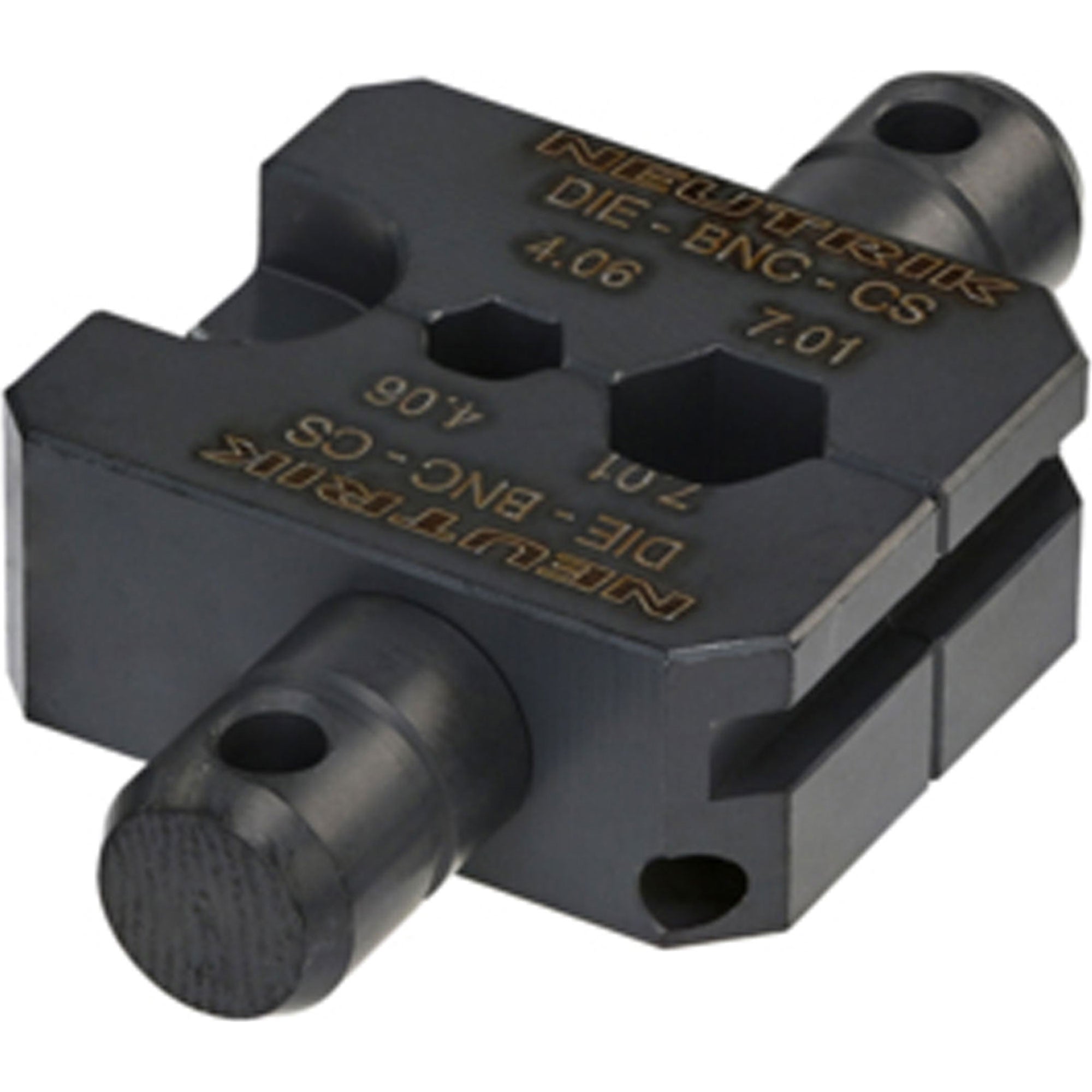

Die Set for HX-BNC HEX Crimp 4.06mm (A), 7.01mm (B)
Crimp tool die for HX-BNC
Pin crimping: 1.6 mm
Shield and jacket: HEX crimp 4.06 mm (A), 7.01 mm (B)
Specifications:
- Product:
- Title: DIE-BNC-CS
- Mechanical:
- Crimp size: 4.06, 7.01 Hex crimp (shield) acc. MIL22520/5-39(B), acc. IEC 60803 (die designation F)
- Crimp size (pin): 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Details
- Manufacturer: Neutrik
- MPN: DIE-BNC-CS
- Model Number: DIE-BNC-CS
- UPC: 7613187001697
