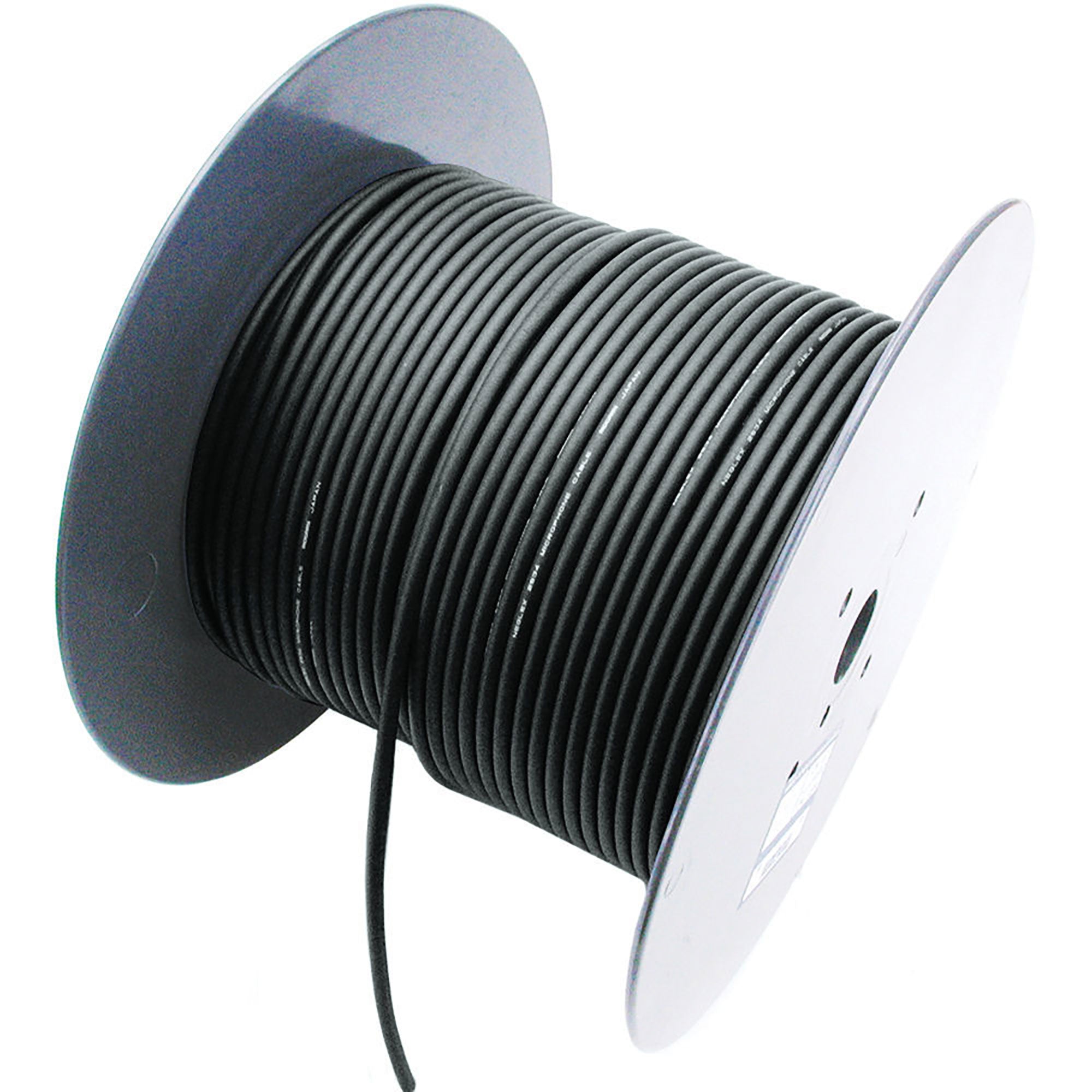

Mogami W2965 PURO II Dual Subminiature & Miniature Coaxial Cable (Black, 500' Roll)

Dual Conductor Miniature 75 Ohm Coaxial Audio Patch Cable - Full 500' (153m) Spool

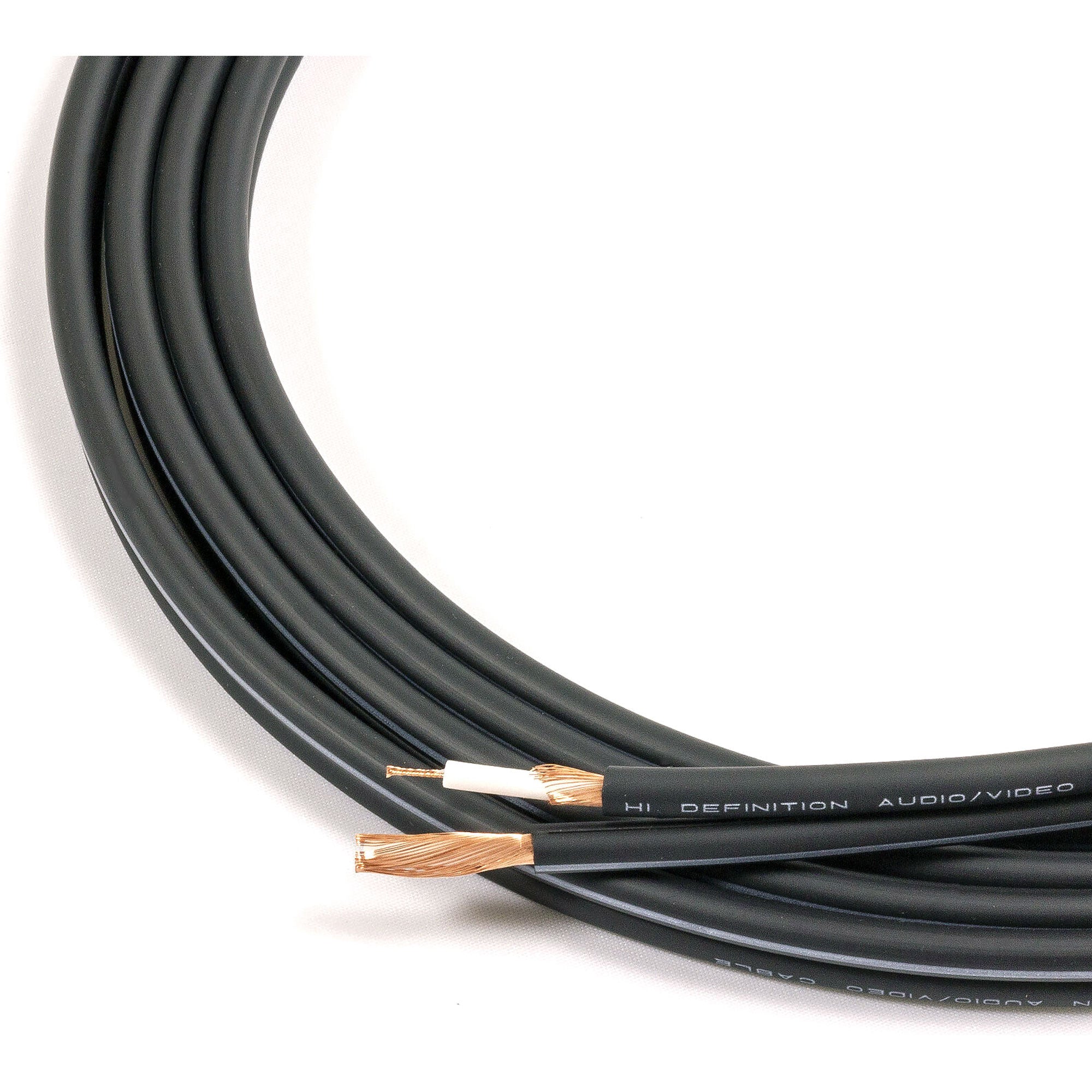

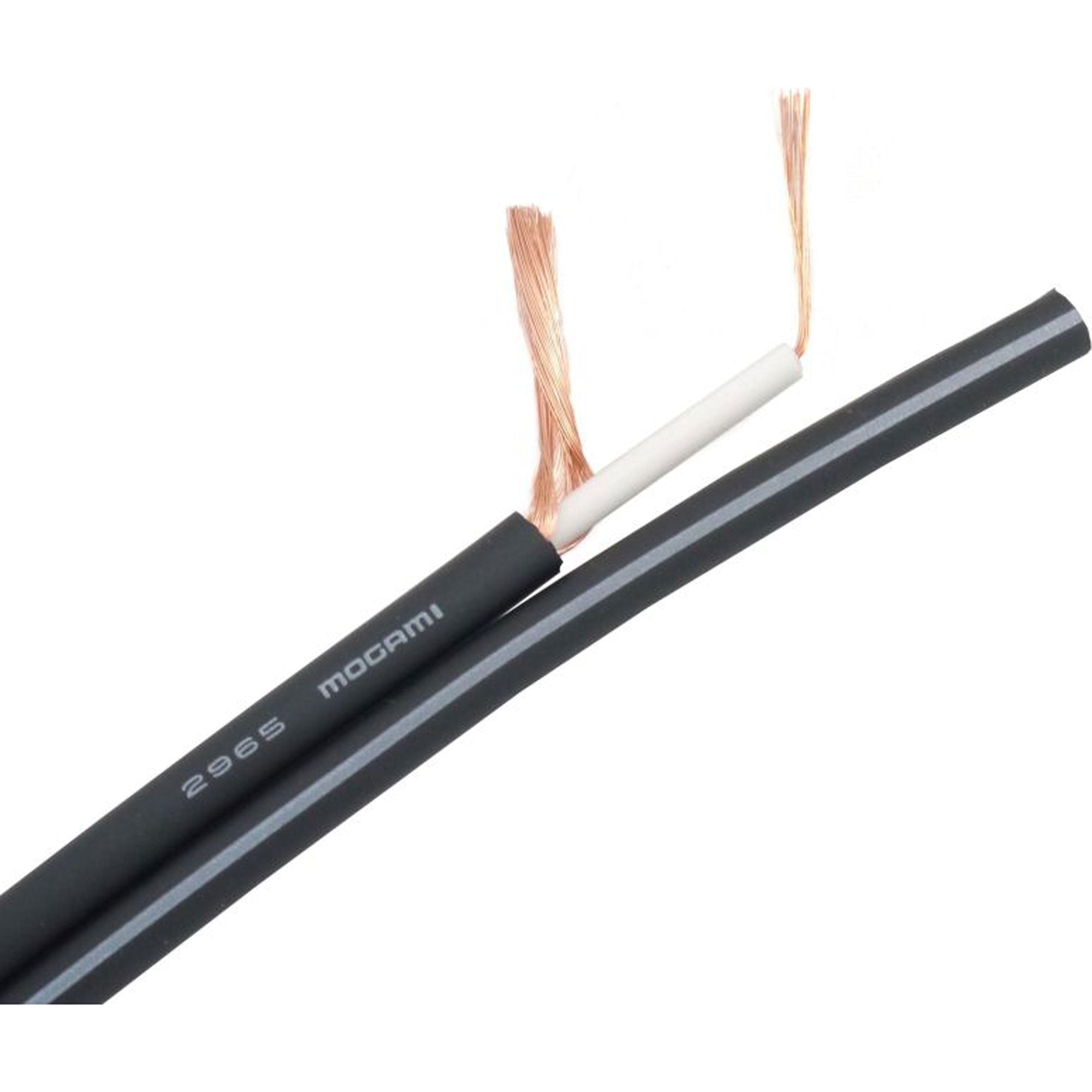

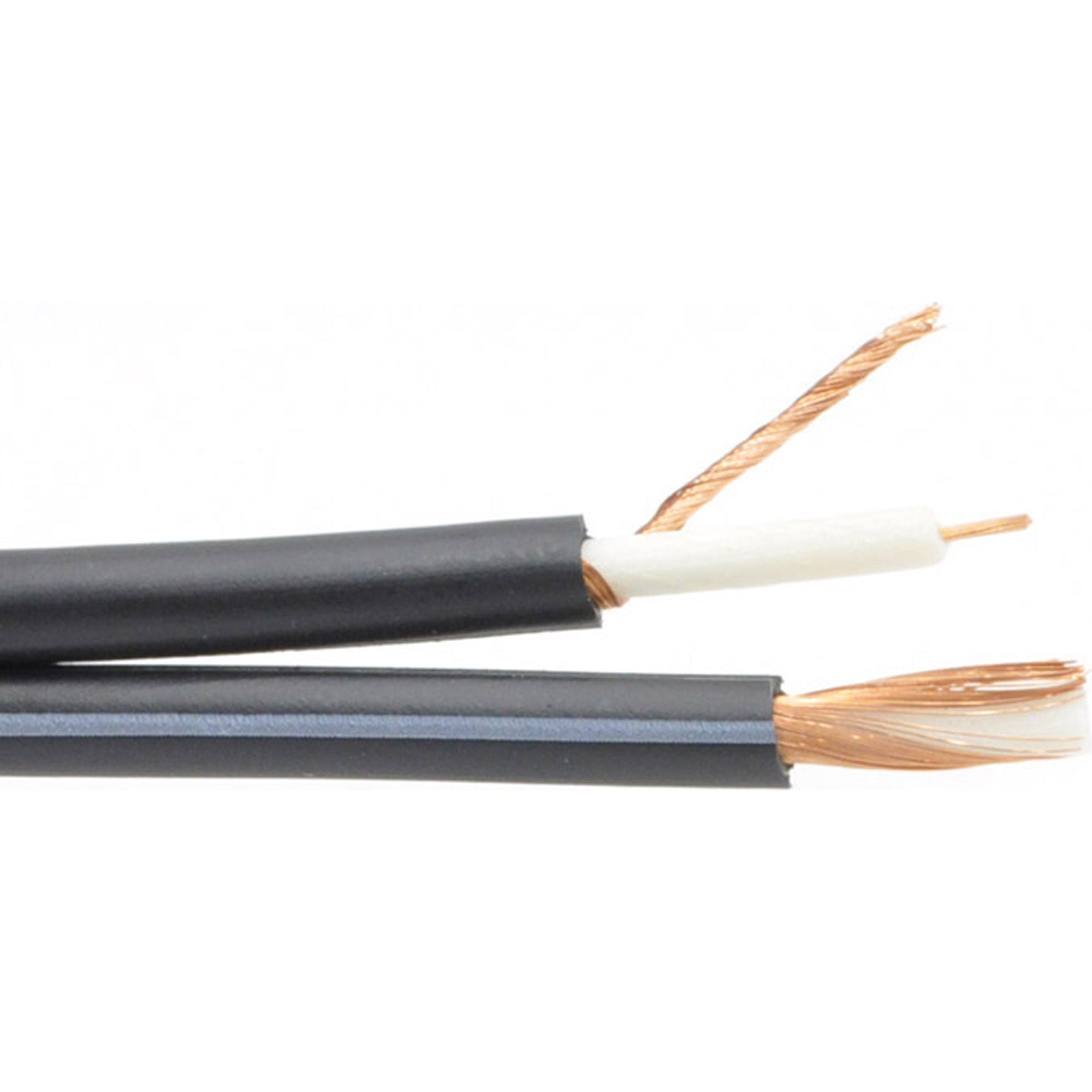

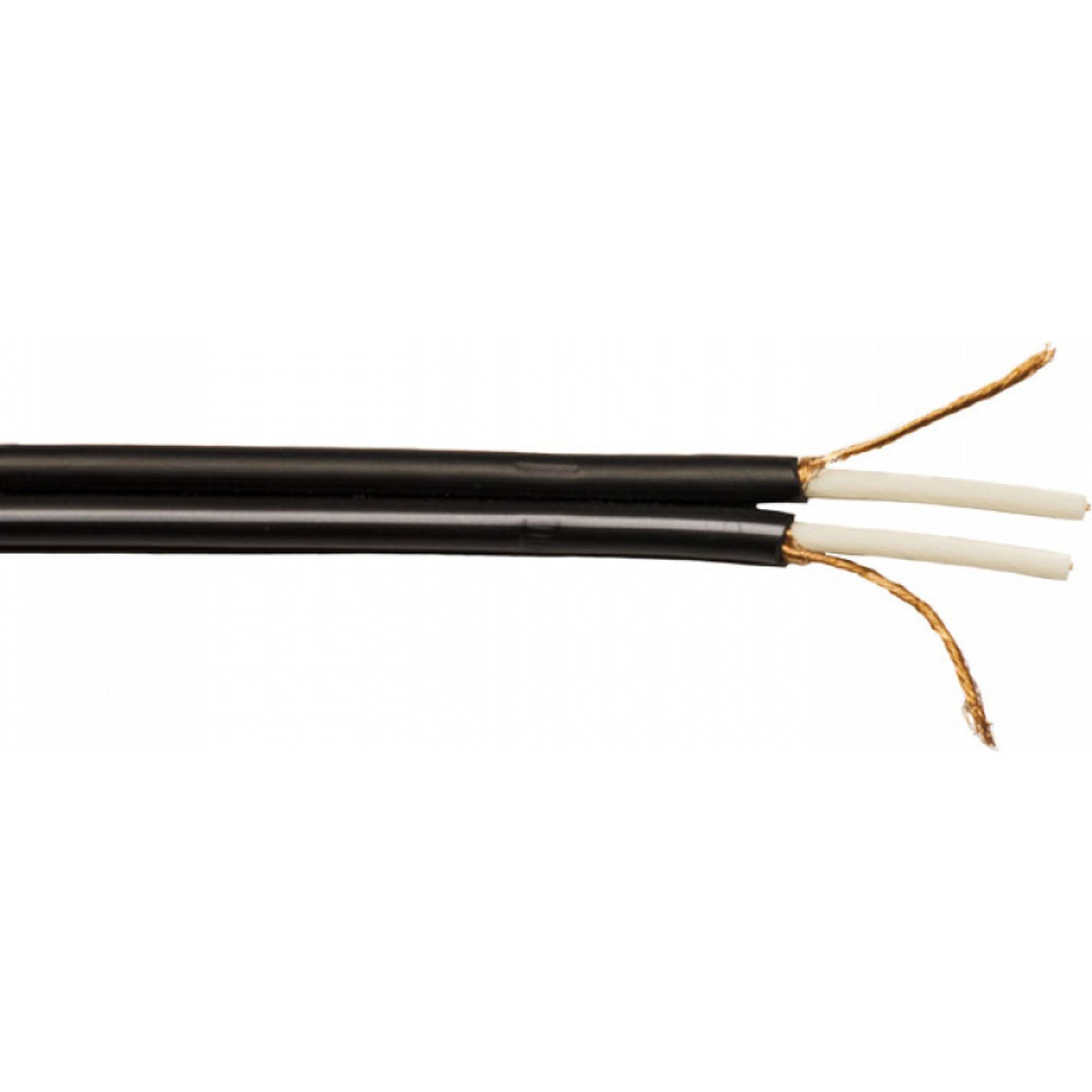

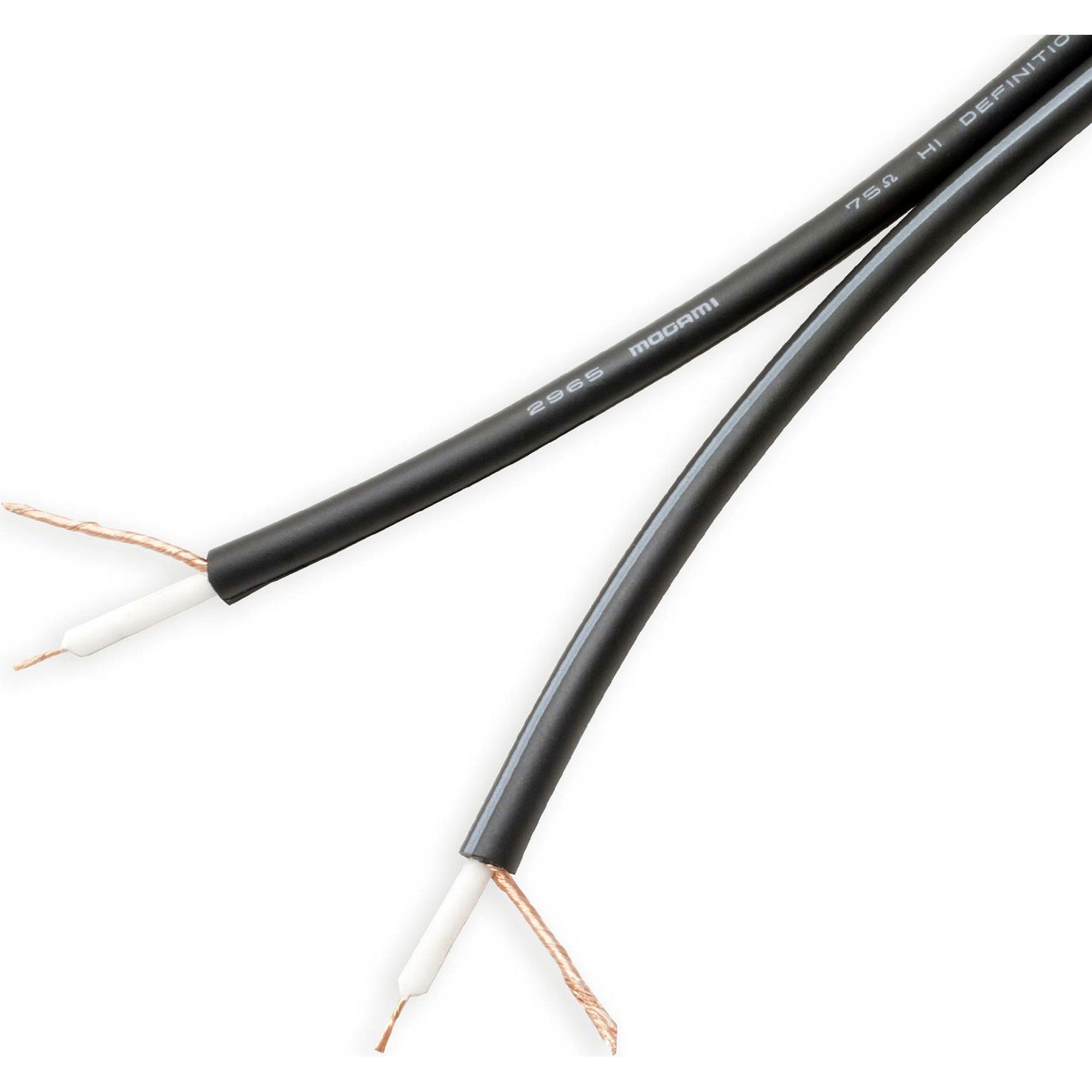

The Mogami W2965 PUROFLEX II Series Dual Conductor Audio Patch Cable (Black) is designed to give good performance; it uses Neglex cable technology.

Superflexible subminiature coaxial cables which cannot be found in MIL, JIS and other popular worldwide standards. There are lots of cases where those standard cables will not do the job. MOGAMI superflexible subminiature coaxial cables were originally made for custom applications, and remained in production thereafter, finding many applications all over the world.

Features:

• Low capacitance of 19.8 pF/ft (65 pF/m) Neglex OFC conductor and served (spiral) shield are perfectly matched for high-definition audio
• 75 W coaxial design is impedance matched for video transmission
• Super flexible rubber-like PVC jacket and satin finish
• Clear insulation

Specifications:

• Part No.: W2965
• No. of Conductor: 2 1(Dual)
• Conductor Details: 20/0.12 OFC
• Conductor Size(mm²): 0.226mm² (#24 AWG)
• Insulation Ov. Dia.(mm): 2.6Ø (0.102")
• Insulation Material: XLCPE (Cross-Linked Cellular PE)
• Insulation Colors: Clear
• Served Shield: Approx. 70/0.12A
• Jacket Ov. Dia.(mm): 4.8Ø (0.189")
• Jacket Material: Flexible PVC
• Jacket Colors: Black
• Roll Sizes: 77m / 153m (250 Ft / 500 Ft)
• Weight: 8.9kg/153m(500Ft)
• ELECTRICAL & MECHANICAL CHARACTERISTICS
• DC Resistance at 20°C Inner Cond.: 0.083Ω/m(0.025Ω/Ft)
• DC Resistance at 20°C Shield: 0.025Ω/m(0.0076Ω/Ft)
• Capacitance at 1kHz, 20°C: 57pF/m(17.4pF/Ft)
• Inductance between conductors at 1kHz. 20°C: 0.4µH/m(0.12µH/Ft)
• Characteristic Impedance(10MHz): 75W
• Attenuation (10MHz)*: 0.0608 dB/m
• Phase Constant (10MHz): 0.3 rad/m
• Electrostatic Noise**: 50m V Max.
• Microphonics at 50KΩ/ Load**: 40m V Max.
• Voltage Breakdown: Must withstand at DC 500V/15sec.
• Insulation Resistance: 100000 M Ω × m Min. at DC 125V, 20°C
• Flex Life**: 16,500 cycles
• Tensile Strength: 539N
• Emigration: non-emigrant to ABS resin
• Applicable Temperature: -20°C +70°C(-4°F +158°F)
• Standard: UL2552 AWM 30V 60°C VW-1
• * Attenuation : 1 dB=0.1151 neper (1 neper=8.686 dB)
• ** Using standard testing methods of Mogami Wire & Cable Corp.
