Key Features
- 1-Conductor, 24AWG
- Compact Size
- 75 Ohm
- Full 328ft/100m Roll
Description

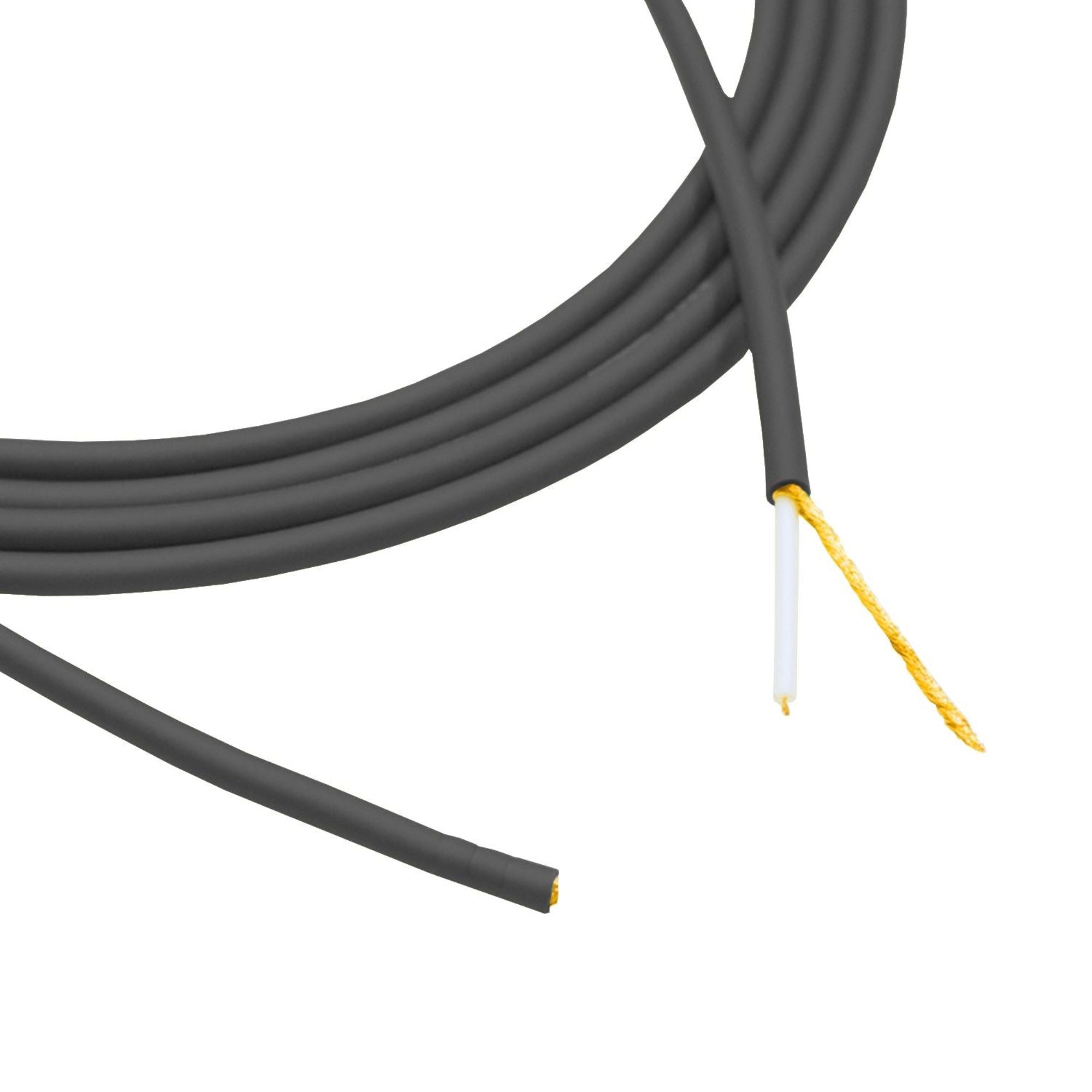

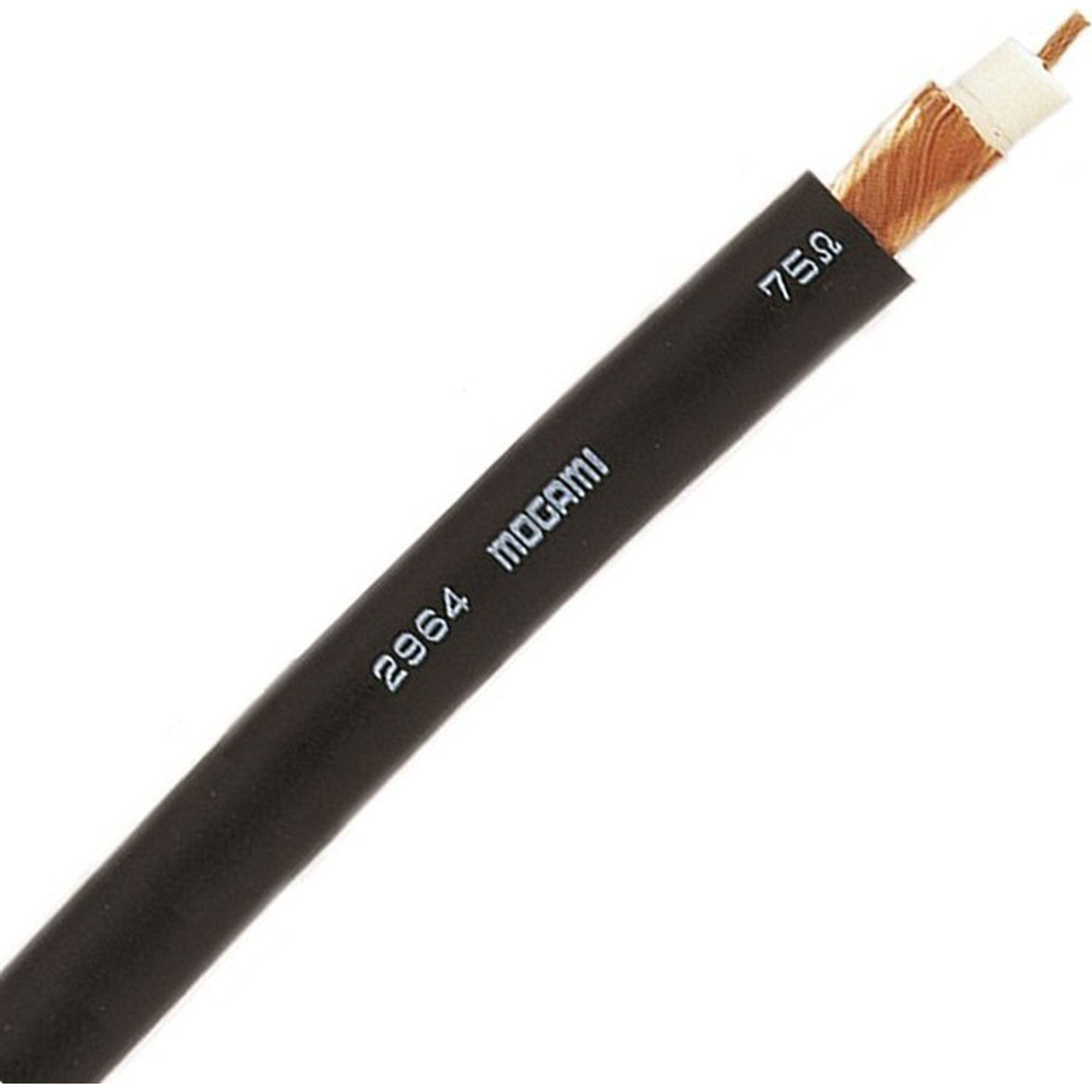

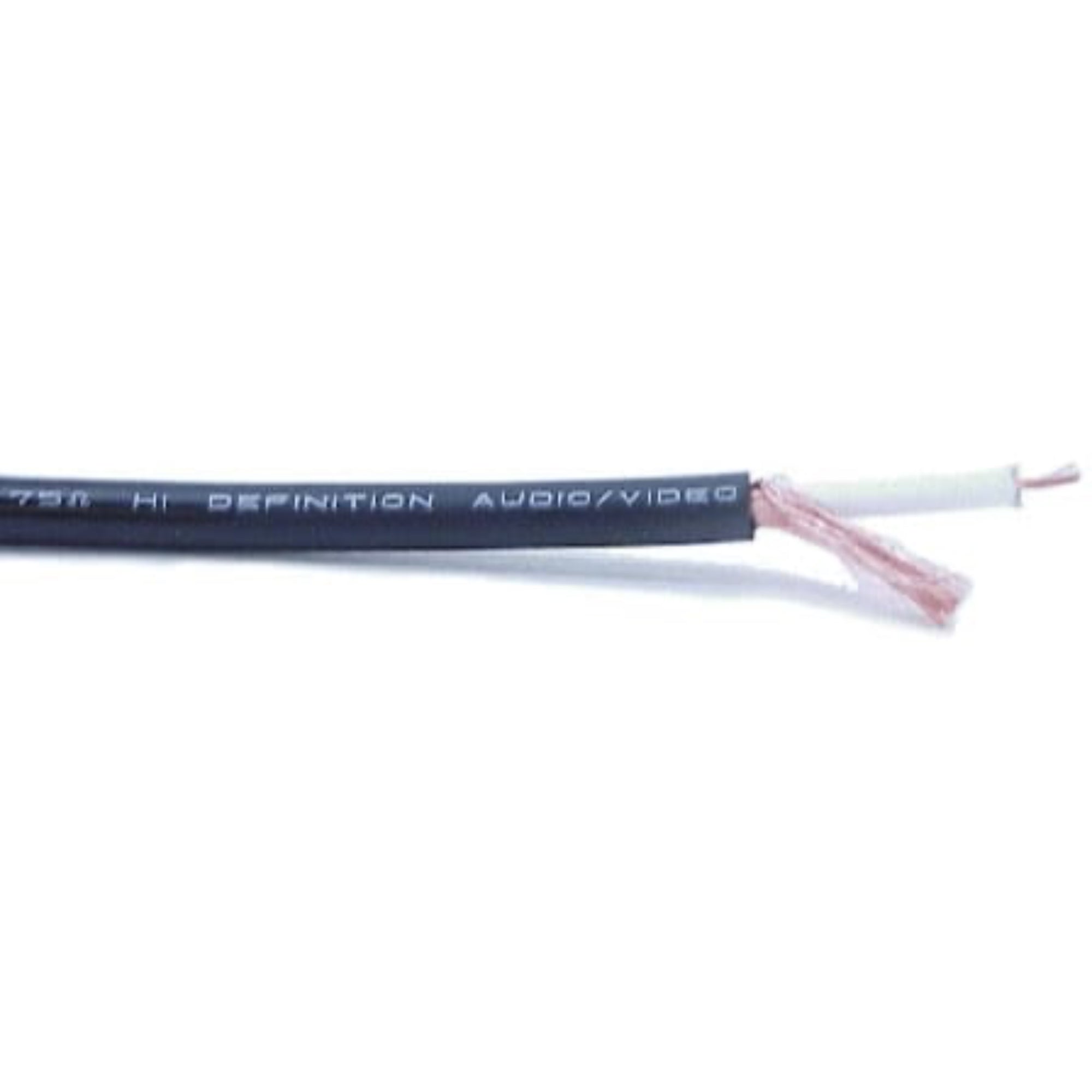

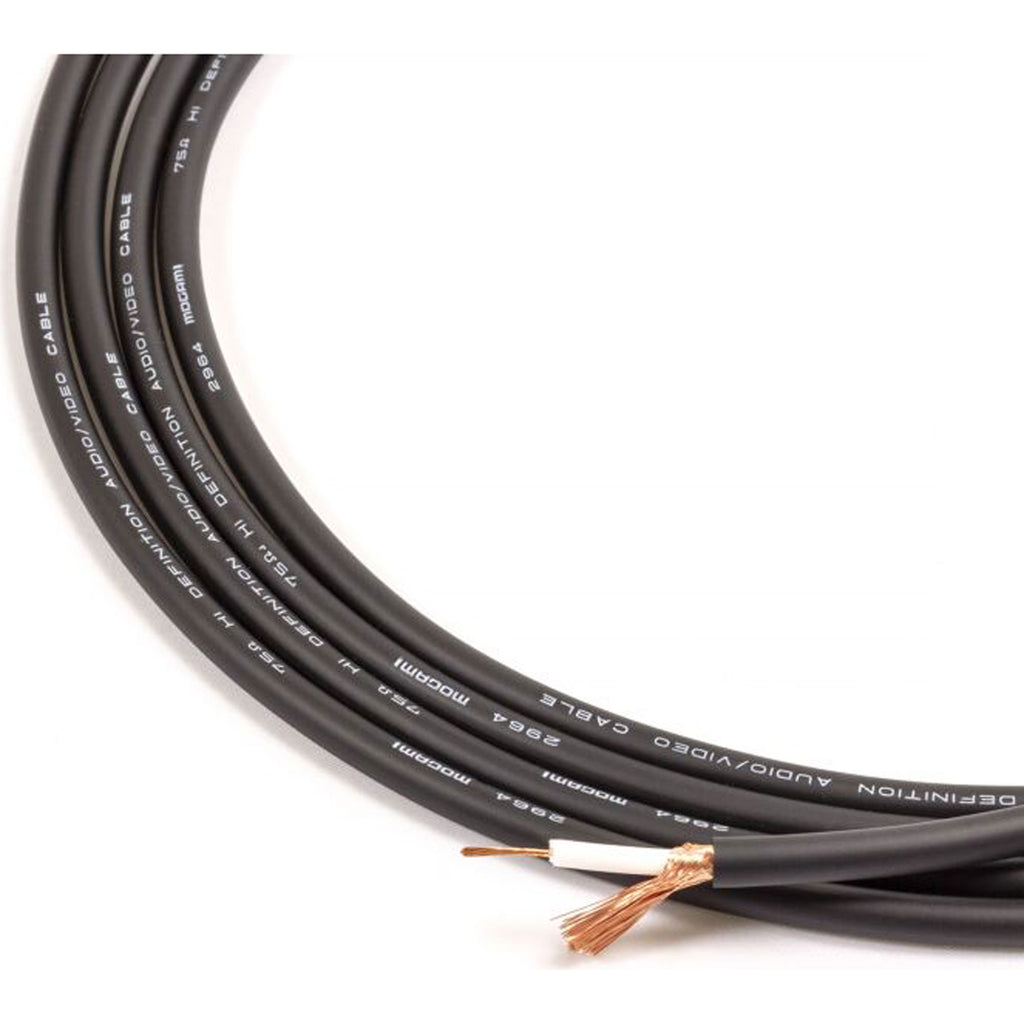

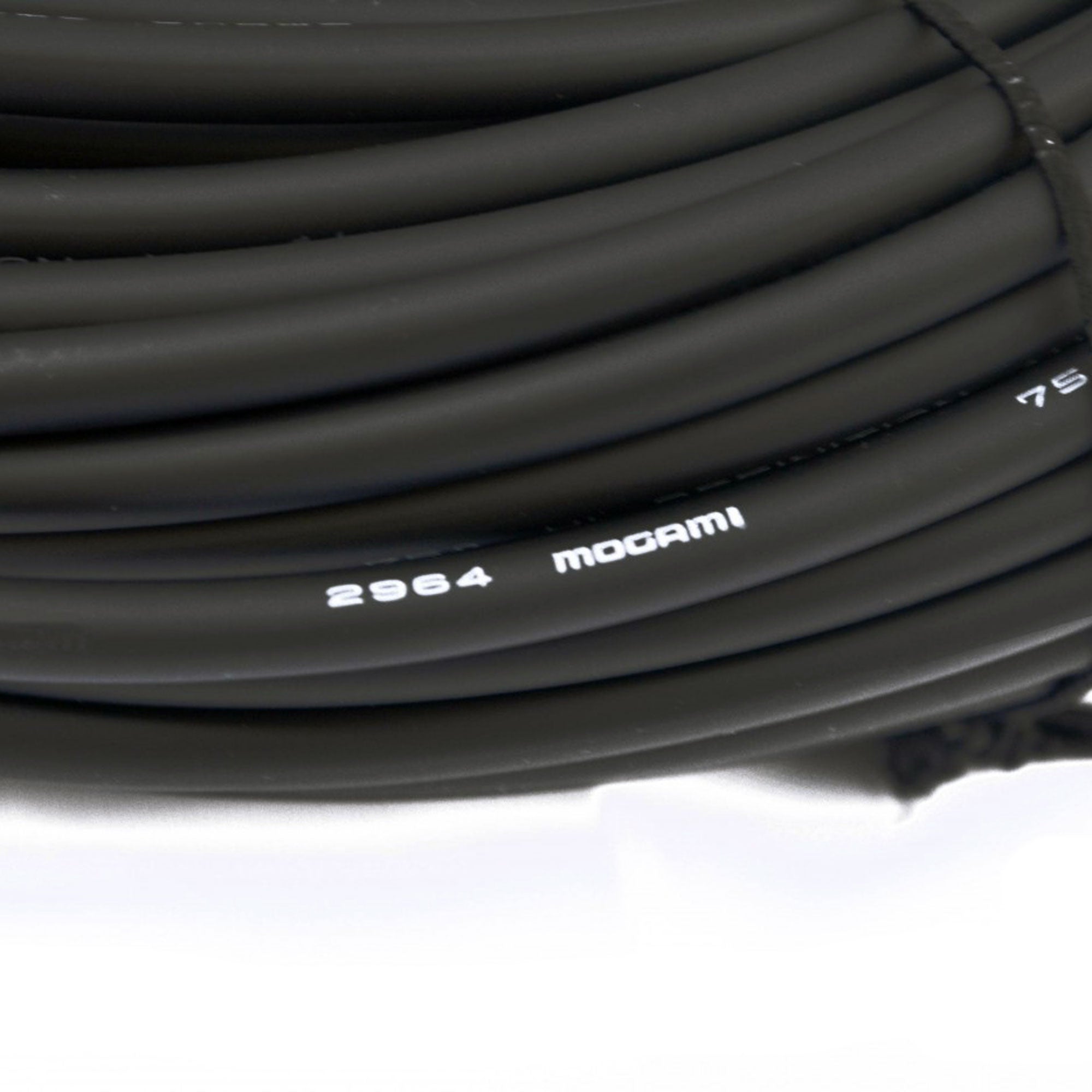

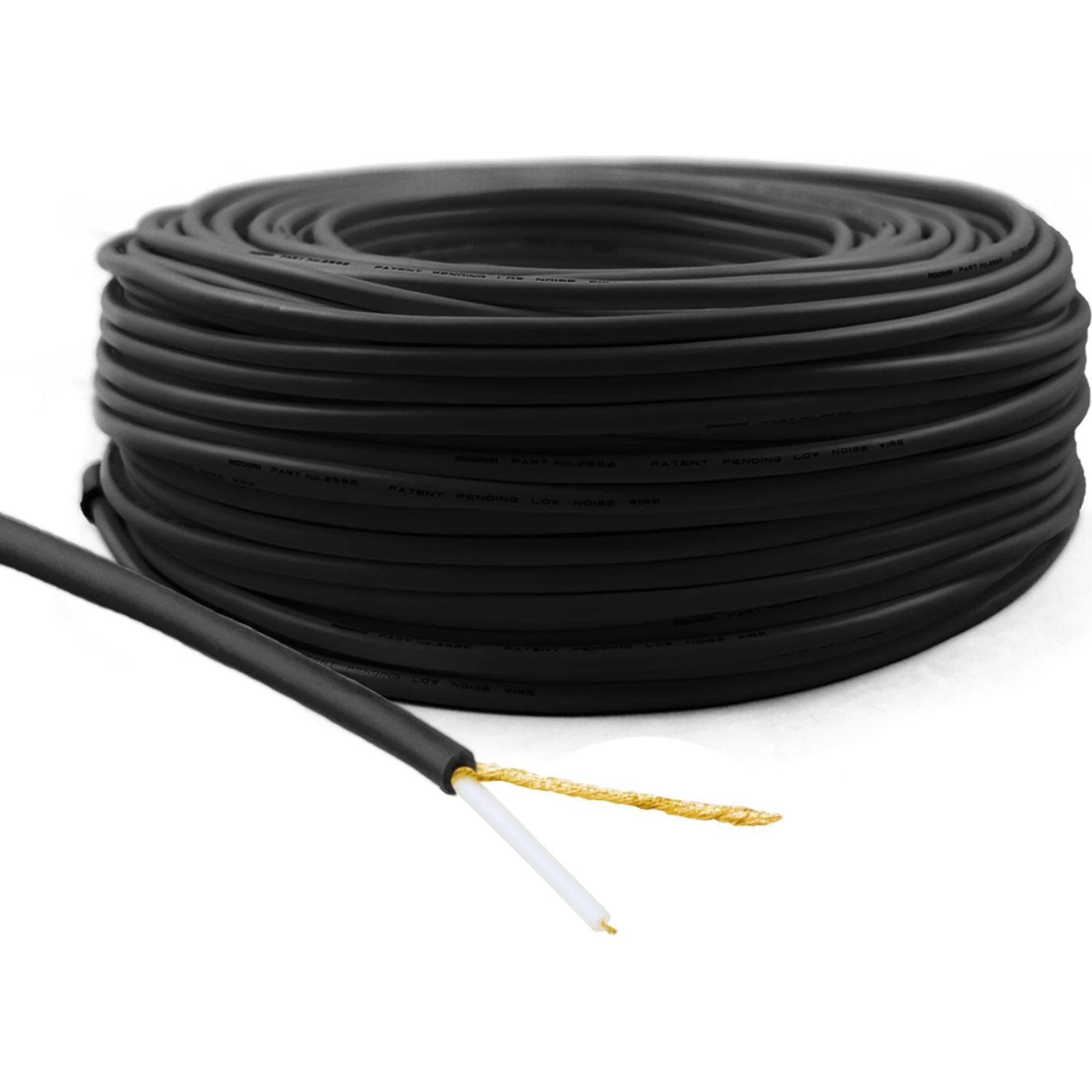

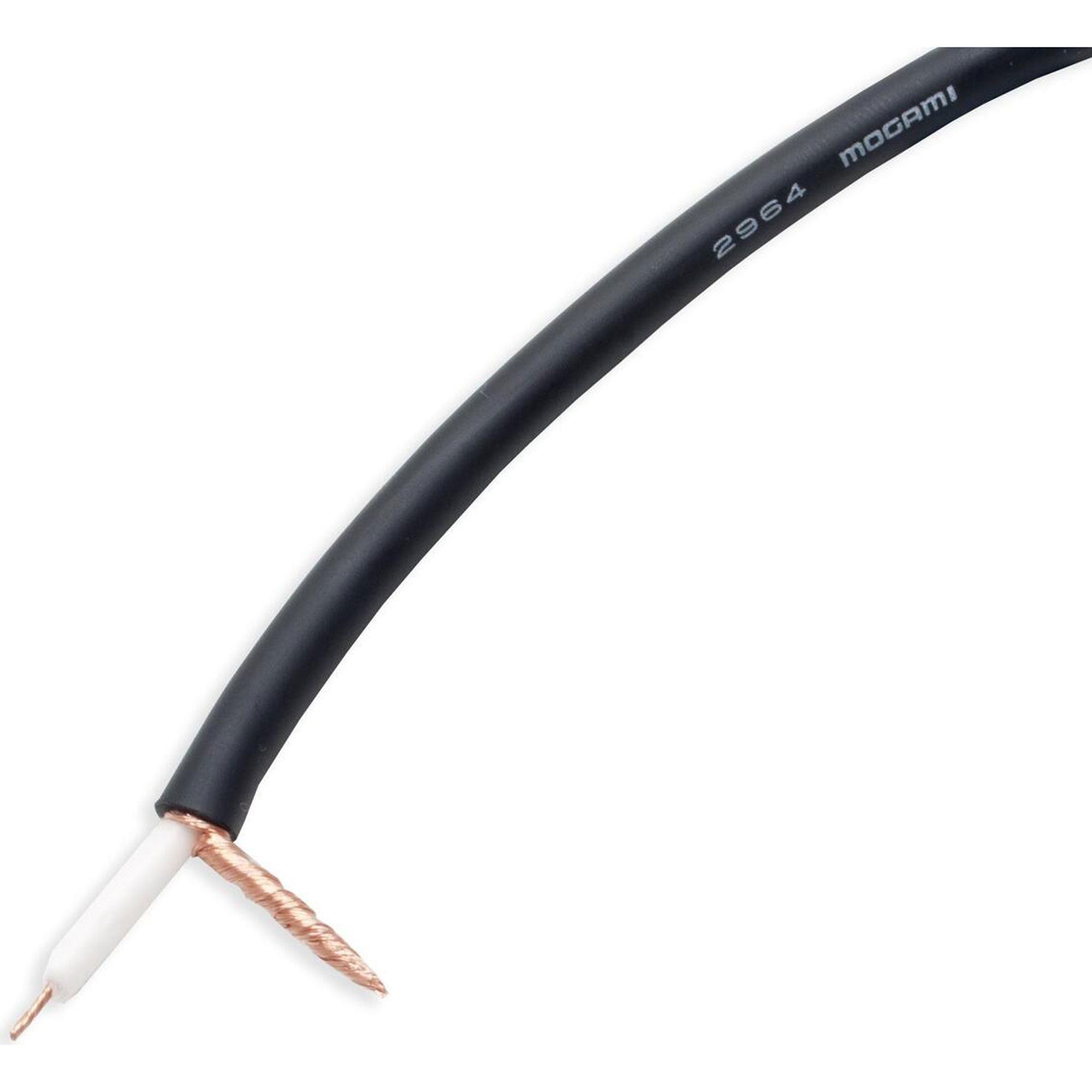

Black 1 Conductor 75ohm Coaxial High Definition Audio/Video Cable - Full 328'/100m Roll
Superflexible subminiature coaxial cables which cannot be found in MIL, JIS and other popular worldwide standards. There are lots of cases where those standard cables will not do the job. MOGAMI superflexible subminiature coaxial cables were originally made for custom applications, and remained in production thereafter, finding many applications all over the world.
Available Colors: Black
Standard Roll Lengths: 164, 328, 656 feet
Specifications:
- Part No.: W2964
- Characteristic Impedance: 75Ω
- Conductor Details: 20/0.12 OFC
- Conductor Size: 0.226mm² (#24AWG)
- Insulation Ov. Dia.(mm): 2.6Ø (0.102")
- Insulation Material: XLCPE
- Overall Shield Type: Served
- Overall Shield Details: Approx. 70/0.12 OFC
- Jacket Ov. Dia.(mm): 4.8Ø (0.189")
- Jacket Material: PVC
- Jacket Color: Black / Red / Yellow / Green / Blue
- Roll Sizes: 50m (164 Ft) / 100m (328Ft) / 200m (656Ft)
- Weight per 200m (656Ft) Roll: 5.9kg/200m
- ELECTRICAL & MECHANICAL CHARACTERISTICS
- DC Resistance at 20°C Inner Cond.: 0.090Ω/m(0.027Ω/Ft)
- DC Resistance at 20°C Shield: 0.025Ω/m(0.0076Ω/Ft)
- Capacitance at 1kHz, 20°C: 65pF/m(19.8pF/Ft)
- Characteristic Imperdance at 10MHz: 75Ω±10%
- Attenuation (10MHz): 0.061dB/m (0.019db/Ft)
- Phase Constant (10MHz): 0.3rad/m
- Electromagnetic Noise*: 0.1mV Max.
- Voltage Breakdown: Must withstand at DC 500V/15sec.
- Insulation Resistance: 10000 MΩ x m Min. at DC 250V, 20°C
- Flex Life*: 16,000 cycles
- Tensile Strength: 274N
- Emigration: Non-emigrant to ABS resin
- Applicable Temperature: -20°C- +60°C(-4°F- +158ŒF)
- Standard: UL 1354 AWM VW-1 30V 60°C
- Attenuation : 1 dB = 0.1151 neper (1 neper = 8.686 dB)
- * Using standard testing method of Mogami Wire & Cable Corp.
