Mogami W2893 Miniature Neglex Quad Microphone Cable (Yellow, By the Foot)

Mogami SKU: MOG W2893YELLOW
MPN: W2893-04
Price:
$2.00
Stock:
976 In Stock & Ready to Ship

Make it a bundle

Custom Cable 160 Feet of Mogami W2893 Yellow Wire Image 1
Custom Cable 160 Feet of Mogami W2893 Yellow Wire
$226.00
Mogami W2893 Miniature Neglex Quad Microphone Cable (Yellow, 328'/100m Roll) Image 1
Mogami W2893 Miniature Neglex Quad Microphone Cable (Yellow, 328'/100m Roll)
$429.00
Custom Cable 70 Feet of Mogami W2893 Yellow Wire Image 1
Custom Cable 70 Feet of Mogami W2893 Yellow Wire
$99.00
Custom Cable 500 Feet of Mogami W2893 Yellow Wire Image 1
Custom Cable 500 Feet of Mogami W2893 Yellow Wire
$707.00
Custom Cable 190 Feet of Mogami W2893 Yellow Wire Image 1
Custom Cable 190 Feet of Mogami W2893 Yellow Wire
$269.00
Custom Cable 656 Feet of Mogami W2893 Yellow Wire Image 1
Custom Cable 656 Feet of Mogami W2893 Yellow Wire
$927.00
Mogami W2893 Miniature Neglex Quad Microphone Cable (Yellow, 656'/200m Roll) Image 1
Mogami W2893 Miniature Neglex Quad Microphone Cable (Yellow, 656'/200m Roll)
$834.00
Custom Cable 75 Feet of Mogami W2893 Yellow Wire Image 1
Custom Cable 75 Feet of Mogami W2893 Yellow Wire
$106.00
Custom Cable 60 Feet of Mogami W2893 Yellow Wire Image 1
Custom Cable 60 Feet of Mogami W2893 Yellow Wire
$85.00
Custom Cable 24 Feet of Mogami W2893 Yellow Wire Image 1
Custom Cable 24 Feet of Mogami W2893 Yellow Wire
$34.00
Custom Cable 13 Feet of Mogami W2893 Yellow Wire Image 1
Custom Cable 13 Feet of Mogami W2893 Yellow Wire
$19.00
Custom Cable 5 Feet of Mogami W2893 Yellow Wire Image 1
Custom Cable 5 Feet of Mogami W2893 Yellow Wire
$8.00

Key Features

  • Great Sound, Excellent Noise Rejection
  • Small Diameter Cable
  • 4-Conductor, 26AWG
  • Flexible PVC Jacket
  • Excellent Shielding
  • Made in Japan
  • Sold by the Foot
  • Shipped in a Continuous Length

Description

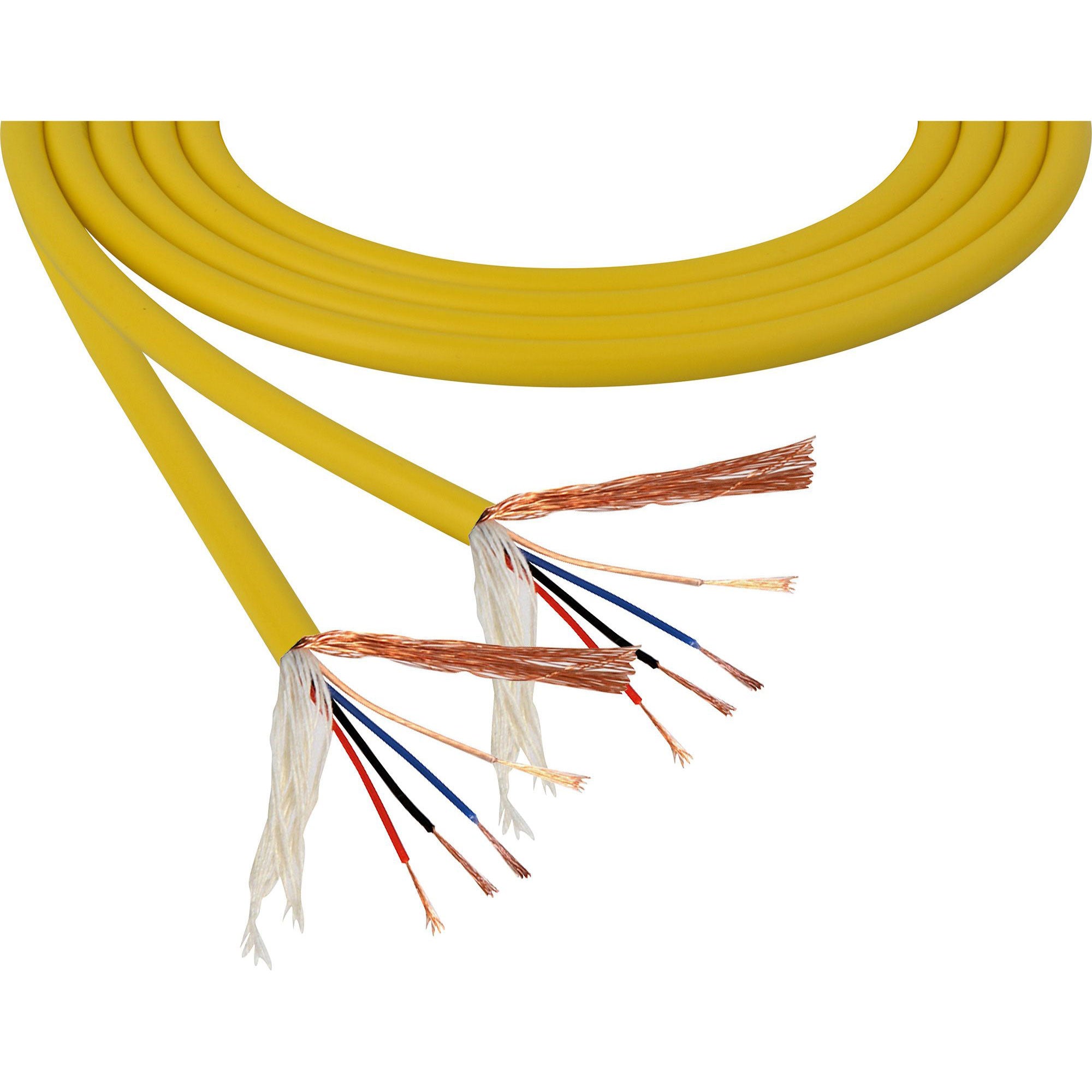

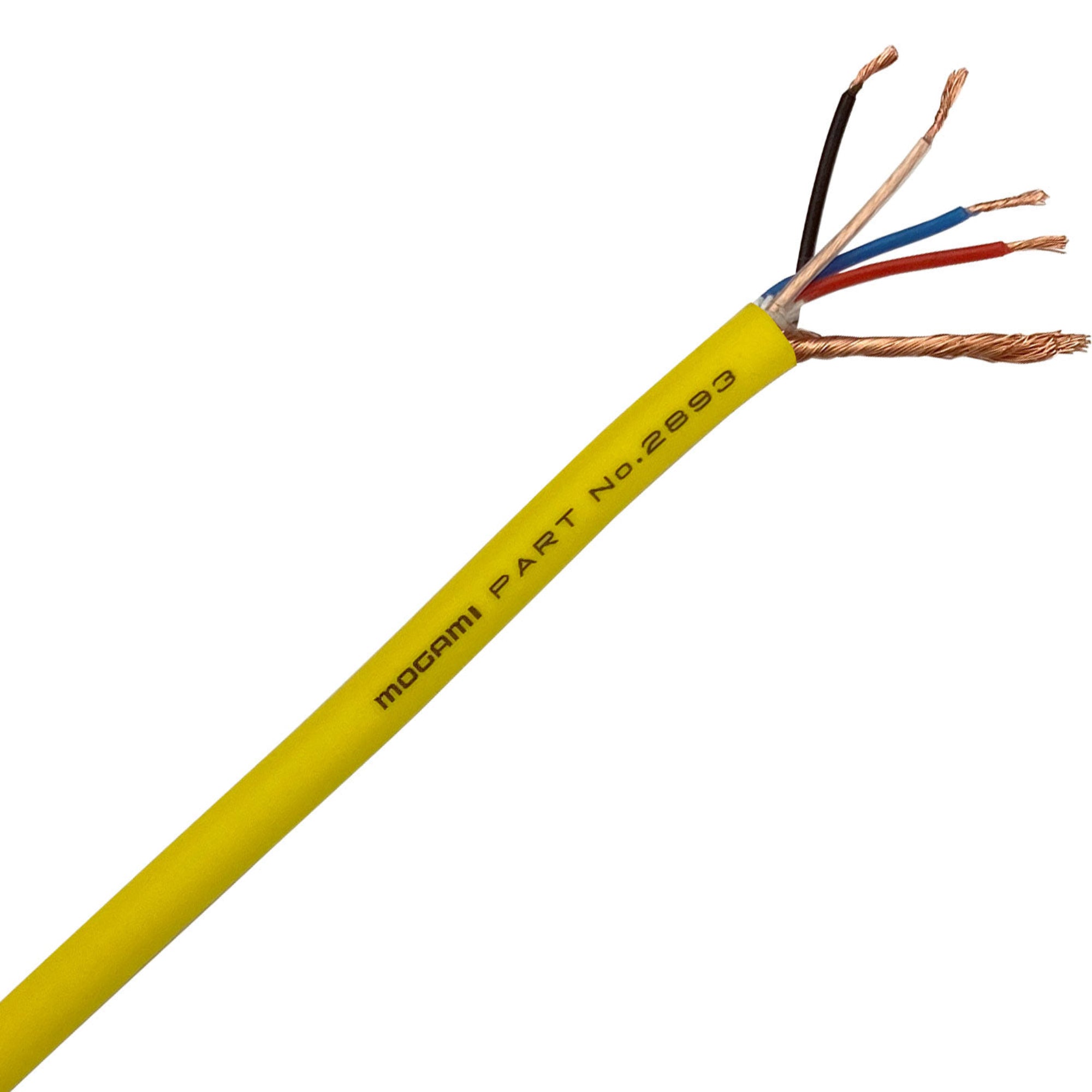

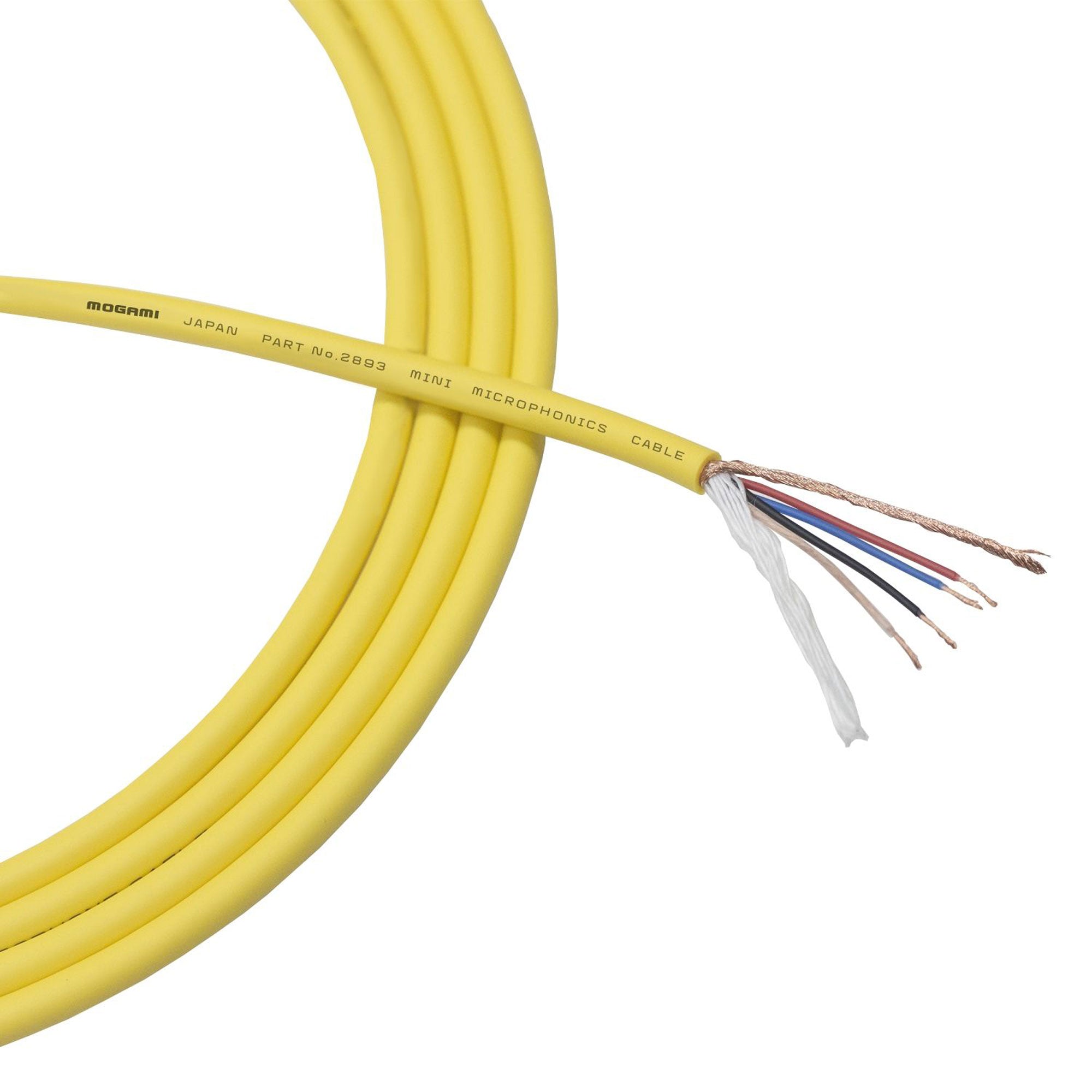

Yellow miniature quad microphone cable, sold by the foot

Mogami W2893 is a flexible, small-diameter quad microphone cable for custom cable assemblies and applications where a thinner microphone cable is needed. This listing is for the Yellow jacket version, with four 26 AWG conductors, XLPE insulation, a served copper shield, and a 4.8 mm PVC outer jacket. Made in Japan.

How to order your length

Sold by the foot. Enter the number of feet you need in the quantity field. For example, quantity 25 means one continuous 25-foot piece. This is bulk, unterminated cable; connectors are not included.

Choose your jacket color

W2893 is available in Black, Blue, Green, Red, and Yellow through separate by-the-foot listings. Order from the listing for the jacket color you want. This page supplies Yellow cable.

Compact construction for custom assemblies

Originally designed for BANTAM patch cords, W2893 is useful where a small-diameter quad microphone cable is required. Its four-conductor construction supports quad wiring, while the served copper shield simplifies termination. XLPE conductor insulation helps reduce shrink-back during soldering.

Check that your connector’s cable entry and strain relief accommodate the 4.8 mm outer diameter, and follow the connector and equipment wiring requirements when assembling your cable.

Features

  • Four-conductor quad construction.
  • 26 AWG conductors with XLPE insulation.
  • Served, spiral bare-copper shield.
  • Flexible 4.8 mm PVC jacket for smaller-diameter cable applications.
  • Yellow jacket; other colors available through separate listings.
  • Supplied as one continuous length based on feet ordered.

Specifications

  • Model: W2893
  • Number of conductors: 4, quad
  • Conductor size: 26 AWG, 0.15 mm²
  • Conductor insulation diameter: 1 mm, 0.039 in.
  • Conductor insulation material: Cross-linked polyethylene, XLPE
  • Shield: Served, spiral bare copper
  • Outer jacket diameter: 4.8 mm, 0.189 in.
  • Outer jacket material: PVC
  • Jacket color supplied: Yellow
  • Balanced quad capacitance, conductor-to-conductor: 131 pF/m, 40 pF/ft, at 1 kHz and 20°C
  • Balanced quad capacitance, conductor-to-shield: 178 pF/m, 54 pF/ft, at 1 kHz and 20°C
  • Voltage breakdown test: DC 500 V for 15 seconds
  • Tensile strength: 500 N
  • Applicable temperature: −20°C to +70°C, −4°F to +158°F
  • Country of manufacture: Japan
Details
  • Manufacturer:  Mogami
  • MPN: W2893-04
  • Model Number: W2893 Yellow
