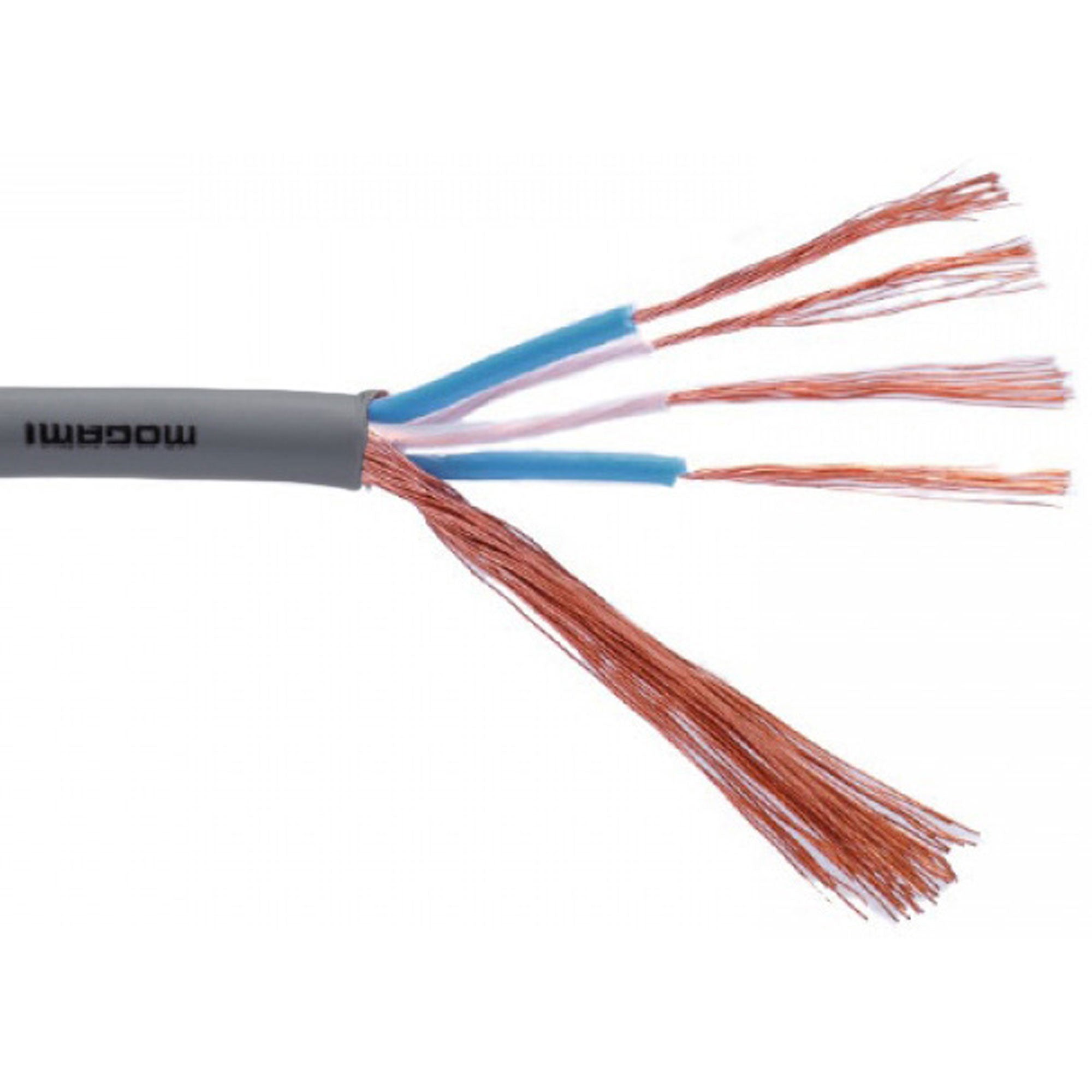

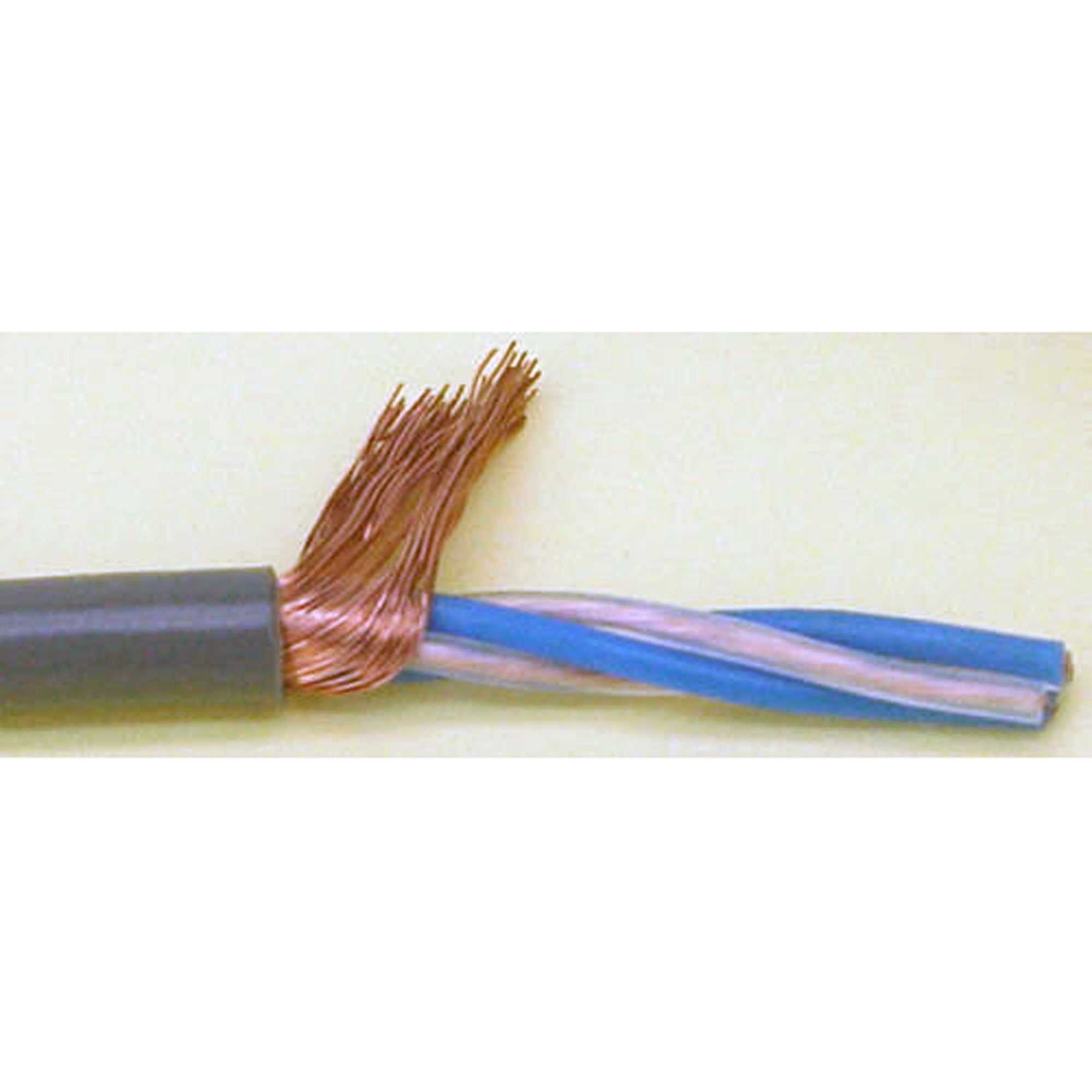

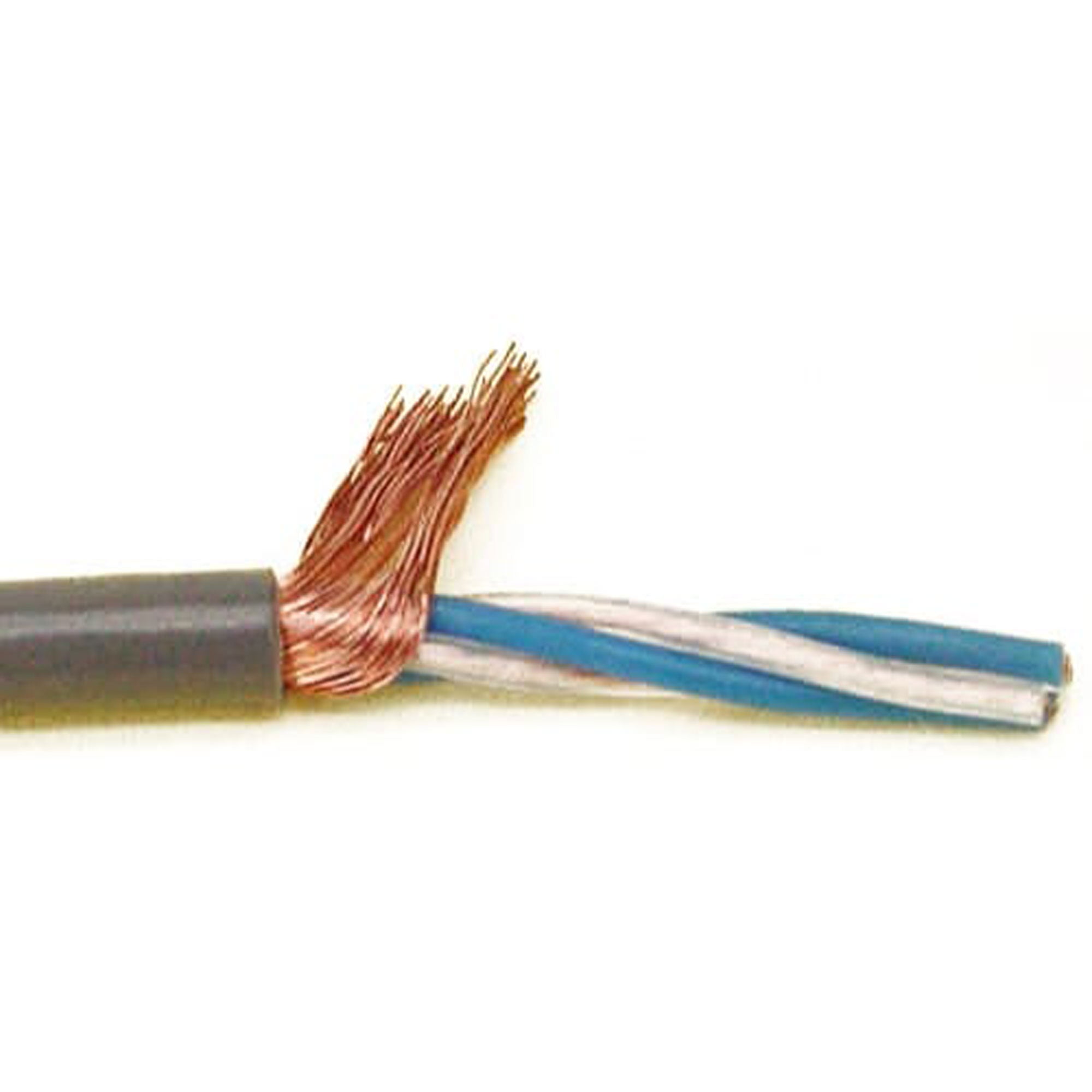

Mogami W2820 Quad Console Cable (By the Foot)

4 Conductor 24awg Console Cable - Sold by the Foot

The copper conductors of all these console cables are made of famous NEGLEX OFC, hence we can recommend any of these with confidence for the highest quality wiring of mixing consoles, rack panels, and studio equipment.

All cables feature XLPE (Cross-Linked Polyethylene) which has excellent electrical characteristics and prevents shrink-back during soldering.

Served (spiral) shield provides easier cable termination and better sound quality than braided shield.

Features:

• #24AWG conductor version technically similar to #W2534 NEGLEX quad Mic. Cable except for smaller and slippery outer jacket.
• This item is designed for permanent installation and where larger conductor size is required such as long runs.

Specifications:

• Part No.: W2820
• No. of Conductor: 4
• Conductor:
  Details: 20/0.12 OFC
  Size(mm²): 0.226mm² (#24AWG)
• Insulation:
  Ov. Dia.(mm): 1.6Ø (0.063")
  Material: XLPE (Cross-Linked Polyethylene)
  Core Colors: Blue / Clear (Quad)
• Served Shield: Approx. 64/0.18A
• Jacket:
  Ov. Dia.(mm): 5.0Ø (0.197")
  Material: PVC
  Core Colors: Gray
• Roll Sizes: 200m (656Ft) (standard)
• Weight per 200m Roll: 8kg
• DC Resistance at 20°C:
  Inner Cond.: 0.083Ω/m(0.025Ω/Ft)
  Shield: 0.012Ω/m(0.0037Ω/Ft)
• Capacitance at 1kHz, 20°C (Partial C. Value):
  K0: 65pF/m(20pF/Ft)
  K1: 13pF/m(4pF/Ft)
  K2: 4pF/m(1.2pF/Ft)
  Quad-Connection: 97pF/m(29.6pF/Ft)
  Cond-Shield: 110pF/m(33.6pF/Ft)
• Inductance between conductors at 1kHz, 20°C: 0.4µH/m(0.121µH/Ft)
• Electrostatic Noise**: 50mV Max.
• Electromagnetic Noise: 0.15mV Max.
• Voltage Breakdown: Must withstand at DC 500V/15sec.
• Insulation Resistance: 100000 MΩ/ x m Min. at DC 125V, 20°C
