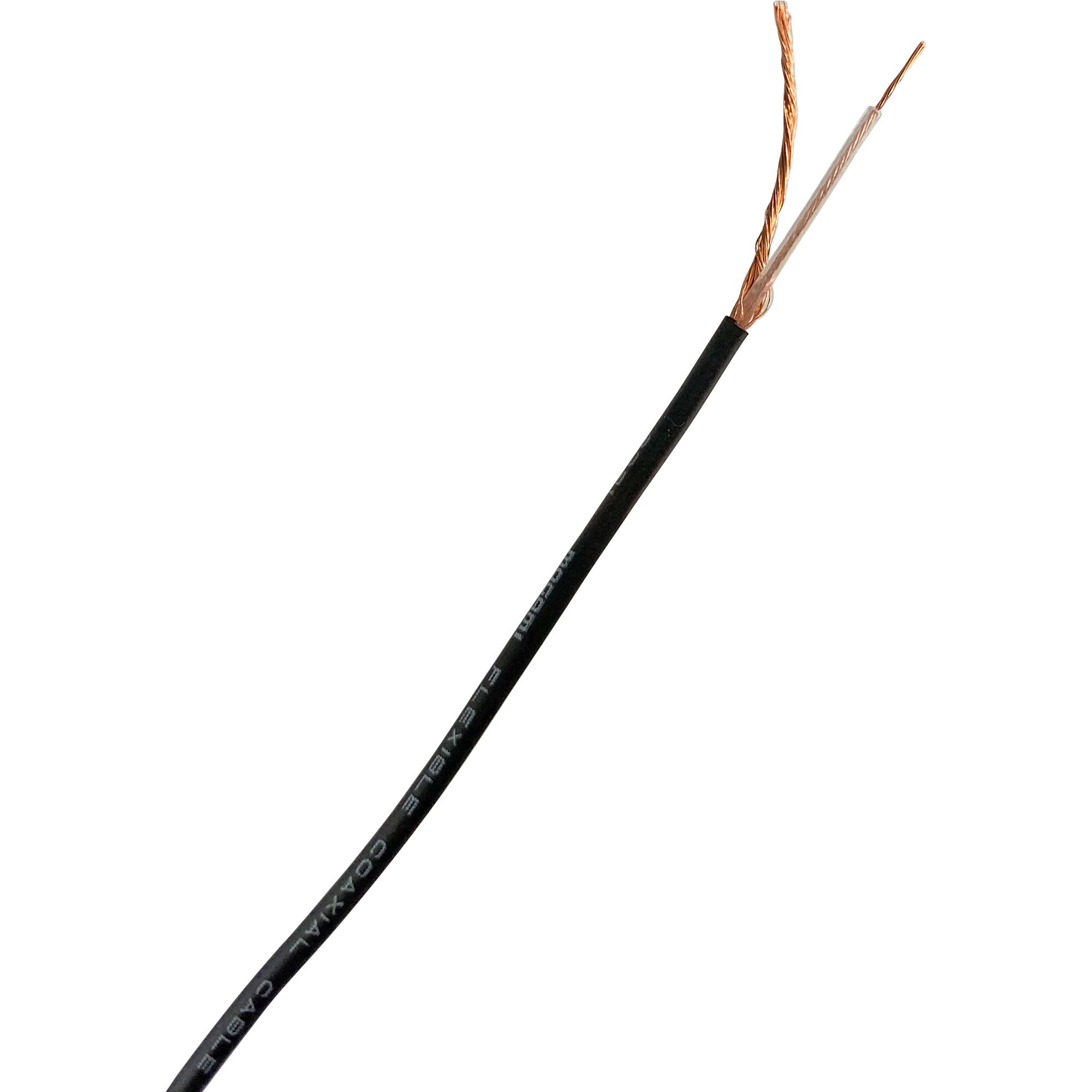

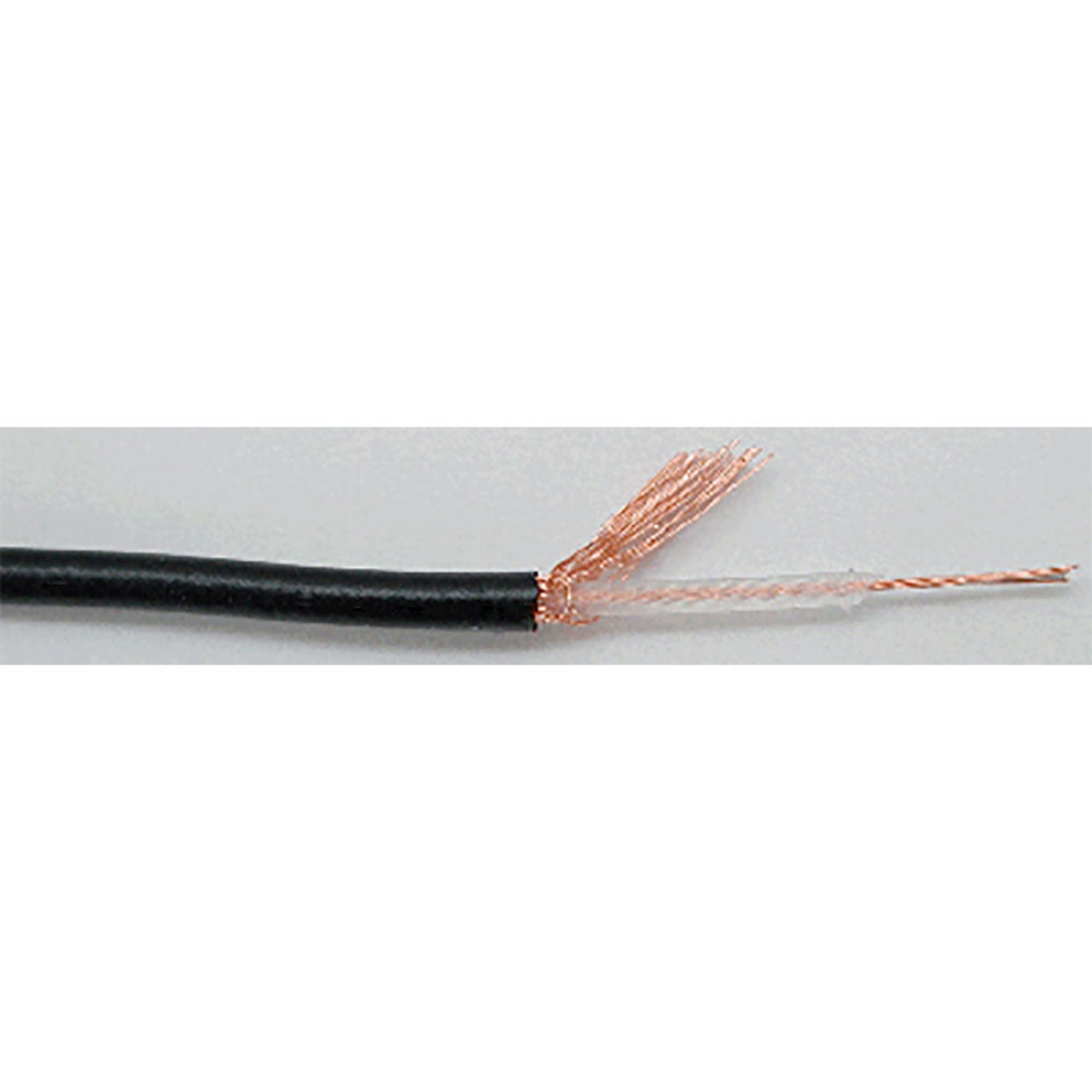

Mogami W2381 Subminiature Coaxial Cable, 50 Ohm (Black, By the Foot)

Black 1 Conductor 30awg 50ohm Coaxial Cable - Sold by the Foot

Superflexible subminiature coaxial cables which cannot be found in MIL, JIS and other popular worldwide standards. There are lots of cases where those standard cables will not do the job. MOGAMI superflexible subminiature coaxial cables were originally made for custom applications, and remained in production thereafter, finding many applications all over the world.

Available Colors:
Black / Yellow (1000 ft. Spools Only) / Blue (1000 ft. Spools Only)

Standard Roll Lengths:
1000 feet

Specifications:

• CABLE SPECIFICATIONS
• Part No.: W2381
• Characteristic Impedance: 50Ω
• Conductor Details:
  20/0.10 Piano Wire
  60/0.10A Served Cond.
• Conductor Size: 0.047mm² (#31AWG)
• Insulation Ov. Dia.(mm): 0.9Ø (0.035")
• Insulation Material: XLPE
• Overall Shield Type: Served
• Overall Shield Details: Approx. 30/0.10A
• Jacket Ov. Dia.(mm): 1.6Ø (0.063")
• Jacket Material: PVC
• Jacket Color: Black / Red / Yellow / Blue
• Roll Sizes: 305m (1,000Ft)
• Weight per 305m (1,000Ft) Roll: 1.5kg
• ELECTRICAL & MECHANICAL CHARACTERISTICS
• Part No.: W2381
• DC Resistance at 20°C Inner Cond.: 0.4Ω/m(0.12Ω/Ft)
• DC Resistance at 20°C Shield: 0.06Ω/m(0.018Ω/Ft)
• Capacitance at 1kHz, 20°C: 110pF/m(33.6pF/Ft)
• Characteristic Imperdance at 10MHz: 50Ω±10%
• Attenuation (10MHz): 0.15dB/m (0.046db/Ft)
• Phase Constant (10MHz): 0.38rad/m
• Electromagnetic Noise*: 0.1mV Max.
• Voltage Breakdown: Must withstand at DC 500V/15sec.
• Insulation Resistance: 10000 MΩ x m Min. at DC 250V, 20°C
• Flex Life*: 21,000 cycles
• Tensile Strength: 68N
• Emigration: Non-emigrant to PSR resin
• Applicable Temperature: -20°C- +60°C(-4°F- +158ŒF)
• Standard: UL 1354 AWM VW-1 30V 60&°C

Attenuation : 1 dB = 0.1151 neper (1 neper = 8.686 dB)
* Using standard testing method of Mogami Wire & Cable Corp.
