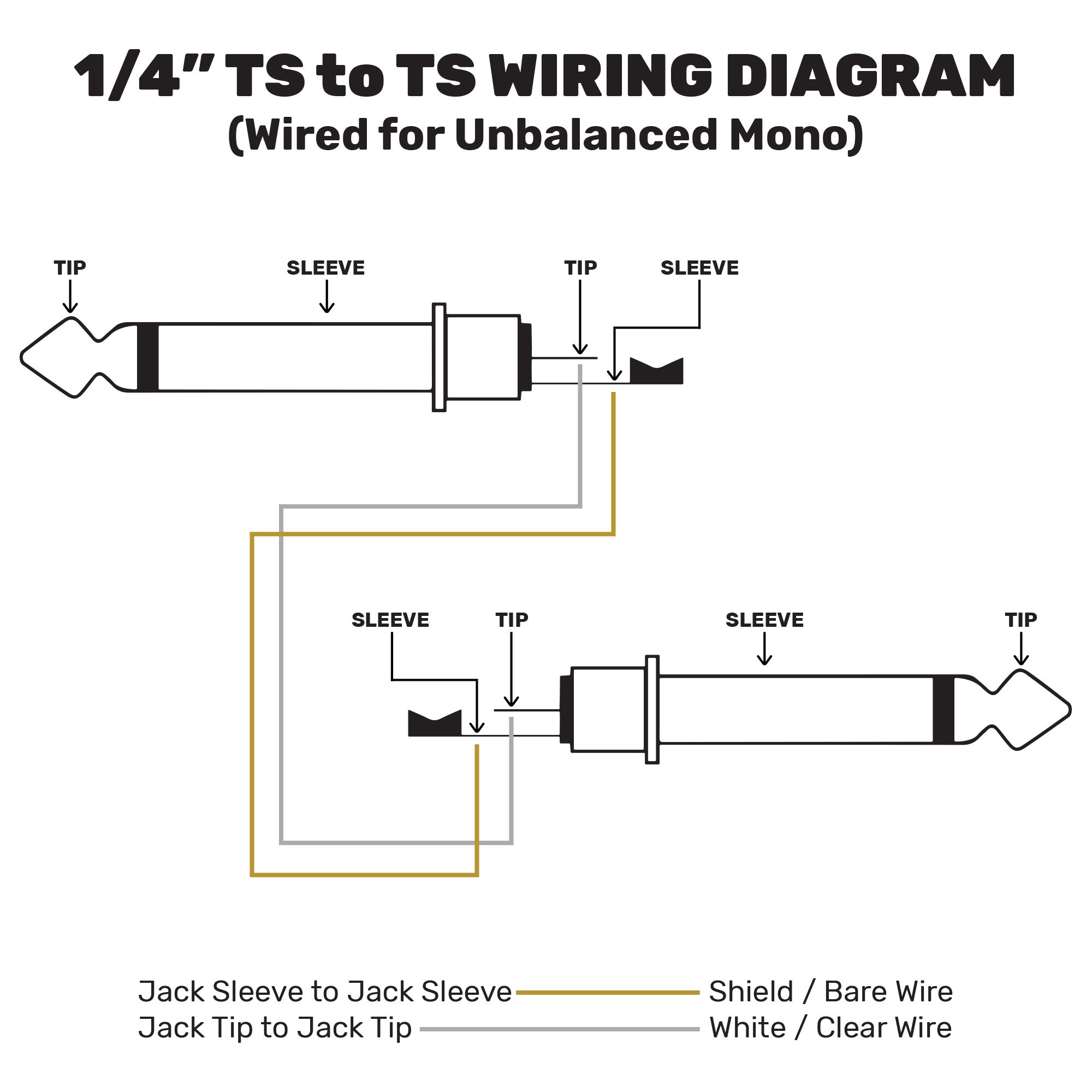

Performance Audio TS to TS cable wiring diagram illustration

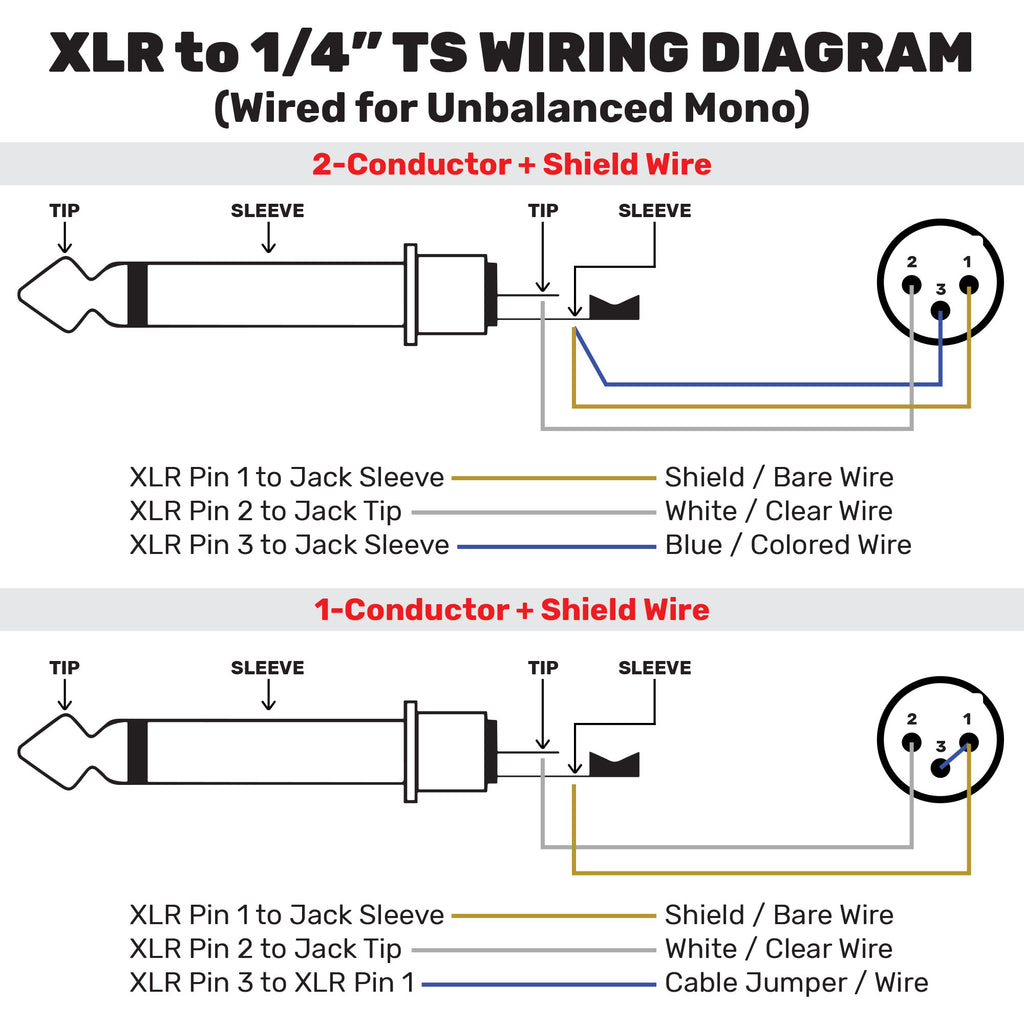

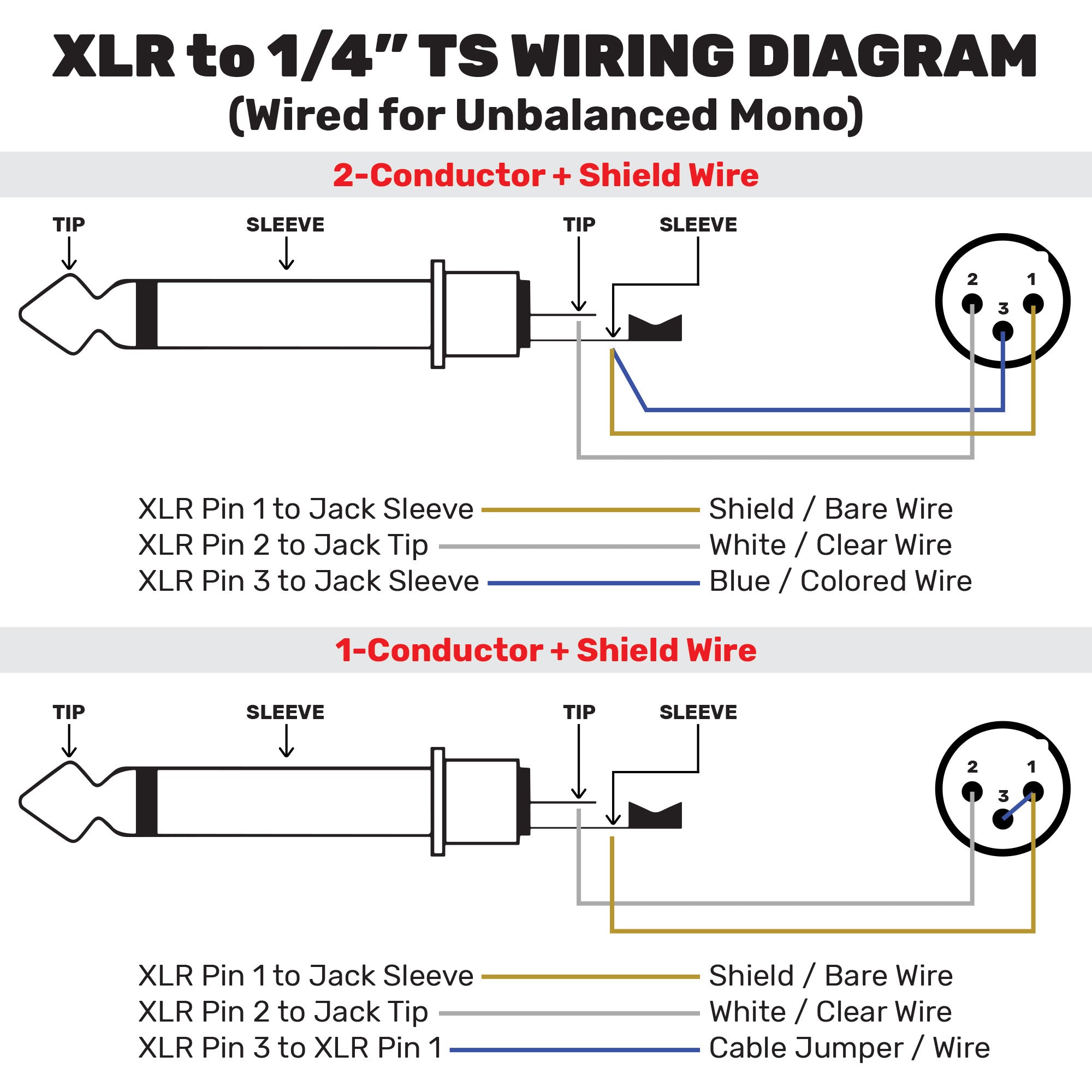

Performance Audio XLR to TS cable wiring diagram illustration
Roll over image to zoom in Click on image to zoom
Mogami W2314 black miniature coaxial instrument cable with visible copper conductors and a plastic jacket.Mogami W2314 Single Conductor Miniature Coaxial Instrument Cable black jacket with factory letteringMogami W2314 Black Single Conductor Miniature Coaxial Instrument Cable shown coiled in a roll with factory labelingMogami W2314 Black Single Conductor Miniature Coaxial Instrument Cable rolled up close upPerformance Audio TS to TS cable wiring diagram illustrationPerformance Audio XLR to TS cable wiring diagram illustration Performance Audio instrument cable assembly guide video

Mogami W2314 Single Conductor Miniature Coaxial Instrument Cable (By the Foot)

Mogami SKU: MOG W2314
MPN: W2314-00
Price:
$1.00
Stock:
7187 In Stock & Ready to Ship

Make it a bundle

Mogami W2314 Single Conductor Miniature Coaxial Instrument Cable (164'/50m Roll) Image 1
Mogami W2314 Single Conductor Miniature Coaxial Instrument Cable (164'/50m Roll)
$88.00
2 Reviews
Mogami W2314 Single Conductor Miniature Coaxial Instrument Cable (656'/200m Roll) Image 1
Mogami W2314 Single Conductor Miniature Coaxial Instrument Cable (656'/200m Roll)
$331.00
Custom Cable 2 Feet of Mogami W2314 Wire Image 1
Custom Cable 2 Feet of Mogami W2314 Wire
$2.00
Mogami W2314 Single Conductor Miniature Coaxial Instrument Cable (328'/100m Roll) Image 1
Mogami W2314 Single Conductor Miniature Coaxial Instrument Cable (328'/100m Roll)
$170.00
Custom Cable 10 Feet of Mogami W2314 Wire Image 1
Custom Cable 10 Feet of Mogami W2314 Wire
$6.00
Custom Cable 50 Feet of Mogami W2314 Wire Image 1
Custom Cable 50 Feet of Mogami W2314 Wire
$28.00
Custom Cable 19 Feet of Mogami W2314 Wire Image 1
Custom Cable 19 Feet of Mogami W2314 Wire
$11.00
Custom Cable 3 Feet of Mogami W2314 Wire Image 1
Custom Cable 3 Feet of Mogami W2314 Wire
$2.00
Custom Cable 4 Feet of Mogami W2314 Wire Image 1
Custom Cable 4 Feet of Mogami W2314 Wire
$3.00
Custom Cable 5 Feet of Mogami W2314 Wire Image 1
Custom Cable 5 Feet of Mogami W2314 Wire
$3.00
Custom Cable 40 Feet of Mogami W2314 Wire Image 1
Custom Cable 40 Feet of Mogami W2314 Wire
$23.00
Custom Cable 23 Feet of Mogami W2314 Wire Image 1
Custom Cable 23 Feet of Mogami W2314 Wire
$13.00

Key Features

  • Single Conductor
  • Shielded
  • 26 AWG
  • Unbalanced Cable
  • Hi-Fi Interconnect Cable
  • Sold by the Foot
  • Shipped in a Continuous Length

Description

Build compact instrument and pedalboard patch cables

Mogami W2314 is a miniature coaxial instrument cable with a single 26-AWG center conductor, a served bare copper shield, and a flexible Black PVC jacket. Its 4.0 mm outside diameter makes it a practical cable choice for custom unbalanced instrument connections and pedalboard patch cables.

Pair with SquarePlug SP400 or SP400BK

Mogami W2314 is a recommended cable match for the SquarePlug SP400 (Matte Nickel) and SquarePlug SP400BK (Black) low-profile right-angle TS plugs. Its listed 4.0 mm jacket diameter falls within their 4.0–4.6 mm cable-fit range, making this pairing useful for compact custom patch-cable builds.

Follow SquarePlug’s cable preparation and soldering instructions, and check clearance around your equipment’s jacks before assembly.

How to order

Sold by the foot. Enter the number of feet you need in the quantity field. For example, quantity 25 means one continuous 25-foot piece.

This listing is for bulk cable, not a finished instrument cable. Connectors and cable assembly are required.

Plan your wiring and connectors

W2314 uses a single insulated center conductor and a surrounding shield for unbalanced coaxial wiring. It is not a two-insulated-conductor balanced microphone cable. Match your connector type and wiring to your equipment, and check that the connector’s strain relief accepts the 4.0 mm jacket.

Features

  • Miniature coaxial construction for instrument and pedalboard patch-cable builds.
  • Recommended cable match for SquarePlug SP400 and SP400BK.
  • Single 26-AWG center conductor.
  • Served bare copper shield.
  • XLPE conductor insulation.
  • Flexible Black PVC jacket with a 4.0 mm outside diameter.
  • Sold by the foot in one continuous length.

Construction specifications

  • Model: W2314
  • Insulated conductor count: 1
  • Center conductor size: 26 AWG
  • Conductor construction: 30 strands × 0.08 mm
  • Insulated conductor diameter: 1.5 mm
  • Insulation material: XLPE
  • Insulation color: Clear
  • Served shield: Approximately 37 strands × 0.12 mm bare copper
  • Overall jacket diameter: 4.0 mm, approximately 0.157 in.
  • Jacket material: Flexible PVC
  • Jacket color: Black

Electrical and mechanical specifications

  • Typical center conductor DC resistance at 20°C: 0.13 Ω/m
  • Typical shield DC resistance at 20°C: 0.045 Ω/m
  • Typical partial capacitance K0 at 1 kHz and 20°C: 110 pF/m
  • Typical inductance at 1 kHz and 20°C: 0.3 µH/m
  • Listed electrostatic noise test value: 50 mV maximum
  • Listed electromagnetic noise test result: Limit of detection
  • Listed microphonics test value at 50 kΩ load: 30 mV maximum
  • Insulation resistance at DC 125 V and 20°C: 100,000 MΩ × m minimum
  • Listed flex-life test value: 18,200 cycles
  • Tensile strength: 260 N
  • Jacket material: Non-emigrant to ABS resin
  • Operating temperature: −20°C to +70°C, −4°F to +158°F
Details
  • Manufacturer:  Mogami
  • MPN: W2314-00
  • Model Number: W2314
