Key Features
- 44U Racking Height
- 30.75" Usable Depth
- Fully Welded Construction
- Cable Lacing Points
- Standard Front & Rear Rackrail
- 10-32 Rackrail with Numbered Spaces
Description

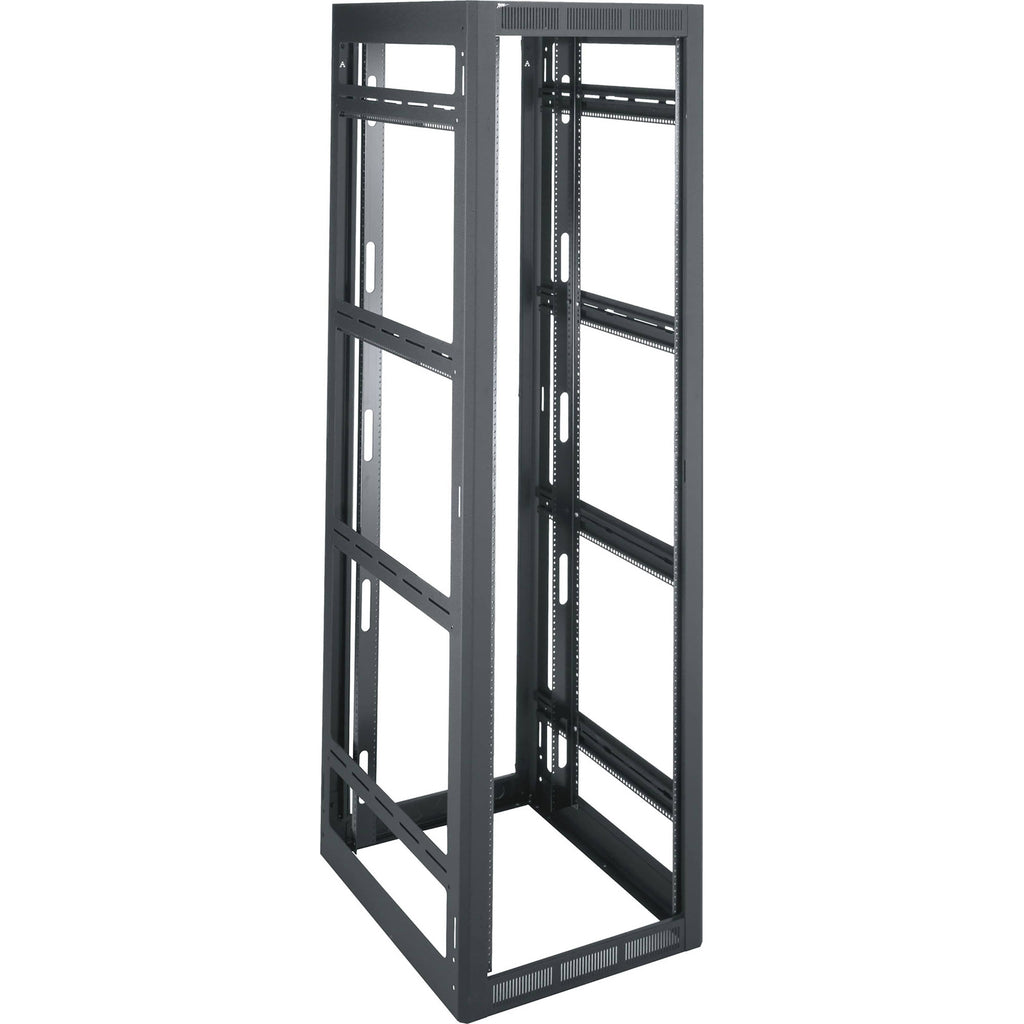

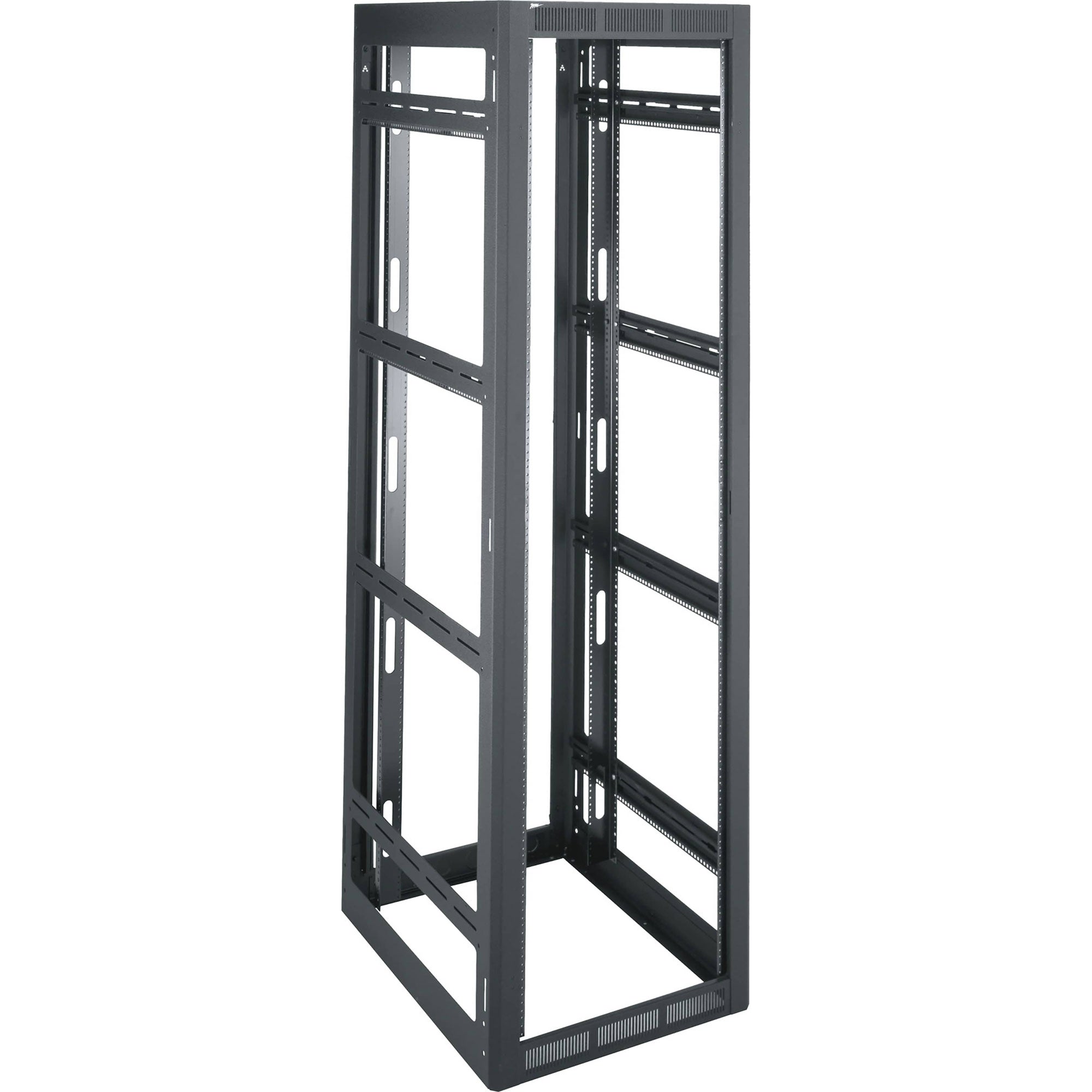

44 Space (77"), 32" Deep Gangable Rack without Rear Door, Black Finish
The WRK series was designed with a wider footprint for mounting equipment with thicker cable bundles that would be difficult to fit in a basic rack. It's ideal for multi-bay installations, or to insure more cooling airflow. The WRK series also offers seismic certification and open or removable sides.
This Middle Atlantic WRK Series 19" Gangable Enclosure WRK-44-32-LRD is a fully welded steel rack with 44U capacity with a generous overall width of 24-1/4" for easy passage of cables. Its steel frame and 1/8" thick laser-cut structural-steel internal braces provide a weight capacity of up to 2,500 lb. This enclosure is also seismic certified to protect up to 1,000 lb of essential equipment when used in conjunction with WRK-Z4 brackets.
This rack comes standard with (2) extra-wide pairs of 11-gauge threaded 10-32 rackrails with EIA spacing, labeled rackspace increments, and cable pass-through openings in the face. The top and the bottom of the rack feature 14-gauge steel, while the sides are made of 16-gauge seamless steel. Electrical knockouts on rear plates (both top and bottom) can easily be removed to pass cables (includes 1/2", 3/4", 1" and 1-1/2" openings). The configurable open top also includes a UHF/VHF knockout, as well as an opening for a wireless antenna.
This enclosure is gangable, allowing you to expand your system at will by adding additional cabinets. And customization is a snap with practical accessories to meet your exact needs, such as a vented Plexiglas front door. Please note, this model does not include the key-locked solid, rear door that comes standard with other versions of this rack. This rack is UL Listed in the U.S. and Canada.
Features:
- Fully welded construction for strength
- 24-1/4" overall width provides space for side cabling or cooling airflow
- Convenient lacing points and slotted rail brackets for cable management
- Standard front and rear adjustable 10-32 threaded rackrail with numbered spaces
- Extra-wide rackrail features cable pass-throughs to facilitate front-to-rear cabling
-
Solid Construction
All-steel construction and structural-steel braces guarantee exceptional strength and years of use. -
Seismic Certified
Protects up to 1,000 lbs. of essential equipment when used in conjunction with WRK-Z4 brackets. -
No-Clog, Rack-Rail Threads
All rack rails finished in durable "e-coat" to prevent clogged threads. -
Industry-Standard Design
Rackrail is labeled in EIA standard rackspace increments allowing for easy equipment alignment. -
Customization
Pick and choose from Middle Atlantic's wide range of accessories to customize and expand your rack system. -
Pre-Installed Washers
Pre-installed washers on all 10-32 threaded rackscrews save installation time. -
Grounding/Bonding Studs
Grounding/Bonding Studs have been provided to help you electrically ground and bond equipment, per NEBS and NEC standards. -
UL Listed
This rack is UL (Underwriters Laboratories) Listed in the U.S. and Canada. -
Free Layout & Specifications Software
RackTools free layout and specification software included for effective system design help. -
Quality Guaranteed
Limited Lifetime Warranty to original purchaser
Specifications:
- General Info
- Gangable: Yes
- finish: Black Powder Coat
- UL Standards Tested: UL1678
- Listing Agencies/Third Party Information
- ASC E: 7-10
- RoHS: Yes
- Greenguard: Yes
- UL Listing No: E173107
- Seismic Rating: Yes
- Dimensions
- Usable Depth: 30.75
- Usable Height: 77
- Capacity Weight U S: 10000
- Depth U S: 32.625
- Height U S: 83.125
- Width U S: 24.25
- Primary Package Weight U S: 245
- Rack Units: 44
- Technical Information
- Rackrail Type: 10-32
- Seismic Load Capacity: 900
- U L Load Capacity: 2500
- Material: Steel
- Mounting: Horizontal
