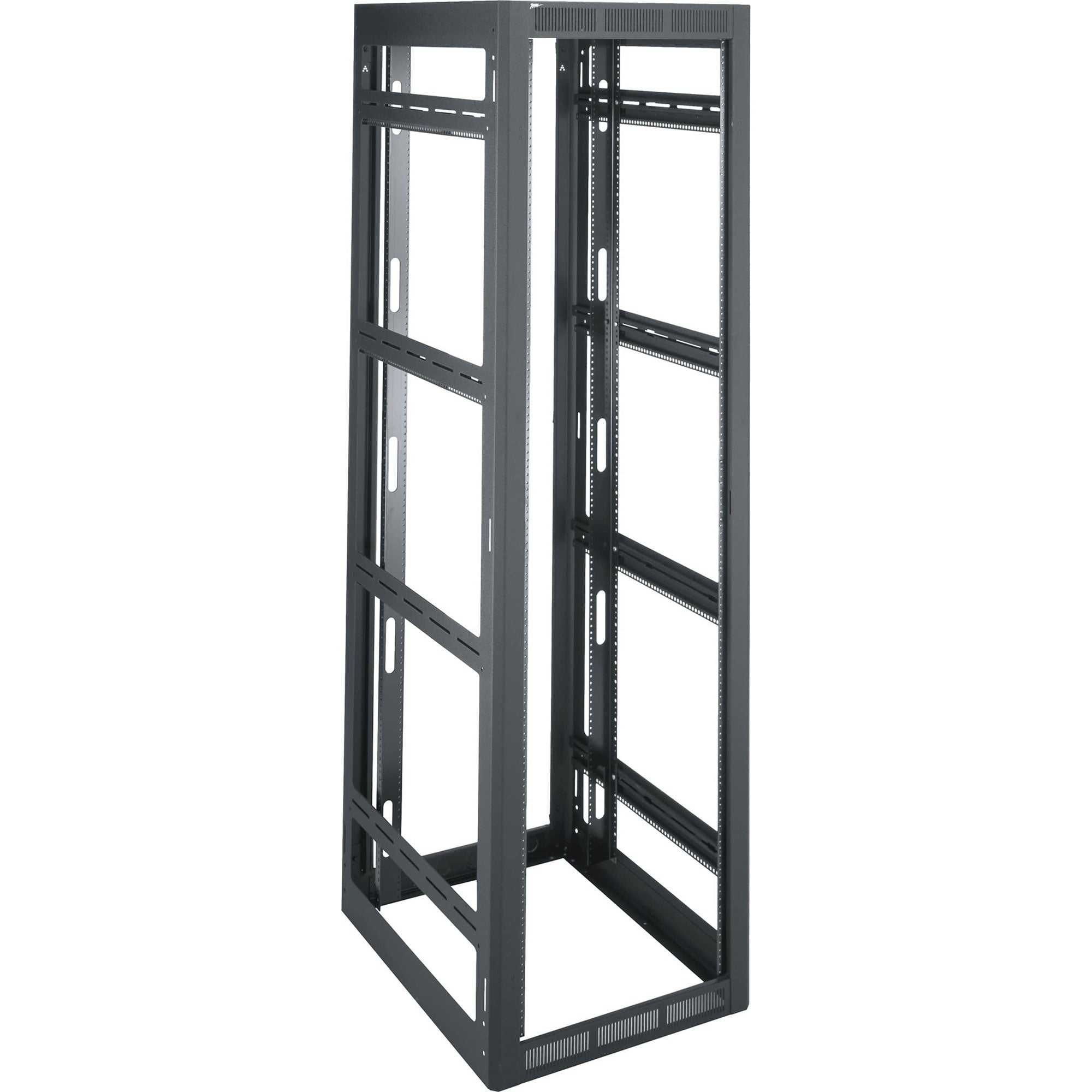

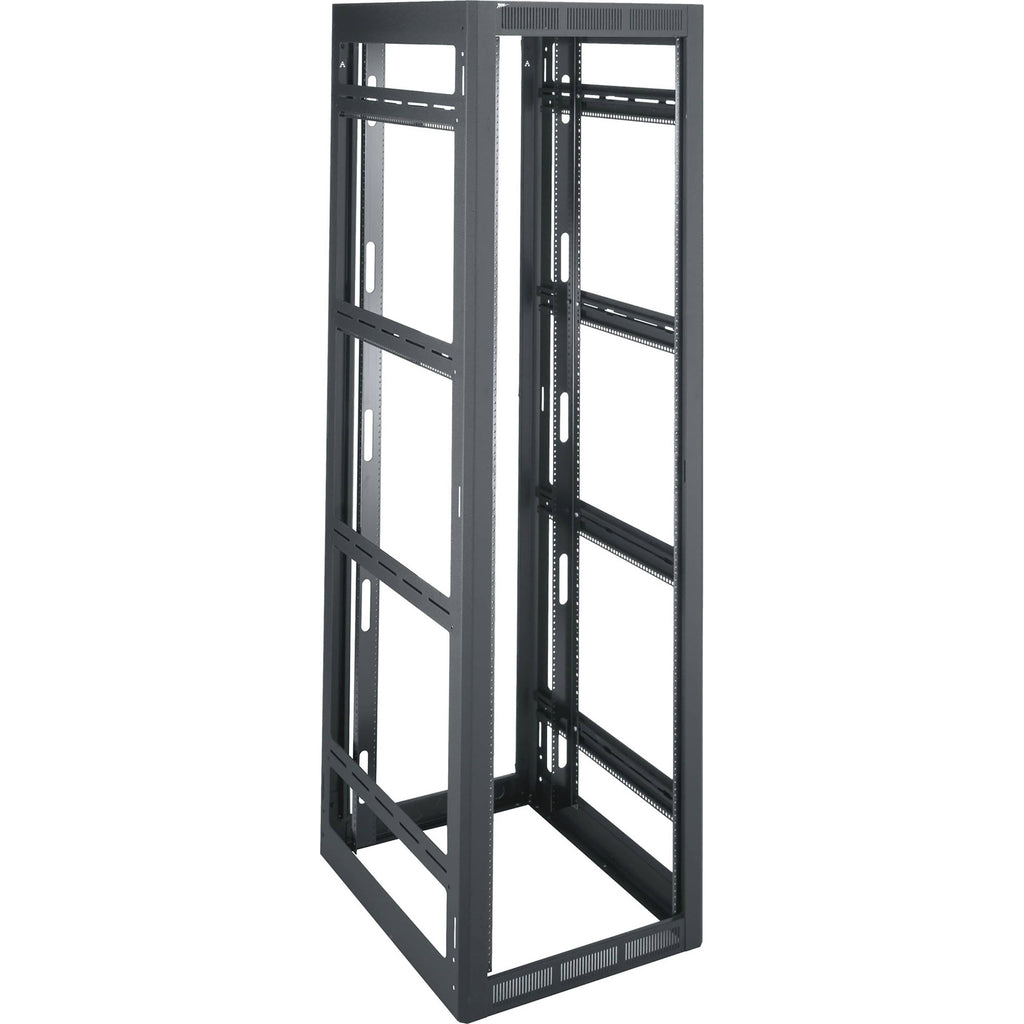

Middle Atlantic WRK-37-27LRD Gangable Rack without Rear Door 37U

37 Space (64-3/4"), 27" Deep Gangable Rack without Rear Door, Black Finish

The WRK series was designed with a wider footprint for mounting equipment with thicker cable bundles that would be difficult to fit in a basic rack. It's ideal for multi-bay installations, or to insure more cooling airflow. The WRK series also offers seismic certification and open or removable sides.

The Middle Atlantic WRK-37-27LRD 19" (482.6mm) Gangable Enclosure satisfies the 2007 & 2010 CBC; 2006, 2009 & 2012 IBC; ASCE 7-05 (2005 Edition) & ASCE 7-10 (2010 Edition) and the 2006 & 2009 editions of NFPA 5000 standards for use in areas of high seismicity. It is certified Seismic Use Group III, Zone 4 or Seismic Design Category (SDC) "D" with lateral force requirements for protecting 900 lb of essential equipment in locations with the highest level of seismicity and top floor or rooftop installations with an Importance factor (Ip) of 1.5 when used with WRK-Z4 seismic floor anchor bracket.

Features:

• Fully welded construction for strength
• 24-1/4" overall width provides space for side cabling or cooling airflow
• Convenient lacing points and slotted rail brackets for cable management
• Standard front and rear adjustable 10-32 threaded rackrail with numbered spaces
• Extra-wide rackrail features cable pass-throughs to facilitate front-to-rear cabling
• Solid Construction
  All-steel construction and structural-steel braces guarantee exceptional strength and years of use.
• Seismic Certified
  Protects up to 1,000 lbs. of essential equipment when used in conjunction with WRK-Z4 brackets.
• No-Clog, Rack-Rail Threads
  All rack rails finished in durable "e-coat" to prevent clogged threads.
• Industry-Standard Design
  Rackrail is labeled in EIA standard rackspace increments allowing for easy equipment alignment.
• Customization
  Pick and choose from Middle Atlantic's wide range of accessories to customize and expand your rack system.
• Pre-Installed Washers
  Pre-installed washers on all 10-32 threaded rackscrews save installation time.
• Grounding/Bonding Studs
  Grounding/Bonding Studs have been provided to help you electrically ground and bond equipment, per NEBS and NEC standards.
• UL Listed
  This rack is UL (Underwriters Laboratories) Listed in the U.S. and Canada.
• Free Layout & Specifications Software
  RackTools free layout and specification software included for effective system design help.
• Quality Guaranteed
  Limited Lifetime Warranty to original purchaser

Specifications:

• General Info
• Gangable: Yes
• finish: Black Powder Coat
• UL Standards Tested: UL1678
• Listing Agencies/Third Party Information
• ASC E: 7-10
• RoHS: Yes
• Greenguard: Yes
• UL Listing No: E173107
• Seismic Rating: Yes
• Dimensions
• Usable Depth: 25.75
• Usable Height: 64.75
• Capacity Weight U S: 10000
• Depth U S: 27.625
• Height U S: 70.875
• Width U S: 24.25
• Primary Package Weight U S: 197.6
• Rack Units: 37
• Technical Information
• Rackrail Type: 10-32
• Seismic Load Capacity: 900
• U L Load Capacity: 2500
• Material: Steel
• Mounting: Horizontal
