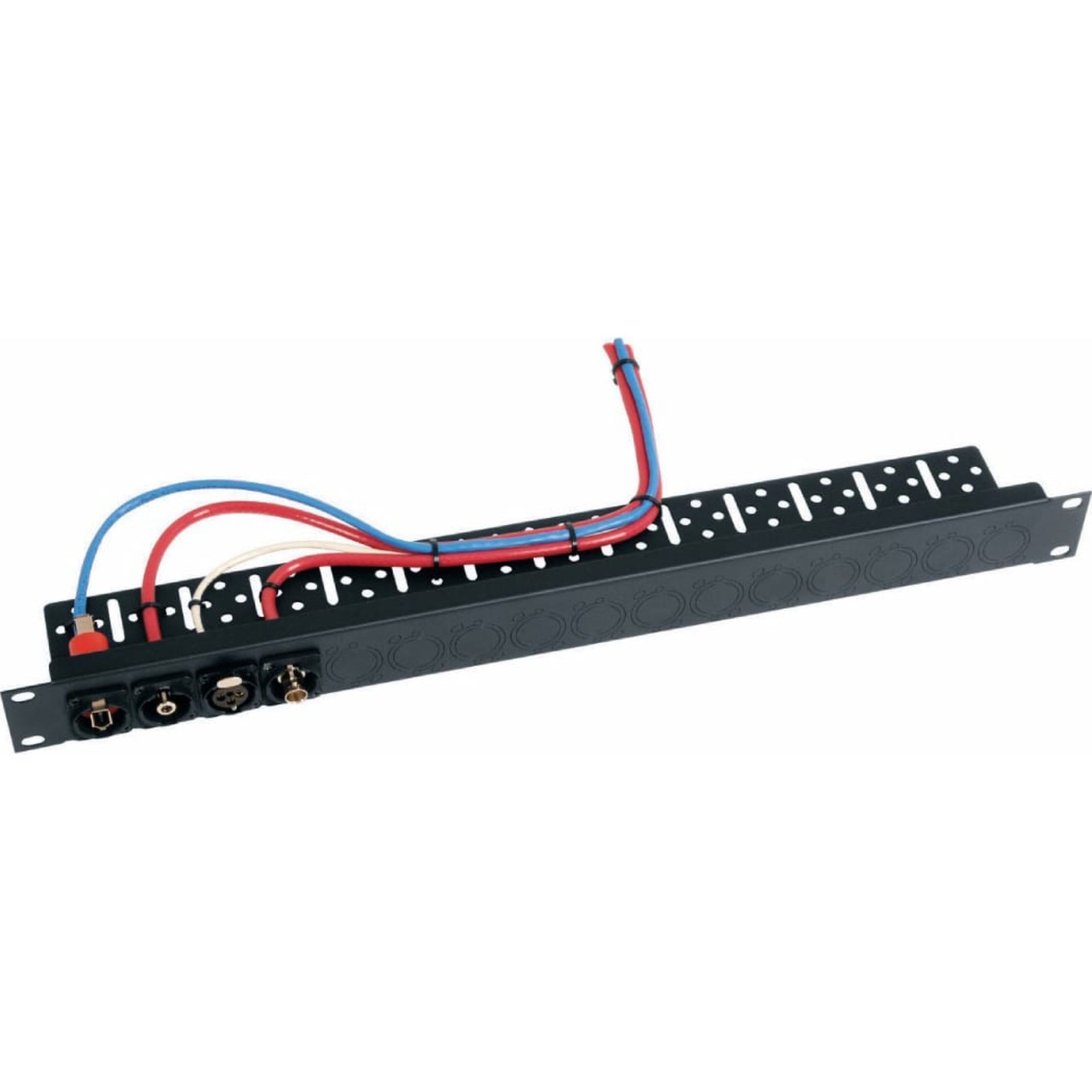

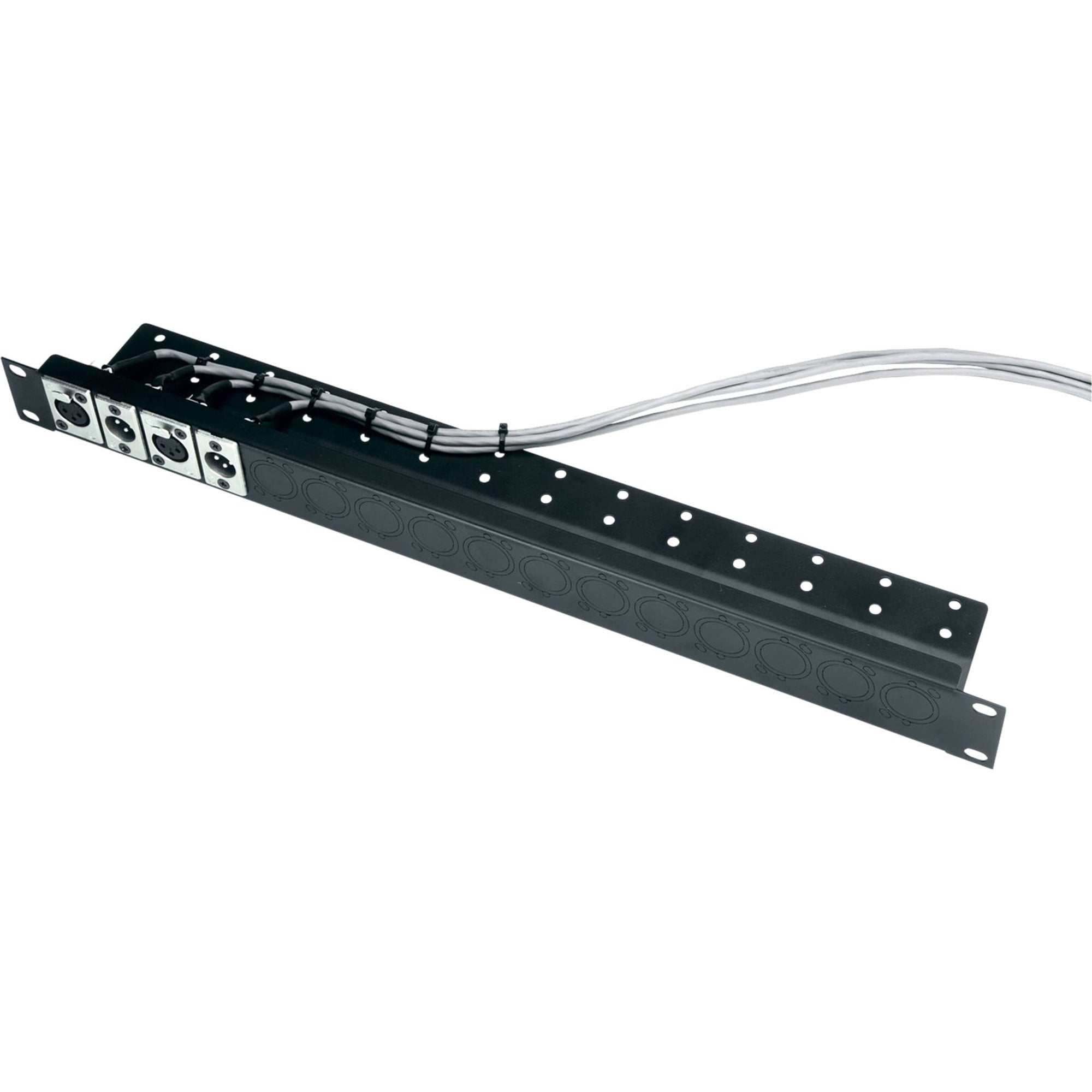

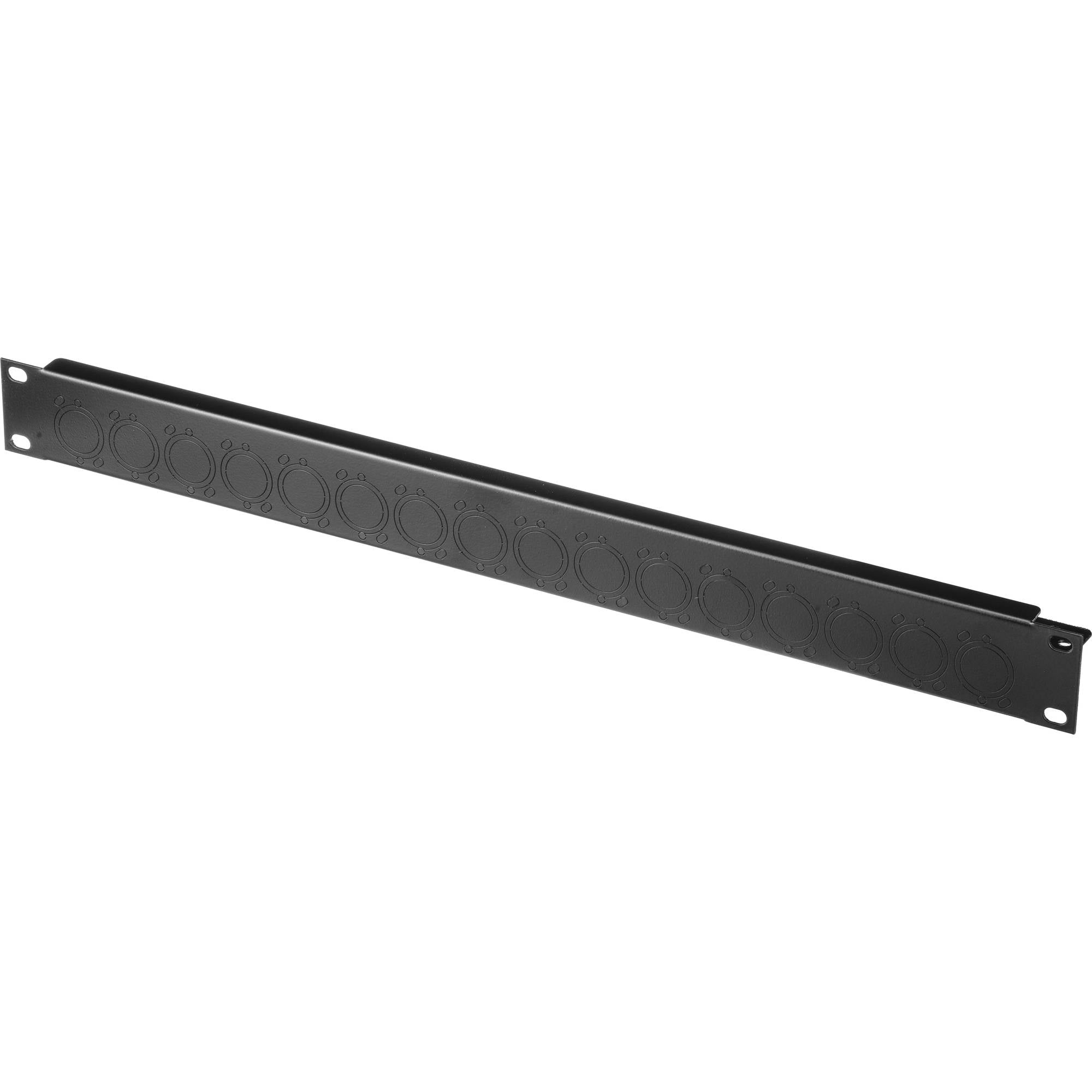

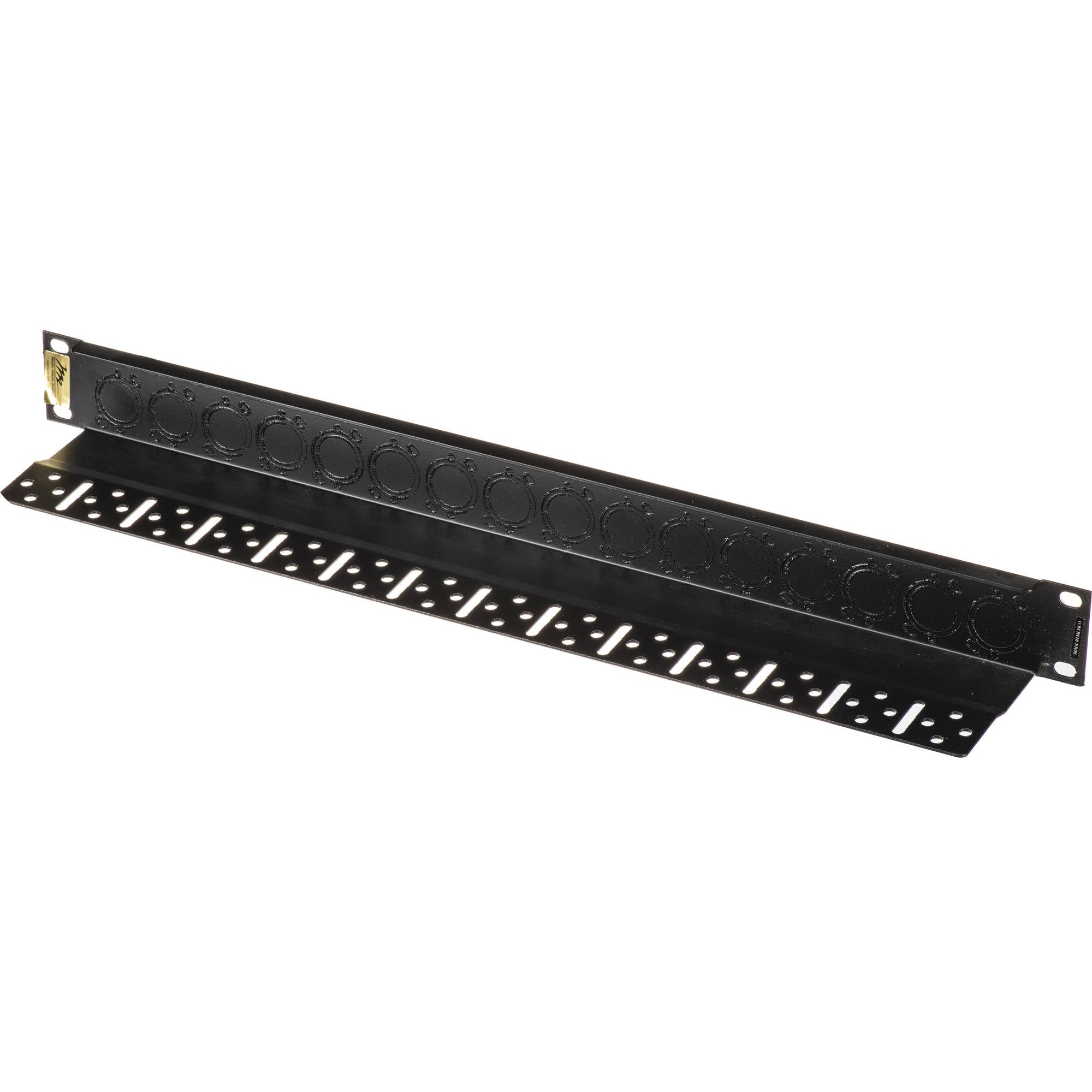

Middle Atlantic UNI-1-C Universal Connector Rack Panel with Strain Relief 1U

1 Space (1-3/4") Laser Cut Universal Connector Rack Panel with Strain Relief, 16 Knockouts

The UNI Series laser-cut connector panels feature knockouts designed to accept a number of connectors, including XLR and Neutrik. The innovative design allows mounting of both male and female connectors to the same holes simply by knocking out the correct pattern. The UNI-1-C incorporates a 2-5/8" strain relief shelf with tie-points for cable management. Made from one-piece flanged steel, black powder coat finish.

Features:

• Laser-cut knockouts accept a range of connectors, including XLR and Neutrik
• Accepts male or female connector versions by knocking out correct pattern
• Flanged steel with black powder coat finish
• Includes a strain-relief shelf for improved cable management

Specifications:

• General Info
• finish: Black Powder Coat
• Connection Type: Allows both male and female connectors; accepts connectors like XLR and Neutrik
• Assembly/Installation Information
• Mounting Points: 2
• Listing Agencies/Third Party Information
• RoHS: Yes
• Greenguard: Yes
• Dimensions
• Depth U S: 2.92
• Height U S: 1.75
• Width U S: 19
• Primary Package Weight U S: 2
• Rack Units: 1
• Technical Information
• Material: Steel
