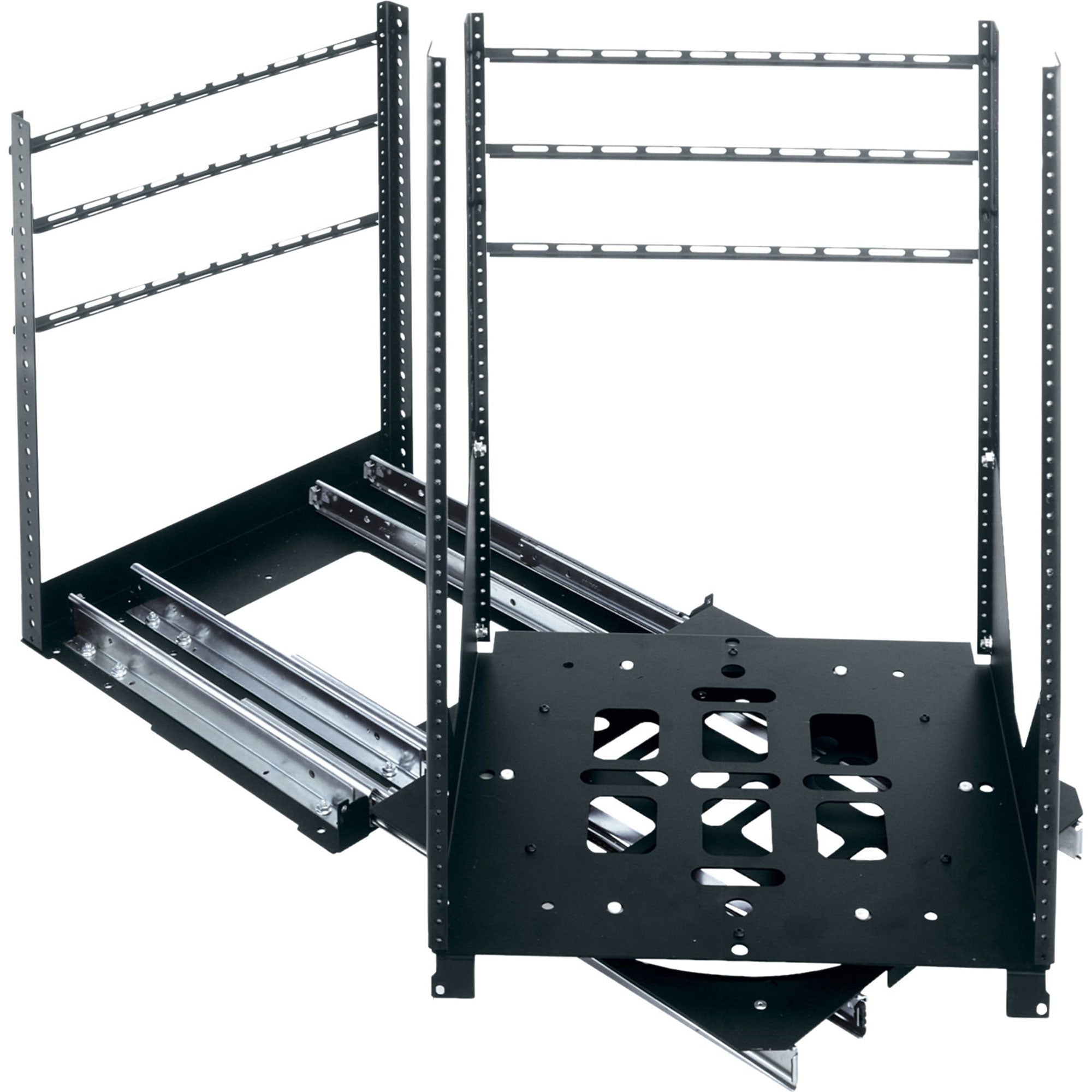

Middle Atlantic SRSR-X-22 Rotating Pull-Out Rack System 22U

22 Space (38-1/2") Rotating Sliding Rail System with 23" Useable Depth, 200 Lb. Capacity

Specify an SRSR for easy rear access to equipment connections in millwork, cabinets and flush in-wall installations. Available with a 19" or 23" useable depth, the SRSR system extends and rotates 90º in either direction, making it ideal for smaller systems.

Middle Atlantic's SRSR-X 23"D 4-Rail/22U Sliding Rotating Rack System is designed to give you convenient pull-out access to your key equipment. It has 22U (38.5 inches high) of rack space and extends 23 inches. Made with 14 and 11-AWG gauge steel, this unit's 200 lbs capacity and its 4 railing supports make it an ideal rack with undoubted strength.

The outstanding 180-Degree Rotating feature; the 23" slide-out depth; and the rack lock-in-place capacity at 0-, 60-, or 90-Degree rotations are exclusive measures that deliver unparalleled convenience for installation and instant gratification. For all-tech perfection, install this rack system into any entertainment center. It features a front-trim locking panel that secures devices on the front with an 11-AWG aluminum, black anodized strip, and is equipped for optional matching space fillers to cover rack gaps.

Add your digital entertainment devices (DVD players and stereo systems) to this easy shelving unit to give them the pivotal treatment for which they were designed. Middle-Atlantic holds nothing back in convenience, utility, and ingenuity of design. The best device protection and display is right here.

Features:

• Removable rack frame allows in-shop integration and on-site installation of equipment
• Locks in the extended position for simplified equipment integration
• Rotating equipment bay locks in place at 0º, 60º and 90º for easy installation and servicing
• Self-centering mounting base makes it simple to align system within cabinet opening
• Rear cable support works in conjunction with rear rackrail for effective cable management
• Standard front and rear 10-32 threaded rackrail with marked spaces
• Rotating and Locking Freedom
  The left or right 90-degree rotation of this model gives full turning versatility, and this feature also locks into place at any position for complete control when using digital media devices.
• 4 Rails Mean True Support
  This Middle-Atlantic model has four railings that hold the rack as it slides back and forth and rotates. This extra dual support delivers top-notch strength that gives it a higher weight capacity of 200 lbs.
• Deeper Rack Support
  This series is uniquely design to have a 23" usable depth for larger devices and for even easier installtion.
• Easily Customizable
  This model allows you free interpretation of your rack. Adjust rack shelves (not included) to fit any devices you need to place on this rack. With clearly marked mounting holes and plenty or arrangement varieties, this rack system is an easy-going design that fits your lifestyle.
• True Entertainment Convenience
  Want a better way to manage your digital entertainment devices? Middle-Atlantic has just that in mind with its 36.75"H rack space. This Sliding Rotating Unit adds accessibility to key media devices. No more stacking of devices, get a Middle-Atlantic.
• Heat Management
  When devices are stacked on top of one another, device heat management suffers. This shelving unit features vents on the sides of the rack system for thermal management. It also separates your electronics in a way that give each the space and aeration it needs for long lasting performance.
• Durable Steel Structure
  Middle-Atlantic uses 14-AWG gauge steel on this rack. Feel comfortable that your shelving unit can easily support your devices up to 200 lbs.

Specifications:

• General Info
• finish: Flat Black Powder Coat
• Listing Agencies/Third Party Information
• RoHS: Yes
• Greenguard: Yes
• Dimensions
• Usable Depth: 16.75
• Usable Height: 38.5
• Capacity Weight U S: 200
• Depth U S: 23.14
• Height U S: 41.5
• Width U S: 19.125
• Primary Package Weight U S: 43
• Rack Units: 22
• Technical Information
• Rackrail Type: 10-32
• Material: Steel
• Mounting: Horizontal
