Key Features
- Fits in MPR Raceways
- 30 Amp, 1 Twist Lock Outlet
- Isolated Ground
- Hardwired Only
- Local & Remote Control
- LED & Contact Closure
- Black Powder Coat Finish
Description

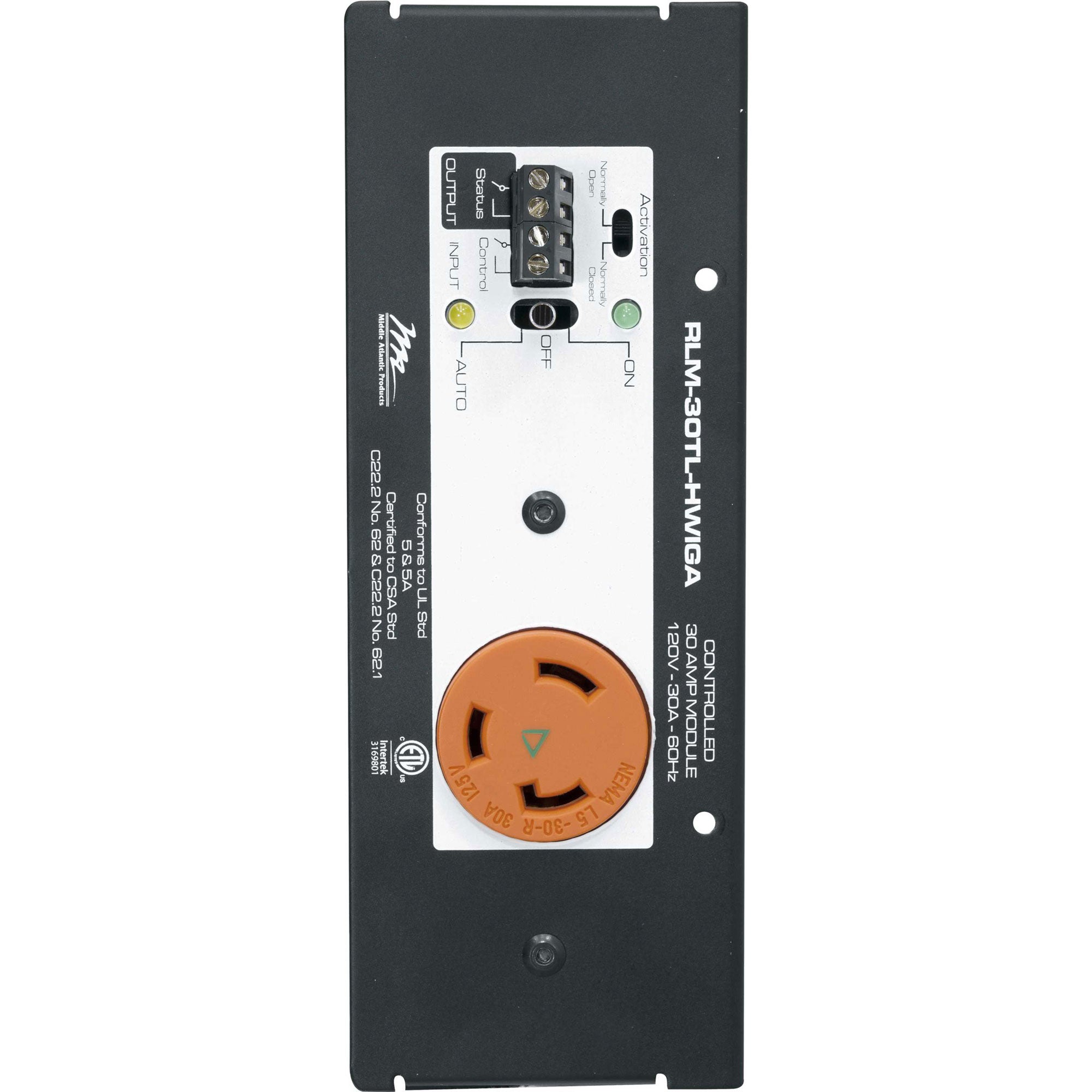

30 Amp Controlled MPR Power Module with Isolated Ground
30A RLM is an extension of our existing RLM and control units already available for the MPR line. It is essentially a "module" version of the existing RLM30-L530-1 (stand-alone unit) with many of the same features and benefits. Single 30 Amp, Isolated Ground, Twist lock Receptacle, 8" module size. Status switch to turn on, off and "auto" (to enable dry contact control). LEDs to notify user of module status. Dry contacts for status and control. Hardwired only.
Features:
- Single 30 AMP, Isolated Ground, Twist Lock Receptacle, 8" module size
- Status switch to turn on, off and "auto" (to enable dry contact control)
- LEDs to notify user of module status
- Dry contacts for status and control
- Hardwired only
Specifications:
- General Info
- finish: Black Powder Coat
- Listing Agencies/Third Party Information
- Greenguard: Yes
- Dimensions
- Depth U S: 8
- Primary Package Weight U S: 1.05
- Technical Information
- Amps: 30
- Material: Steel
- Number Of Circuits: 1
