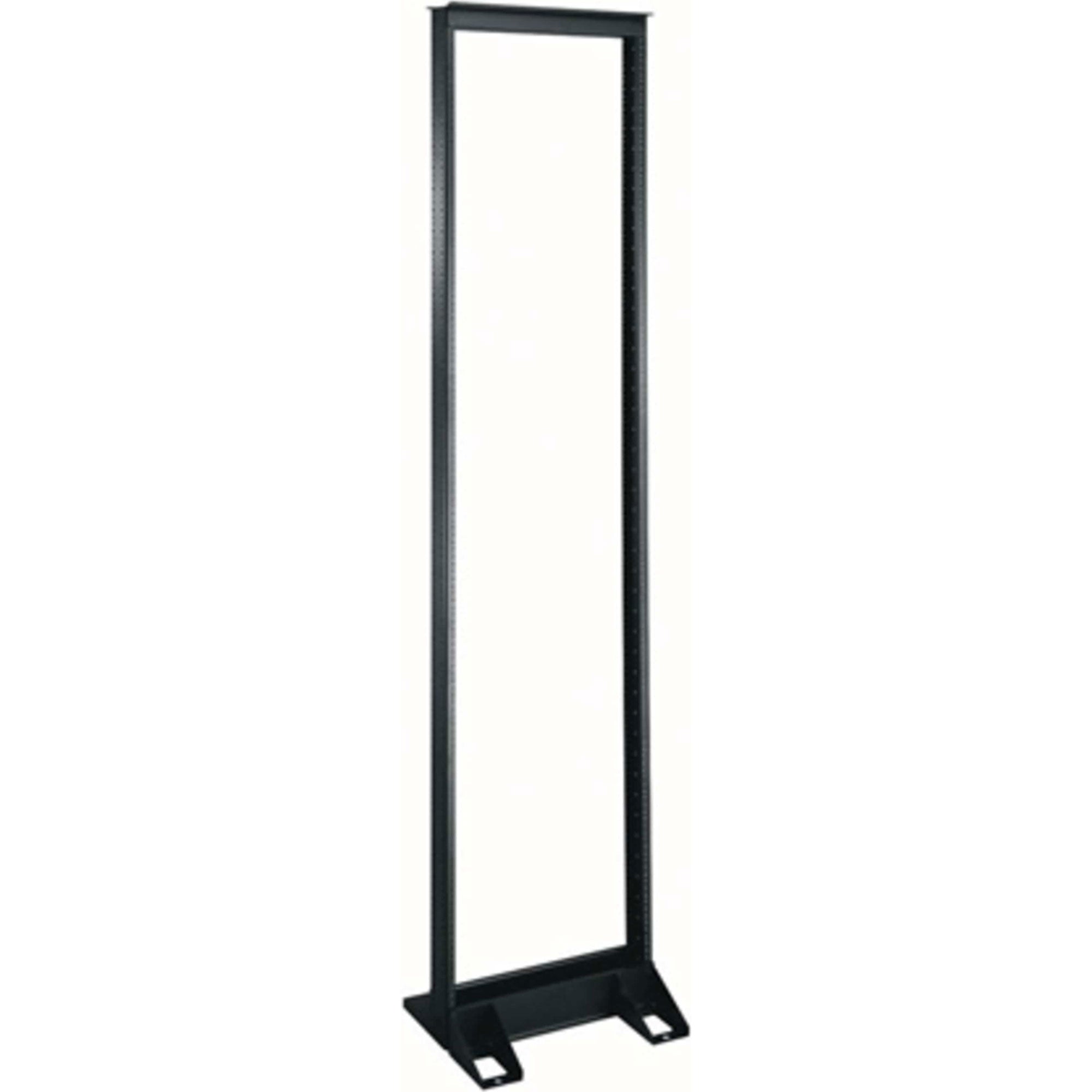

Middle Atlantic RL10-38 Open Frame Rack 38U

38 Space (72" OD Height) Relay Rack, Black Finish, 10-32 Thread

This Middle Atlantic 19" Open Frame Rack RL10-38 is a robust relay rack that offers an open, self-aligning design that dramatically speeds assembly time. Its 1/8", 11-gauge steel channels will hold up to 200 lb. of equipment evenly distributed with the base fastened, or up to 400 lb. if the top of the rack is braced to a structural building component.

The top of the rack features 1/8" aluminum top angles, which can be easily field-drilled for cable ladder installation. And space between the rack's feet allows for close placement of devices next to the rack, such as UPSs. Moreover, a gusseted foot base with tapered feet allows the rack to self-stabilize on uneven floors. An optional cantilever support base is also available for this model. This rack features 10-32 threaded rackrails.

RL Series 19" 2-post open frame racks incorporate a self-squaring, self-leveling design for easy assembly. Top rails accommodate standard cable ladders. Strong steel construction. Choose from 10-32 and 12-24 threaded models.

Features:

• Solid Construction
  All-steel construction guarantees exceptional strength and years of use.
• No-Clog, Rack-Rail Threads
  All rack rails finished in durable "e-coat" to prevent clogged threads.
• Industry-Standard Design
  Rackrail is labeled in EIA standard rackspace increments allowing for easy equipment alignment.
• Customization
  Pick and choose from Middle Atlantic's wide range of accessories to customize and expand your rack system.
• Pre-Installed Washers
  Pre-installed washers on all 10-32 threaded rackscrews save installation time.
• Quality Guaranteed
  Limited Lifetime Warranty to Original Purchaser
• Threaded 10-32, with numbered spaces
• Channels constructed from 11-gauge steel to provide extra strength
• Ships flat to save space
• Self-aligning design for fast assembly
• Includes 50 rack screws

Specifications:

• General Info
• finish: Black
• UL Standards Tested: UL1678
• Listing Agencies/Third Party Information
• RoHS: Yes
• Greenguard: Yes
• UL Listing No: E173107
• Dimensions
• Usable Depth: 3
• Usable Height: 66.5
• Capacity Weight U S: 1600
• Depth U S: 15.25
• Height U S: 72.37
• Width U S: 19.62
• Primary Package Weight U S: 36.3
• Rack Units: 38
• Technical Information
• Rackrail Type: 10-32
• U L Load Capacity: 400
• Material: Steel
• Mounting: Horizontal
