Middle Atlantic PDS-620R Rackmount Power Sequencer (6-Outlet, 20 Amp)

6 Outlet, Sequenced 20 Amp Circuit, Rackmount Power Distribution

This PDS-620R 20-Amp Power Sequencing & Distribution Unit from Middle Atlantic is a power unit that provides 6-step sequencing to (6) rear outlets. An adjustable start-time delay allows this unit to be daisy chained with up to (3) sequencers acting as a single unit. This configuration is facilitated by a connection block located on the unit's rear panel.

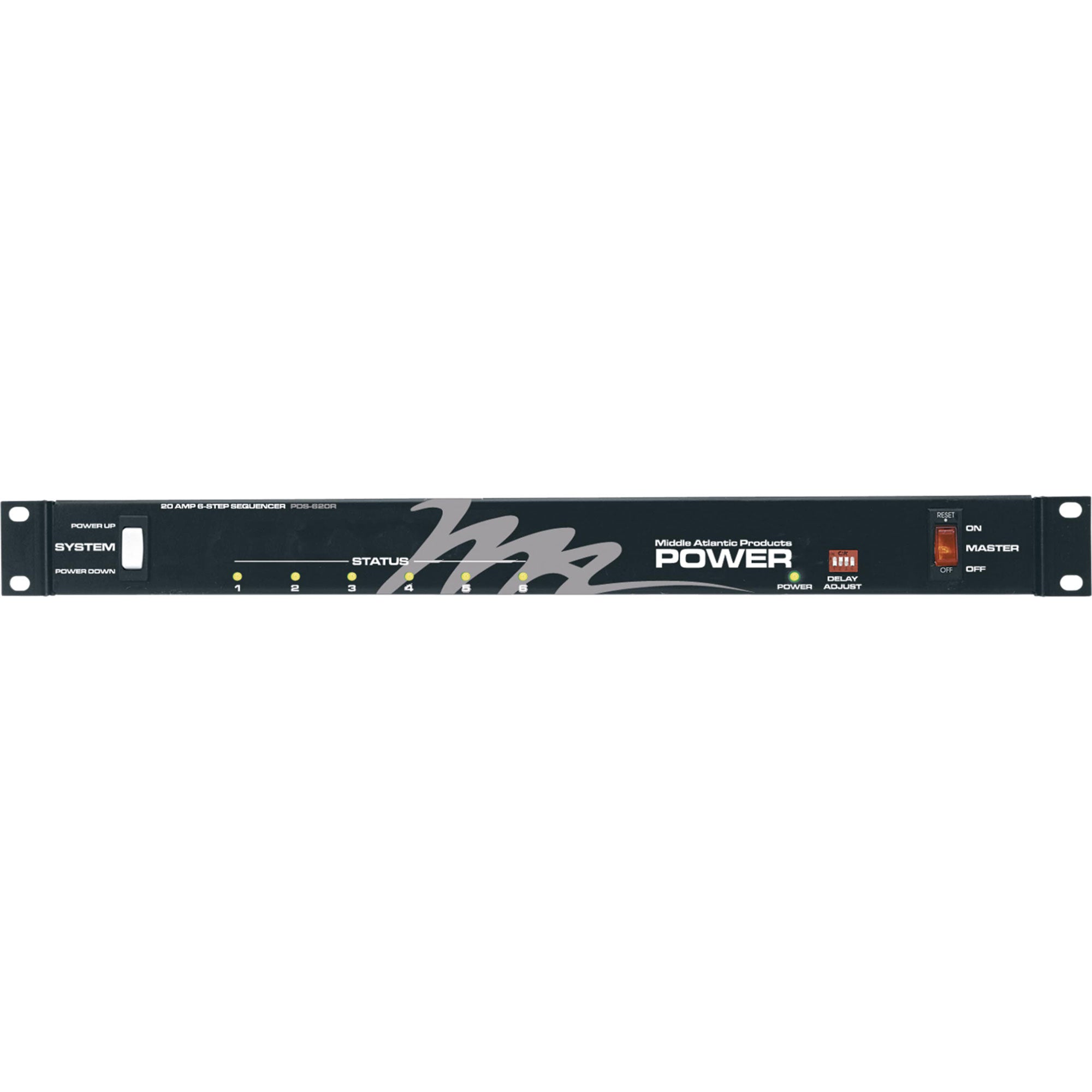

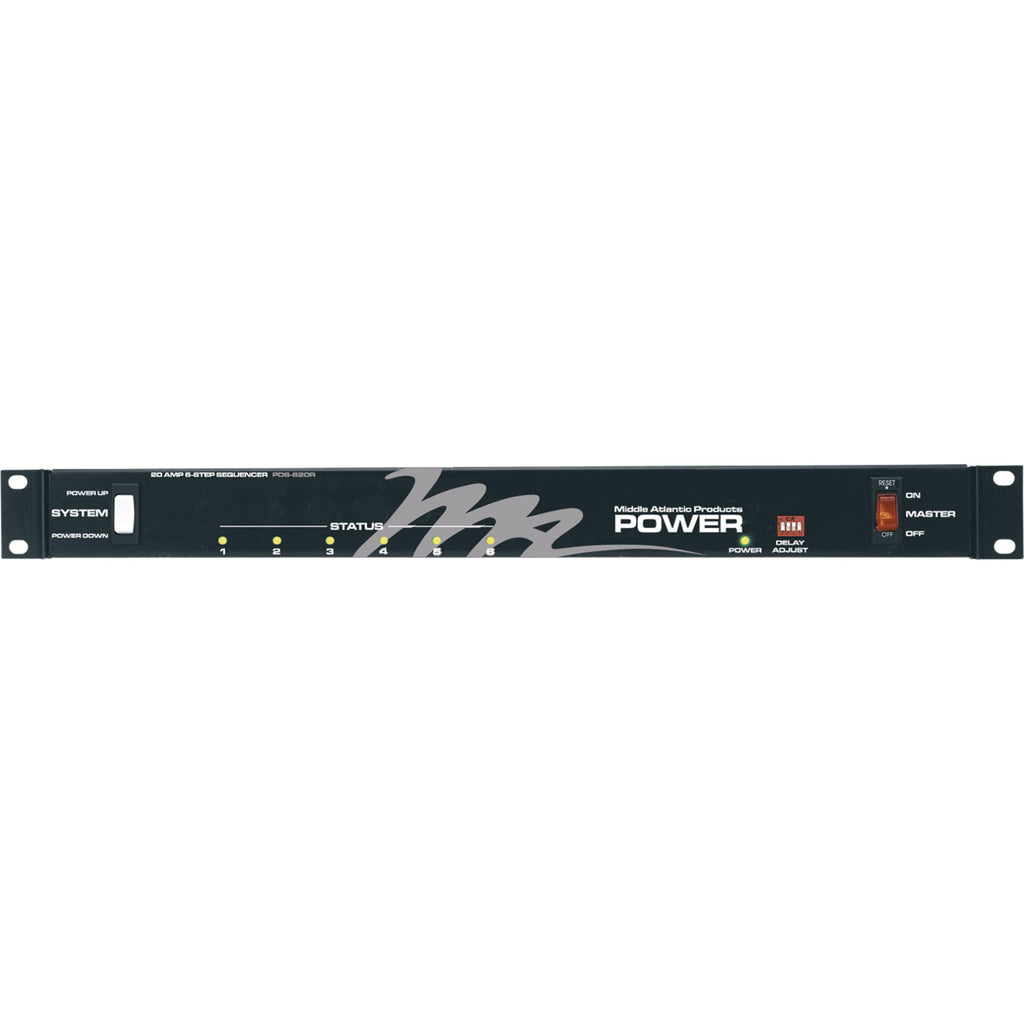

Front-panel controls and LED indicators can be used to set and monitor sequencing intervals. The front panel also features a combination power switch/circuit breaker. The rear terminal block connection will also permit remote control functionality.

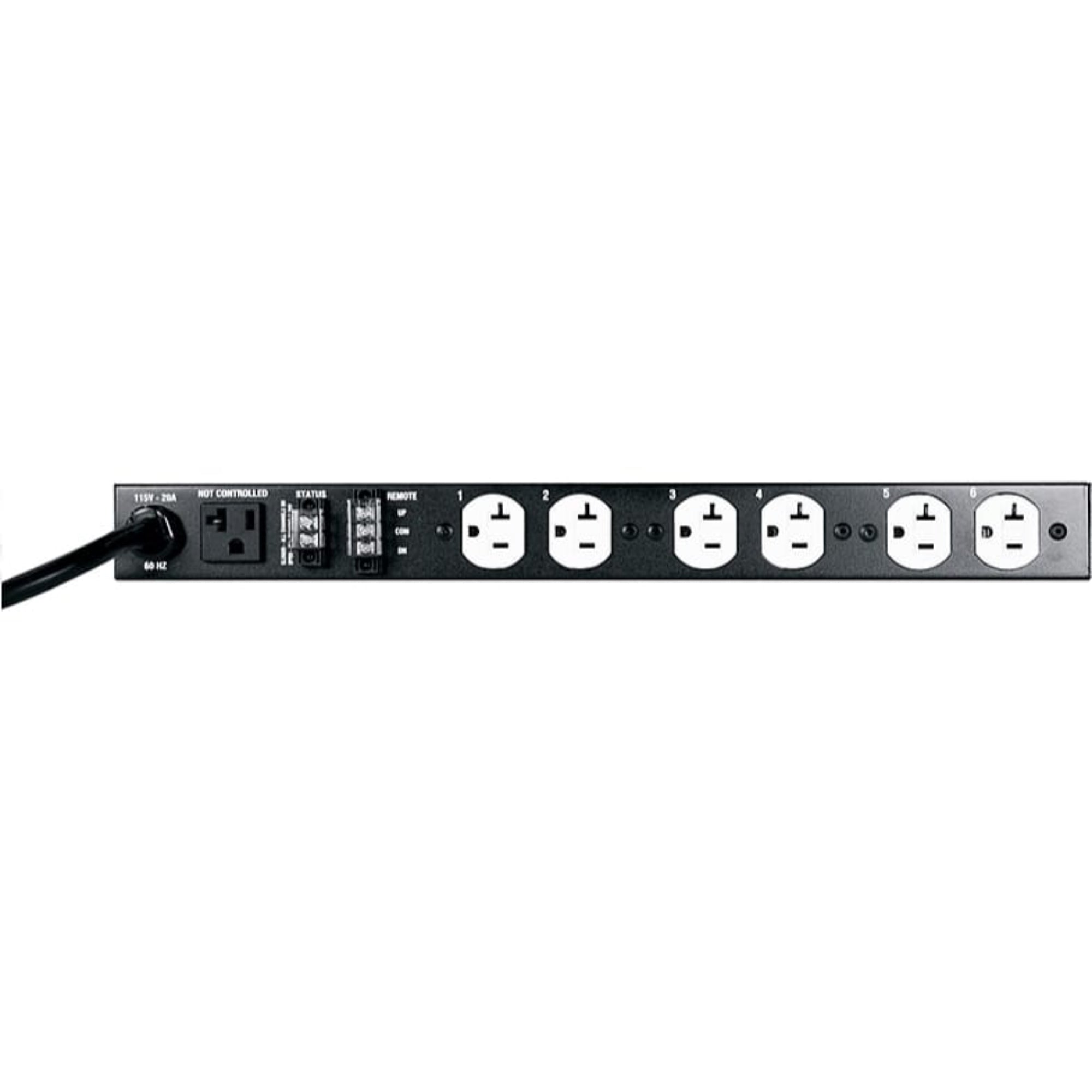

This model features (1) 20A circuit and (6) NEMA 5-20R outlets. It also includes (1) NEMA 5-20P cord termination.

Features:

• Power Sequencing & Distribution
  This unit provides 6-step sequencing to (6) rear outlets.
• Daisy-Chain Configuration
  Up to (3) of these units can be daisy chained together to function as a single unit.
• Control & Monitoring
  This unit can be controlled and monitored via the interface and LEDs located on the front panel.
• Remote Control
  A block terminal on the rear panel permits remote control of the unit.
• Provides 6-step sequencing to 6 rear outlets
• Allows daisy-chaining up to 3 sequencers to act together
• Adjustable intervals
• Remote triggering and notifications
• Features 9' SignalSAFE power cord

Specifications:

• General Info
• Cable Type: Corded
• finish: Black Powder Coat
• UL Standards Tested: 1419, 60950-1 & 60065
• Termination: 5-20P
• Assembly/Installation Information
• Mounting Points: 2
• Listing Agencies/Third Party Information
• RoHS: Yes
• Greenguard: Yes
• Dimensions
• Depth U S: 9.84
• Height U S: 1.75
• Width U S: 19
• Primary Package Weight U S: 11
• Rack Units: 1
• Cord Information
• Cord Length U S: 9
• Technical Information
• Amps: 20
• Material: Steel
• Mounting: Horizontal
• Volts: 115
• Number Of Circuits: 1
• Number Of Outlets: 7
