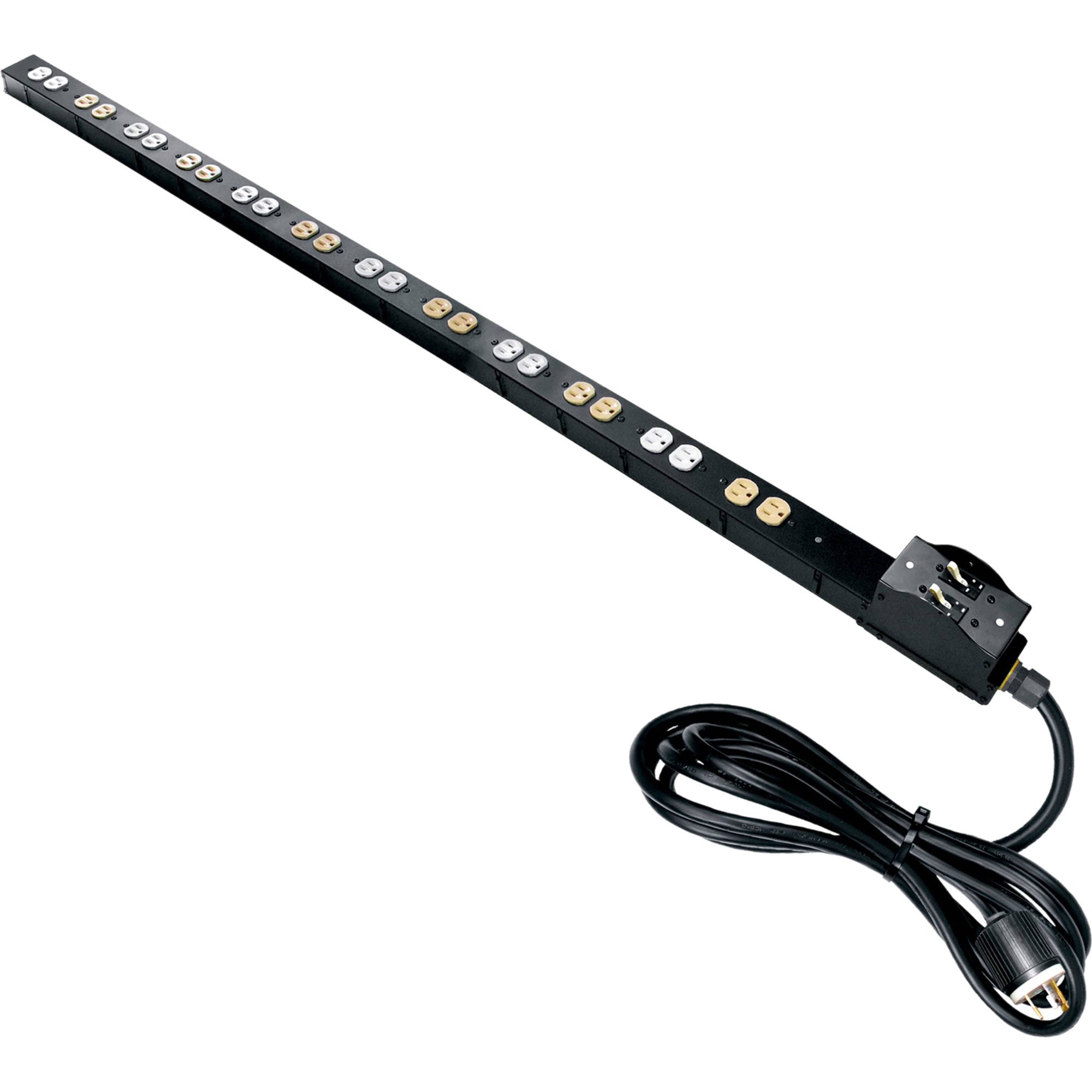

Middle Atlantic PD-2X1215TL-30CB High-Amp Power Strip (24-Outlet, Dual 15 Amp)

High Amp Power Strip, Provides Two 15 Amp Circuits, 12 Outlets Per Circuit

This PD-2X1215TL-30CB High-Amp Power Strip from Middle Atlantic is a specially designed high-amp power strip designed to supply power on (2) circuits at 15A to equipment for broadcasting, data centers, and audio-video installations. It can be connected to an uninterruptible power supply per NEC regulations via a 30A NEMA L5-30R 9-1/2' output plug.

The unit features (12) duplex outlets (24 total outlets) that alternate in ivory and white to visually indicate circuits. It also has dual circuit breakers with a lock-out pin to prevent tampering. The unit can be mounted with included quick clips.

Features:

• High-Amp Power Strip
  This high-amp power strip is ideally suited for providing power to equipment for broadcasting, data centers, and audio-video installations.
• Uninterruptible Power Supply
  This unit features a special plug and cord that allow it to be connected to an uninterruptible power supply per NEC regulations.
• Customization
  This raceway can be customized for use with multiple circuits by using additional tails and jumpers.
• Tamper-Proof Circuits
  This unit features dual circuit breakers with a lock-out pin to prevent tampering.
• UL Listed
  This item is UL Listed in the United States and Canada.
• Two independent 15A circuits fed by one 30A branch circuit
• 6 duplexes per circuit, for a total of 24 outlets
• Dual circuit breakers with lock-out pin to prevent tampering
• Outlets are color coded to indicate circuits

Specifications:

• General Info
• Cable Type: Corded
• finish: Black Powder Coat
• UL Standards Tested: 1640
• Termination: L5-30P
• Listing Agencies/Third Party Information
• RoHS: Yes
• Greenguard: Yes
• UL Listing No: E305595
• Dimensions
• Depth U S: 1.52
• Height U S: 56.5
• Width U S: 2.82
• Primary Package Weight U S: 16.2
• Cord Information
• Cord Length U S: 9
• Technical Information
• Amps: 30
• Material: Steel
• Mounting: Vertical
• Number Of Circuits: 2
• Number Of Outlets: 24
