Key Features
- Overhead Truss Mount Rack
- Mounts to Building Truss or Unistrut Beam
- Includes a Safety Lanyard
- Dual Exhaust Fans
- Aluminum Bottom Plate
- Multiple Antenna Knockouts
- Includes 4 Gland Grommets
- Solid Front & Rear Doors
- Front & Rear Adjustable Rackrail
Description
16 Space (28") Truss Mount Intermediate Distribution Rack, Fits 21" Deep Equipment, Black Finish

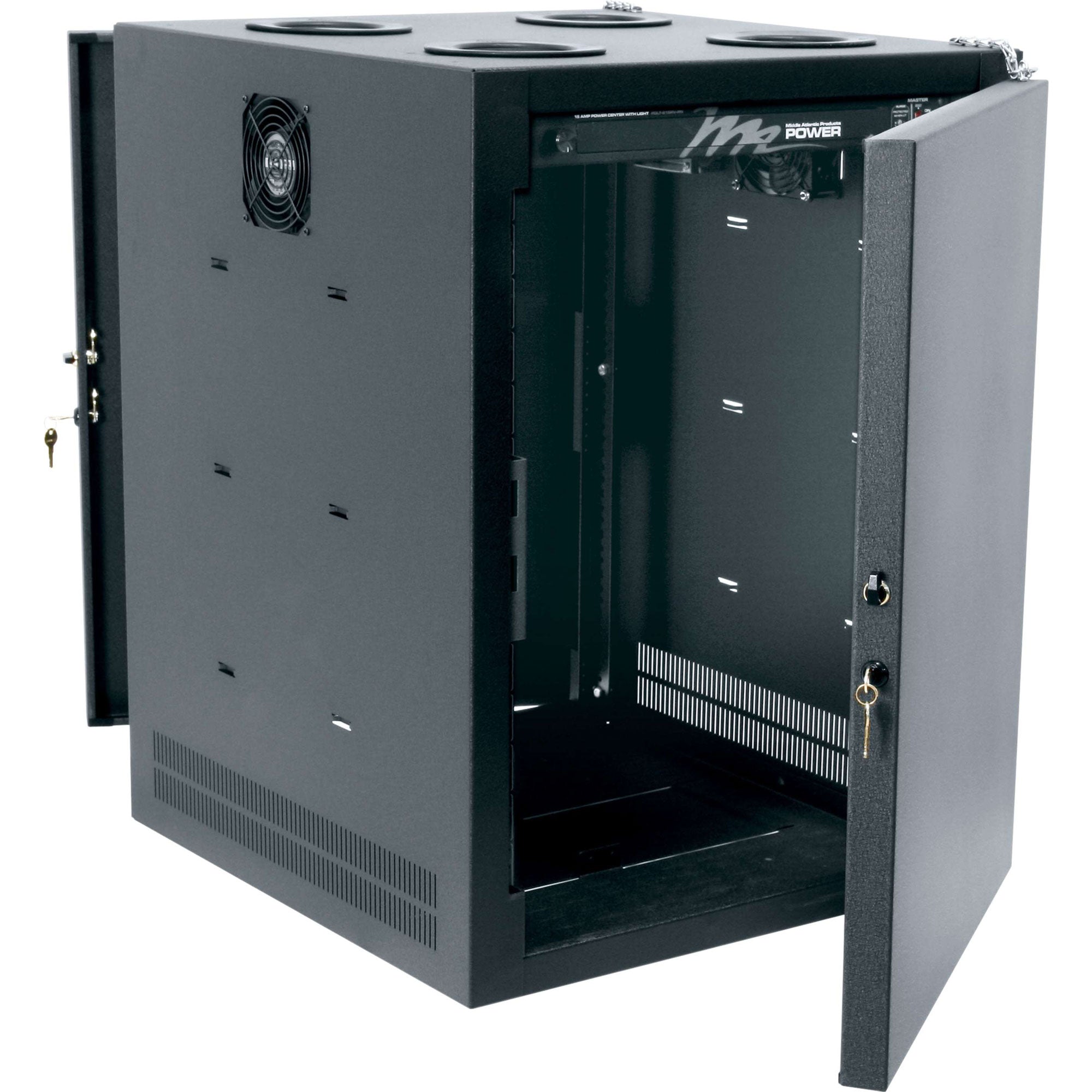

This IDF-TM-1624BK 16U Intermediate Distribution Rack from Middle Atlantic is a specially designed rack meant for housing equipment in overhead spaces in warehouses, retail outlets, and other similar open-area installations. The unit can be mounted overhead to a uni-strut beam or from trusses using threaded rods (not included).
The unit features a number of options that allow for custom configuration to meet your exact needs. Multiple UHF/VHF knockouts are included on the bottom of the enclosure and the bottom plate can also be machined in the field to accommodate wireless antennae, dome cameras, and other similar devices. Side knockouts also facilitate conduit pass-through to an included standard electrical box. Dual exhaust fans in the unit help to cool your equipment and extend its useful life.
The rack includes (2) pairs of 11-gauge steel rack rails with tapped 10-32 mounting holes in universal EIA/TIA spacing. The top panel includes (4) integral gland grommets to protect cables and prevent dust and other debris from entering the cabinet. A power distribution unit is also included with the rack.
Features:
- Mounts to building truss or Unistrut beam using threaded rods (not included)
- Can also mount directly to Unistrut beam
- Includes a safety lanyard to ensure a secure installation
- Dual exhaust fans extend equipment life
- Aluminum bottom plate for mounting wireless antennae, dome cameras, and more
- Multiple UHF/VHF antenna knockouts on the bottom of the enclosure
- Rack top includes four integral gland grommeted 4" cable pass-throughs
- Standard solid front and rear locking and latched doors with safety chains
- Standard front and rear adjustable 10-32 threaded rackrail with numbered spaces
Specifications:
- General Info
- finish: Textured Black Powder Coat
- UL Standards Tested: UL2416
- Component Type: active
- Listing Agencies/Third Party Information
- RoHS: Yes
- Greenguard: Yes
- UL Listing No: E313734
- Dimensions
- Usable Depth: 21
- Usable Height: 28
- CF M: 110
- Capacity Weight U S: 150
- Depth U S: 28.73
- Height U S: 31.125
- Width U S: 23.52
- Primary Package Weight U S: 120
- Rack Units: 16
- Technical Information
- Rackrail Type: 10-32
- Material: Steel
- Mounting: Horizontal
- Manufacturer: Middle Atlantic
- MPN: IDF-TM-1624BK
- Model Number: IDF-TM-1624BK
- UPC: 656747094415
