Middle Atlantic DWR-18-17PD Sectional Wall Rack 18U

18 Space (31-1/2") Sectional Wall Rack with Plexi Front Door, Fits 15" Deep Equipment, Black Finish

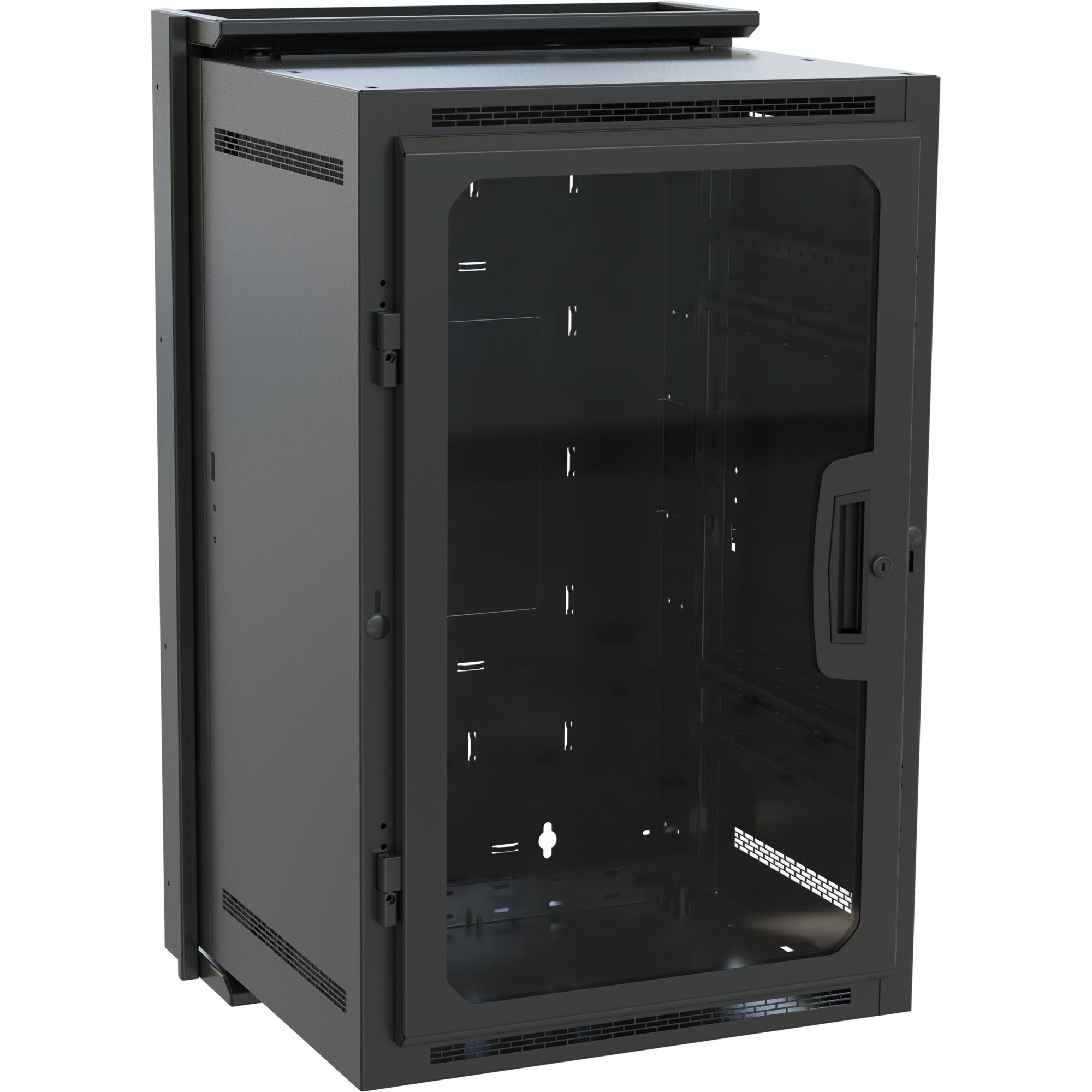

The Middle Atlantic DWR-18-17PD Sectional Wall Mount Rack with Plexi Front Door is a 17" (15" Useable) / 43.1cm (38.1cm) deep rack designed for mounting 19" wide equipment onto a wall, and can be used with loads up to 250 lb (113kg). Tool-less quick mount system allows a single person to mount the center section to the backpan. A plexiglass front door provides protection for the rack contents.

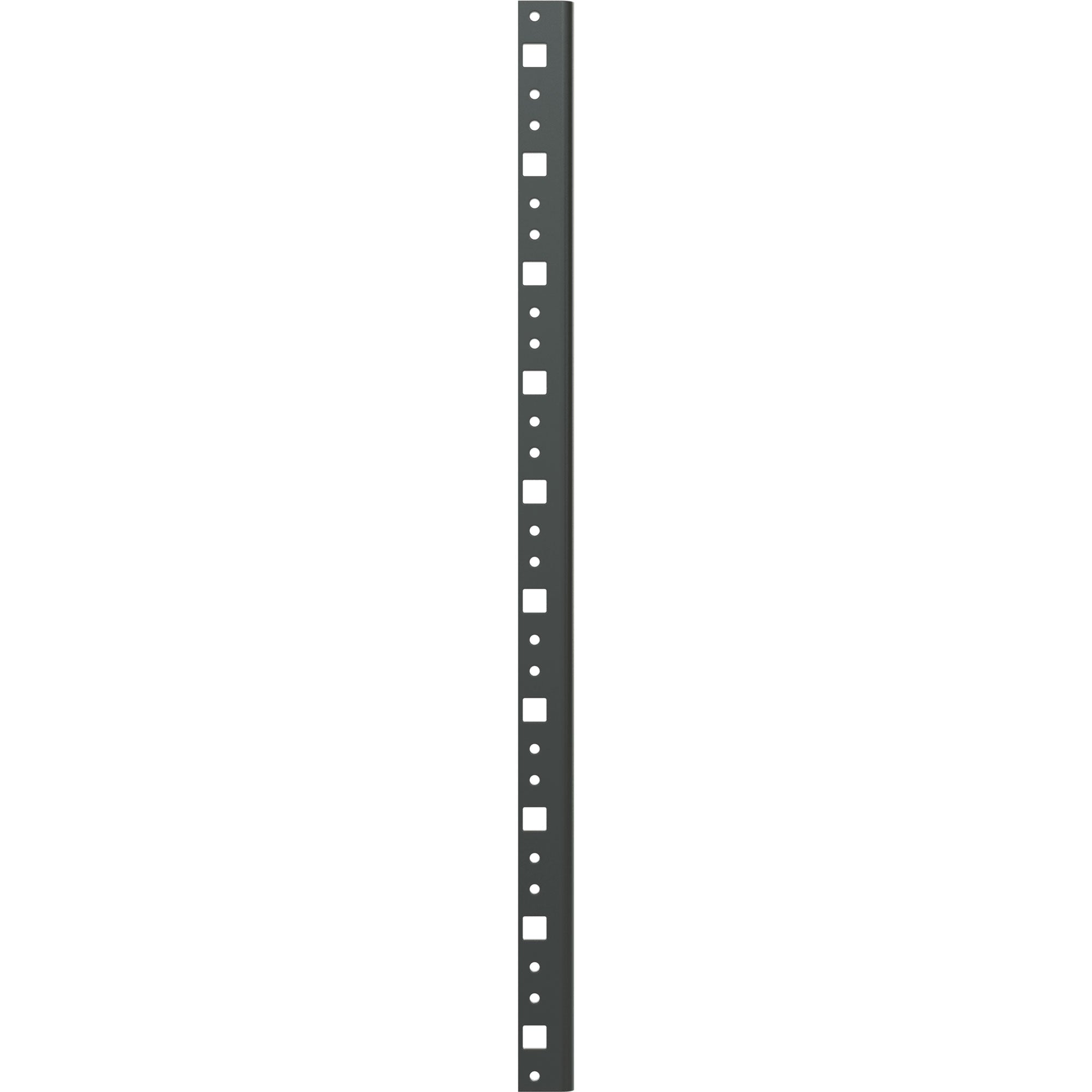

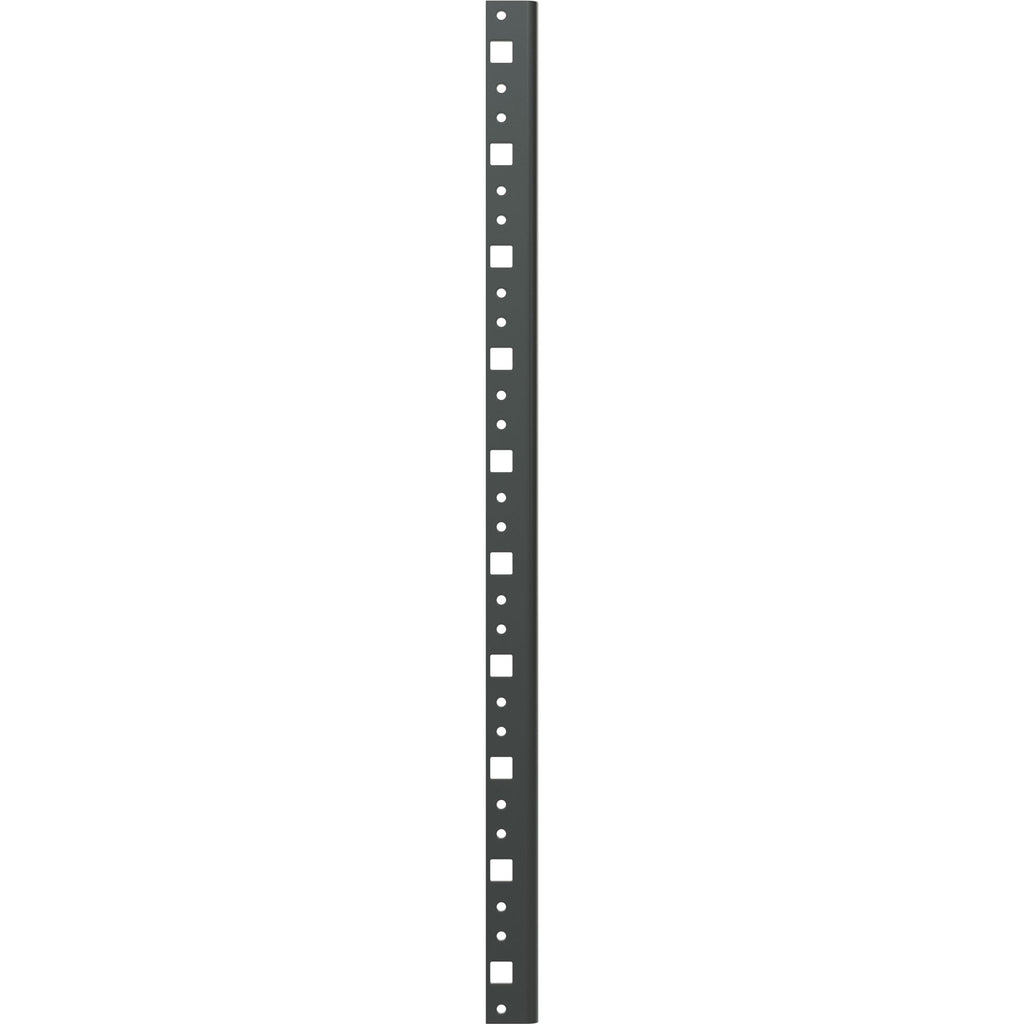

Adjustable front threaded rack rail (11-gauge 10-32) with marked rack space speeds up equipment mounting. Using center section hinges, you can accommodate left/right opening accessories. Proper grounding and bonding of electrical items in compliance with the NEBS/NEC standards is possible via top/bottom grounding/bonding studs integrated into the center section and backpan.

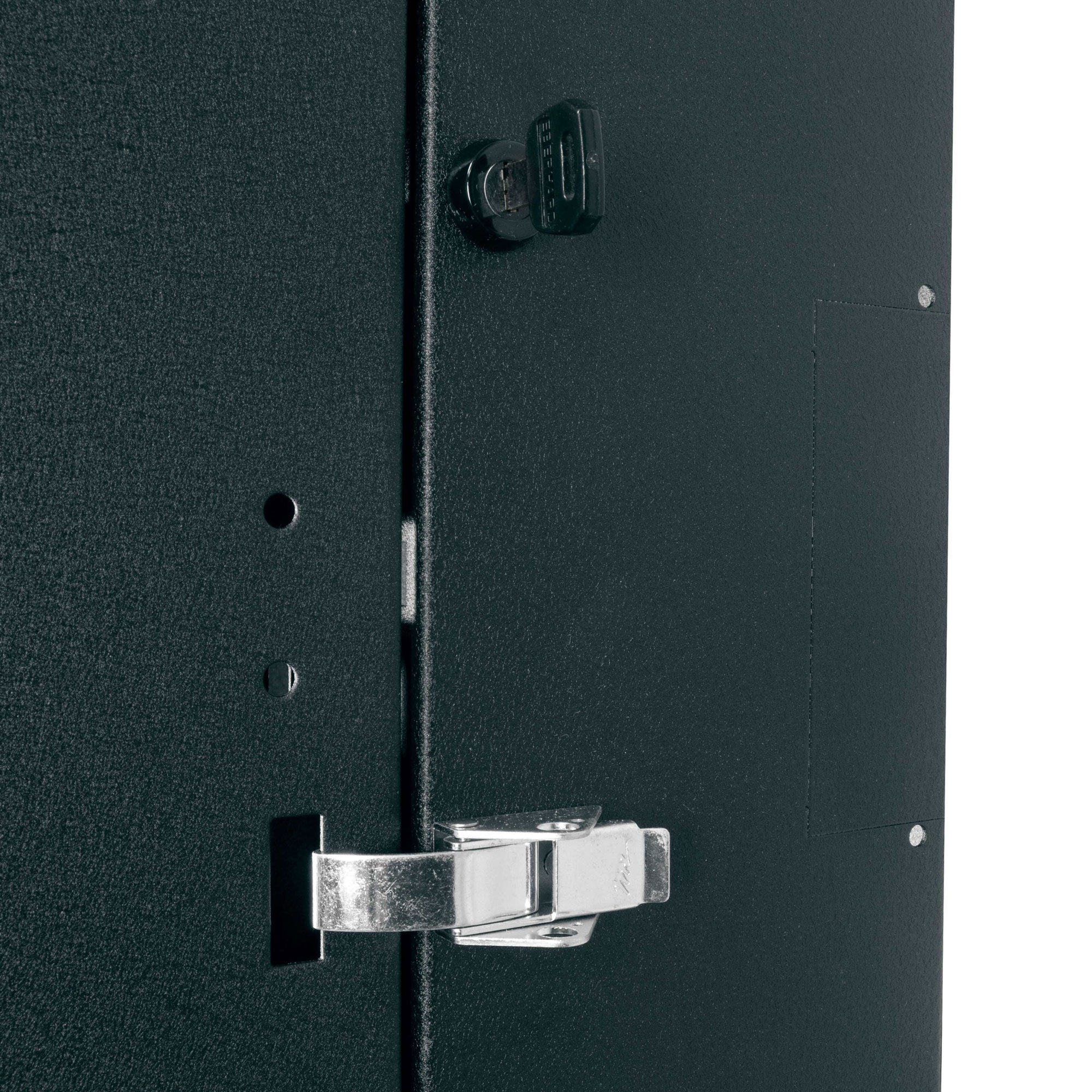

With welded construction, the rack features sufficient touchtab and cable tie points for stable and secure equipment housing. You can mount wall racks to the side or corner with the help of a front mounted minimum clearance latch, thereby saving considerable wall space.

Top and bottom of the wall rack feature 0.5", 0.75", 1", 1.5", 2", 3" electrical knockouts and 0.6" UHF/VHF antenna knockouts to facilitate easy cable attachment. In addition, wall mount features a 2"/4" knockout for Wiremold 4000 series raceways and knockouts for UCP series connector panels on the sides.

Features:

• Solid Construction
  Constructed from 16-gauge steel with 1/8" thick laser-cut corner braces
• Tool-Free Quick-Mount System
  Middle Atlantic's trademarked "Tool-Free Quick-Mount" system allows for easy, one-person mounting of this rack.
• Cable Management System

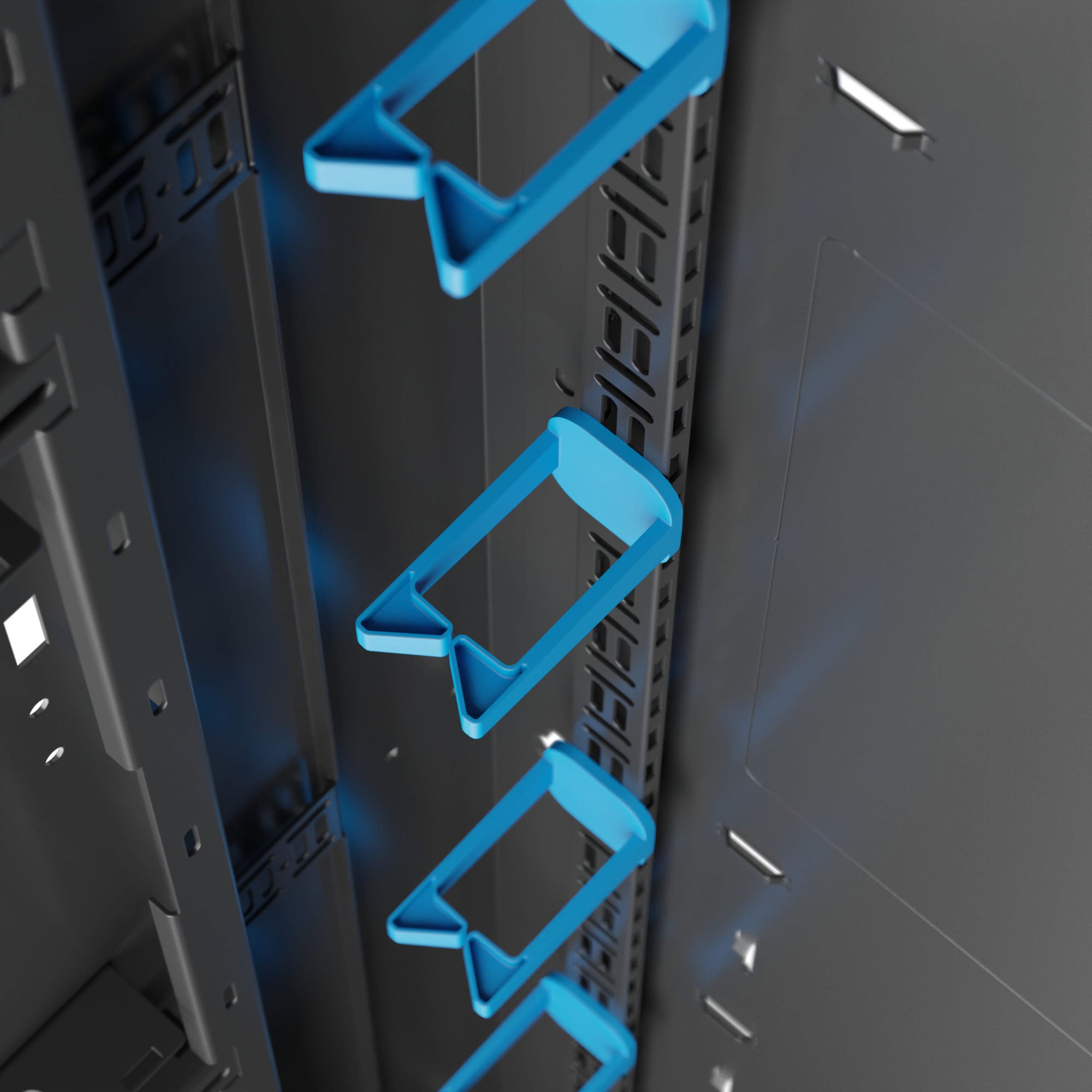

  Built-in cable lacing points, touch-fastener tie points, and numerous knockouts allow you to organize any quantity of cables.
• Customization
  A variety of accessories allow you to personalize your rack to meet your exact needs: doors, fans, latches, rear rack rails, and more.
• No-Clog, Rack-Rail Threads
  All rack rails finished in durable "e-coat" to prevent clogged threads.
• Industry-Standard Design
  Rack rail is labeled in EIA standard rack space increments allowing for easy equipment alignment.
• Pre-Installed Washers
  Pre-installed washers on all 10-32 threaded rack screws save installation time.
• Grounding/Bonding Studs
  Grounding/Bonding Studs have been provided to help you electrically ground and bond equipment, per NEBS and NEC standards.
• Free Layout & Specifications Software
  RackTools free layout and specification software included for effective system design help.
• UL Listed
  This product has been UL (Underwriters Laboratories) Listed in the United States and Canada.
• Quality Guaranteed
  Limited Lifetime Warranty to Original Purchaser.

Specifications:

• General Info
• finish: Textured Black Powder Coat
• UL Standards Tested: UL2416
• Listing Agencies/Third Party Information
• ASC E: 7-10
• RoHS: Yes
• Greenguard: Yes
• CSA Standard: Yes
• UL Listing No: E313734
• Seismic Rating: 156
• Dimensions
• Usable Depth: 15
• Usable Height: 31.5
• Capacity Weight U S: 250
• Depth U S: 17.3
• Height U S: 38.563
• Width U S: 23.4
• Primary Package Weight U S: 95
• Rack Units: 18
• Technical Information
• Rackrail Type: 10-32
• Seismic Load Capacity: 155
• U L Load Capacity: 250
• Material: Steel
• Mounting: Horizontal
