Key Features
- For News Vans, Equipment Rooms & More
- Multiple Inputs for Video & Audio
- HDMI In, and SDI with Looping Output
- XLR & RCA I/O / 3.5mm Headphone Output
- AES-EBU via XLR
- 2" Display for Monitoring Video & Text
- Audio Metering & Control Buttons
- Controllable over Ethernet or RS-232
- Power Supply Included
Description
16 Channel Audio Monitor with Built-in Preview Screen
The AR-DM-51-B is a compact, lightweight audio monitor that can preview up to 8 stereo channels of audio. It has two extra powerful speakers (up to 100dB in volume) for accurate monitoring even in noisy environments, and the small built-in video screen allows for precise confidence monitoring during live broadcasts. The AR-DM-51-B accepts SDI, HDMI, analog XLR, and analog RCA inputs, and outputs in AES and analog RCA.
The AR-DM-51-B features one-button mix down and control through Ethernet or RS-232, and is only 1 RU tall so it fits in any flypack or mobile broadcast set up.
Features:
- Inputs: SDI, HDMI, Analog XLR, Analog RCA
- Outputs: AES (from Analog Input), Analog RCA (from selected Input)
- Built-in live preview monitor (from HDMI or SDI source)
- One-button Mix Down for 5.1 and 7.1 to Stereo
- Signal to Noise Ratio (SNR): 85 dB
- Free app for Ethernet or RS-232 control
- Analog input converts to AES out
- Convenient stereo outputs for listening room speakers
- Two powerful built-in speakers go up to 100dB in volume (great for noisy server rooms)
- Straight forward intuitive design
Includes:

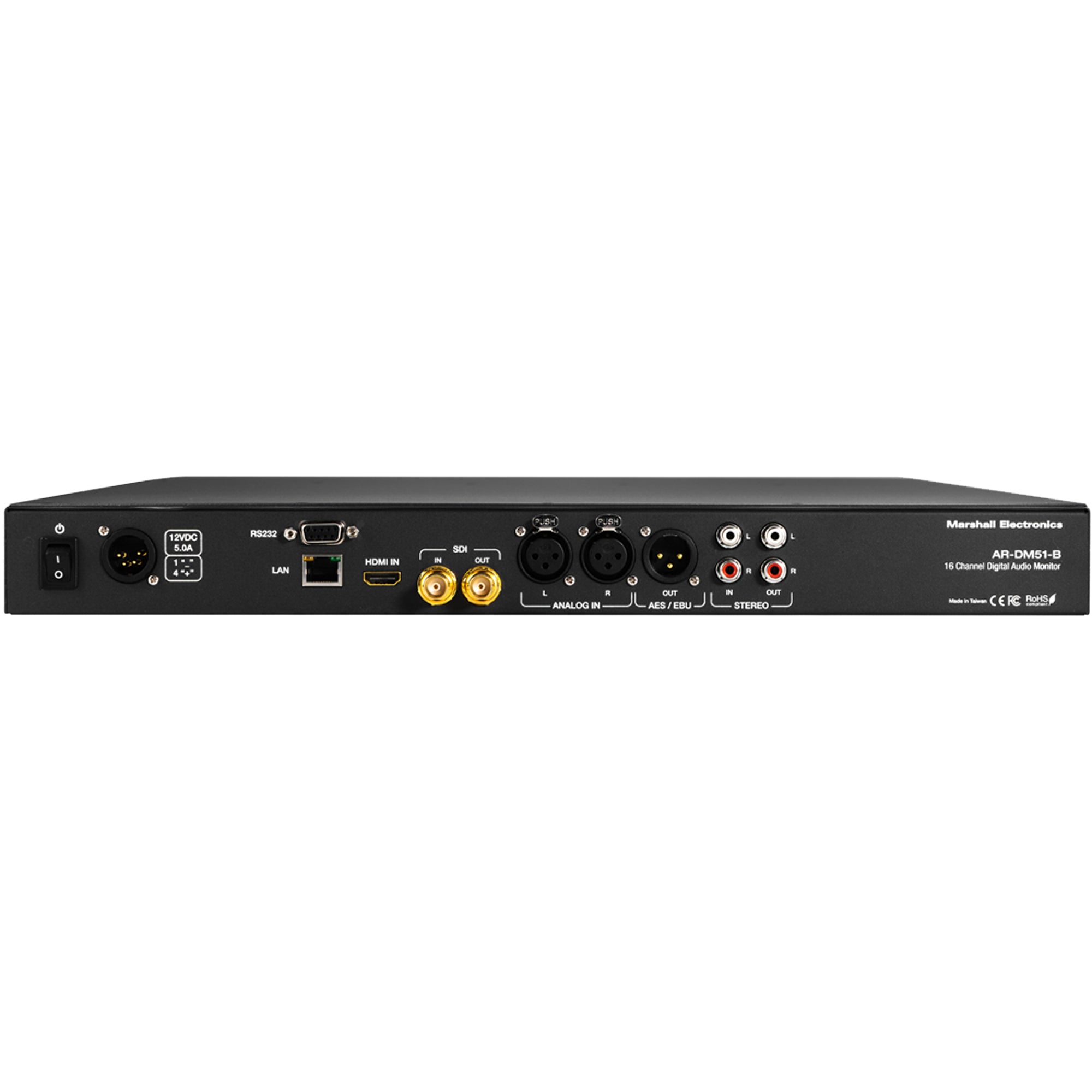

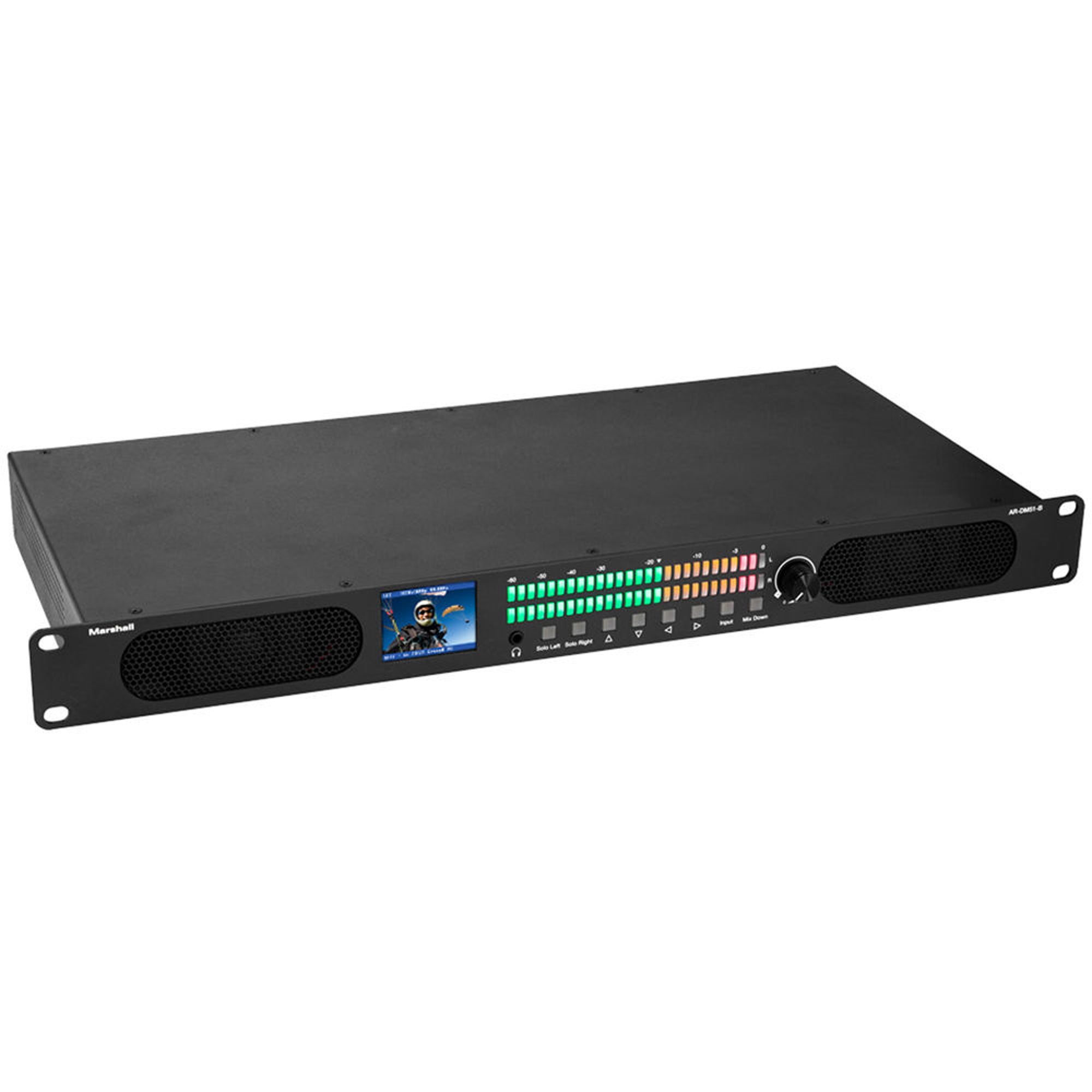

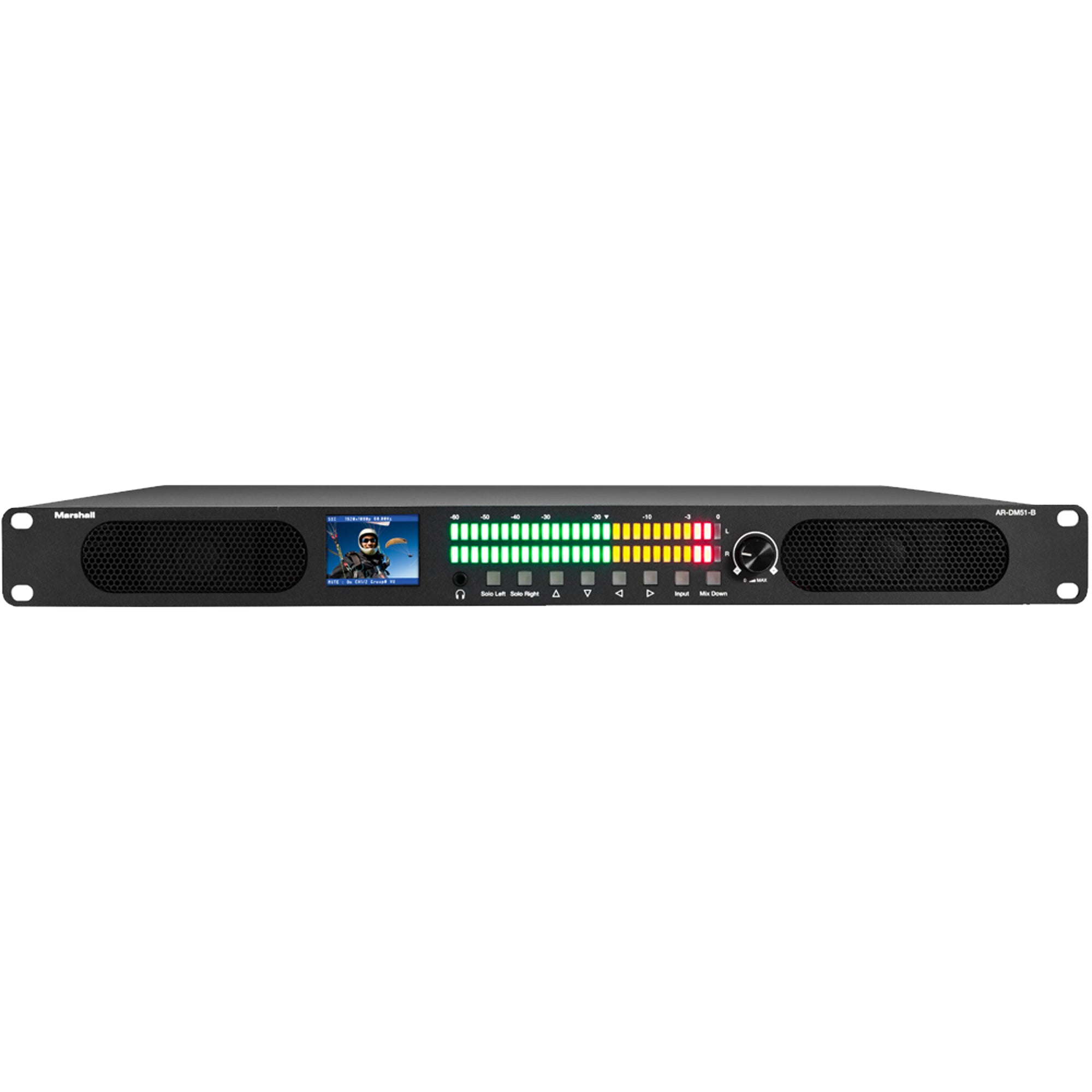

- Marshall Electronics AR-DM51-B Digital Audio Monitor with LCD
- 12V Universal PSU
- Limited 2-Year Warranty
Details
- Manufacturer: Marshall
- MPN: AR-DM51-B
- Model Number: AR-DM51-B
- UPC: 801813187175
