Key Features
- 6.5" Midrange Transducer
- 1.4" Titanium Diaphragm Compression Driver
- 15" High-Excursion Woofer
- Precision Internal 3-Way Crossover
- Parallel SpeakON Inputs
- Flyable - 12xM10 Flypoints for Vertical Orientation
- Premium Grade Components and Precise Tuning
- 500W / 1000W / 2000W Power Handling
Description

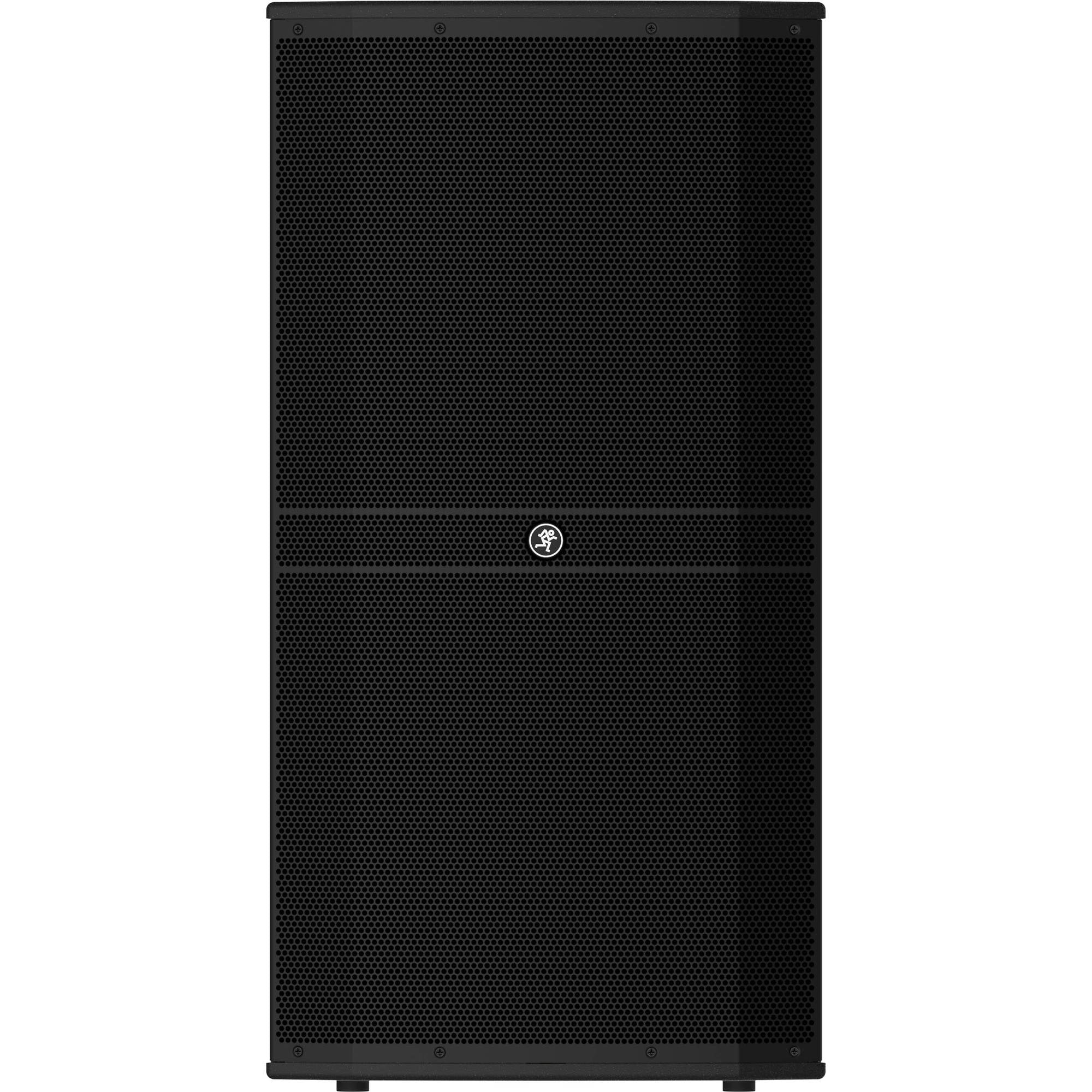

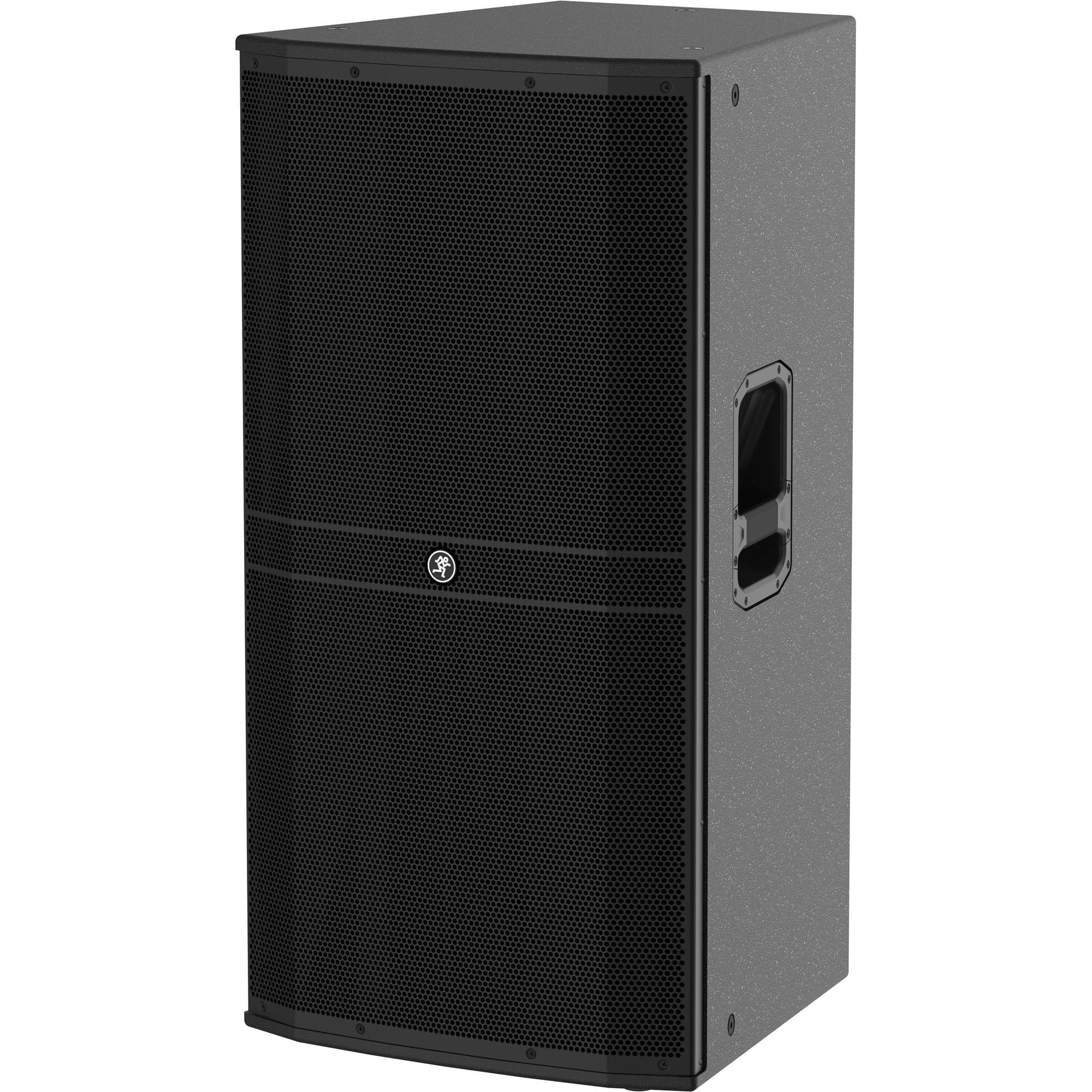

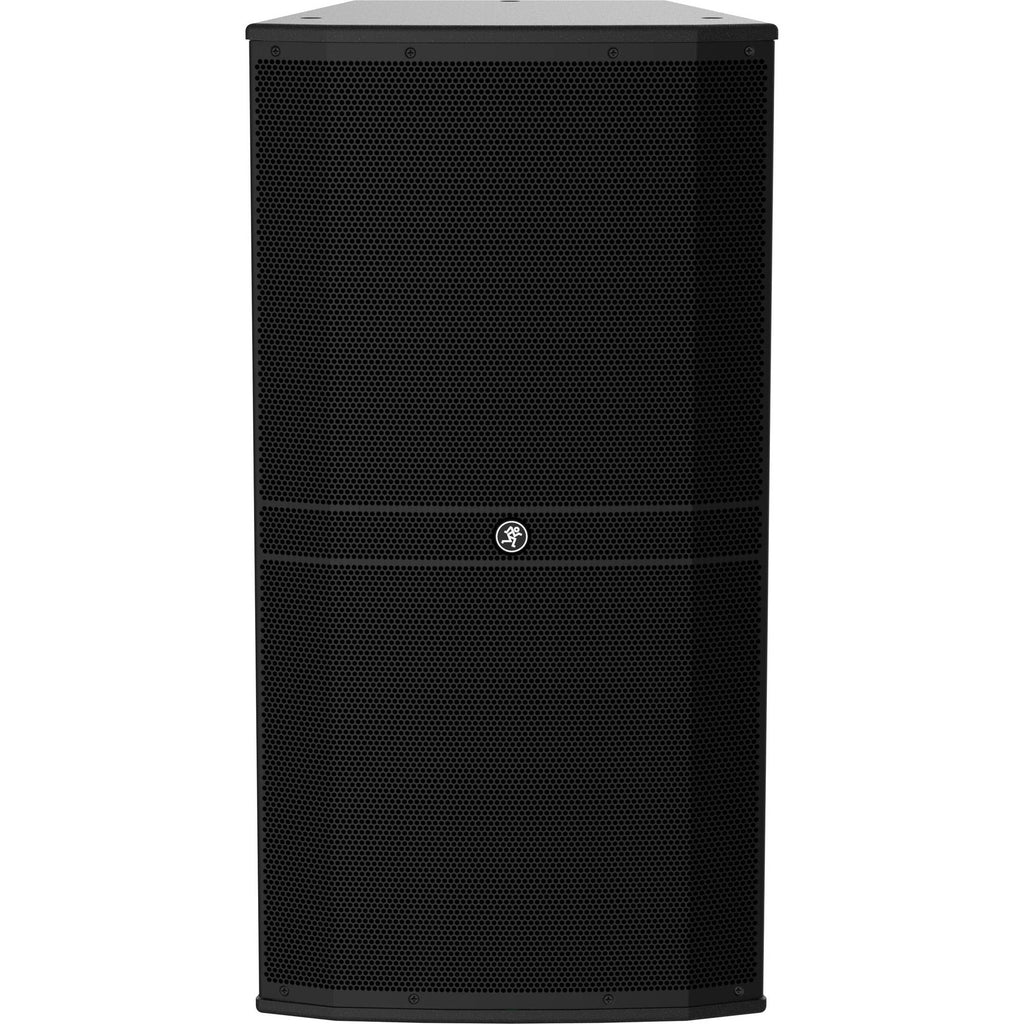

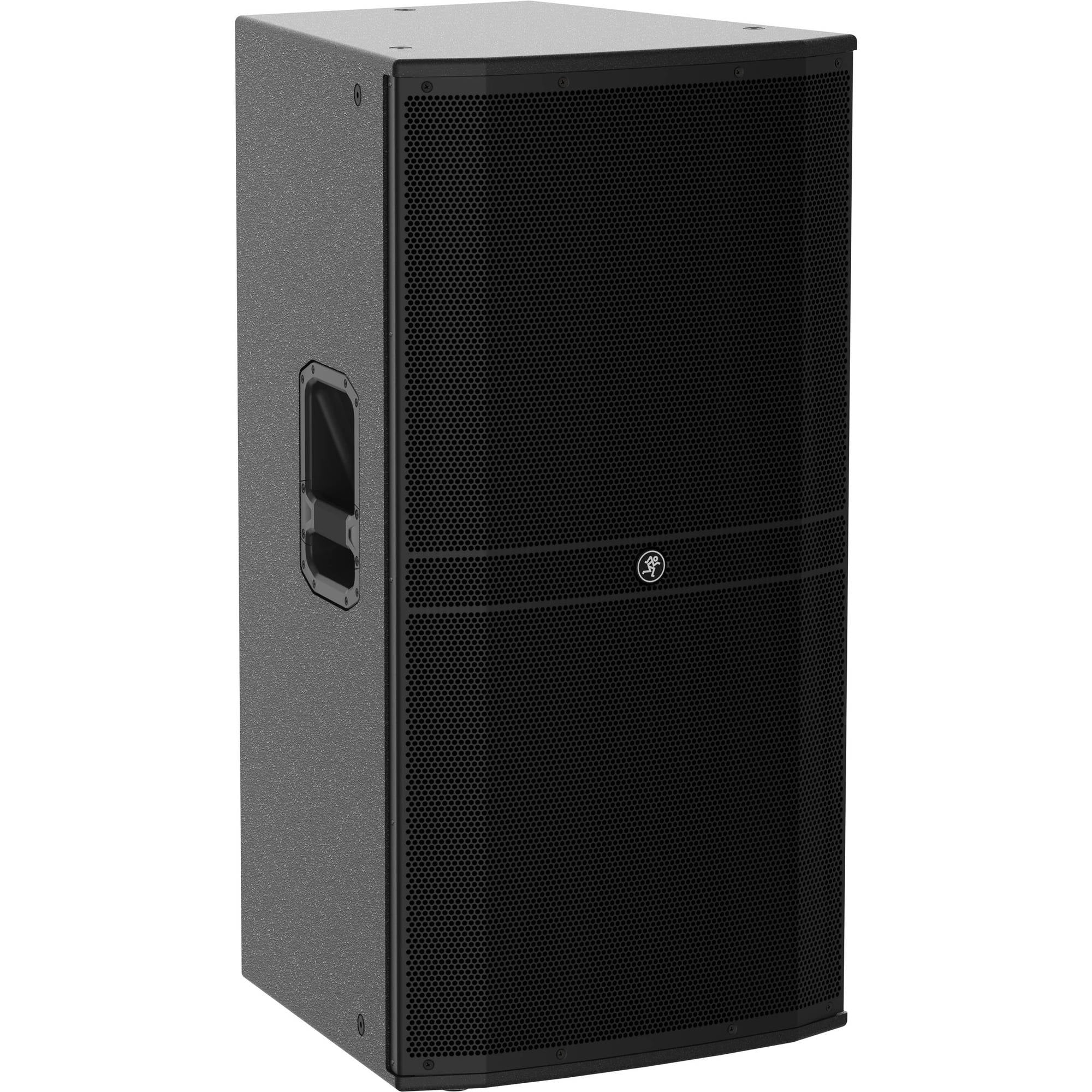

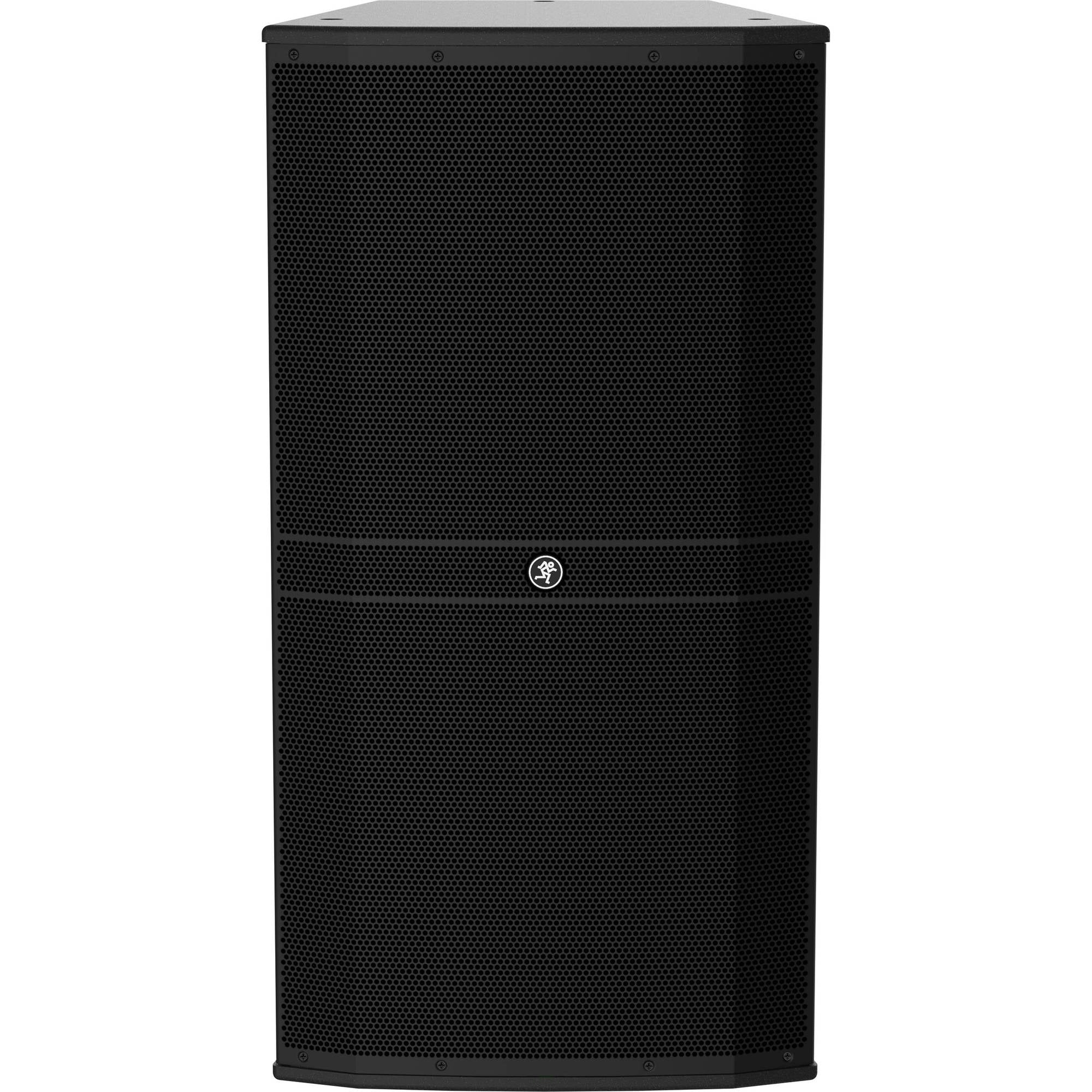

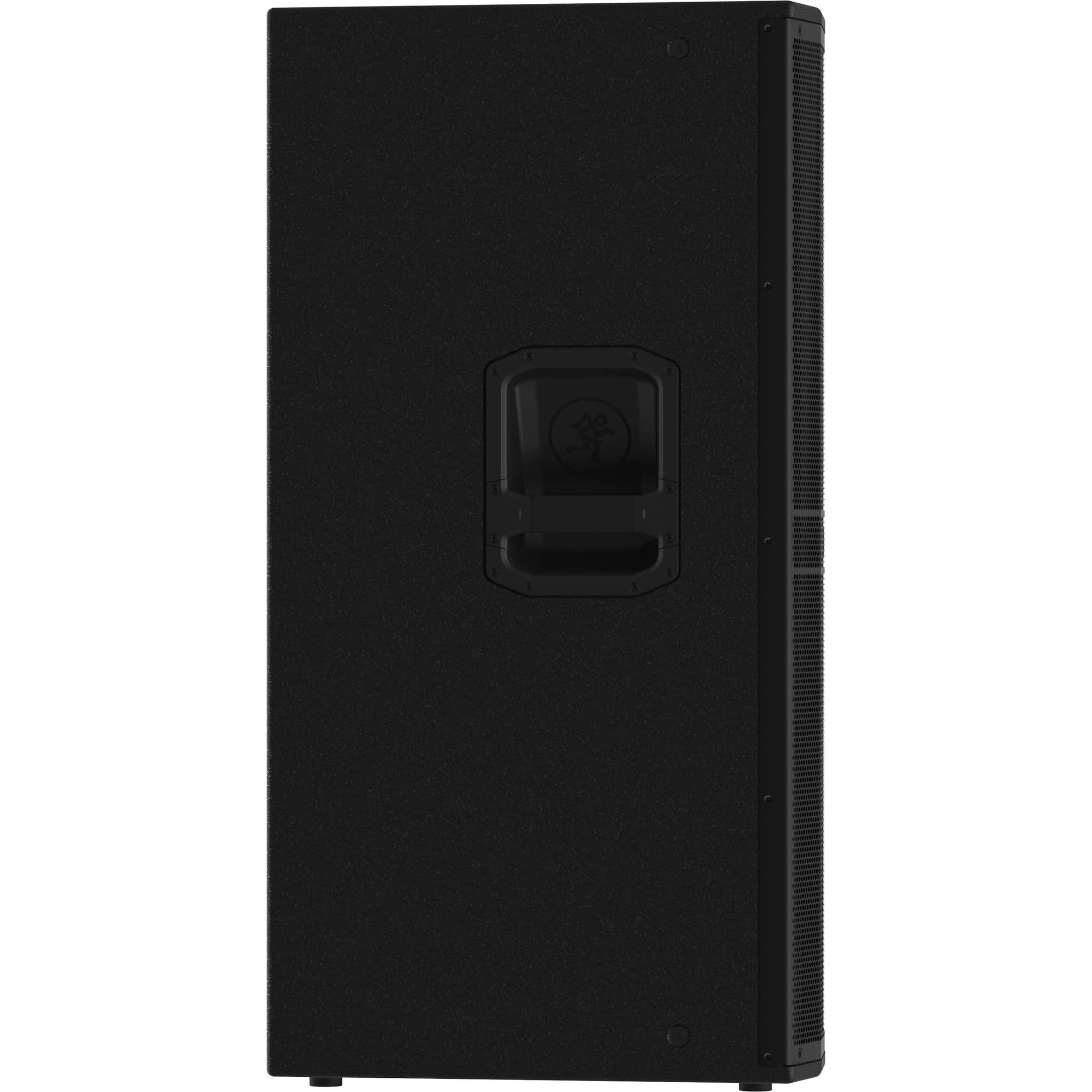

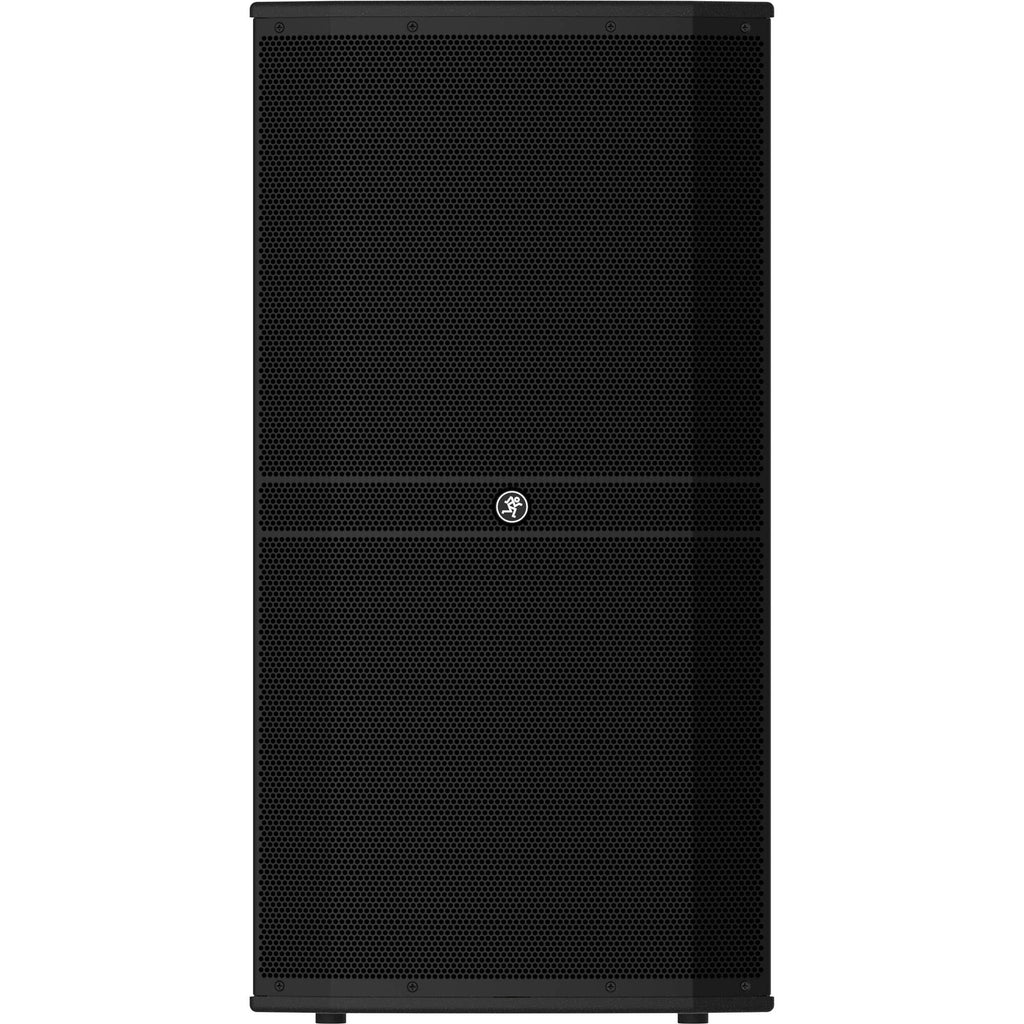

2000W 15" 3-Way Professional Passive Loudspeaker
EXPERIENCE THE SOUND OF DRM
DRM Passive Series Professional Passive Loudspeakers feature custom transducers housed in touring-grade plywood cabinets designed for consistent performance in all applications. Equipped with M10 flypoints and dual angle pole mounts, DRM Passive Loudspeakers are perfect for clubs, rental systems, and more. Combine with MX Series Amplifiers and the SP260 Loudspeaker Processor for a complete Mackie professional system.
Clarity - Great Sound for Every Application
Custom transducers and precision crossovers deliver high-performance, crystal-clear sound that professional production and install customers demand.
Rugged - Road-Worthy Design
Solid plywood construction and internal bracing offers optimal acoustic performance. Coated in a touring-grade textured coating, DRM Passive Loudspeakers are ready for the most demanding applications.
Versatile - Flexible Configurations
Equipped with M10 flypoints, dual angle pole mounts, and available line array configurations; DRM Passive Loudspeakers are perfect for clubs, houses of worship, rental systems and more.
Features:
- High-performance professional loudspeaker designed for high-demand applications
- Custom designed transducers:
- 1.4" Titanium diaphragm compression driver offer maximum transparency and clarity
- 6.5" Midrange transducer provides incredible midrange clarity for punchy vocal and instrument reproduction
- 15" High-excursion woofer offers minimal distortion with increased bass response and reliability to withstand the most demanding live applications
- Rotatable waveguide assembly allows for horizontal orientation while maintaining maximum coverage
- Precision internal 3-Way Crossover
- Premium grade components and precise tuning provide maximum clarity and performance
- Parallel SpeakON inputs
- Road-worthy 15mm plywood construction and internal bracing offers optimal acoustic performance
- Touring-grade textured cabinet coating
- Powder-coated heavy gauge steel grille
- Pole-mountable
- Flyable - 12xM10 flypoints for vertical or horizontal orientation
- Optional SP260 Loudspeaker Processor provides custom EQ curves and crossovers for your DRM Passive System
- Power Handling (continuous/program/peak): 500W / 1000W / 2000W
Specifications:
- Acoustic Performance
- Type: 15" 3-Way Professional Passive Loudspeaker
- Frequency Range (-10 dB): 45 Hz - 20 kHz
- Frequency Range (-3 dB): 65 Hz - 18 kHz
- Horizontal Coverage Angle: 90 Degrees
- Vertical Coverage Angle: 60 Degrees
- Power Handling:
- 1000 watts program
- 2000 watts peak
- 136 dB max SPL peak
- Crossover Frequency: 900 Hz [LF/MF] 2.5kHz [MF/THF]
- Transducers
- Low Frequency: 15 in / 381 mm with ferrite
- Mid Frequency: 6.5 in / 165 mm
- High Frequency: 1.4 in / 36 mm titanium dome compression driver
- Physical Features

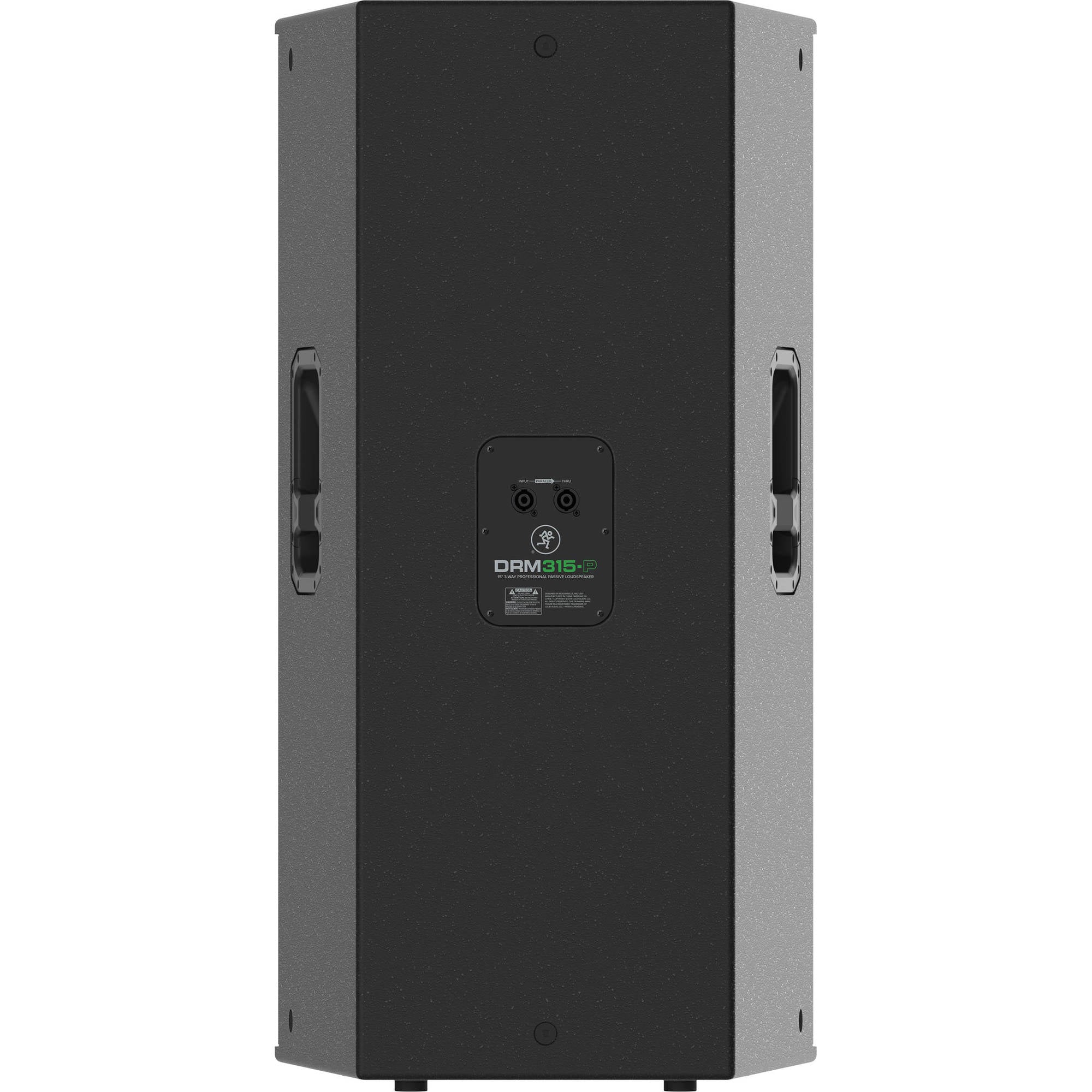

- Input Type: 1x Female speakON
- Thru Type: 1x Female speakON
- Nominal Impedance: 4 Ohms
- Basic Design: Vertical Trapezoidal
- Enclosure Material: 15mm Plywood
- Enclosure Finish: Black Polyuria
- Grille Material: 16-18 gauge perforated steel
- Grille Finish: Powder-coated black

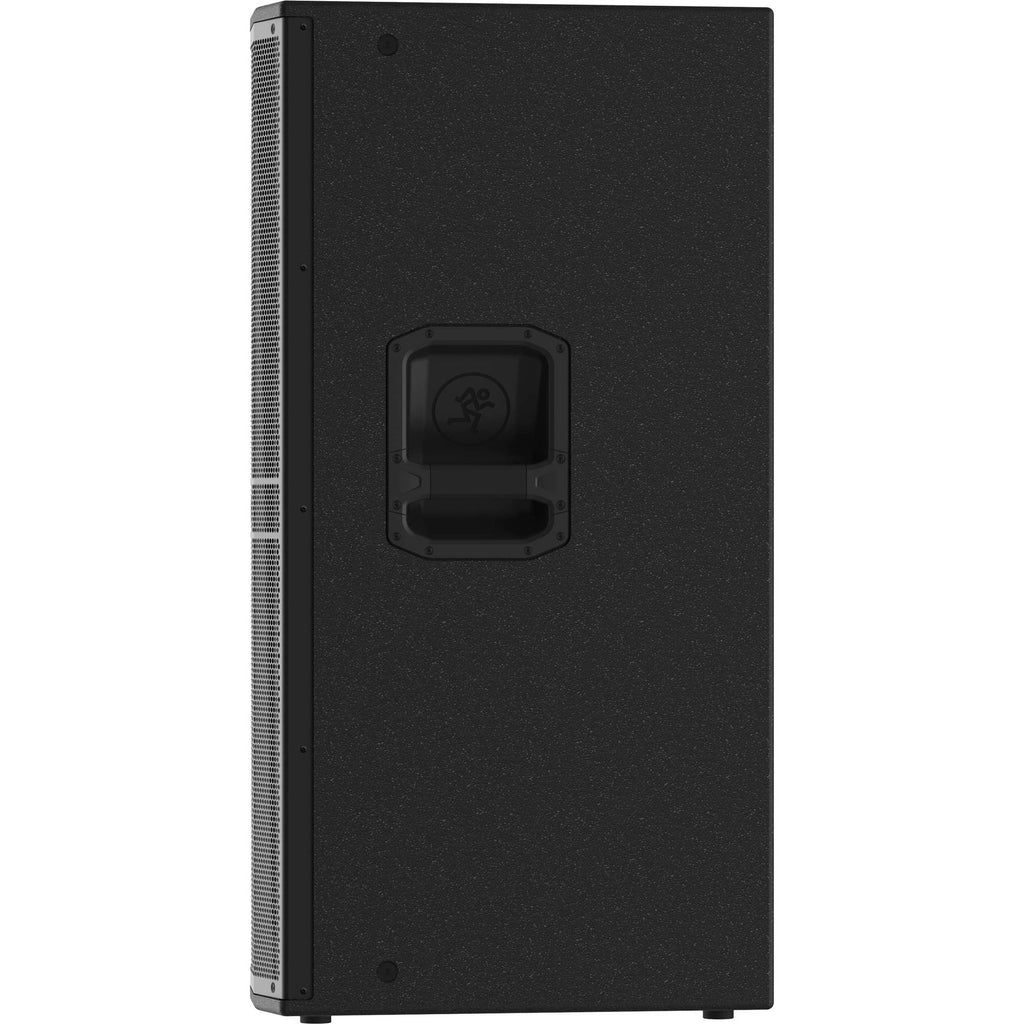

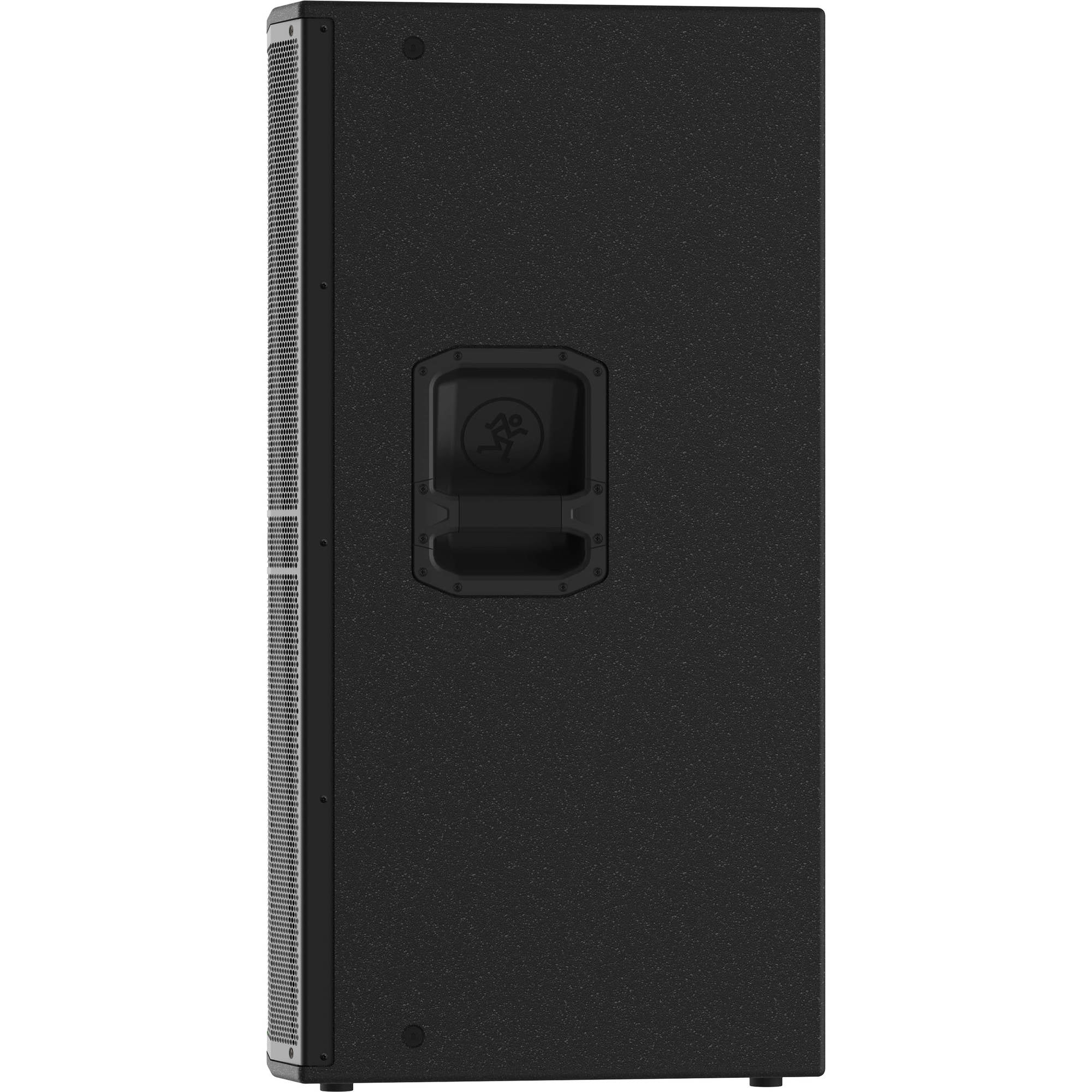

- Handles: One on each side, one on top
- Operating Temperature: 0 - 40 Celcius, 32 - 104 Farenheit
- Dimensions
- Height: 36.5 in / 925 mm
- Width: 19 in / 483 mm
- Depth: 18.8 in / 478 mm
- Weight: 68 lbs / 30.8 kg
