Key Features
- 1.4" Titanium Diaphragm Compression Driver
- 15" High-Excursion Woofer
- Parallel SpeakON Inputs
- Flyable - 8xM10 Flypoints for Vertical Orientation
- Premium Grade Components and Precise Tuning
- 400W / 800W / 1600W Power Handling
Description

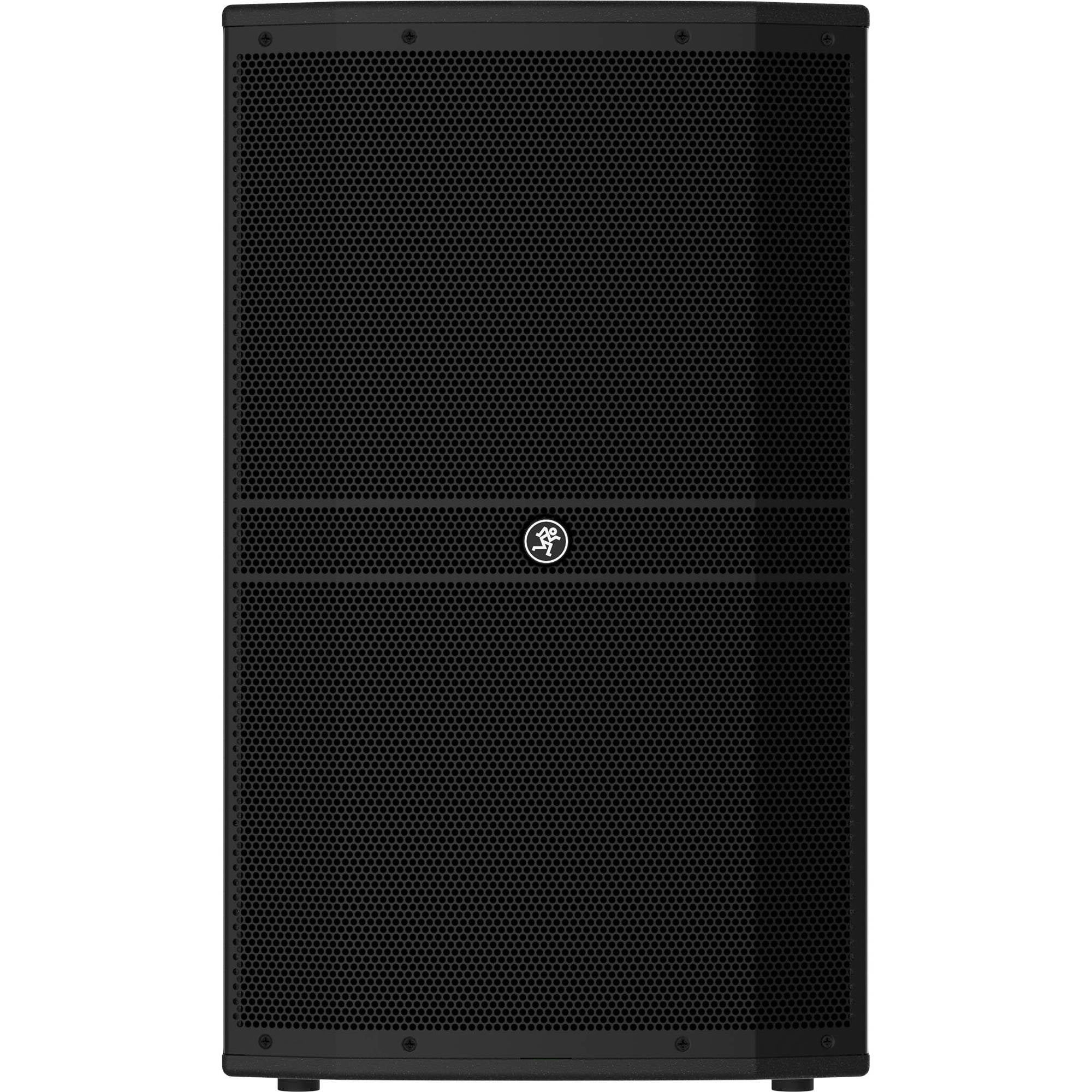

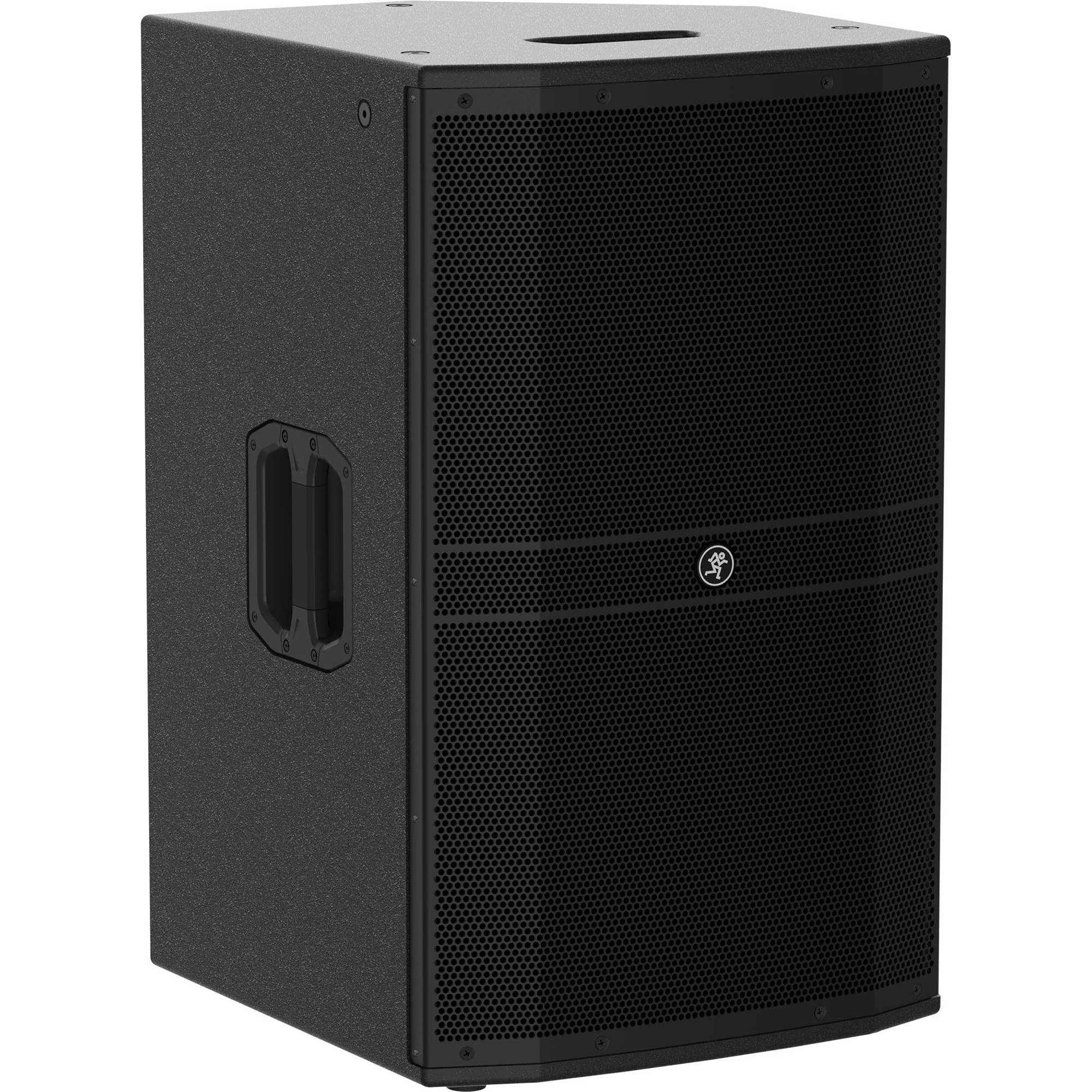

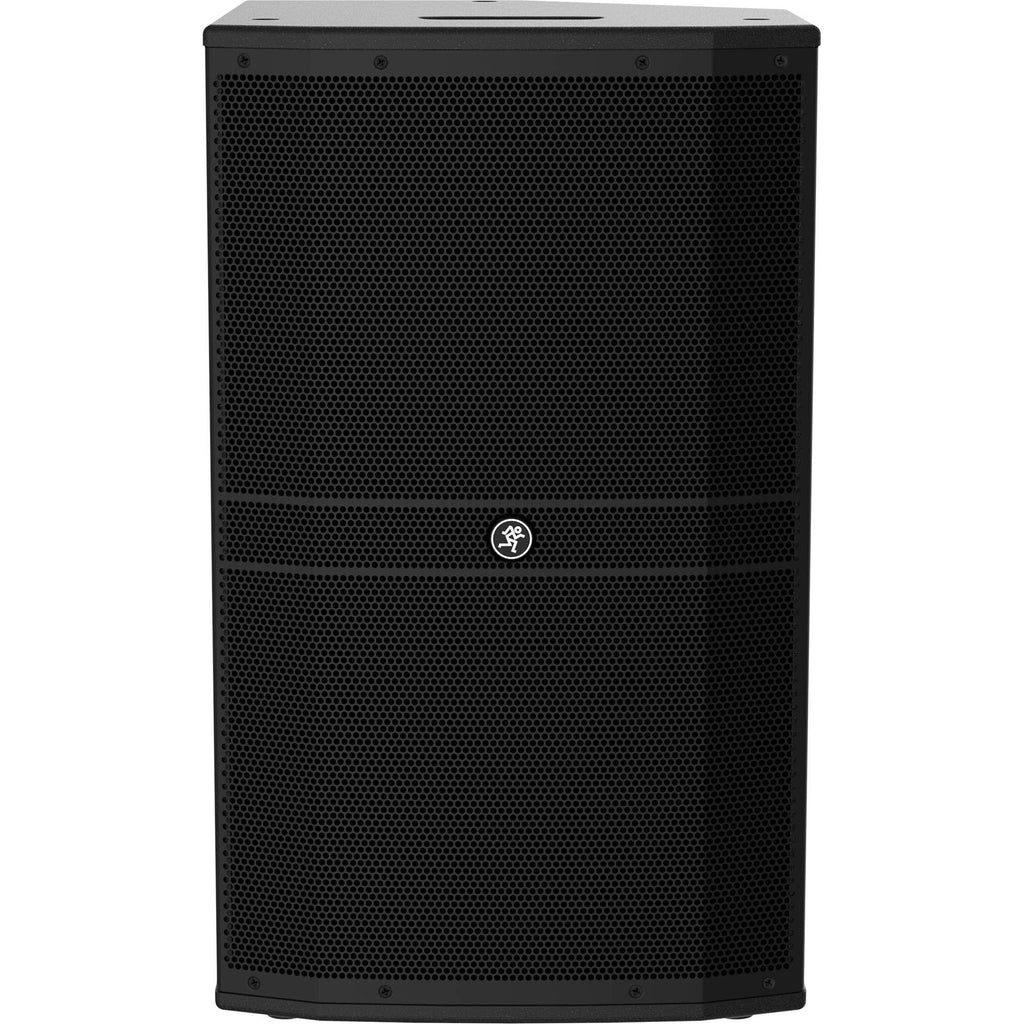

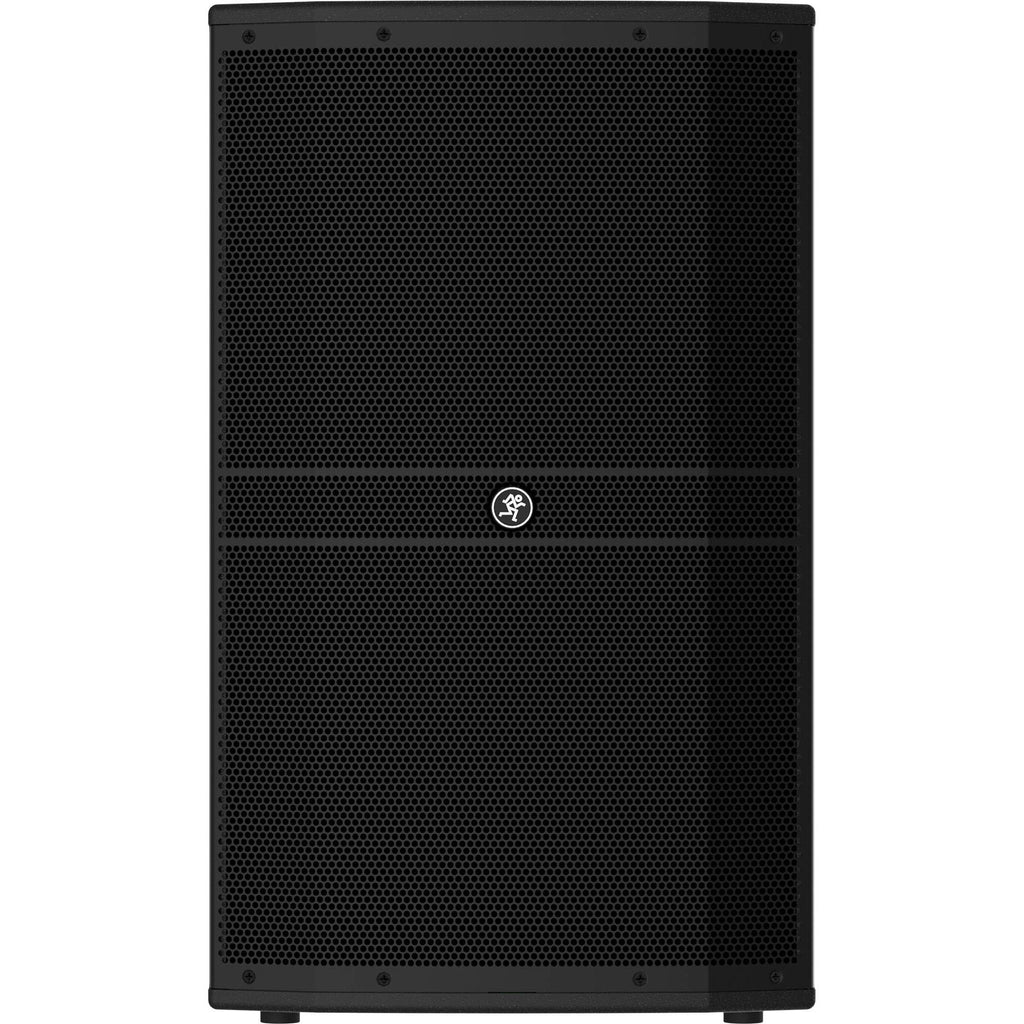

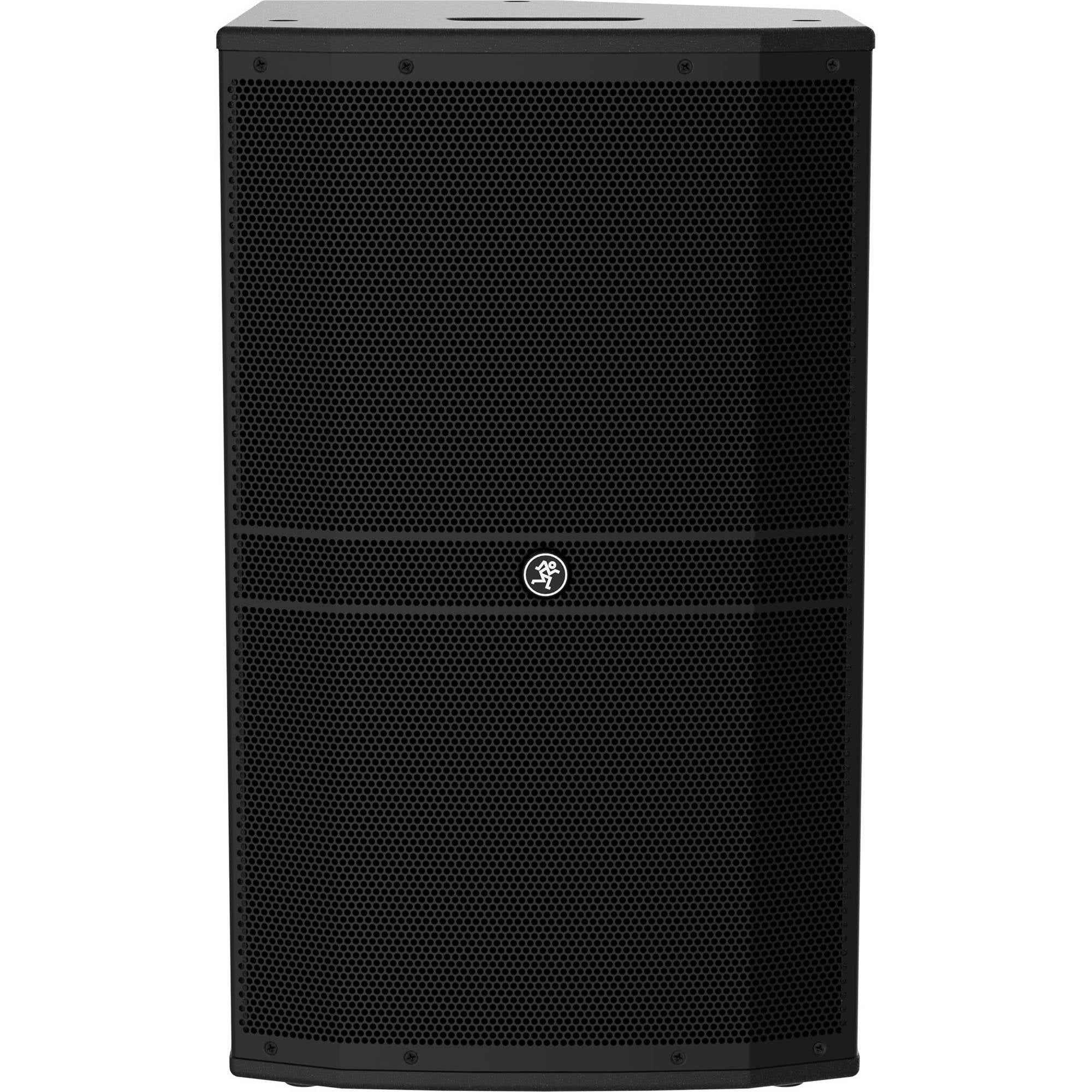

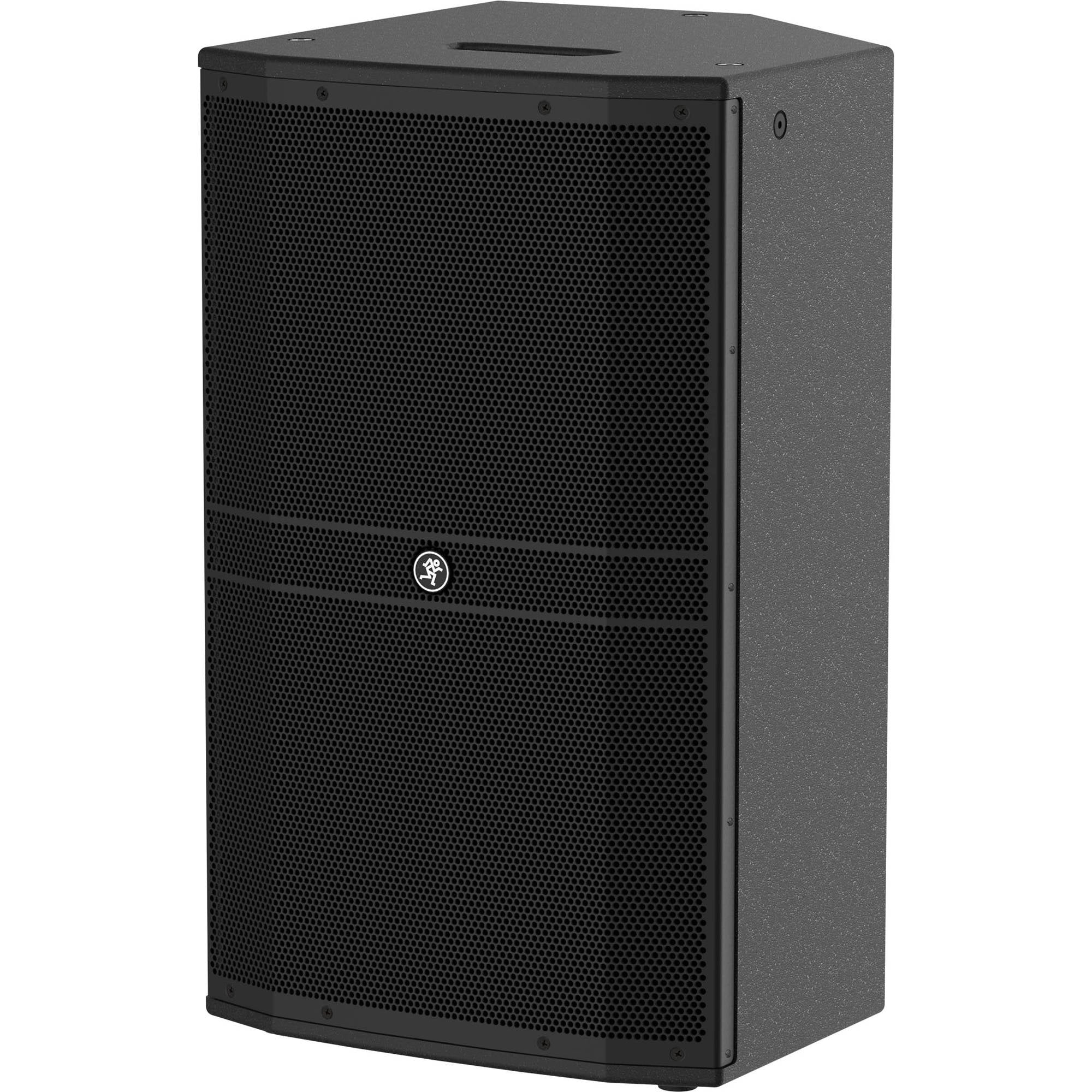

1600W 15" Professional Passive Loudspeaker
EXPERIENCE THE SOUND OF DRM
DRM Passive Series Professional Passive Loudspeakers feature custom transducers housed in touring-grade plywood cabinets designed for consistent performance in all applications. Equipped with M10 flypoints and dual angle pole mounts, DRM Passive Loudspeakers are perfect for clubs, rental systems, and more. Combine with MX Series Amplifiers and the SP260 Loudspeaker Processor for a complete Mackie professional system.
Clarity - Great Sound for Every Application
Custom transducers and precision crossovers deliver high-performance, crystal-clear sound that professional production and install customers demand.
Rugged - Road-Worthy Design
Solid plywood construction and internal bracing offers optimal acoustic performance. Coated in a touring-grade textured coating, DRM Passive Loudspeakers are ready for the most demanding applications.
Versatile - Flexible Configurations
Equipped with M10 flypoints, dual angle pole mounts, and available line array configurations; DRM Passive Loudspeakers are perfect for clubs, houses of worship, rental systems and more.
Features:
- High-performance professional loudspeaker designed for high-demand applications
- Custom Designed transducers
- 1.4" Titanium diaphragm compression driver offers maximum transparency and clarity
- 15" High-excursion woofer offers minimal distortion with increased bass response and reliability to withstand the most demanding live applications
- Precision internal crossover
- Premium grade components and precise tuning provide maximum clarity and performance
- Parallel SpeakON Inputs
- Road-Worthy 15mm plywood construction and internal bracing offers optimal acoustic performance
- Powder-coated heavy gauge stell grille
- Touring-grade textured cabinet coating

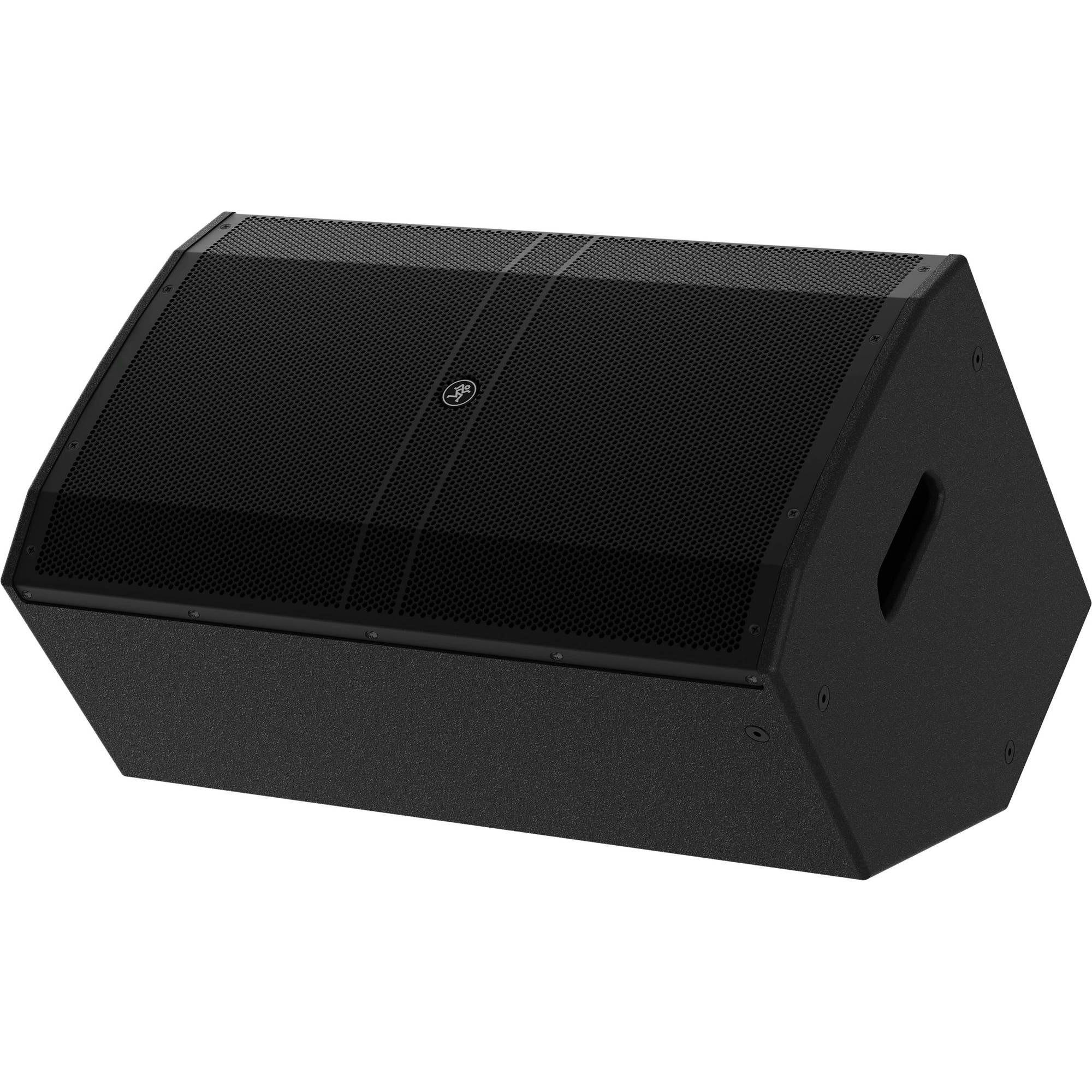

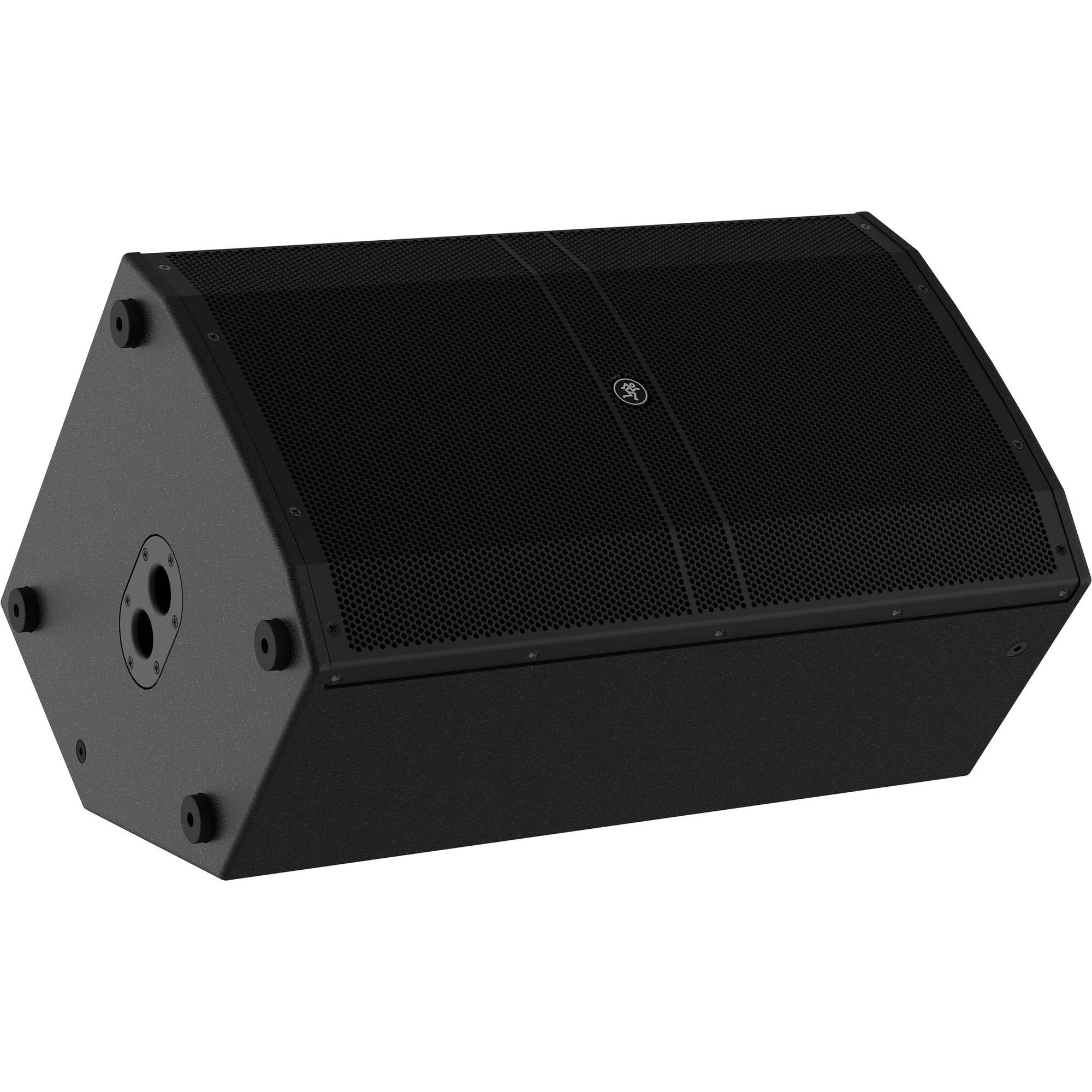

- Angled cabinet design allows for use as a high-performance floor monitor
- Dual angle pole-mount provides optimal coverage and a minimal reflections in most venues

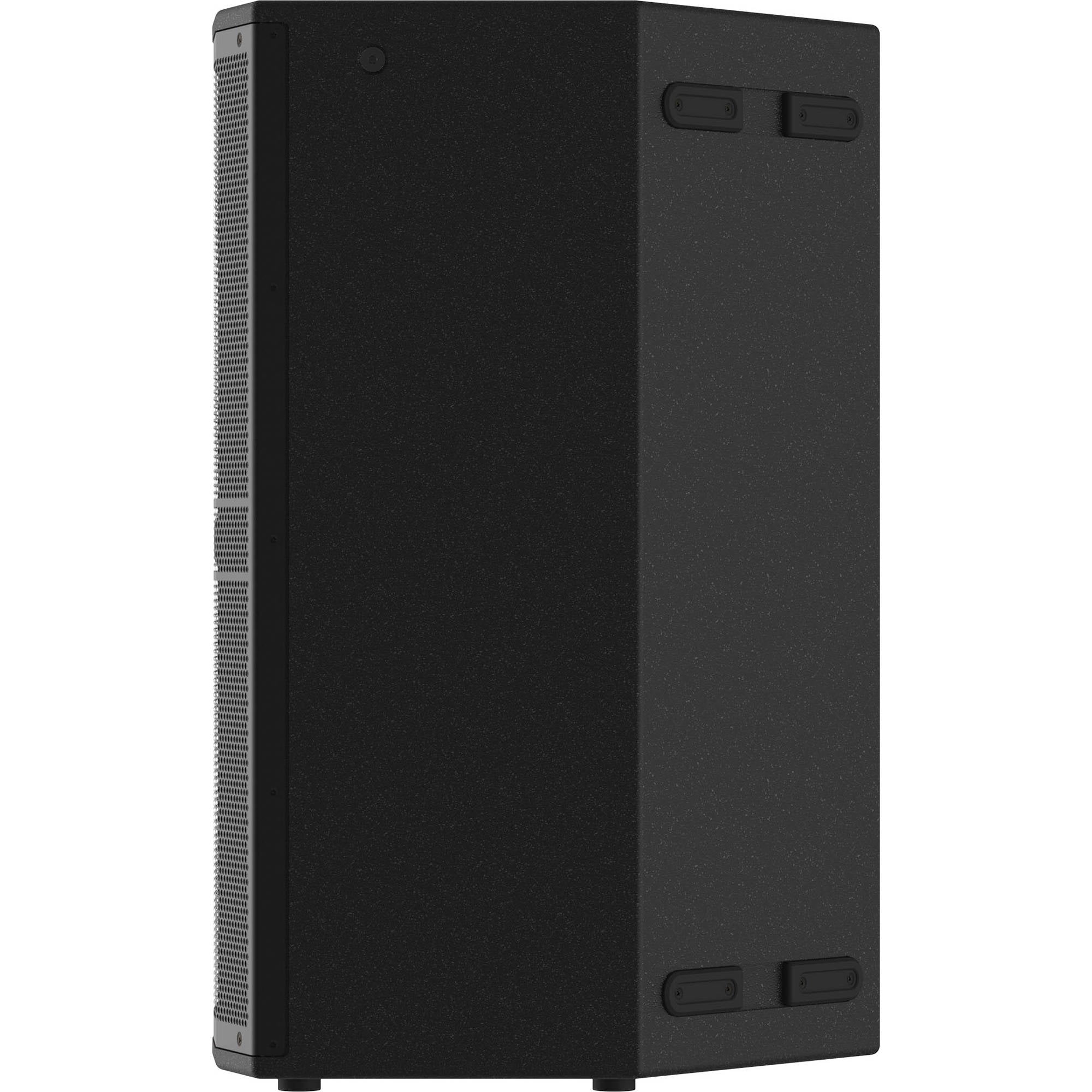

- Flyable - 8xM10 flypoints for vertical orientation
- Power handling (continuous/program/peak): 400W / 800W / 1600W
- Optional SP260 Loudspeaker Processor provides custom EQ curves and crossovers for your DRM Passive System
Specifications:
- Acoustic Performance
- Type: 15" Professional Passive Loudspeaker
- Frequency Range (-10 dB): 45 Hz - 20 kHz
- Frequency Range (-3 dB): 70 Hz - 18 kHz
- Horizontal Coverage Angle: 90 Degrees
- Vertical Coverage Angle: 60 Degrees
- Power Handling:
- 800 watts program
- 1600 watts peak
- 129 dB max SPL peak
- Crossover Frequency: 1.5 kHz
- Monitor Angle: 50 Degrees
- Transducers
- Low Frequency: 15 in / 381 mm with ferrite
- High Frequency: 1.4 in / 36 mm titanium dome compression driver
- Physical Features

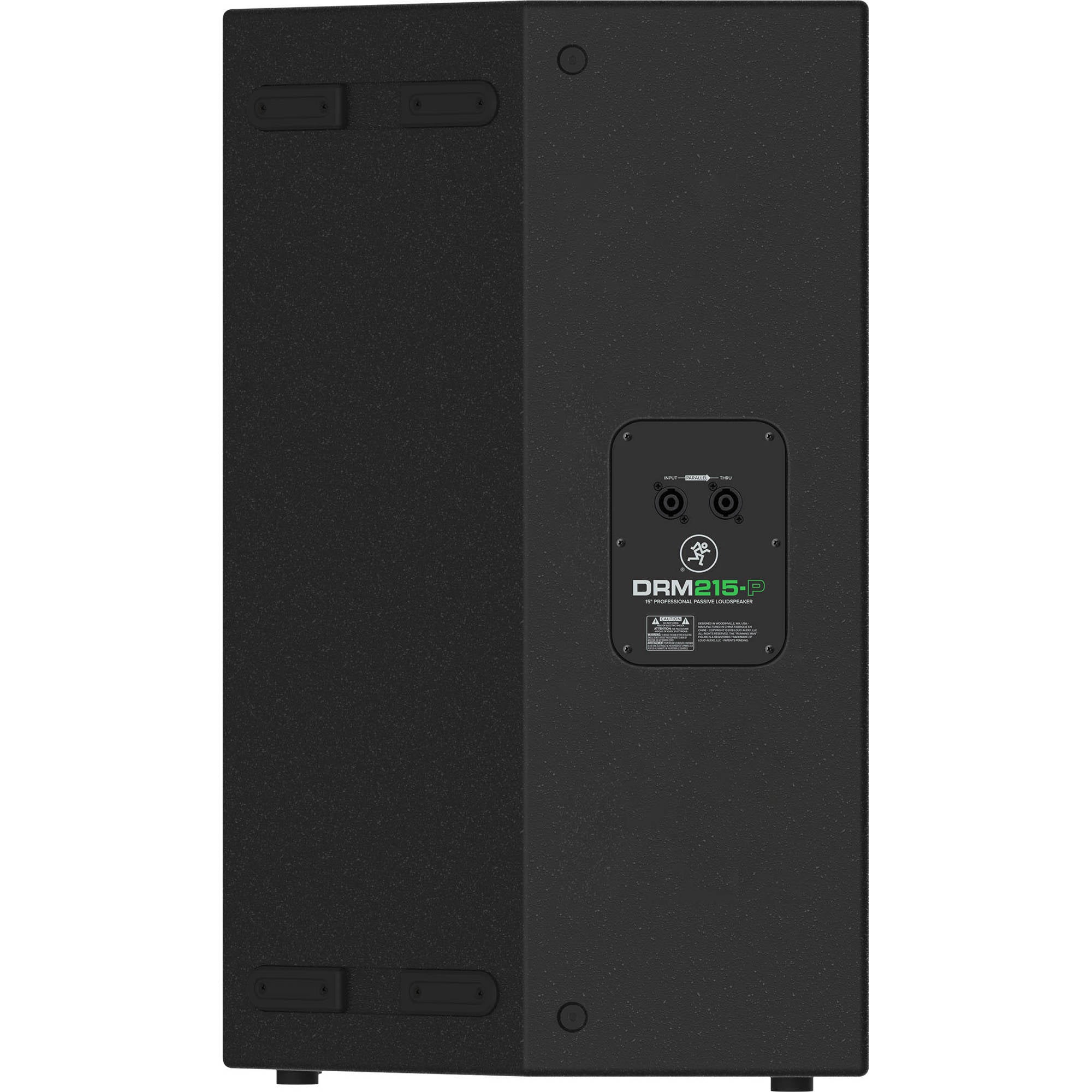

- Input Type: 1x Female speakON
- Thru Type: 1x Female speakON
- Nominal Impedance: 8 Ohms
- Basic Design: Asymmetrical
- Enclosure Material: 15mm Plywood
- Enclosure Finish: Black Polyuria
- Grille Material: 16-18 gauge perforated steel
- Grille Finish: Powder-coated black

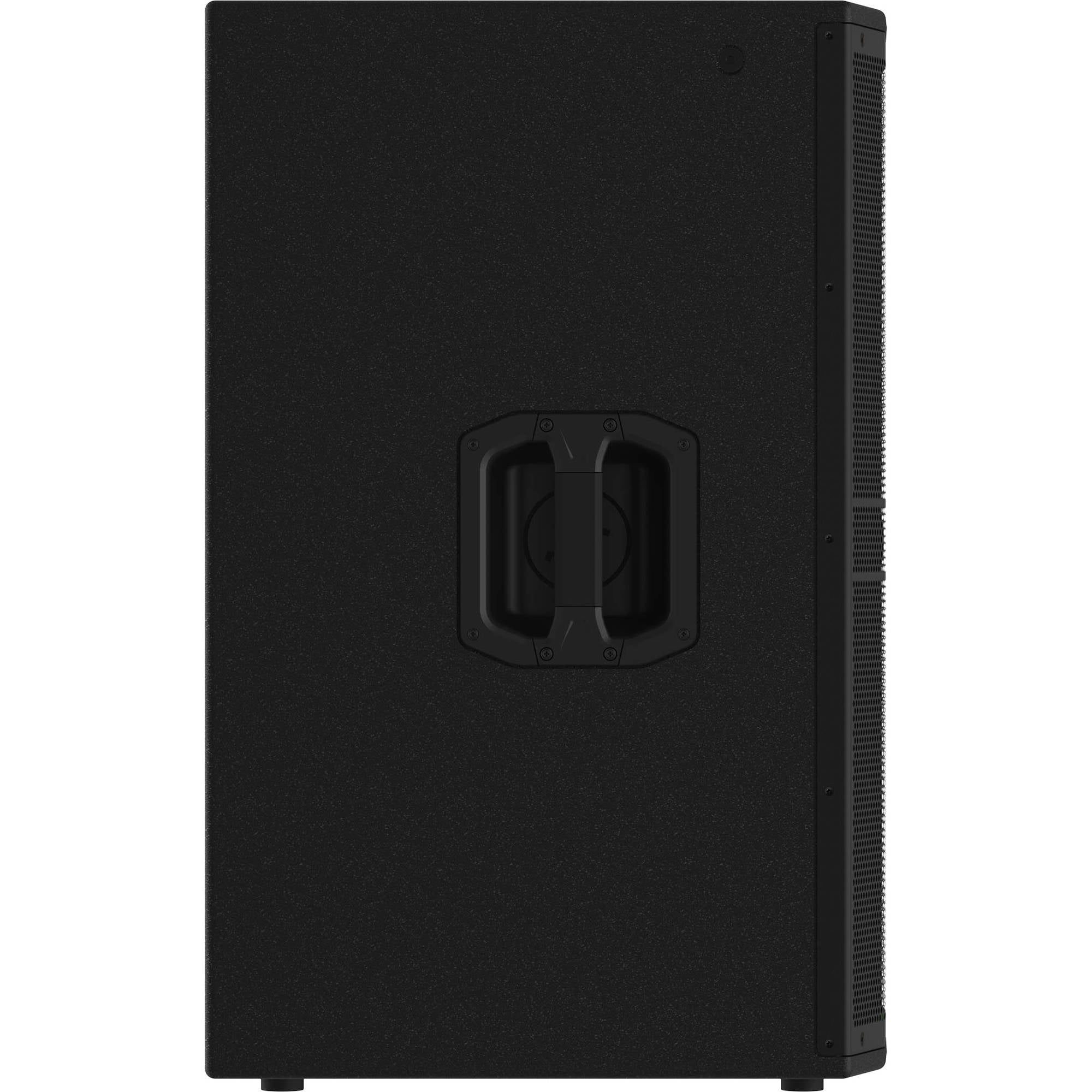

- Handles: One on each side, one on top
- Operating Temperature: 0 - 40 Celcius, 32 - 104 Farenheit
- Dimensions
- Height: 28.3 in / 719 mm
- Width: 18.1 in / 460 mm
- Depth: 17 in / 432 mm
- Weight: 50 lbs / 25.9 kg
