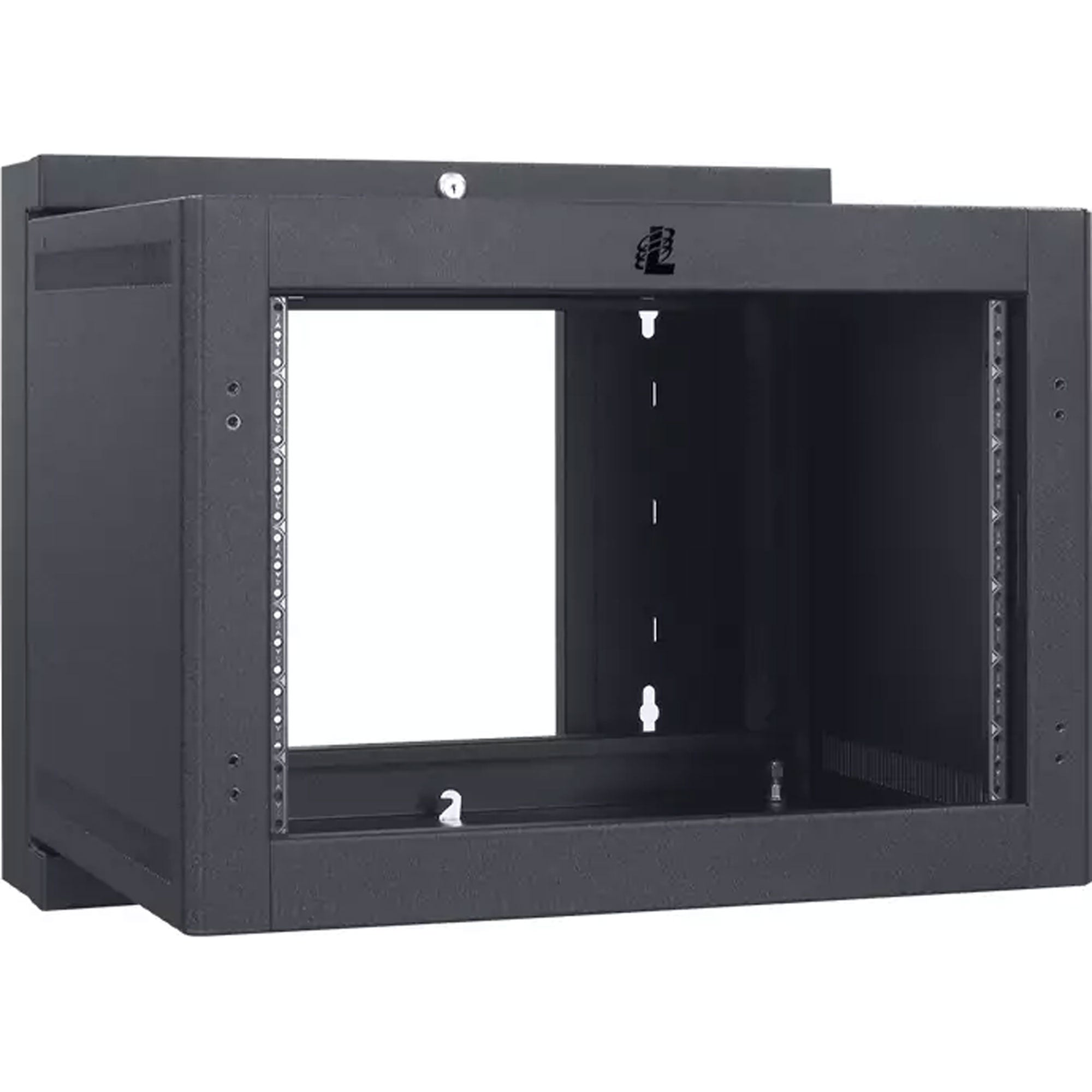

Lowell LWSR-722 22" 7U Wall Swing-Open Rack

7U Swing-Open Wall Mount Rack

The LWSR is an economical, two-part E.I.A. compliant rack consisting of a 16-gauge steel backbox and a mounting section. The mounting sec- tion attaches to the backbox with two heavy-duty bolts through steel fas- teners with securing nuts. The backbox has two center-mount locks that are keyed differently than the (optional) front door.

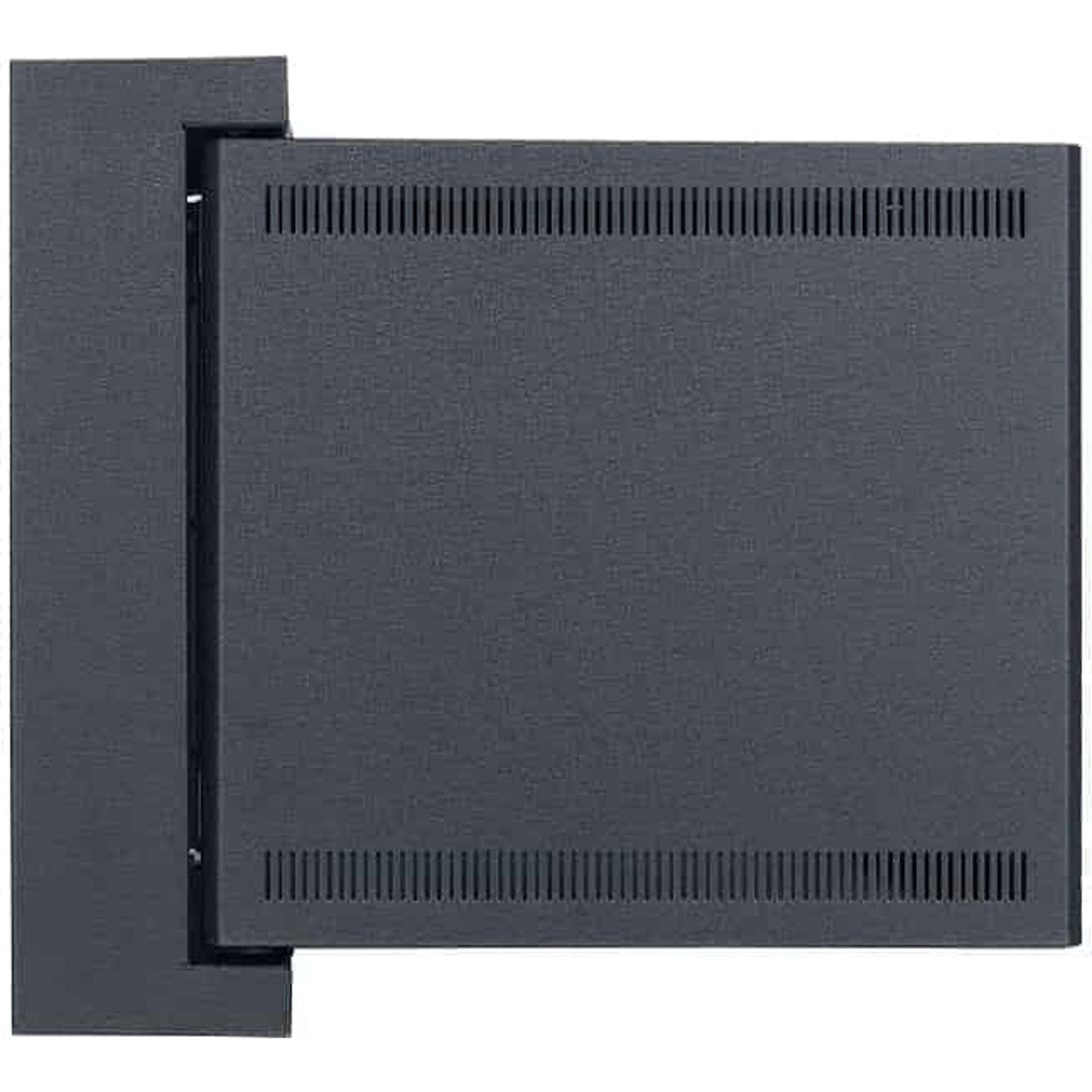

Mounting section features vented sides and includes one-pair of fixed-position front mounting rails (tapped 10-32). To provide clear- ance for equipment knobs and front connections, rails are re- cessed from front frame, providing 1.38" space between equipment and (optional) surface-mount front door. The welded assembly mounts to the backbox with right- or left-hand swing.

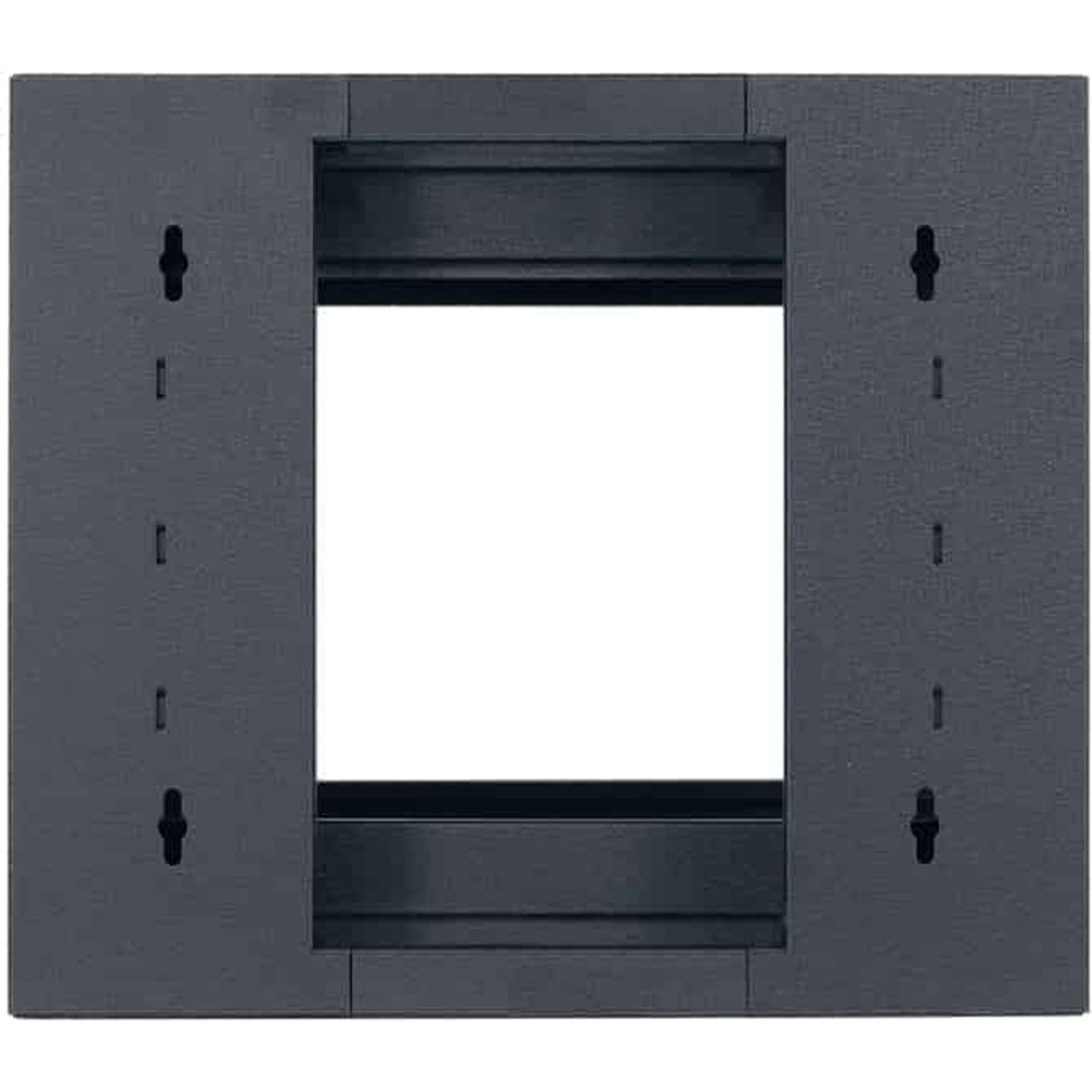

Backbox features 16" mounting centers, removable knockout panels on top and bottom, 10"W wiring pathway down center (top to bottom), rear opening for mounting unit over electrical pull boxes, and two keyed center locks.

Installation note: Backbox and mounting section are boxed to- gether. Mounting section provides 90-degree open-swing access for servicing and therefore requires a minimum swing clearance equivalent to mounting section depth plus one-inch for door (if op- tional front door is ordered). Rack includes PilotPoint screws with 5.1 hardness and captive washers (order RSP-series if extra hardware is desired).

Features:

• Load capacity: 150 lbs.
• Overall depth: 22.00"
• Overall width: 23.06"

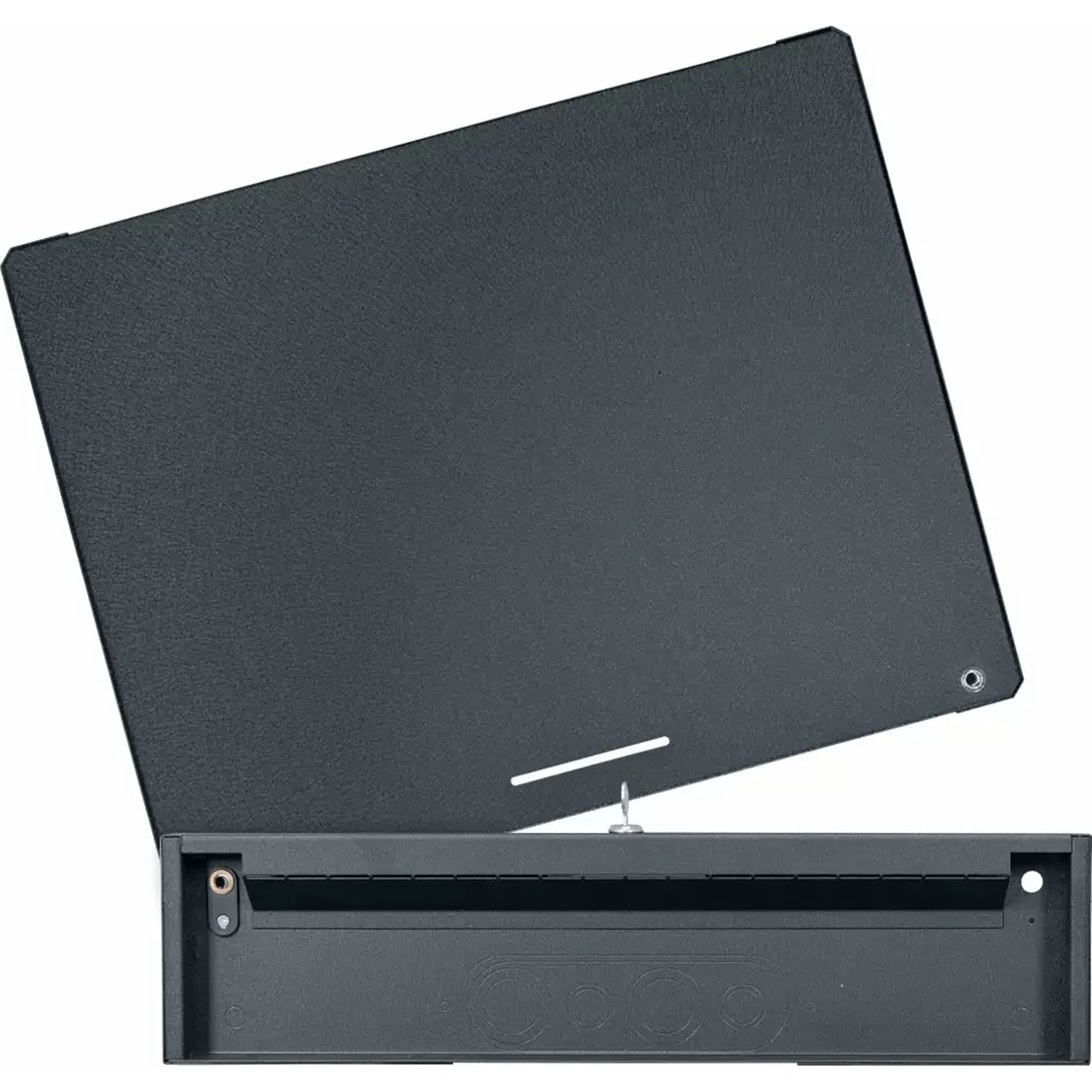

• Knockout panels on top and bottom of backbox feature holes for wireless antennae and conduit (0.5" for BNC and compound knock-outs for conduit size .75-.5" and 1.0-.5").

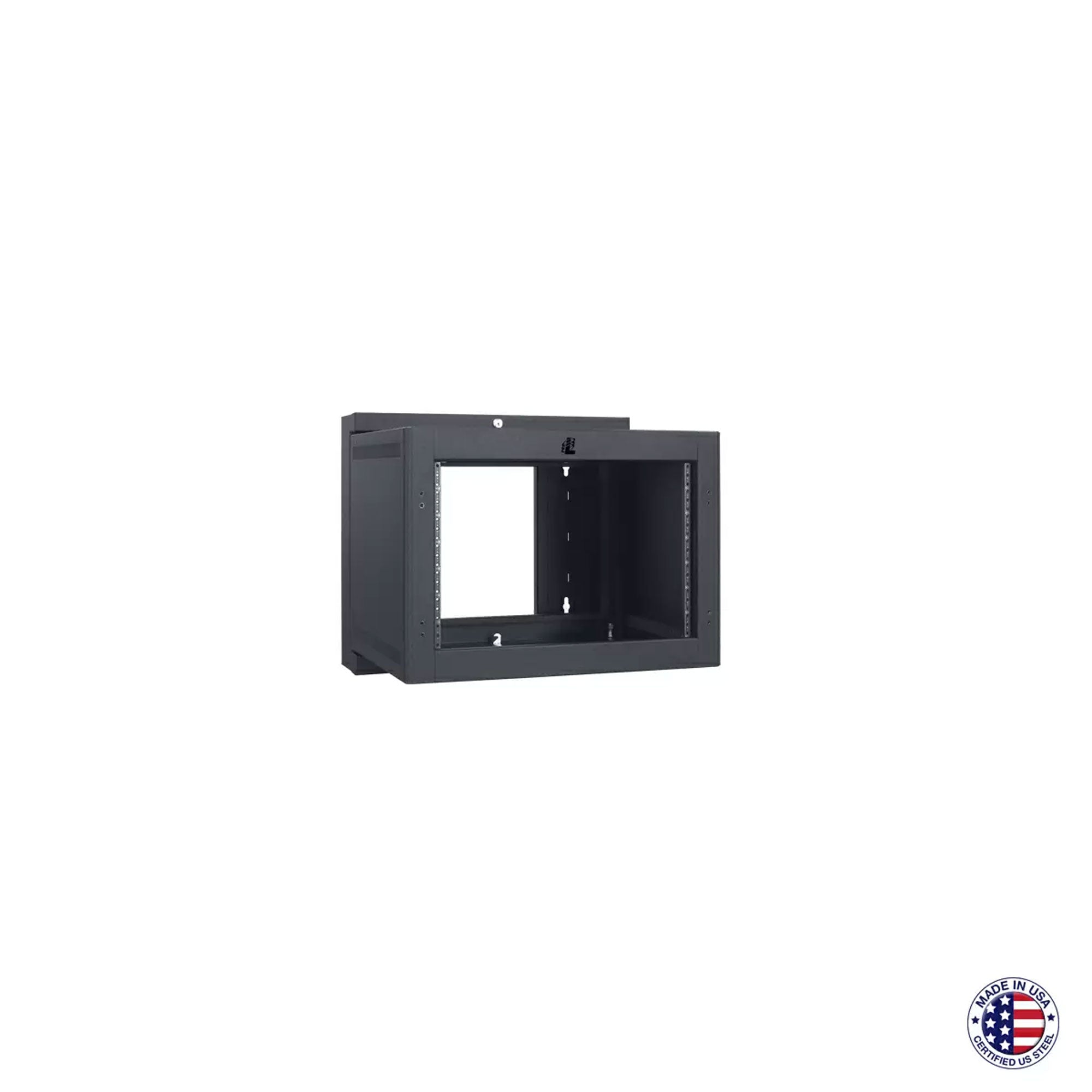

• Made in the U.S.A. with 100% certified U.S. steel
• Black wrinkle powder epoxy finish
• Beveled corners
• Includes 5/16" Allen wrench
