Key Features
- 35U Rack Spaces (+4U in Base)

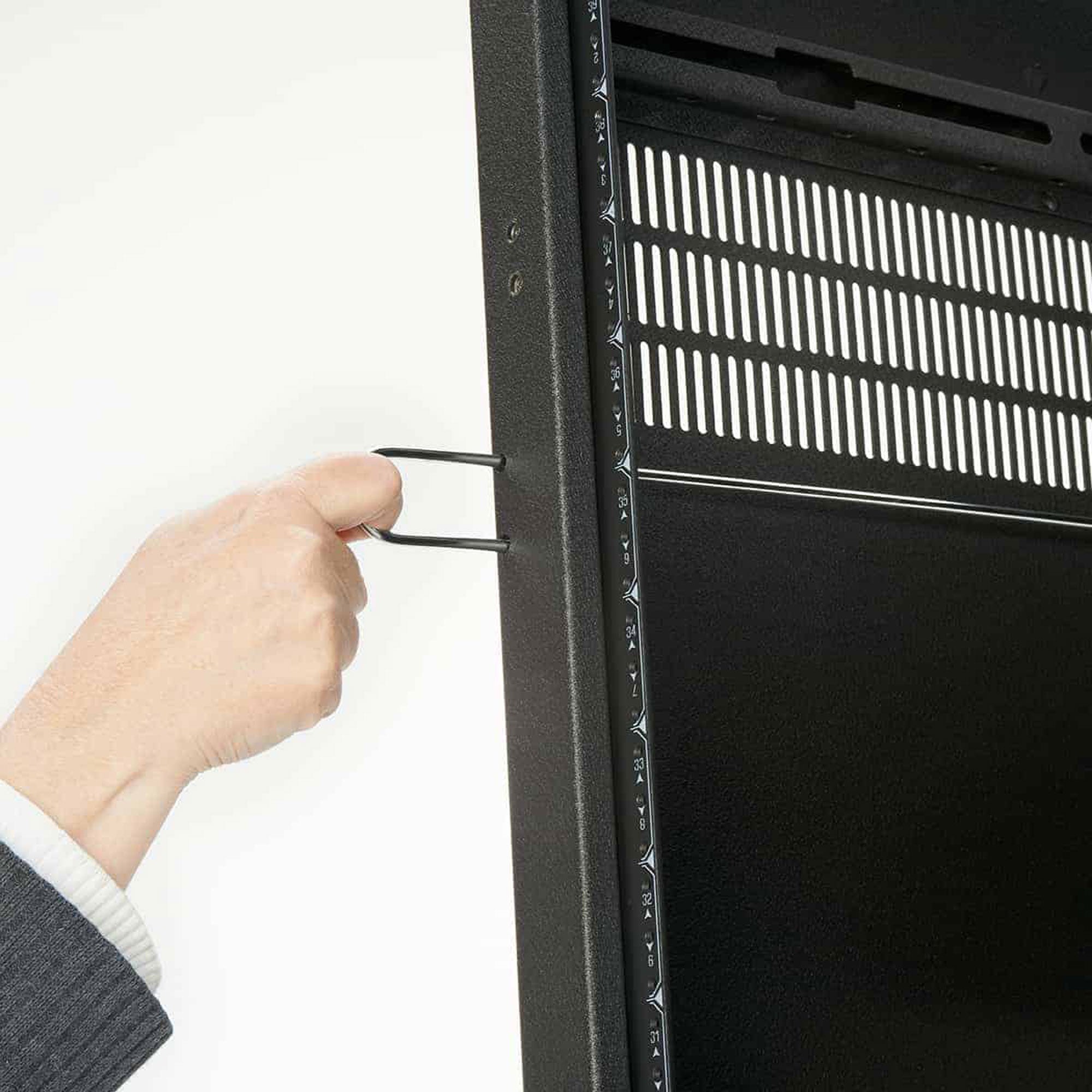

- Swings Open with Single-Release Grasp

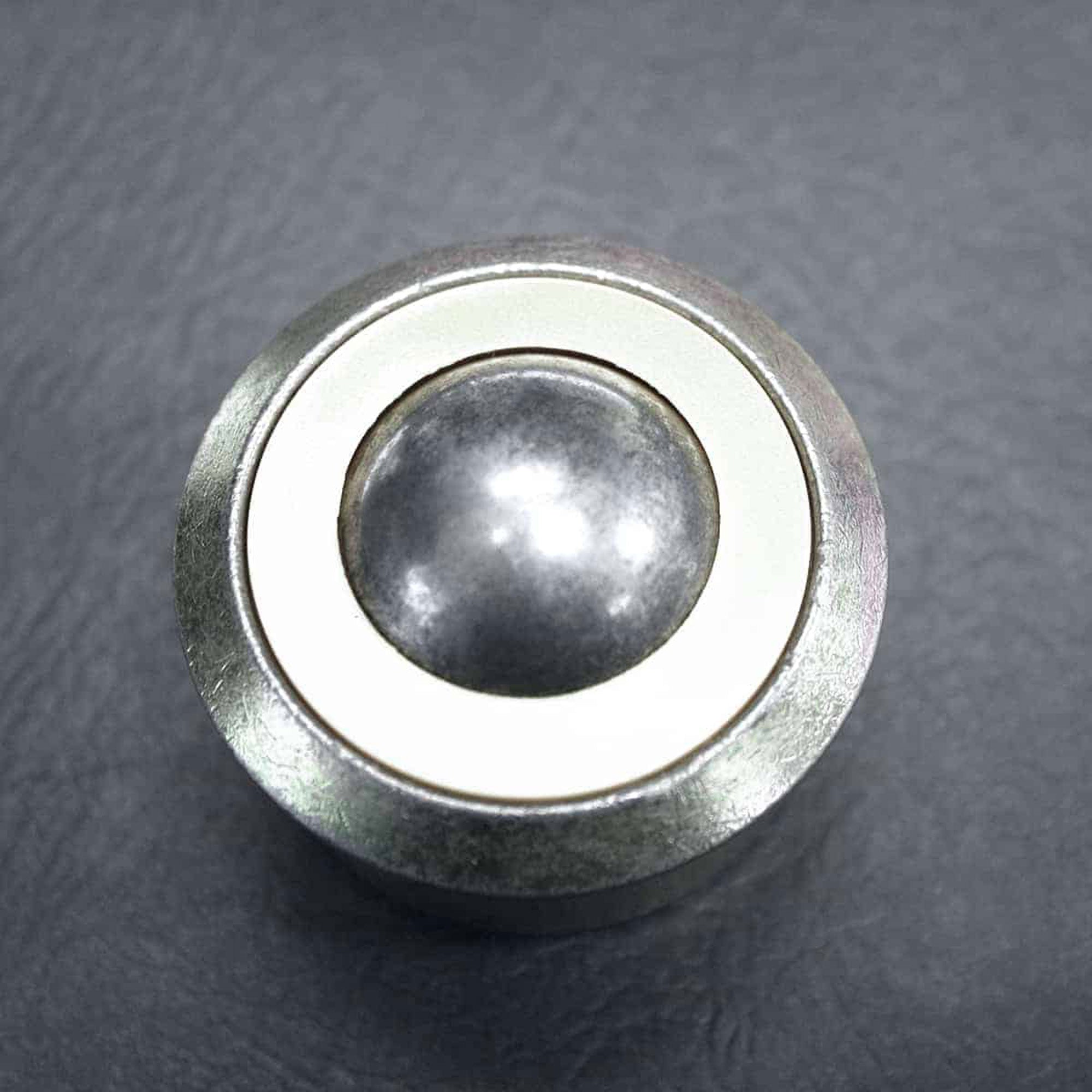

- Stainless Steel Ball Transfers
- Slam Latch Closure
- 500 lb Weight Capacity
Description

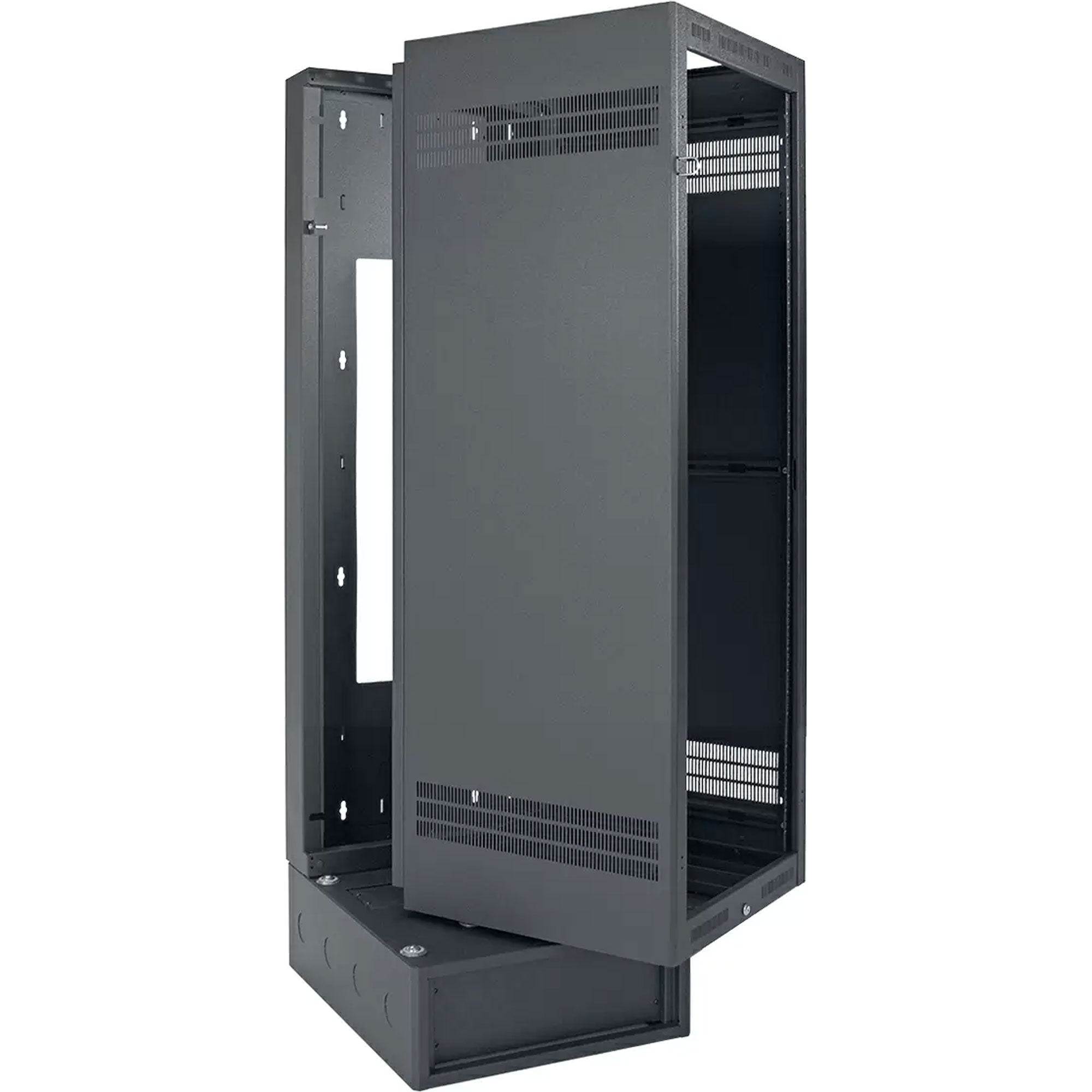

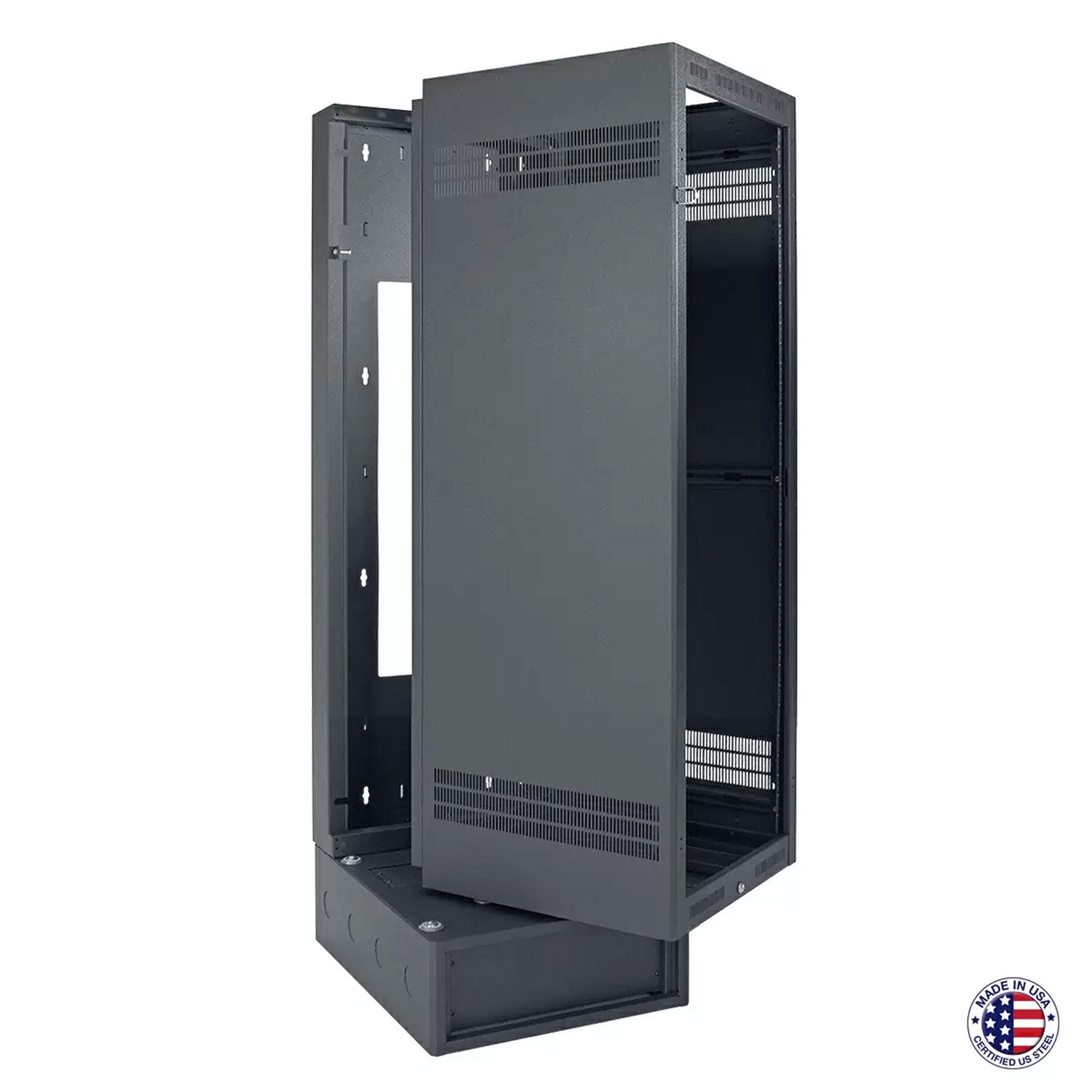

35 Space Wall-Mount Rack with Base, 32" Deep
Wall-mount rack swings open with a single-release grasp and pivots smoothly on internal spring-loaded hinges and stainless steel ball transfers set into the base, which adds an additional 4U to load capacity. Slam latch closure.
The E.I.A.-compliant LWBR is a pivoting cabinet that provides solid support and convenient access to equipment loaded in wallmount applications. The cabinet swings open easily using a single-release loop-style grasp with slam-latch closure. It pivots smoothly on stainless steel ball transfers set into the base. The base provides additional 4 rack units for electronic equipment or optional utility drawer. Open top features integral rack rail with E.I.A. spacing to support optional 19" E.I.A. fan panels. Key-lock on front secures cabinet to backbox while allowing side-by-side installations. Welded 16-gauge steel construction is finished with beveled corners and a durable black wrinkle powder epoxy paint. Front doors for cabinet and base are optional.
Features:
- Cabinet with welded sides opens with a single-release grasp, then pivots smoothly on stainless steel ball transfers, swinging 90 degrees to access equipment connections (field-changeable to left hand swing). Slam latch closure. Top opening with integral E.I.A. rail accommodates standard 19 in. accessories or included solid closure panels.
- One pair adjustable mounting rails tapped 10-32
- Backbox (4.69 in. deep) mounts on 16 in. centers. Large central cutout fits over wall obstructions. Removable knockout panel on top has knockouts for wireless antennas and combination knockouts for conduit.
- Support base (4U) has access panels and stainless steel ball transfers to support cabinet
- Black wrinkle powder epoxy finish
- Load capacity 500 lbs.
- Pilot Point screws with captive washers
- Backbox: 4.69" deep backbox mounts on 16" centers and
- features a large central cutout.
- Base: Stainless steel ball transfers in base allow cabinet to pivot smoothly under a 500 lb. load. Base includes two access panels (top and front). By removing the front panel you gain an additional 4 rack units of space.
- Cabinet: Pivots 90-degrees for access to equipment connections. Right-hinged swing can be changed to the left using internal spring-loaded hinges. Sides are vented at top and bottom. Vents have notches to mount optional single-fan kit.
- Cable Management: Removable knockout panel on top of backbox features (.5") knockouts for wireless antennae and combination knockouts (.75"-.5" and 1.5"-1") for conduit.
- Top: Top opening with integral E.I.A. rail accommodates standard 19" panels. Two solid panels used as shipping stiffeners can also be used to close the top.
- Adjustable Mounting Rails: Includes one-pair of adjustable mounting rails with printed scale to aid equipment installation. Rails are recessed .63" from front, allowing 1.38" clearance between equipment knobs and optional front door.
- Made in the U.S.A. with 100% certified U.S. steel
Specifications:
- Rack Space: 35U (+4U in base)
- Rack Height: 77.03 in.
- Rack Width: 23.06 in.
- Rack Depth: 32.40 in.
- Useable Depth: 30.00 in.
- COMPLIANCE & CERTIFICATION
- EIA/TIA compliant
- RoHS compliant
- Certified U.S. steel
- Made in Missouri, U.S.A.
