Lowell IM12Q-TS100-3SW iMount Speaker System

iMount 250W Speaker System, 12", 70V

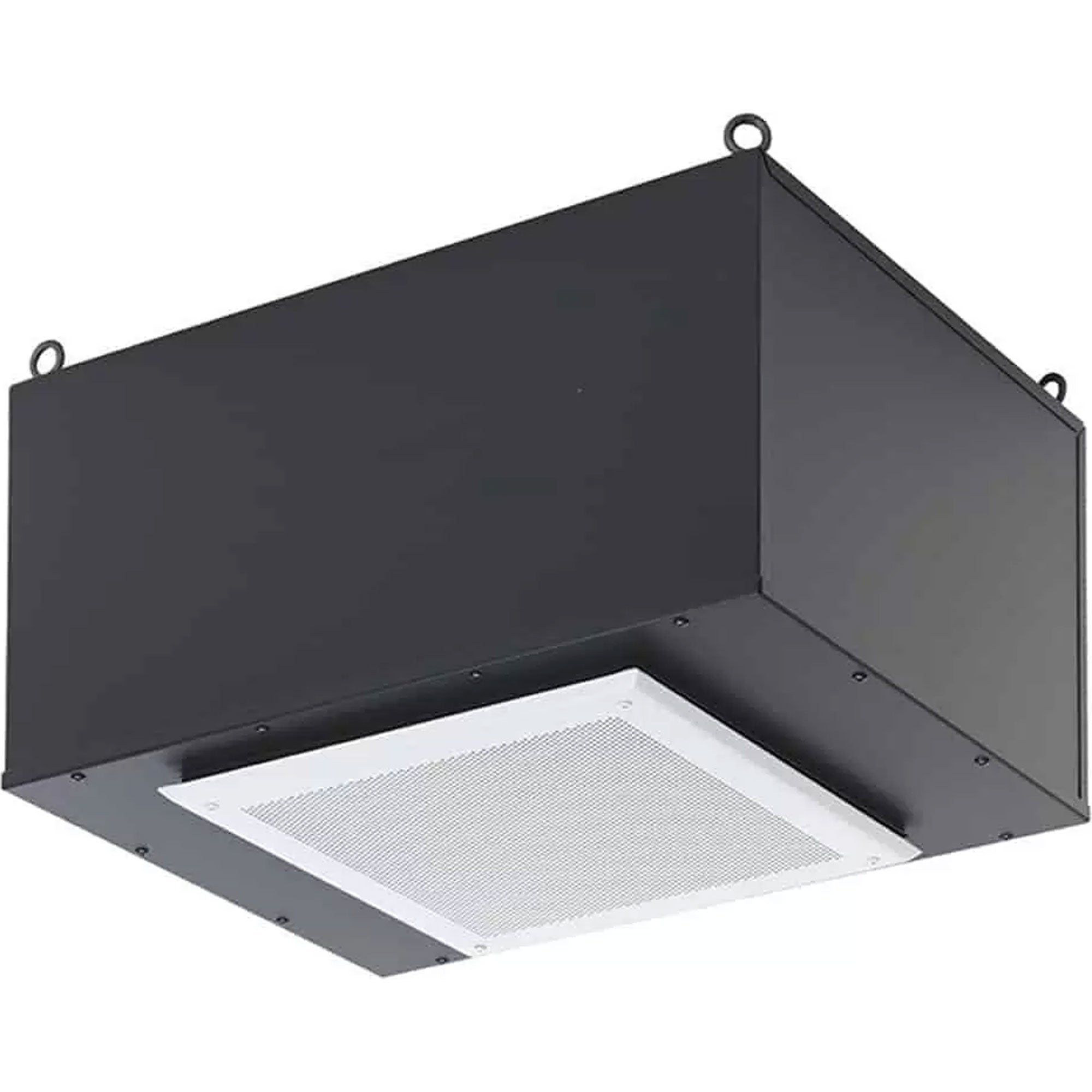

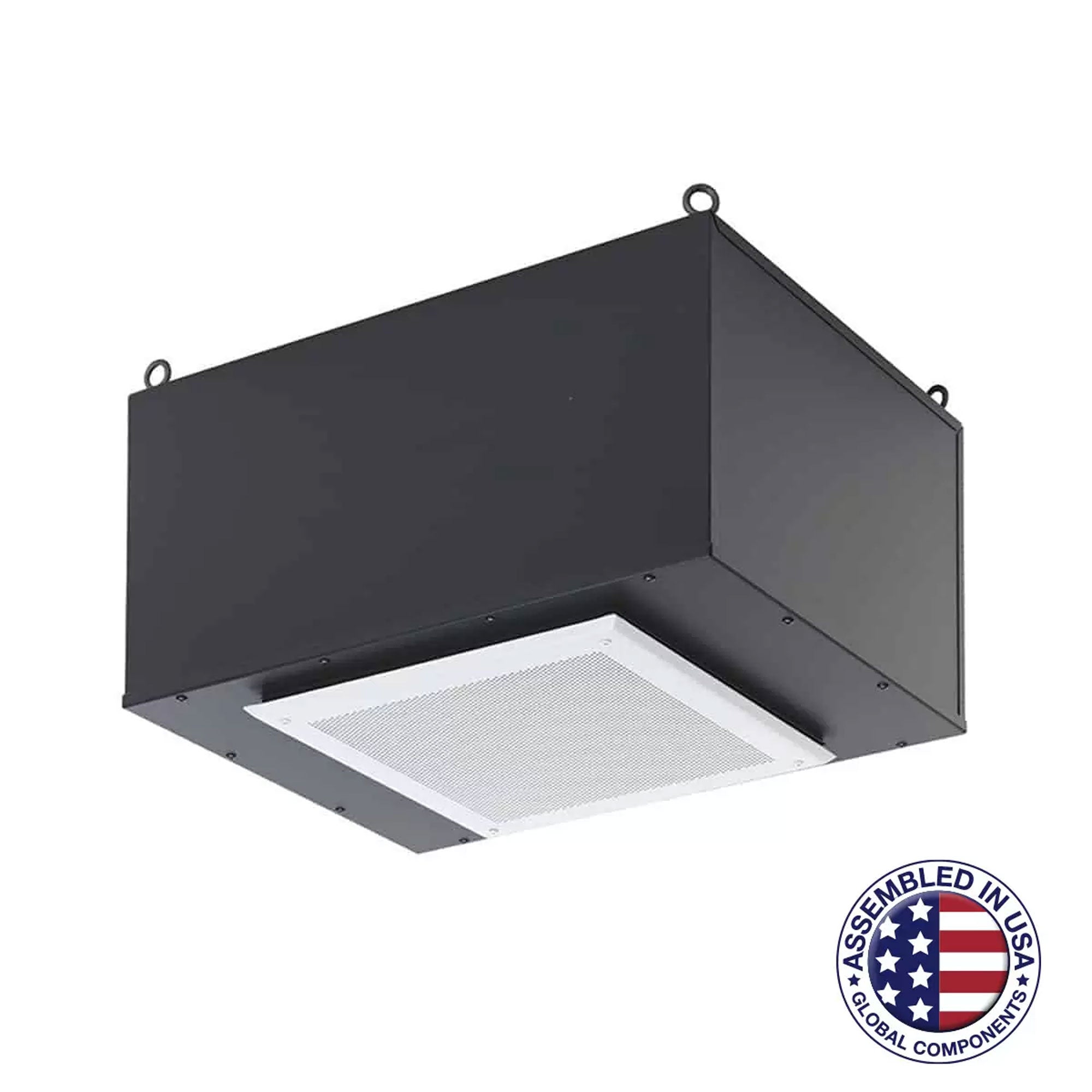

The iMount Speaker systems provide specifiers and systems integrators with versatile packaged solutions for high performance suspended speaker installations. Model Group IM12Q features Lowell's 12" speaker Model 12Q250 (250W) mounted in a rectangular 3 cu.ft. acoustic enclosure with installed 1/4" - 20 forged eyebolts and square architectural grille in white. Ready-to-install systems feature externally accessible speaker connections and 20/20 AudioVision transformer (noted model only) for superior music fidelity in distributed applications. Systems are ideal for high ceiling and/or high energy applications such as convention centers, hotel ballrooms, athletic and educational facilities, airport terminals, and entertainment venues. Systems are shipped one per carton with a steel plate mounted over the speaker to protect it during shipping and installation.

Features:

• Packaged solution for high performance suspended speaker installations.
• 250W system reproduces music with exceptional quality.
• Installation is fast and easy with premounted eyebolts and externally accessible connections.
• 20/20 AudioVisionTM transformer 100W (noted model only).
• Each assembly includes:
• 3 cu.ft. acoustic enclosure
• 250W speaker Model 12Q250 (8-ohm)
• Optional 70V 100W transformer
• White architectural grille
• 1/4" 20 forged eyebolts
• Wiring terminated through a 4" x 4" flush cover plate

Includes:

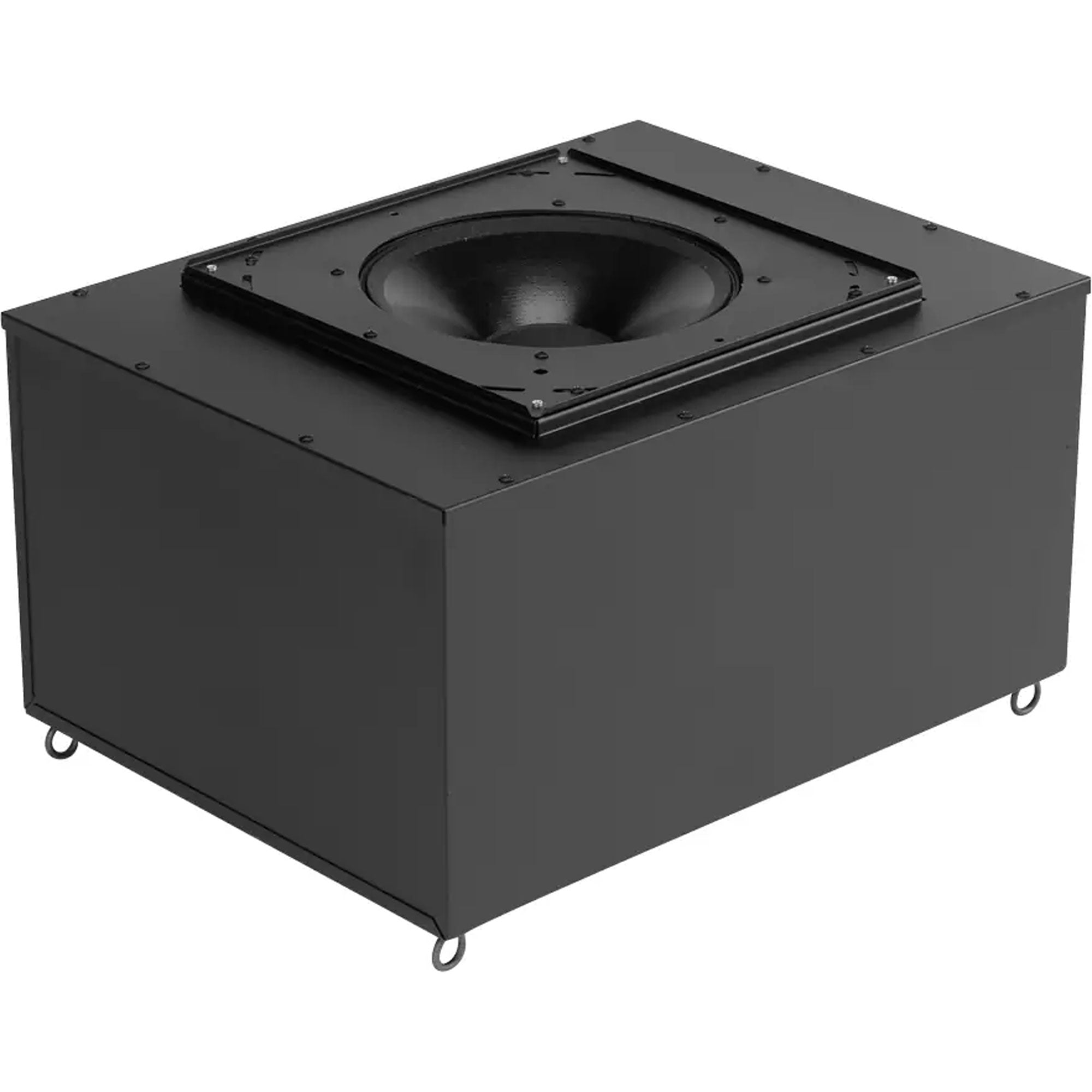

• Driver (12Q250): 12 in. (8 ohm) 250W driver features a robust motor structure with 77 oz. magnet and 4 inch edge-wound aluminum voice coil. The 5.3 in. mylar dome tweeter features a 42oz. magnet and 1.75 in. voice coil for an exceptional combination of power handling and efficiency. A built-in crossover network with fourth order high-pass and fourth order low-pass filters accomplishes proper frequency division between the two drivers. Driver frame is cast aluminum with black corrosion-resistant finish. A steel plate is mounted over the driver to protect it during shipping and installation. Remove it to mount the grille.
• Transformer (TLS-10070): 70V 100W transformer for superior music fidelity in 70V distributed applications. This 20/20 AudioVisionTM transformer offers true 20Hz-20kHz performance. A screwdriver-adjustable tap selector switch is accessible behind the grille. Note: Lowell 20/20 AudioVisionTM transformers have full frequency response and high power handling which allows the speaker to operate at full potential while providing a stable load to the amplifier. The transformer allows a distributed speaker system to sound imperceptibly the same as a transformer-less direct-to-voice-coil system but with easier wiring, reduced labor and less expense.
• Grille: Square perforated steel grille with white powder epoxy finish is ideal for applications where the speaker is suspended in a tile, sheetrock or plaster ceiling. 15.25 in. square x 0.375 in.

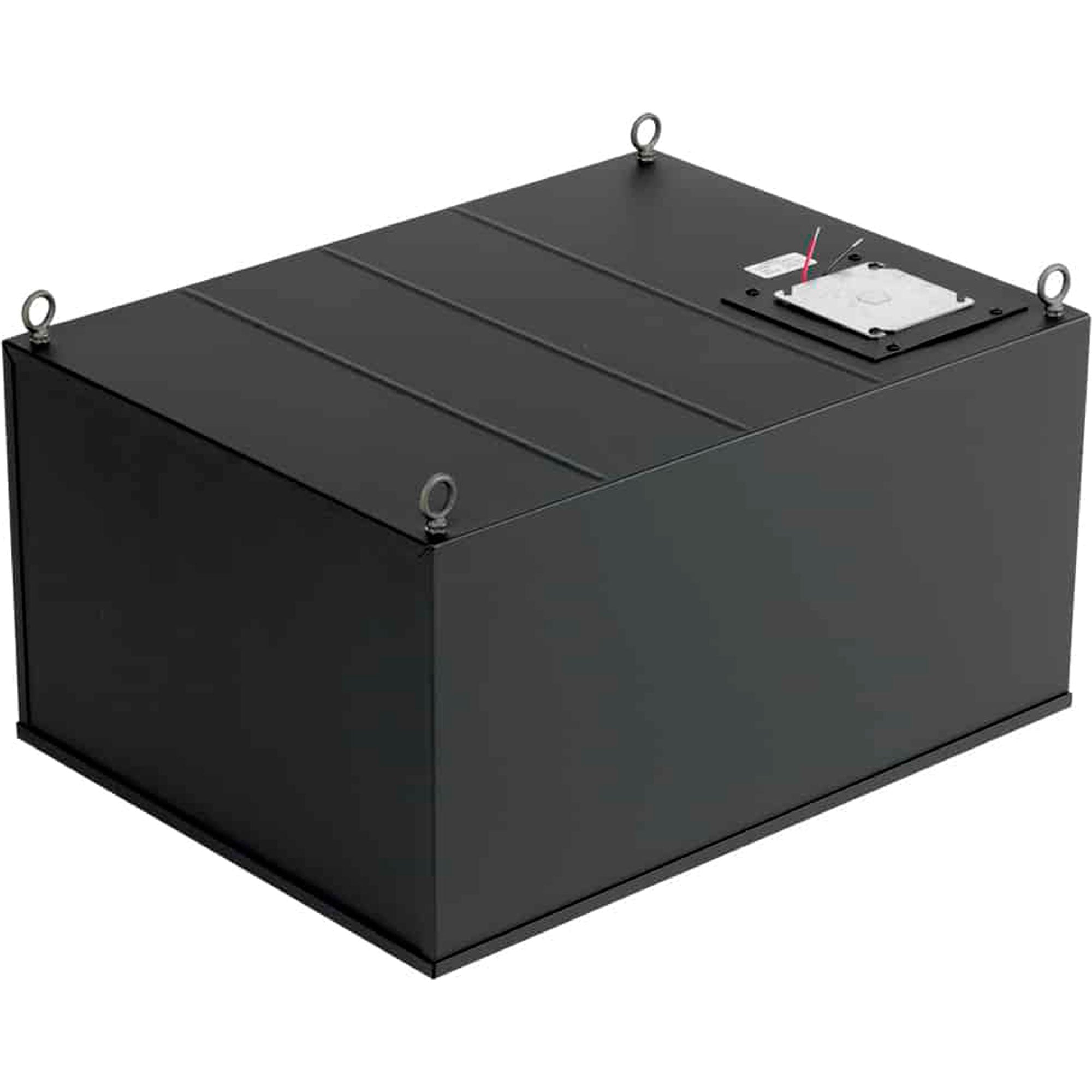

• Enclosure: 3 cu.ft. precision-formed steel enclosure (23.94 in. x 18.19 in. x 12 in.) features anti-vibration ribs, sound-stop board, 1-1/2 in. thick premium acoustic lining and forged 1/4 in.-20 eyebolts screwed into mounting nuts for secure suspended installation (using flyware by others). Externally accessible connections are terminated through a 4 in. x 4 in. flush cover plate. Black powder epoxy finish.
