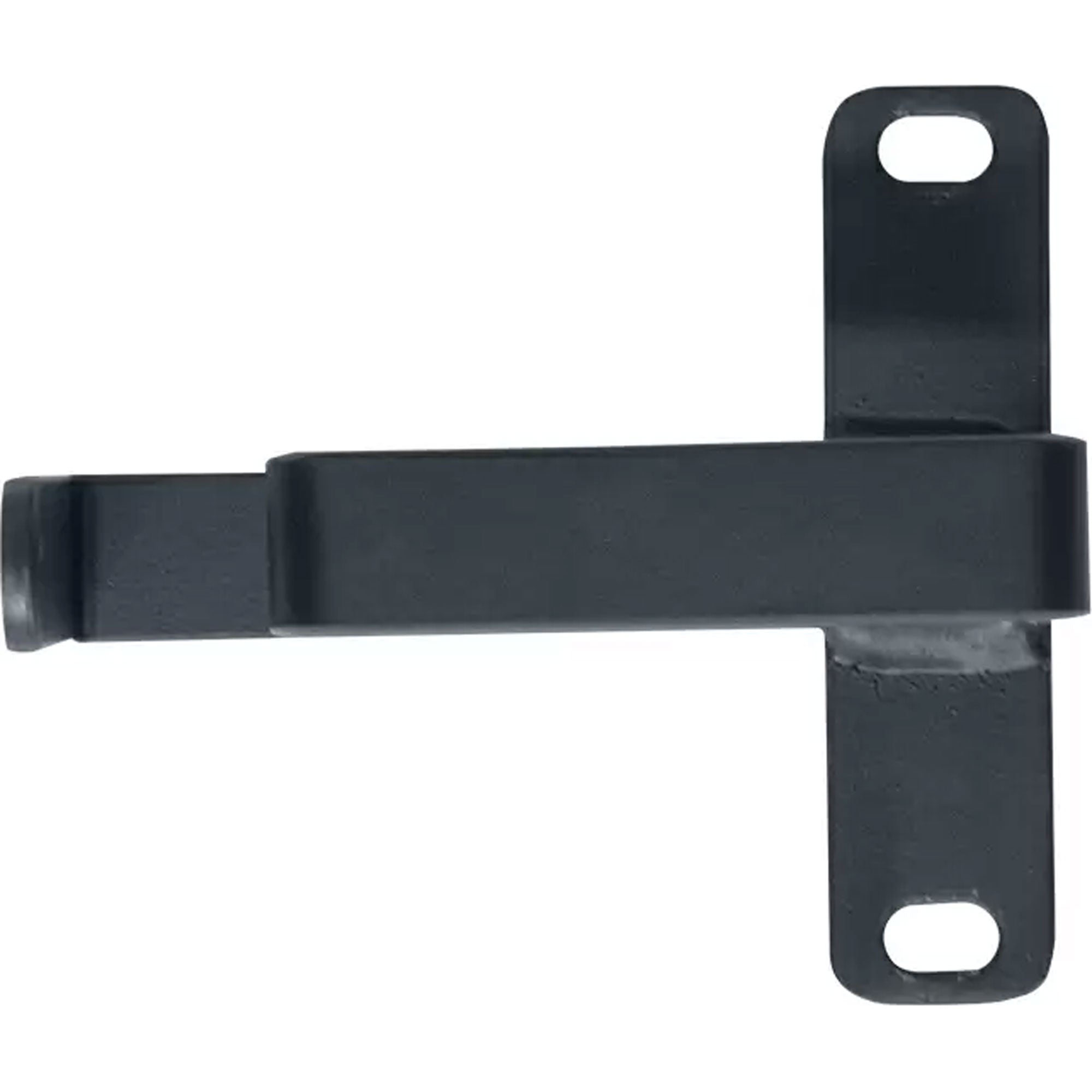

Lowell CMD-2V Single D-Ring with Bracket

Single D-Ring Welded to 2U Bracket

The 19" EIA rackmount panels for cable management provide solutions for organizing wire and cable in telecommunications, audio-visual and broadcast applications. The CMD-series cable manager is a 1U or 2U rackmount panel of 16-gauge steel, formed on two sides and finished in black powder epoxy paint. D-rings are formed from 0.125" (cold-rolled steel) and welded for stability of medium to large cable bundles. Each 1U model includes D-rings (1.63"H x 3.75"D), while each 2U model includes D-rings (3.25"H x 3.75"D) for horizontal cable management.

Model numbers with "HV" suffix also include D-rings (3.25"H x 3.75"D) on the ends -extending past 19"W-for vertical cable management (for use with open frame data racks-LRR-series).

Features:

• Made in the USA
• Rackmount panel is made from 16-gauge steel with black powder epoxy finish
• D-rings are formed from 0.125" (cold-rolled steel) and welded for stability of medium to large cable bundles.
• Model No. CMD-1H: 1U rackmount panel with D-rings for horizontal cable management.
• Model No. CMD-2H: 2U rackmount panel with D-rings for horizontal cable management.
• Model No. CMD-1HV: 1U rackmount panel with D-rings for horizontal and vertical cable management - for LRR-series racks.
• Model No. CMD-2HV: 2U rackmount panel with D-rings for horizontal and vertical cable management - for LRR-series racks.

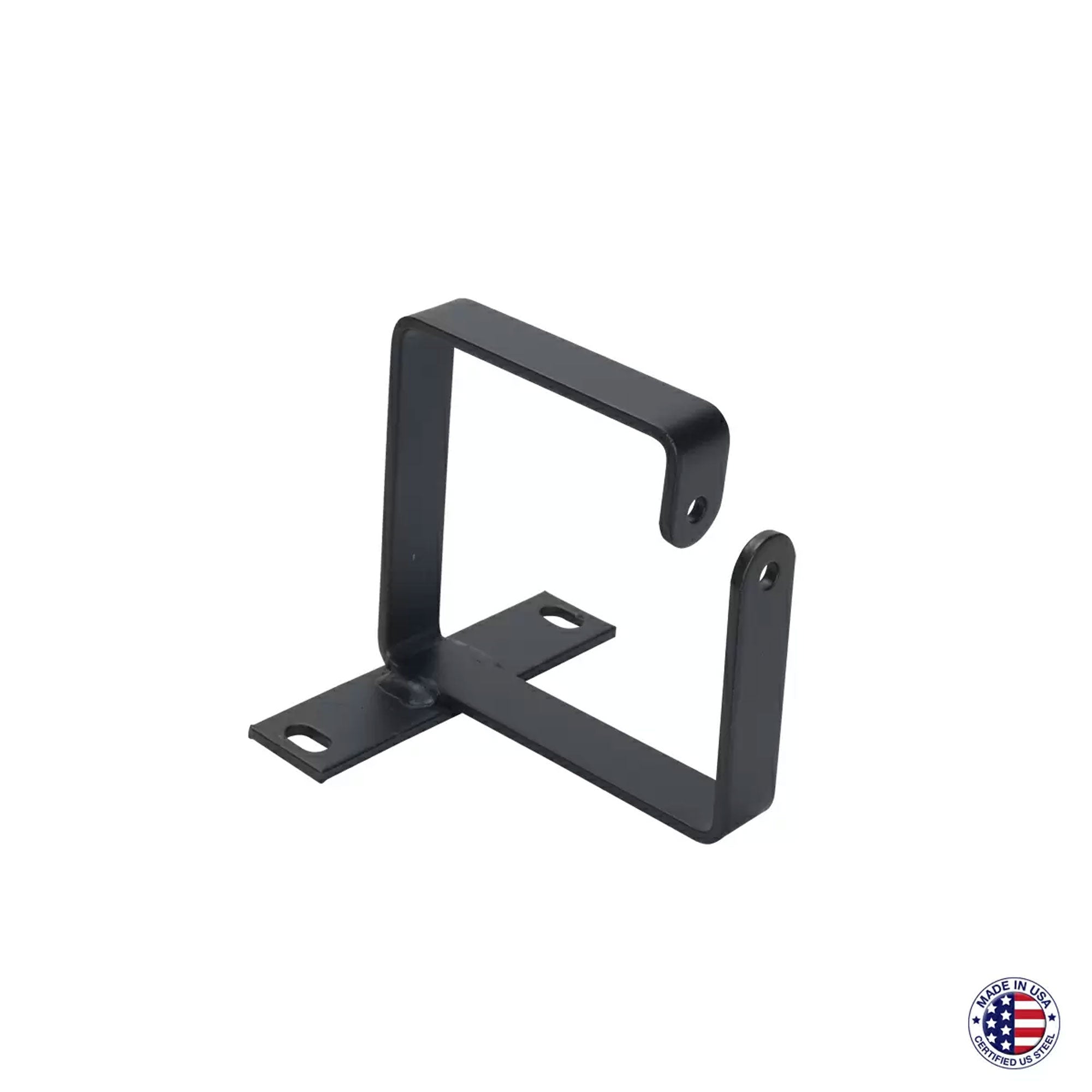

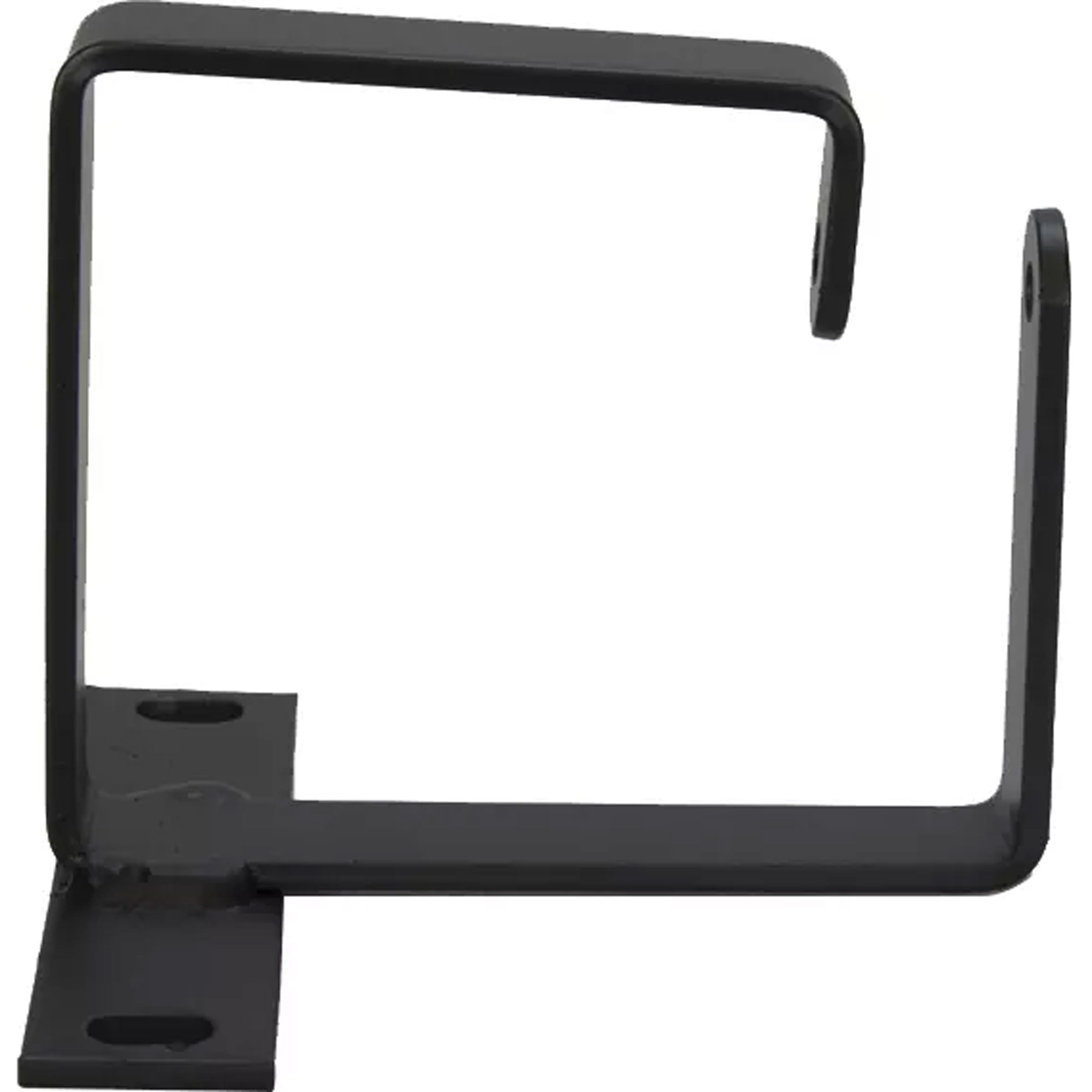

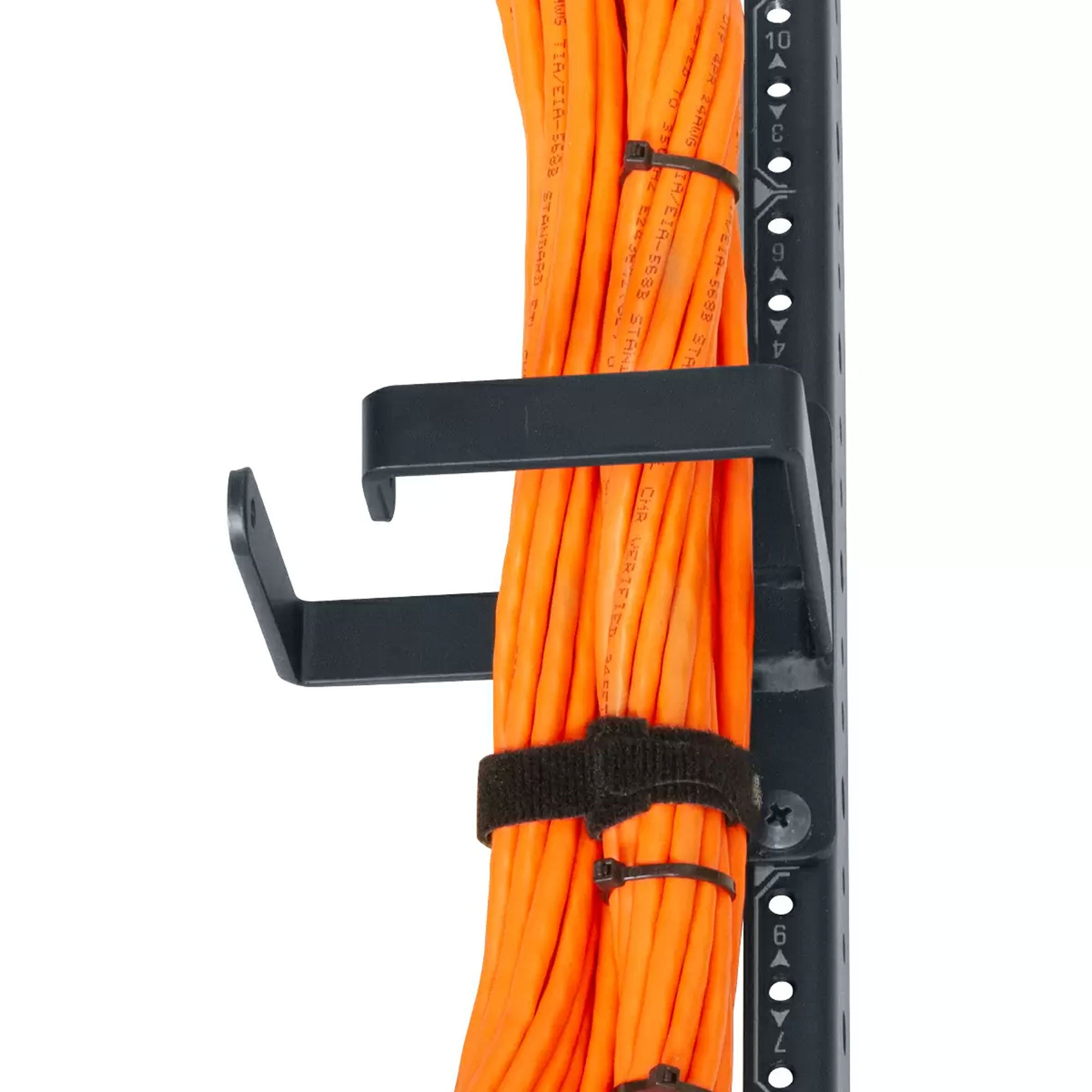

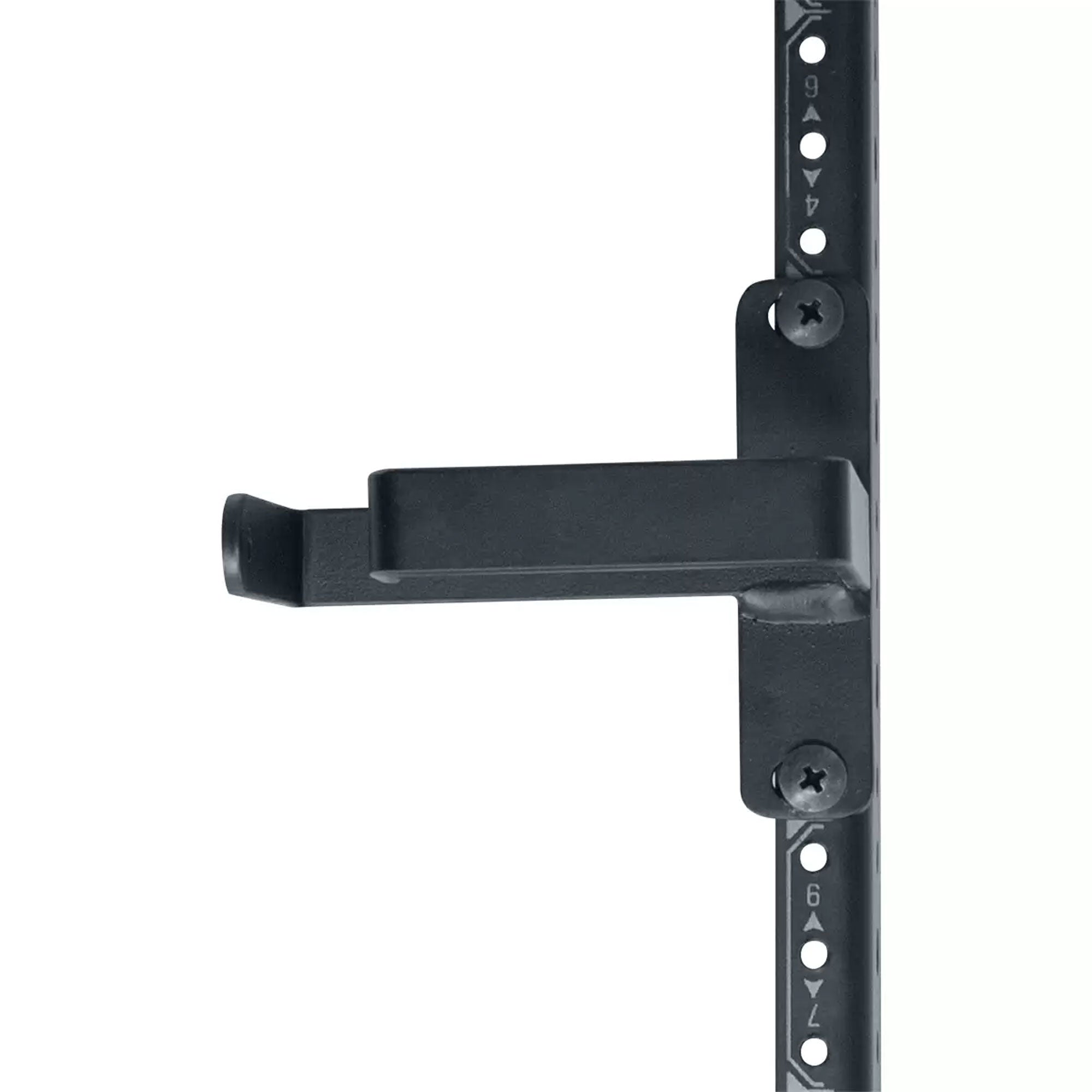

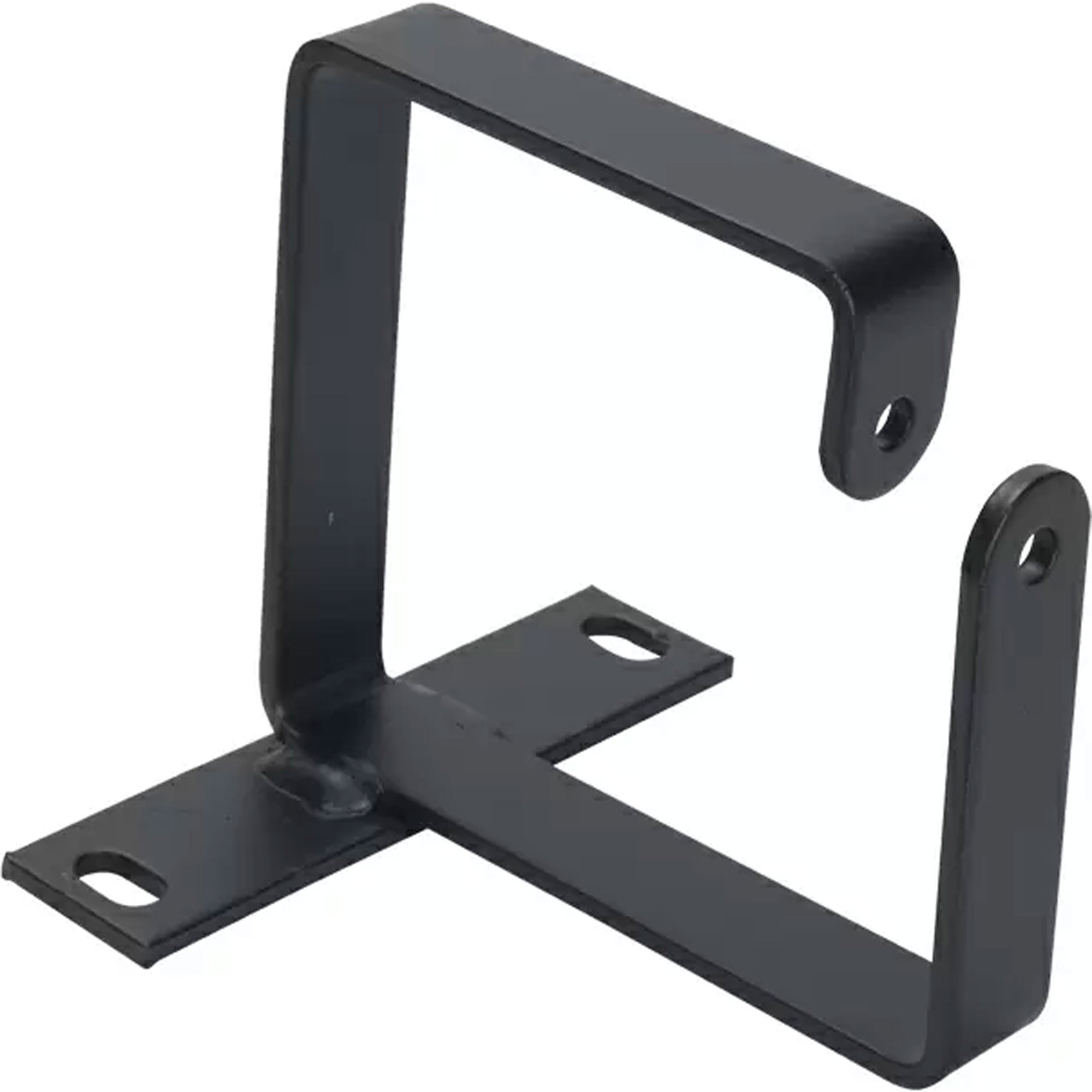

• Model No. CMD-2V: Single D-ring welded to 2U bracket that's punched on EIA spacing (3.5"H x 0.875"W) for localized cable routing on front or rear mounting rail or on a wall.
