Lowell AP-300 Grille for Analog Clock/Speaker

Grille/Frame for Analog Clock/Speaker Center

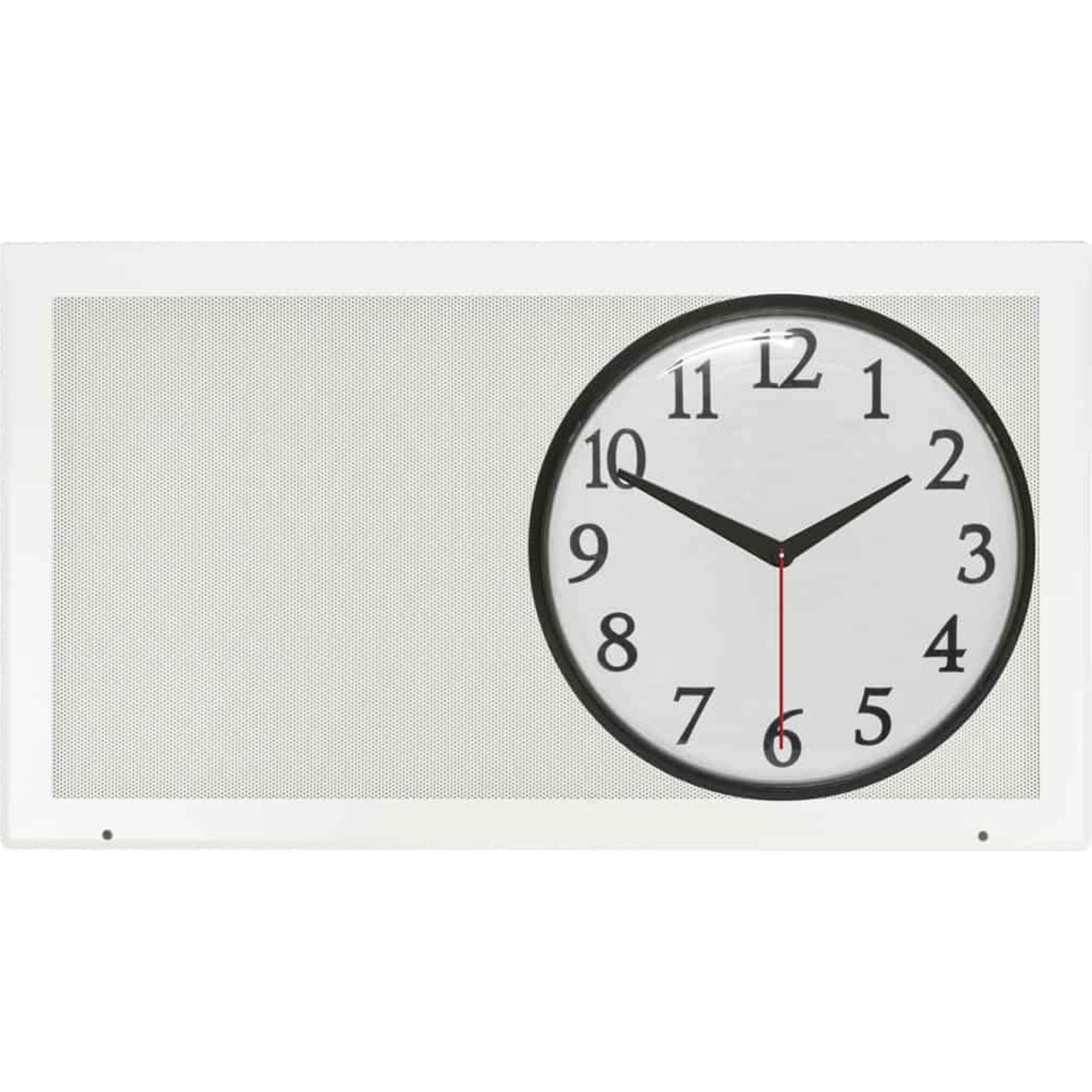

Grille/frame designed to accept a paging speaker, standard 12 inch analog clock and recessed backbox. Clock, speaker, and backbox are not included.

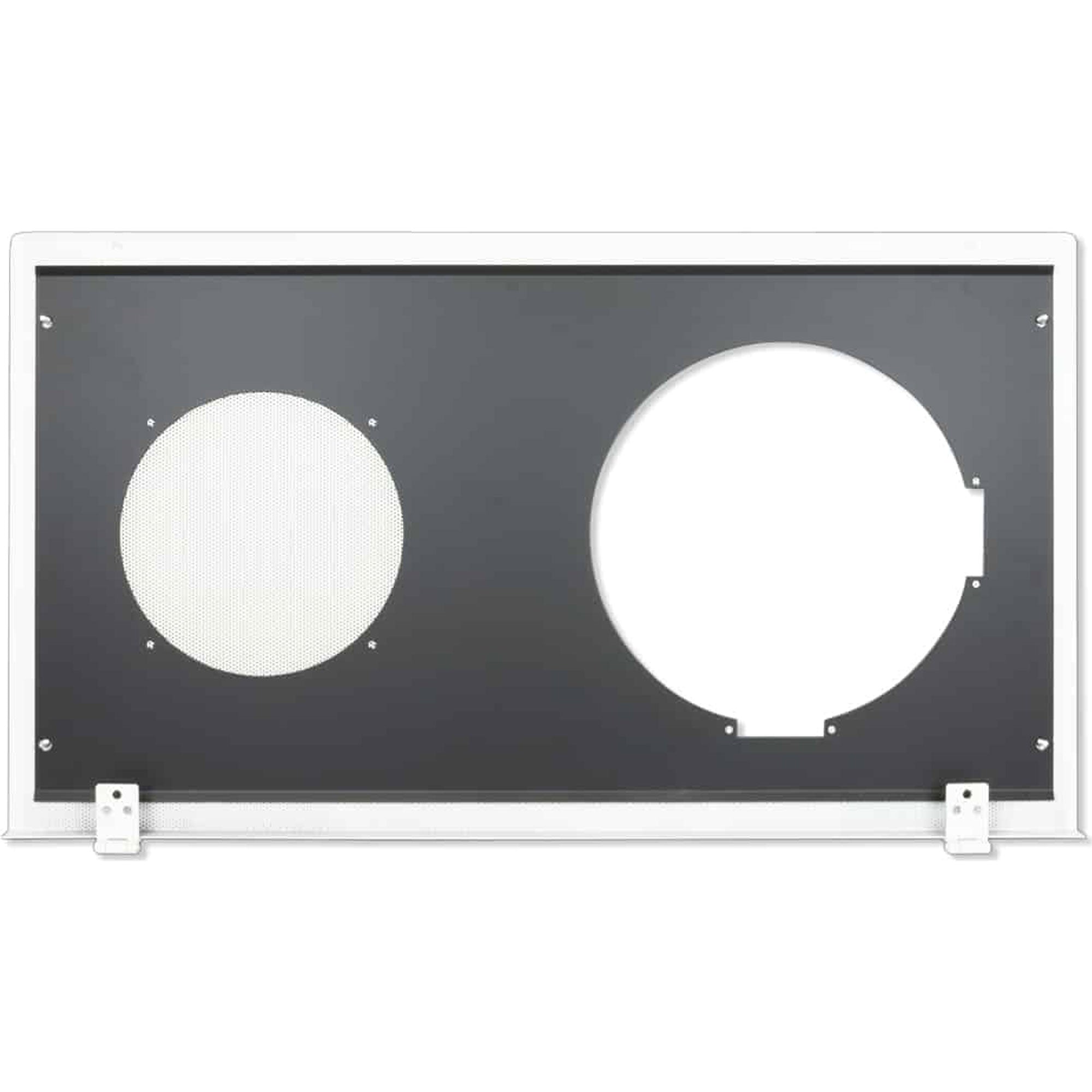

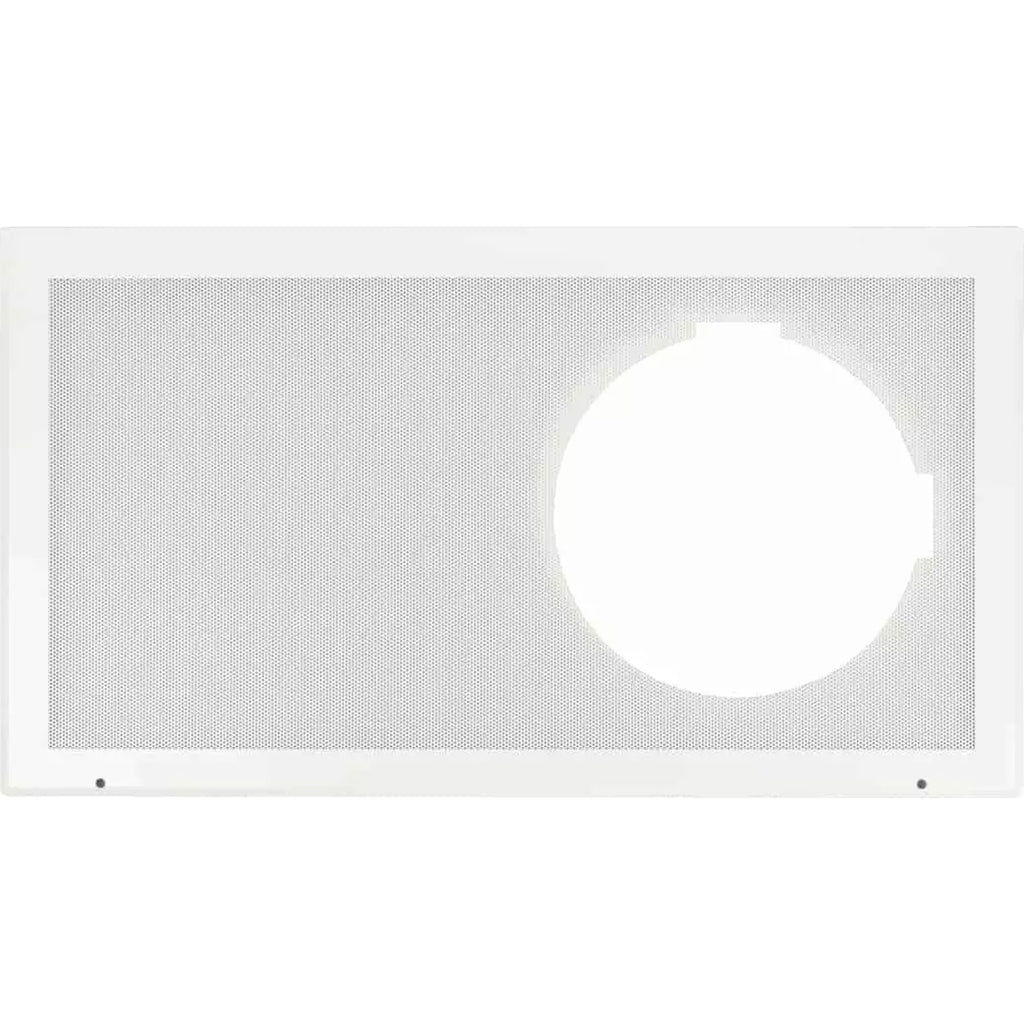

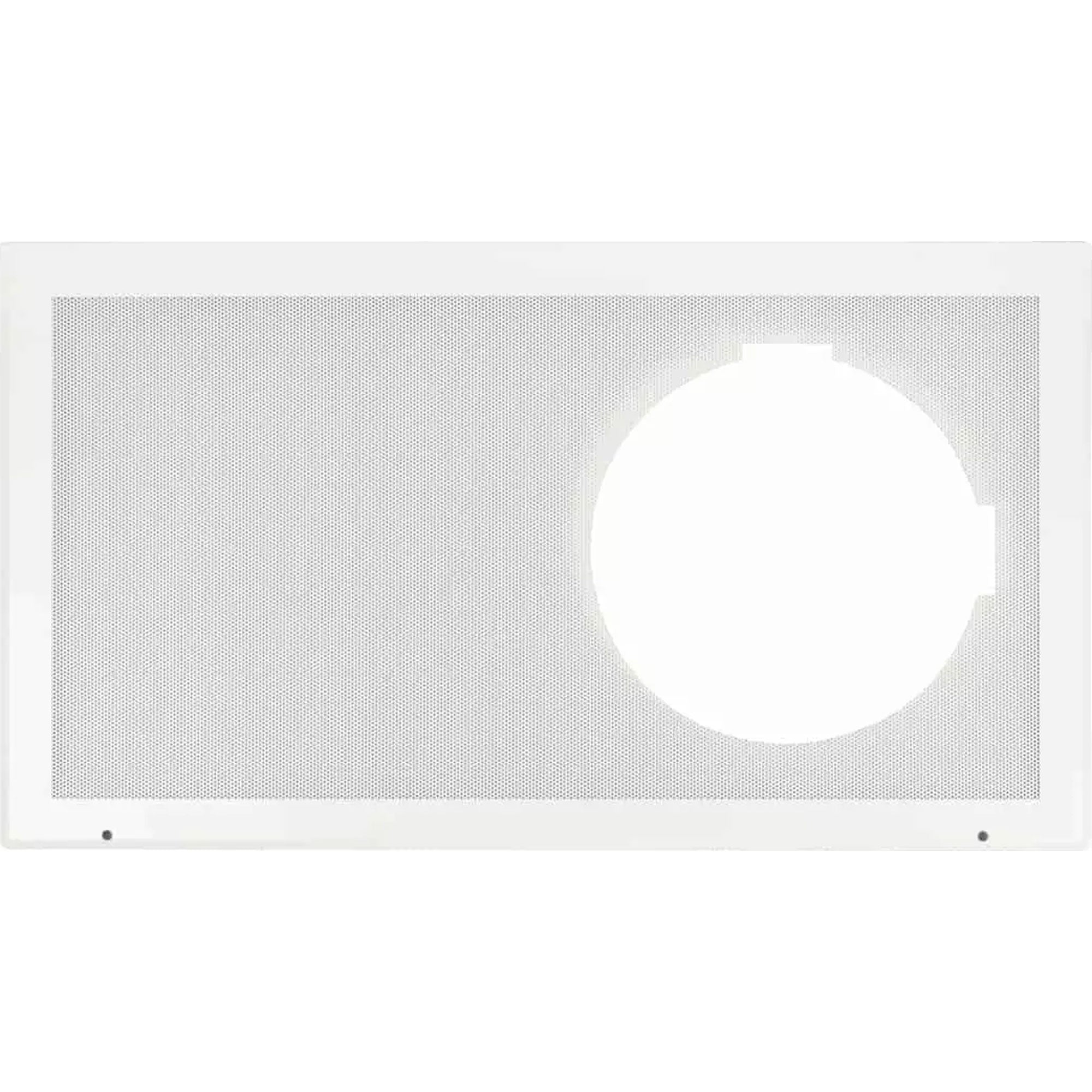

Grille Model AP300: two-piece (grille/subplate) assembly. The grille is formed from a single piece of 18-gauge steel and has a full-perforation face and integral frame border. The subplate features a cutout for a standard 12" analog clock (by others) on one side and a cutout for an 8" speaker (ordered separately) on the other. Includes provisions and hardware to attach the universal mounting bracket (for the clock) in horizontal or vertical orientation. The subplate features welded studs to install an 8" speaker. The subplate mounts to the grille (after bracket and speaker installation) using four screws. The grille/subplate assembly will mount to recessed backbox model PC312 with hinges and screws for easy service access with security. Grille dimensions are 27.25"L x 17"W. The subplate is finished in black powder epoxy; grille is finished in white powder epoxy.

Specifications:

• Two-piece (grille subplate) assembly. Subplate mounts to grille after bracket/speaker installation.
• For recessed installation, horizontal or vertical orientation
• Grille: 27.25 in. x 17 in. formed from single piece 18-gauge steel. Full-perforation face, integral frame border.
• Subplate: Two cutouts (one for standard 12 in. analog clock, one for 8 inch speaker).
• COMPLIANCE & CERTIFICATION

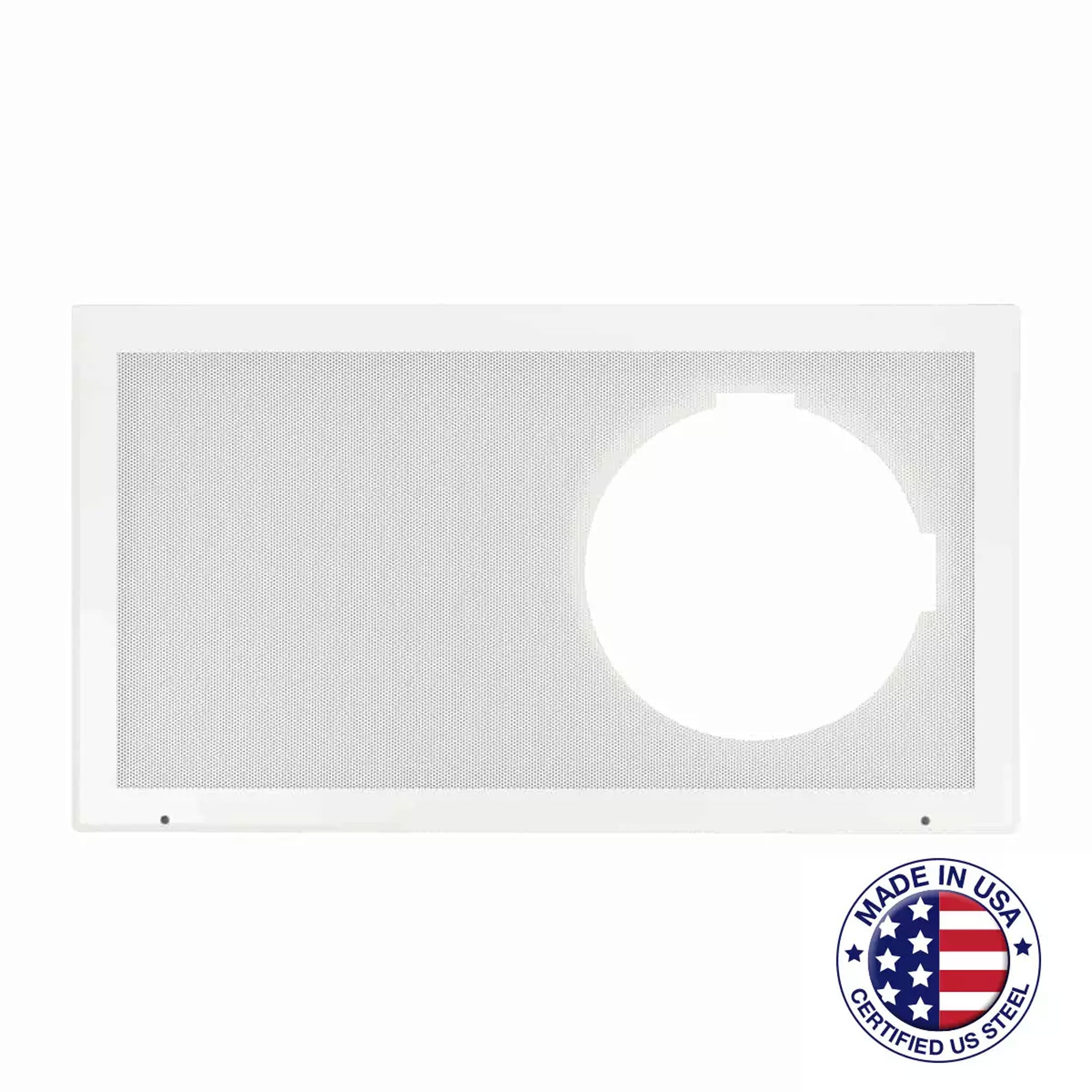

• Made in the U.S.A.
