Lowell ACSPR-2009 Rackmount Power Panel

19" Rackmount Power Panel with Surge Protection

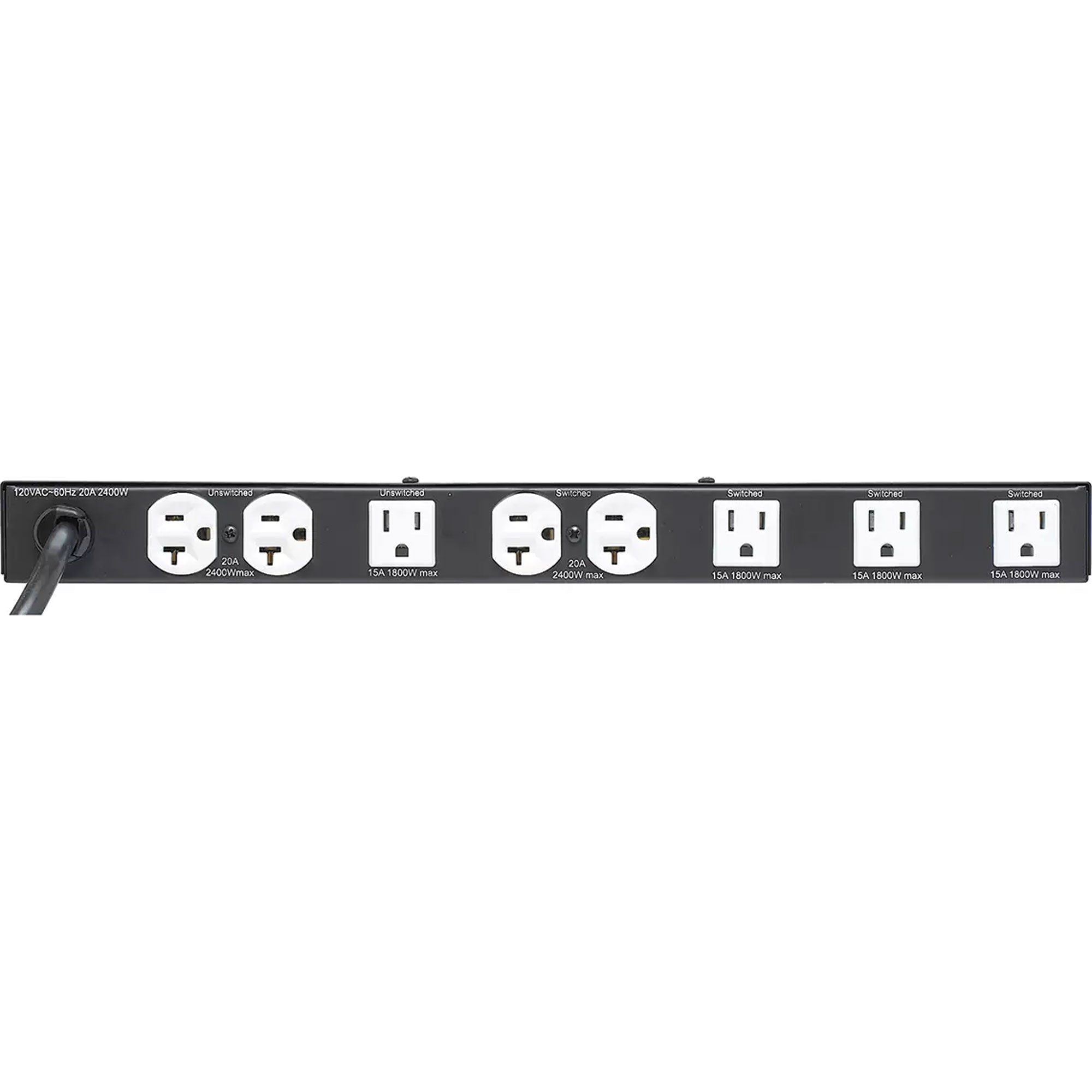

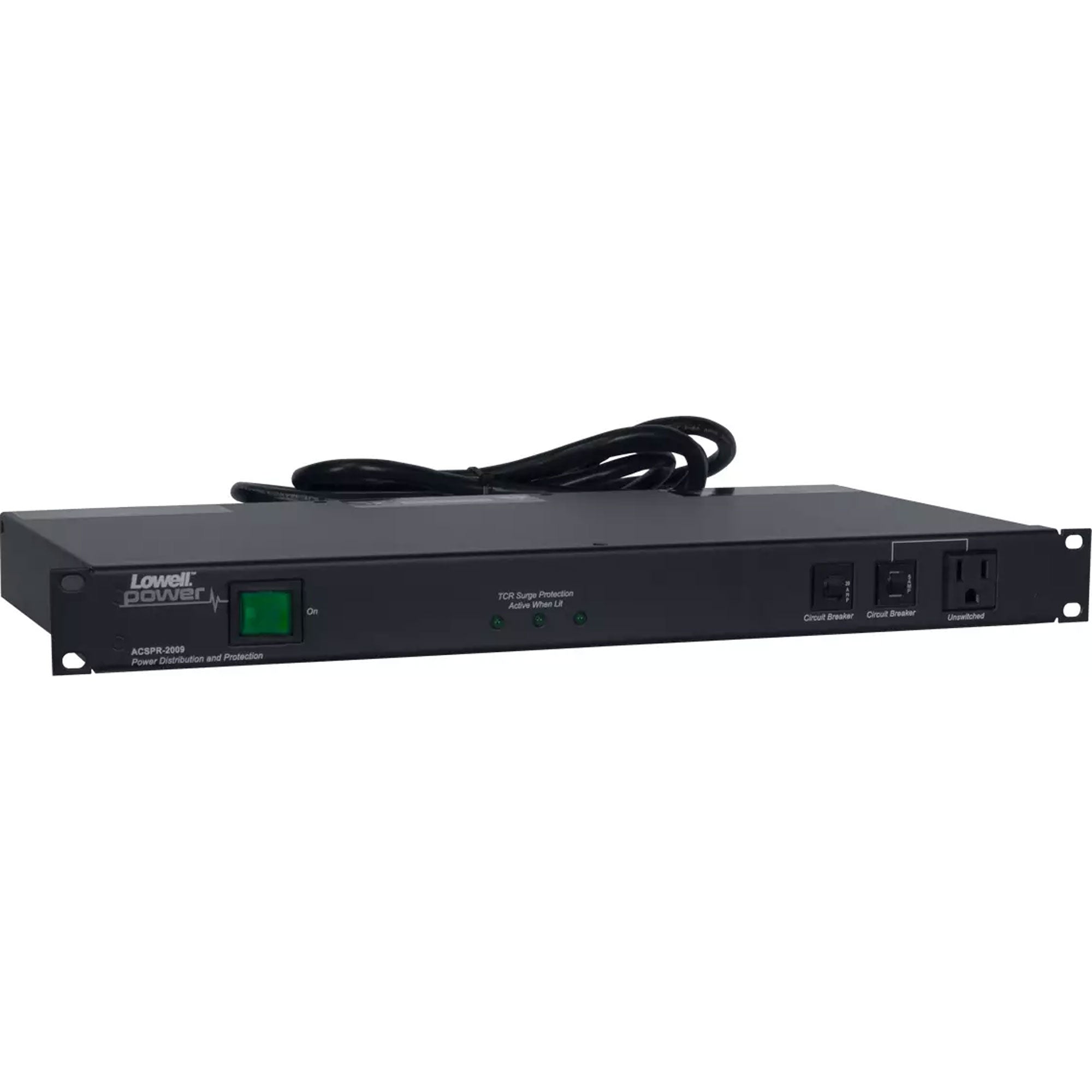

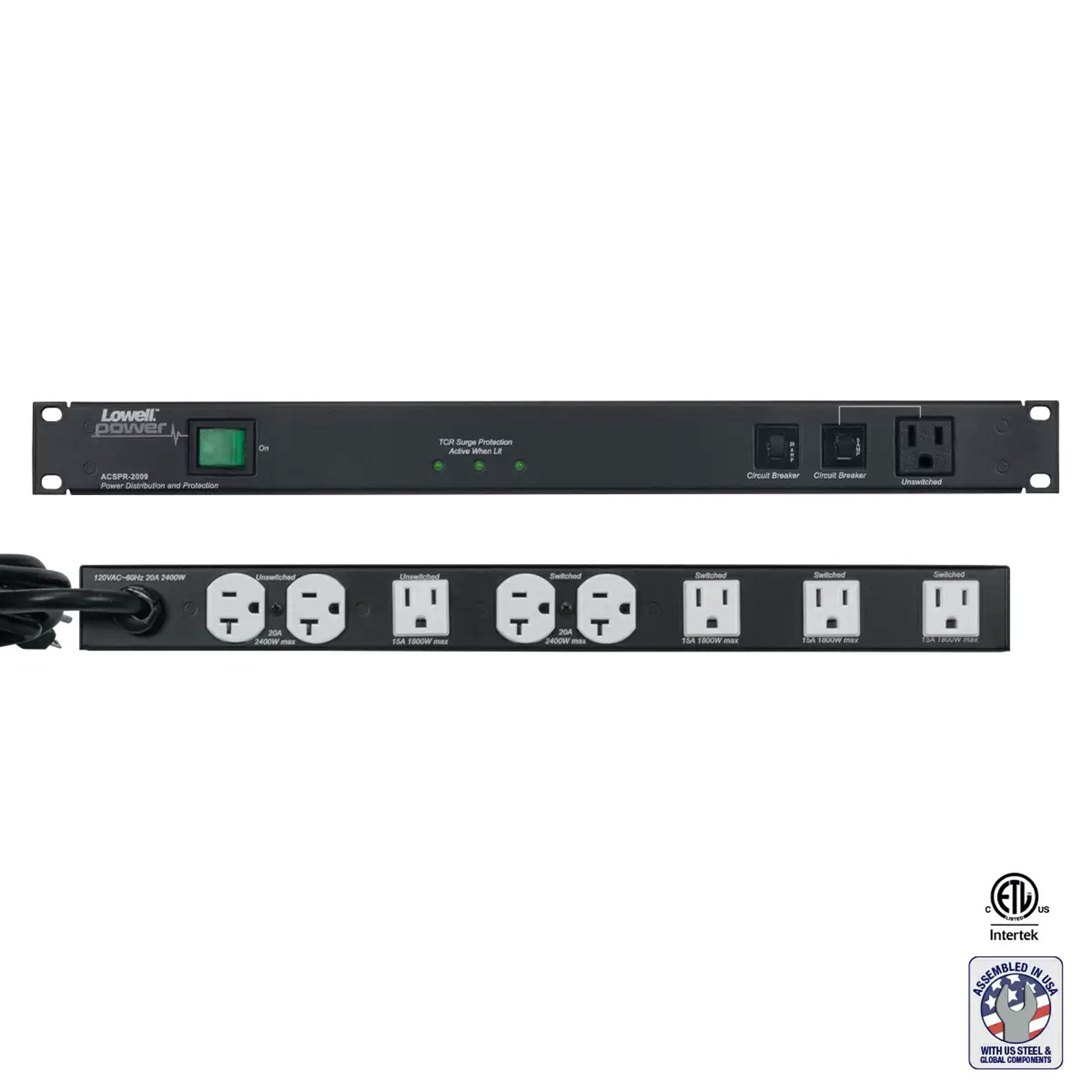

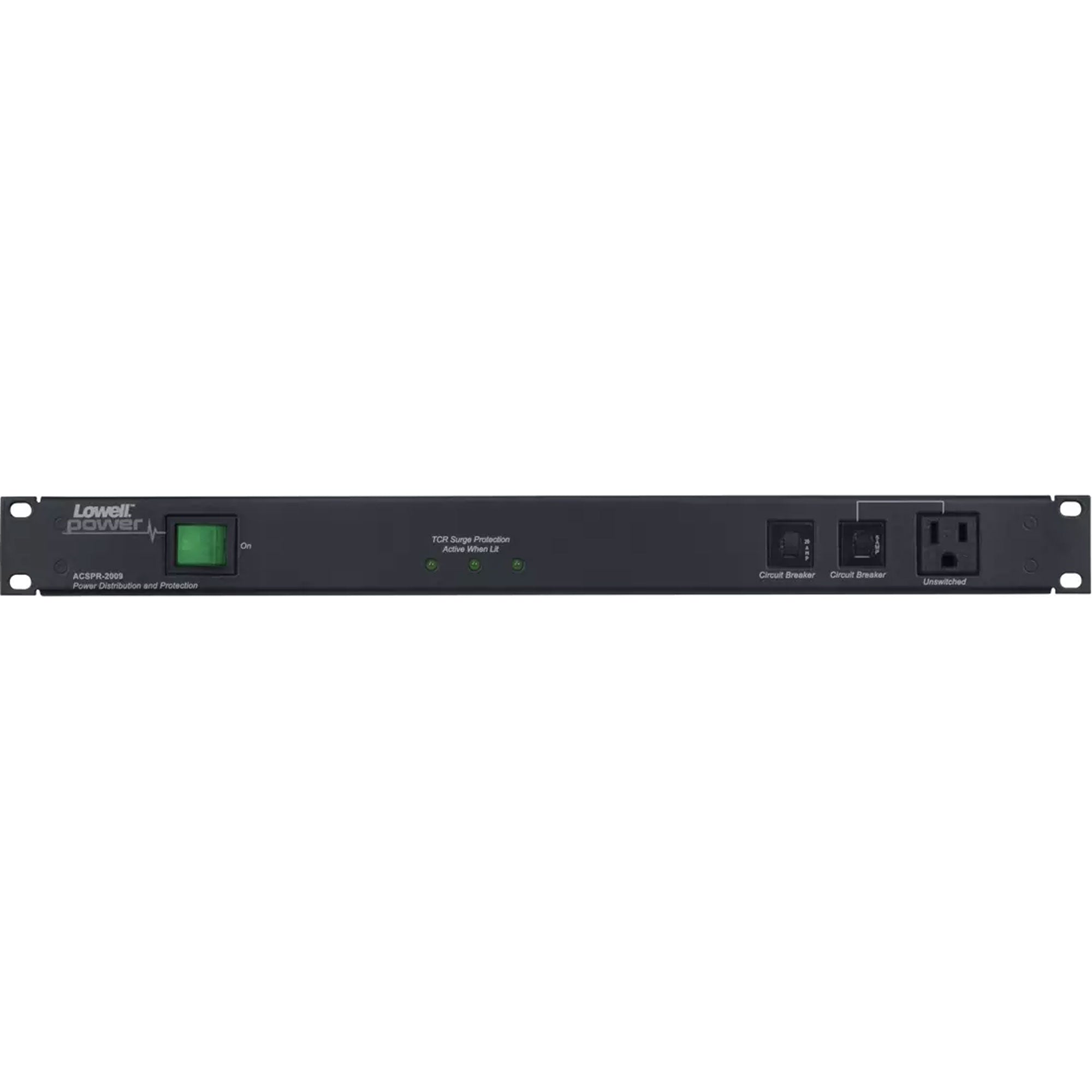

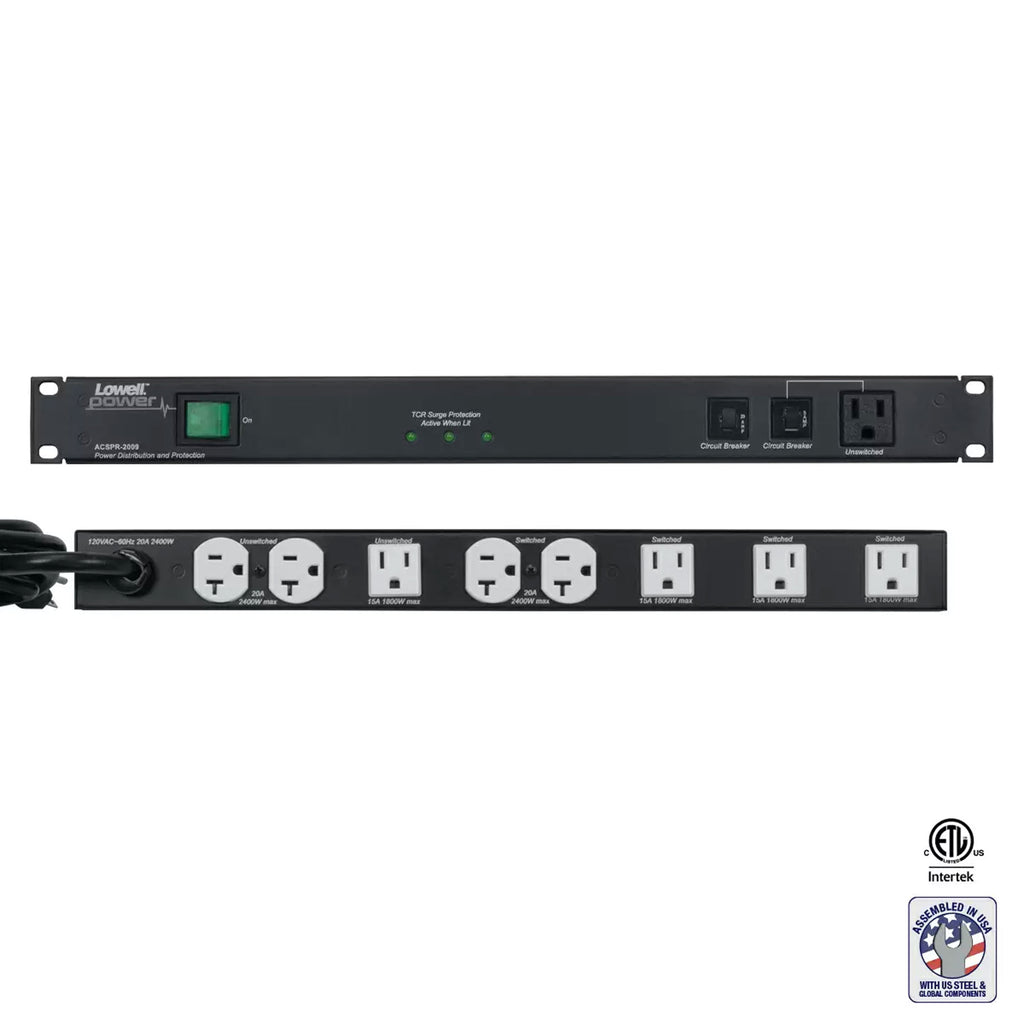

Feature strong family of AC power panels let you select the options and protection criteria you need to meet specifications. All models are ETL Listed assemblies in a slim rackmount chassis size 19"W x 9"D x 1.75"H (1U). The front panel includes a lighted on/off actuation switch, a 20A system circuit breaker and a receptacle (always on) that is independently protected by a 5A circuit breaker. The rear panel layout has one unswitched duplex outlet, one unswitched single outlet, one switched duplex, three switched single outlets and a 9 foot cord with NEMA 5-20P plug.

Model ACR-2009 is a 20A power panel with all features noted in the description paragraph.

Model ACSPR-2009 is a 20A power panel with the features noted in the description paragraph plus line-to-neutral surge suppression. The surge suppressor is UL1449 third edition and ANSI C62.41 compliant to defeat surges up to 72,000A. The front panel includes multi-color LED's for visual identification of system status.

Model ACSPR-2009-VTE is a 20A power panel with the features noted in the description paragraph plus line-to-neutral surge suppression plus over/under voltage protection. The surge suppressor is UL1449 third edition and ANSI C62.41 compliant to defeat surges up to 72,000A. The front panel includes multi-color LED's for visual identification of system status. Lowell's over/under Voltage Tolerance EnvelopeTM (VTE) circuitry with auto reset turns all receptacles off when line voltage exceeds 140V or drops below 100V for circumstances such as extended line voltage rises or sags. Following a voltage tolerance shutdown, the unit will automatically restore power to the receptacles when the unit detects acceptable line voltage.

Features:

• 20A power panel with circuit breaker.
• Models with surge suppressor are UL1449 third edition and ANSI C62.41 compliant to defeat surges up to 72,000A.
• Models with VTE over/under voltage protection turn receptacles off when voltage exceeds 140V or drops below 100V.
• ETL Listed in the US and Canada.
• Made in the U.S.A.

Specifications:

• Power Rating: 120VAC, 60Hz, 20A
• Outlets: 9 (15A/20A) outlets (1 front, 8 rear)
• Termination: 9 ft. attached cord with NEMA 5-20P plug
• Advanced surge protection to 72,000A. LED status indicators.
• On/off Switch: Rocker switch controls 5 rear outlets (1 front and 3 rear outlets are un-switched)
• Chassis: 19 in. x 9 in. x 1.75 in. (1U)
• COMPLIANCE & CERTIFICATION
• EIA/TIA Compliant
• RoHS Compliant
• ETL Listed (U.S. and Canada)
• Made in the U.S.A. with global components
