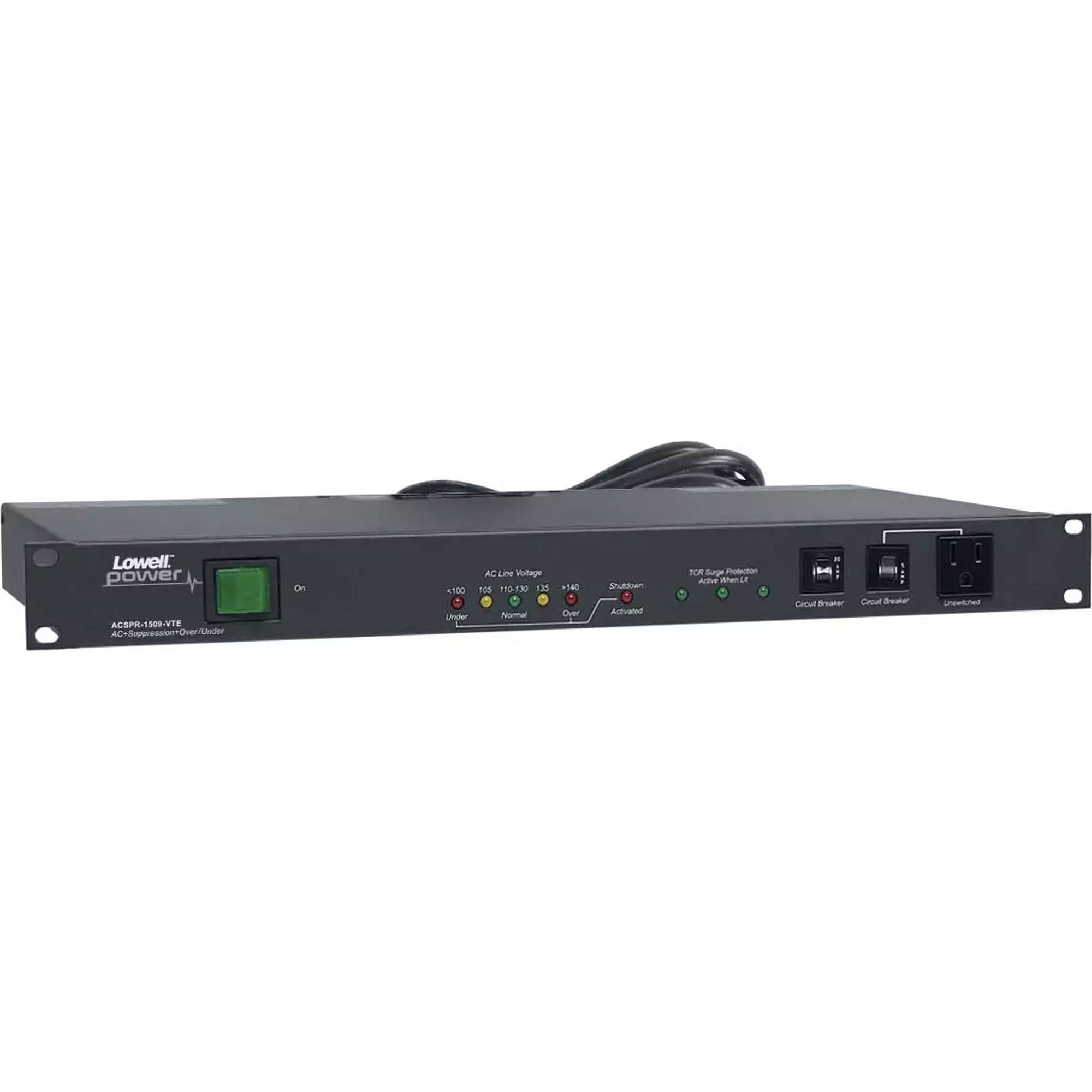

Lowell ACSPR-1509-VTE Rackmount Power Panel with Over/Under Protection

19" Rackmount Power Panel with Over/Under Voltage Protection

Variety of 19" rackmount panels with (15A) AC power outlets and options for different levels of surge protection or over/under voltage protection let you select exactly what's needed to support the equipment specified for each project, while staying within budgetary guidelines. All units are ETL Listed in the US and Canada (to UL Standard 60065) and are made in the USA with domestic and foreign parts.

Features:

• All models include:
• Steel Chassis (black): 19"W x 9"D x 1U
• Front activation rocker switch (lighted)
• Attached 9-ft. cord with NEMA 5-15P plug
• Power Rating: 120VAC, 60Hz, 15A (NEC Art.210.21 [B] [2] rating 12A) 15A circuit breaker
• Features that are model specific:
• Model No. ACR-1509:
• Rear outlets: 5 switched, 3 unswitched - Front outlet: 1 unswitched
• No surge protection
• Model No. ACR-1509-S:
• Rear outlets: 3 switched, 5 unswitched
• Front outlet: 1 unswitched
• Surge Protection: basic
• (1) LED status indicator on front shows protection is active - Maximum Surge Current: 30,000A
• VPR (UL1449-3): 400V
• Endurance: 100 WCS* (unlimited low level surges)
• Response Time: 1 nanosecond
• EMI/RFI Noise Reduction: 20dB@100kHz
• Protection Mode: Line to neutral only. No ground contamination.
• Model No. ACSPR-1509:
• Rear outlets: 5 switched, 3 unswitched
• Front outlet: "always on" outlet independently protected by 5A circuit breaker
• Surge Protection: advanced (3-stage)
• Multiple LED status indicators on front
• MaximumSurgeCurrent:72,000A(exceedsUL1449-36000V,3000A).
• Initial Clamping Voltage: 205V, UL rating 330V
• Endurance: IEEE C62.41-1991, B3 (C1), Pulses (lifetime):
• 1kv>=1,000,000; 3kv>=100,000; 6kv>=5000
• Transient Noise Reduction: 25dB@100kHz; 50dB@1MHz
• Response Time: Less than 5 nanoseconds
• Protection Mode: Line to neutral, zero ground leakage
• UL1449-2 Adjunct Results:1000 surges, 6000 volts, 3000A, C1
• and B3 waveforms (IEEE C62.41), No failures

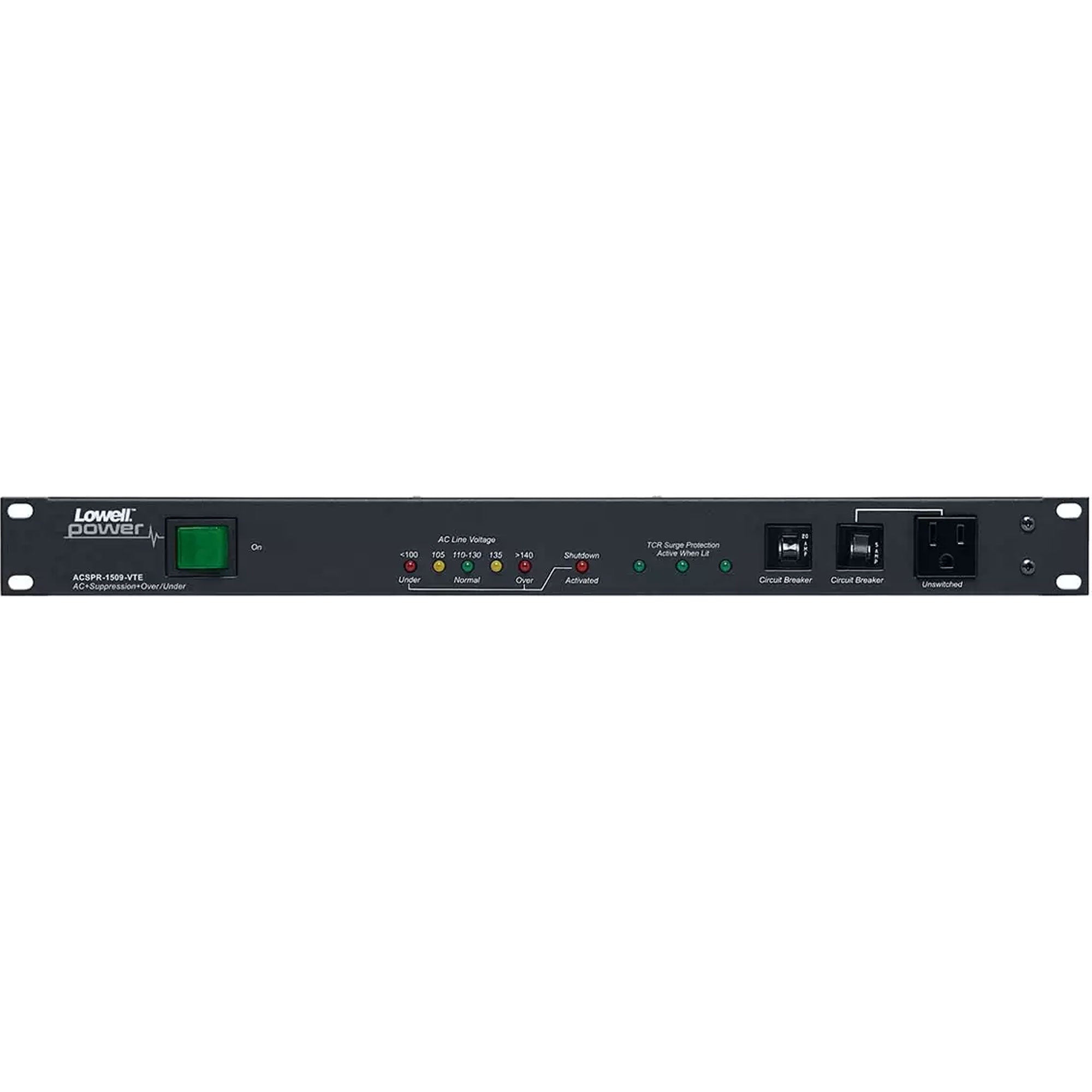

• Diagnostic LEDs: Left green light on = ground verified, Center green light on = protection active, Right red light on = protection reduced.
• Applicable Standards: IEEE standard 587-80 A & B, IEEE standard C62.41-1991, IEC 1000-4-5-1995 (IEC 801-5).
• EMI/RFI Filter: 19dB@500kHz, 42dB@30MHz

Specifications:

• Power Rating: 120VAC, 60Hz, 15A

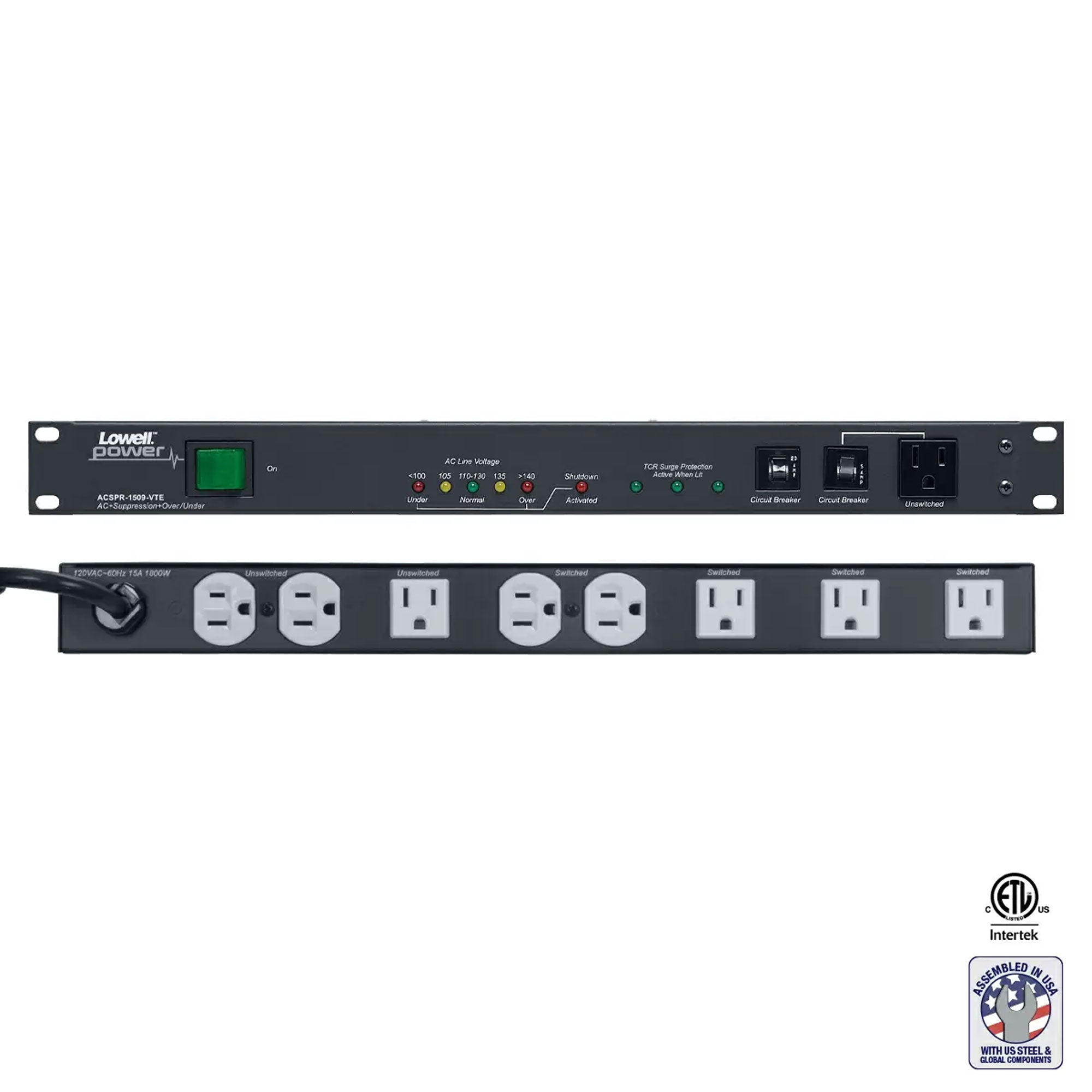

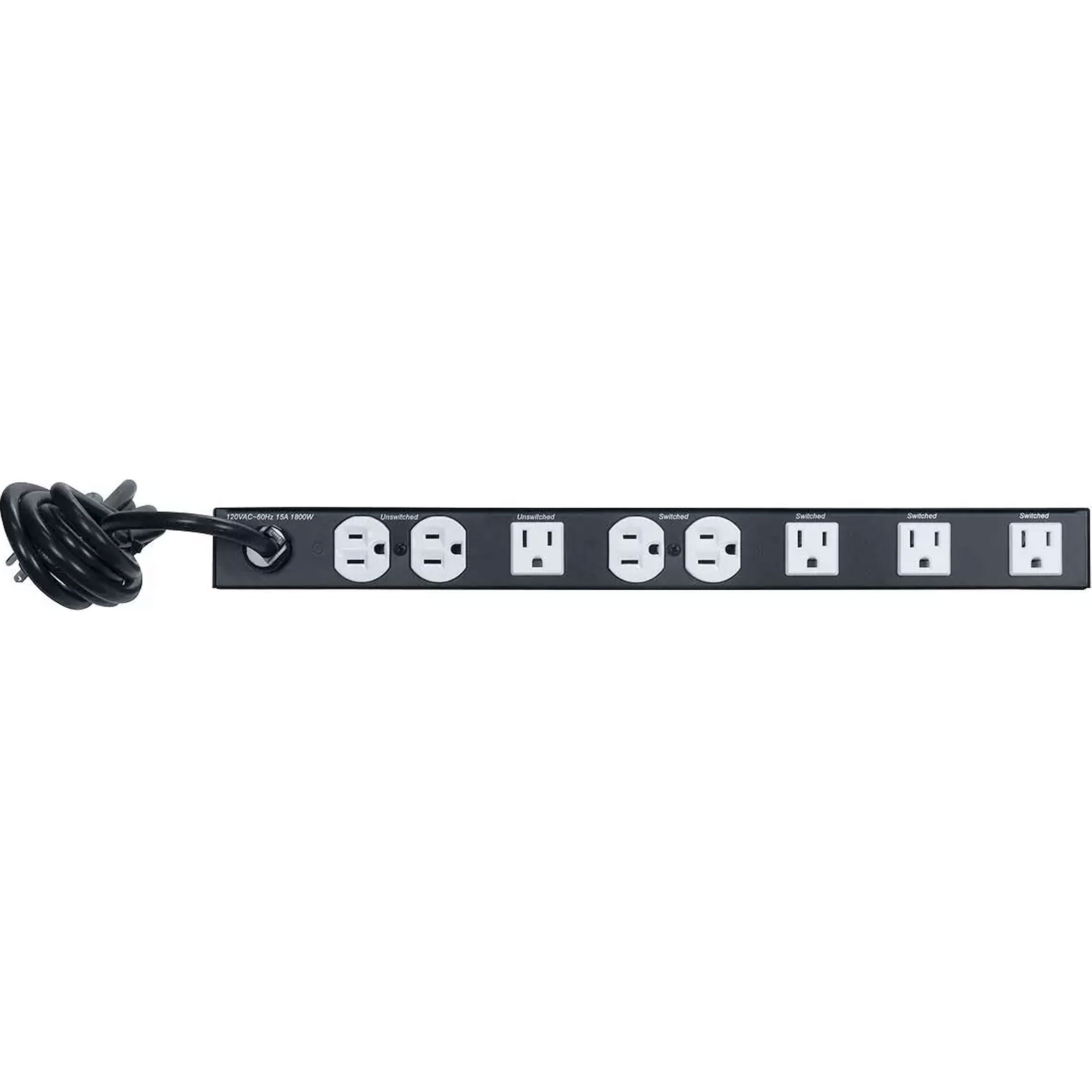

• Outlets: 9 (15A) NEMA outlets (1 front, 8 rear)
• Termination: 9 ft. attached cord with NEMA 5-15P plug
• Chassis: 19 in. x 9 in. x 1.75 in. (1U)
• Advanced surge protection to 72,000A. LED status indicators.
• On/off Switch: Rocker switch controls 5 rear outlets (others are un-switched)
• Over/Under Voltage Protection: Turns outlets off when line voltage exceeds 140V or drops below 100V. Auto-reset.
• COMPLIANCE & CERTIFICATION
• EIA/TIA Compliant
• RoHS Compliant
• ETL Listed (U.S. and Canada)
• Made in the U.S.A. with global components
