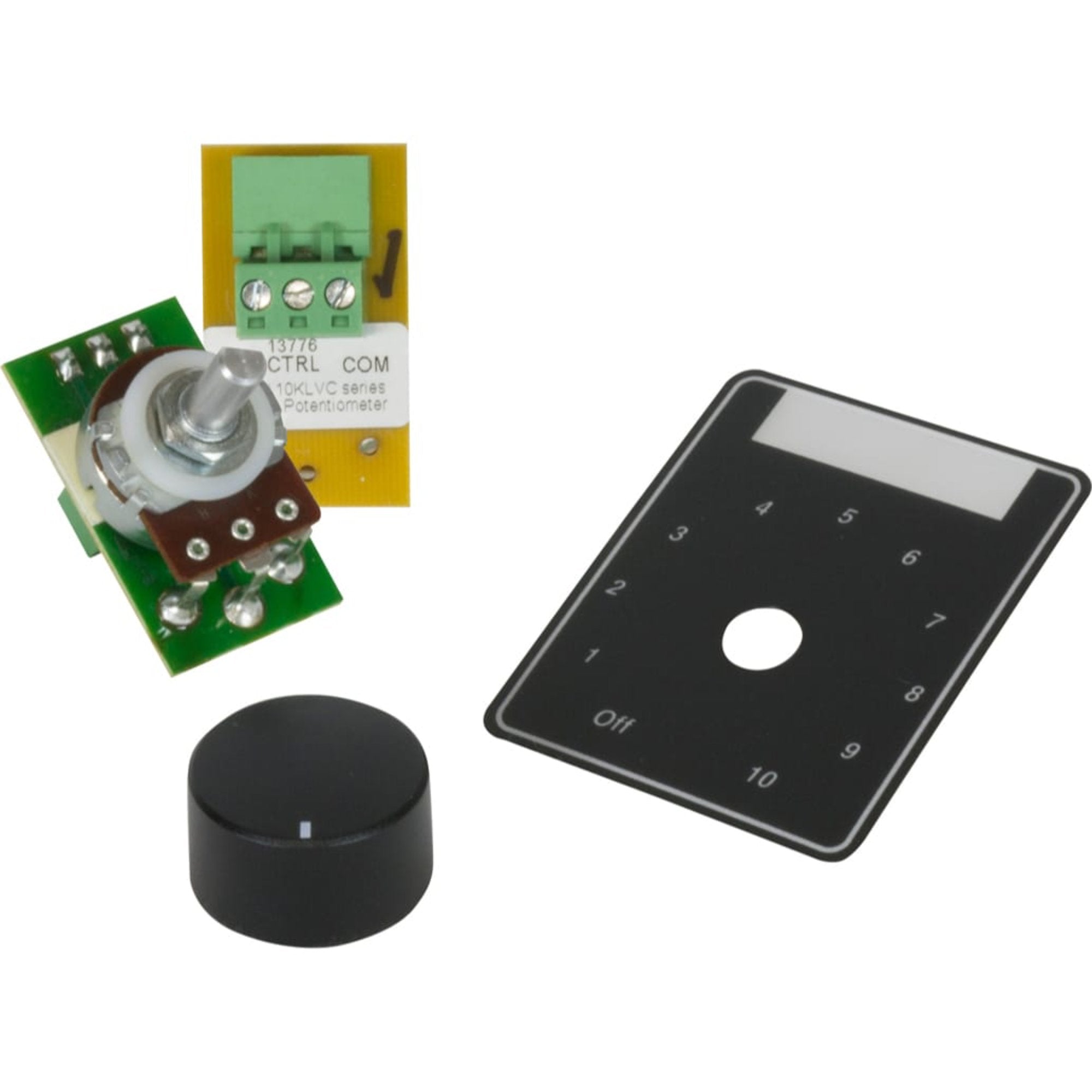

Lowell 10KLVC-RM Rackmount 10k Ohm Volume Attenuator

10k Ohm Volume Control with Rotary Switch for Rackmount Use

Potentiometer Series 10KLVC is a 10k ohm linear taper control for sin- gle-point remote level adjustment of voltage controlled amplifiers (VCA) by others. It features phoenix-style removable screw termination strips for pre-wire with capacity for 14-gauge wire. It's designed to interface di- rectly with 3-wire, 0 to 10 volt control inputs that are typical on most volt- age controlled amplifiers. The 10k ohm potentiometer allows the amplifier's control voltage to be set or adjusted from a single remote lo- cation. Decora-style or rackmount models:

- Decora-style (with wall plate): includes the control assembly on a sub-plate, knob and wall plate. Decora-style assemblies match other Lowell LVC-series devices and are offered in white, black, almond, or stainless steel with white or black subplate.

- Rackmount (Model No. 10KLVC-RM): includes control assembly, knob and adhesive label with dial scale (and window to insert a 1/2" label). This device is designed to mount to a field-punched rack panel (2U or larger) or pre-punched panel (Model No. LVC8P-ID-2). Order panel separately.

Features:

• 10K ohm linear taper potentiometer.
• Provides level adjustment of voltage controlled amplifiers from a single remote location.
• Continuous, rotary control with stops at 0 and Max plus incremental detents for precision feel.

Specifications:

• Power Rating: 0.5W
• Attenuation: Continuous
• Use With: VCA control or audio circuit
• Activation: Rotary dial
• Termination: Phoenix-style
• Wire Capacity: 14-gauge
• Adhesive label with dial scale and label window
• Install in rackmount panel (order separately)
• COMPLIANCE & CERTIFICATION
• Made in the U.S.A. with global components
