Key Features
- For Venue2 Modular Receiver System
- Install up to 6 Modules
- iQ Dynamic Tracking Filters
Description

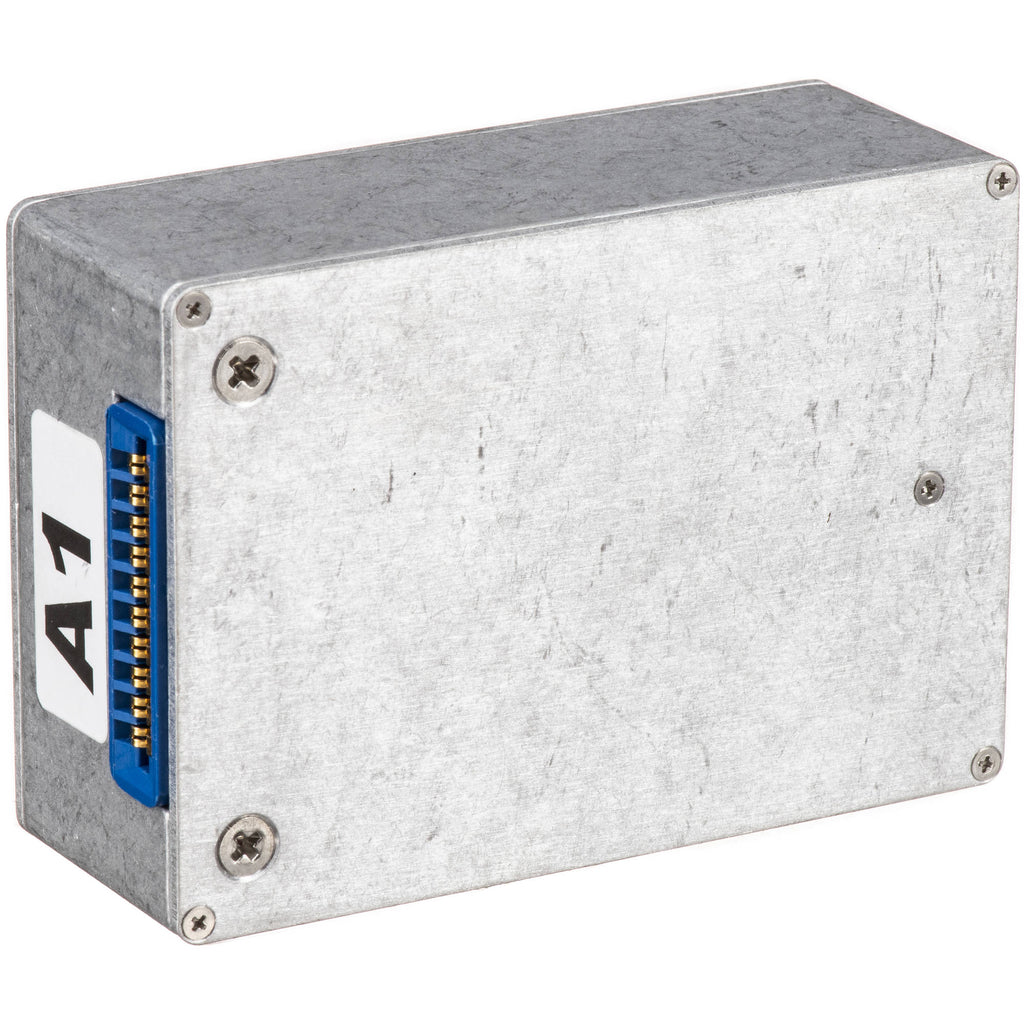

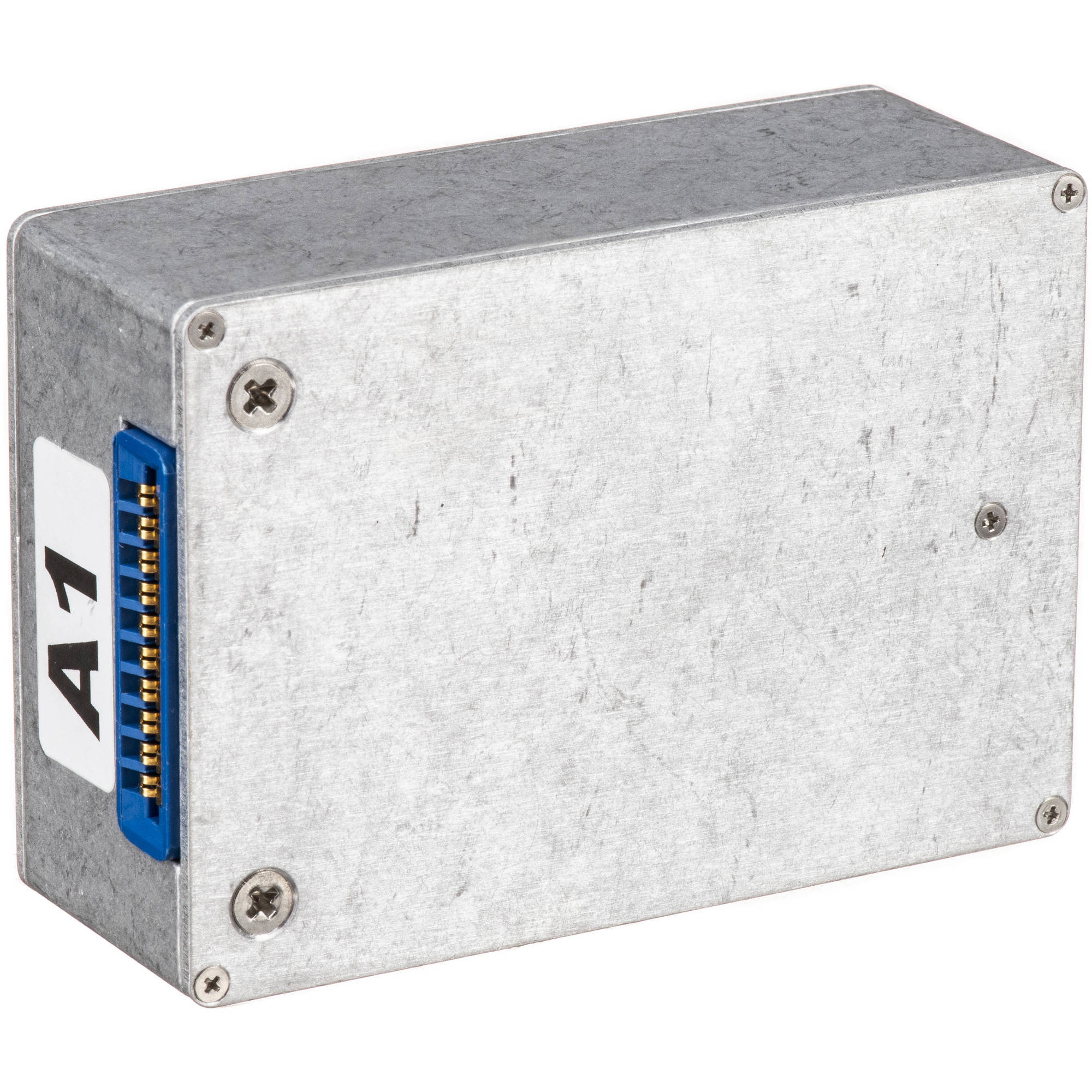

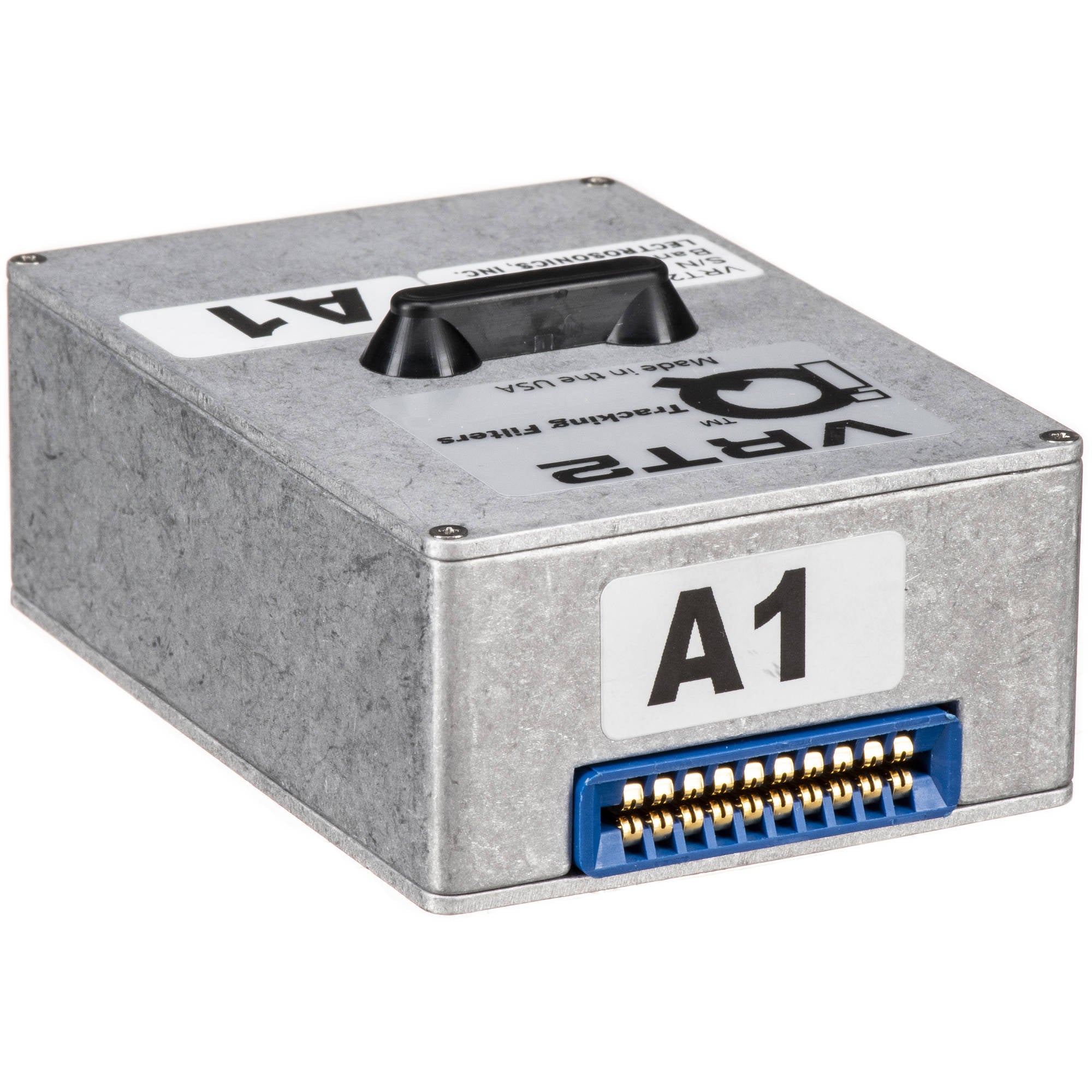

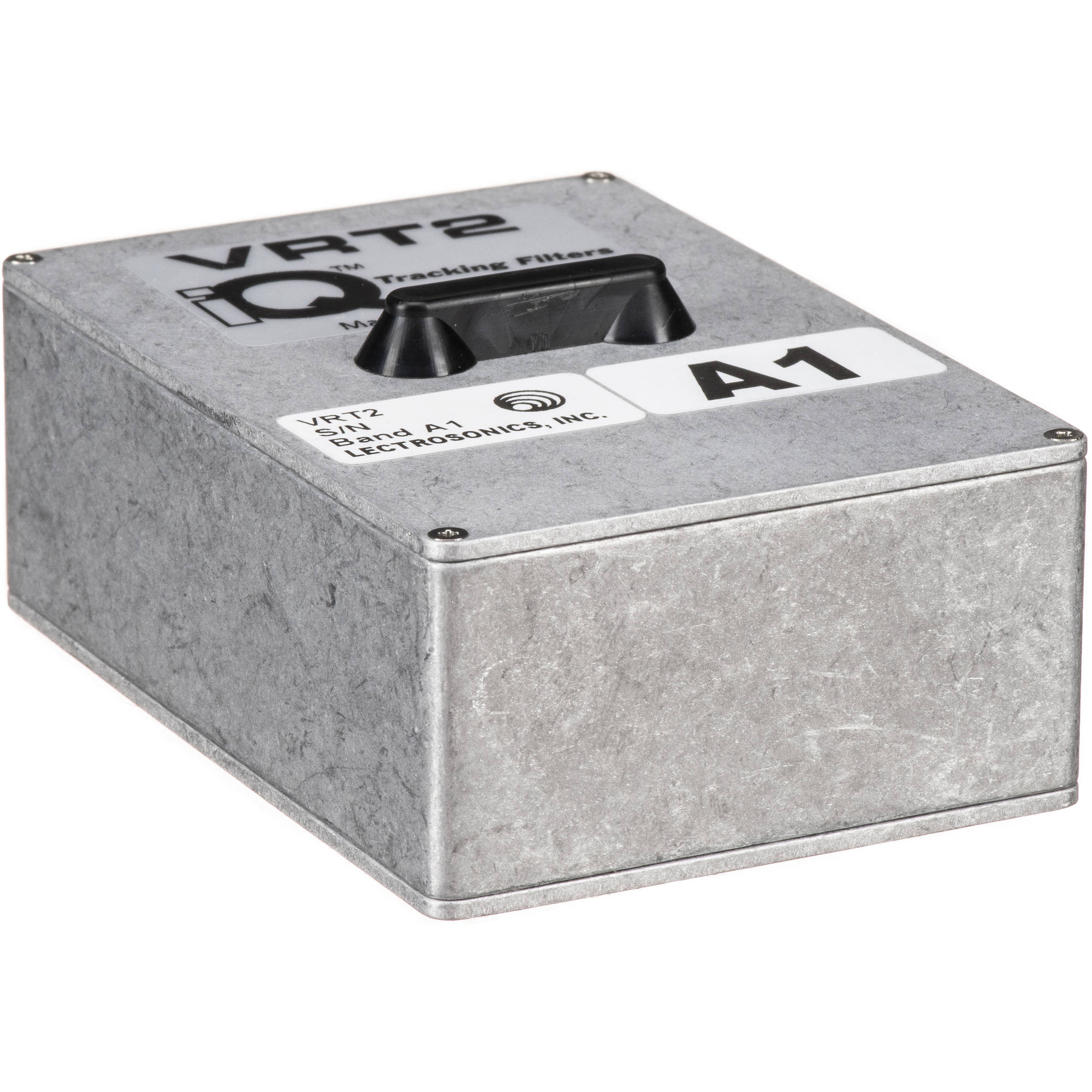

Venue 2 Series Receiver Module with iQ Tracking Filters (Blocks 470-20)
Up to six VRT2 modules may be installed per each 1RU Venue 2 receiver frame. Each module supports up to 3072 tunable frequencies across a 75 MHz range (three standard Lectrosonics blocks), matching the tuning ranges of SSM, LT and LMb "large bandwidth" transmitters. VRT2 modules incorporate Lectrosonics' new IQ dynamic tracking filters, which accommodate a wide range of transmitter RF power levels while also enabling extremely tight channel spacing-critical features as the available RF spectrum continues to shrink.
The receiver modules can be operated independently, each with switched diversity reception for a total of six audio channels, or operated in pairs for more robust diversity reception with one audio channel per module pair. Combinations can be mixed and matched within one frame. Receiver modules are easy to change, with no tools required, and may be installed in any position, except when paired for ratio diversity reception. The VRT2 modules are offered in four different frequency ranges for worldwide use: A1, covering blocks 470, 19 and 20 (470.100 - 537.575 MHz), B1, covering blocks 21, 22 and 23, (537.600 - 614.375 MHz), C1, covering blocks 24, 25 and 26 (614.400 - 691.175 MHz) and D1, for export only, covering blocks 27, 28 and 29 (691.200 - 767.975 MHz).
VRT2 modules are not compatible with older Venue (VRM, VRMWB, VRMWBL) frames.
Features:
- Six-channel modular configuration
- Ratio or Antenna Phase diversity reception
- 3-block tuning for up to 76 MHz and 3072 synthesized UHF frequencies per receiver module
- IR port for quick transmitter setup
- DSP emulation modes for compatibility with analog wireless systems in addition to the Digital Hybrid mode
- iQ dynamic tracking filters for enhanced RF performance
- Wireless Designer setup and control software included
- Talkback function with select transmitters
- Ethernet, USB and RS-232 computer interface ports
