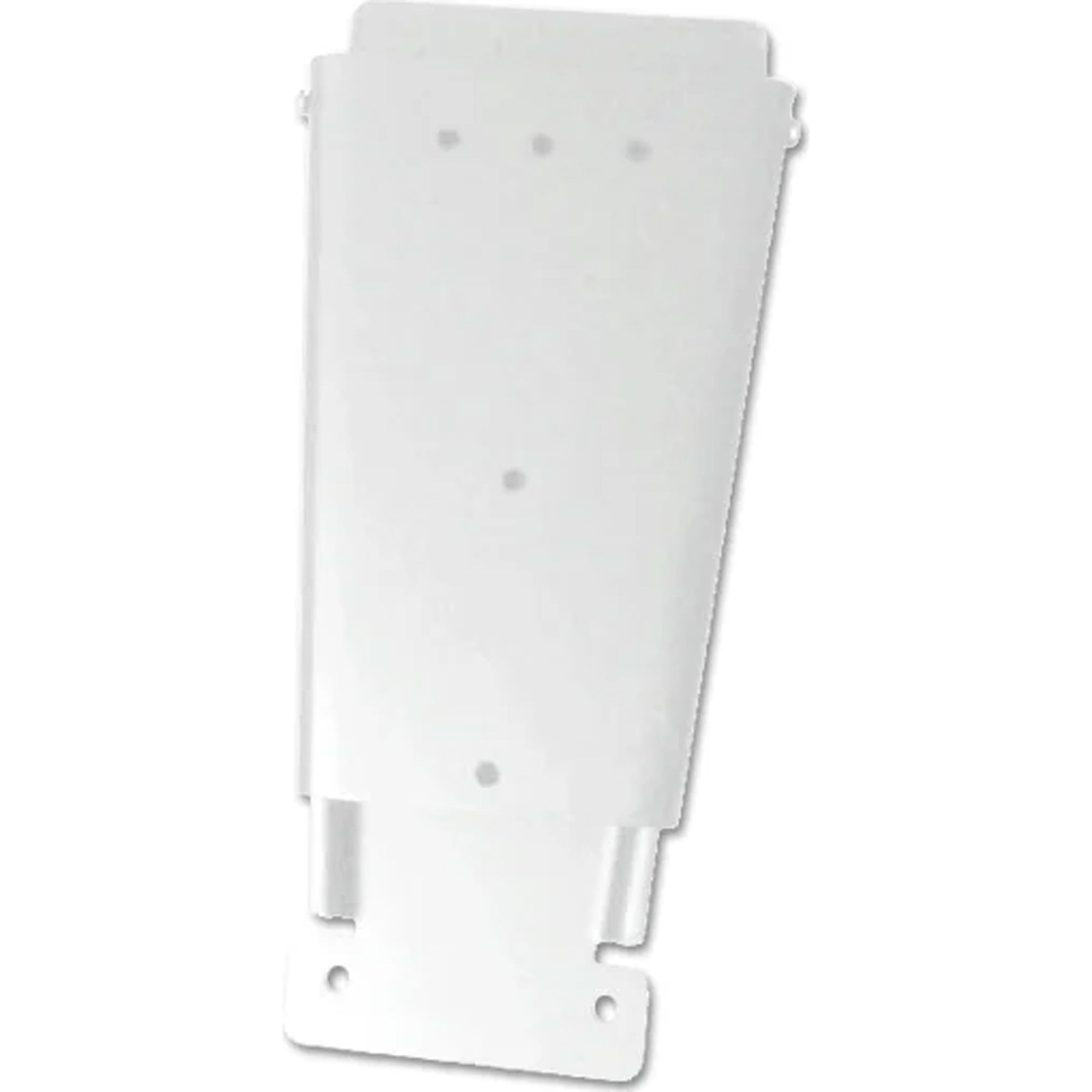

JBL MTC-CBT-FM2-WH Flush-Mount Wall Bracket for CBT70J-1 and 70J-1/JE-1 (White)

Flush-Mount Wall Bracket for CBT70J-1 and CBT70J-1/CBT70JE-1, White

Flush-Mount Wall Bracket for CBT70J-1 and CBT70J-1/CBT70JE-1

Features:

• Provides Low-Profile, Close-to-Wall Mounting Brackets for JBL CBT Line Array Column Speakers
• Drop-In Ease of Assembly with Set Screw(s) for Secure Installation
• ROHS-Compliant Zinc Plating for Weather Resistance
• For Mounting Speaker in Typical Vertical Orientation (not for Horizontal Orientation)
• Available in Black or White (-WH)
• For Use with CBT 70J-1 and CBT 70J- 1/70JE-1 array.
• Loudspeaker-Mount Section of bracket attaches to the included insert points on the back panel of the speaker (using the M6x15 mm bolts, flat washers & lock washers that come with the speaker). Mounting points are at 254 mm x 70 mm (10 x 2-3/4 inch) spacing.
• Wall-Mount Section has 3 aligned holes vertically; 3 aligned holes horizontally.
• Loudspeaker-Mount Section drops easily into Wall-Mount Section. Set screw holds securely.
• 3.5 mm thick (10-Gauge AWG) Metal
• Bracket assembly spaces back of
• speaker within 20 mm (0.77 inches) of wall (typical).
